Samsung Galaxy Tab Active 2 SM-T395

Teardown difficulty:
Hard

Duration:
14 min

Recommended tools

Heat gun

Screwdriver phillips #000

Opening tool / spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Tab Active 2 SM-T395 with each step description and the required set of tools.

Vadim Popoff

Author / content specialist

Author / Content specialist with 10+ years of experience

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 1/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 1/2

Step 1.

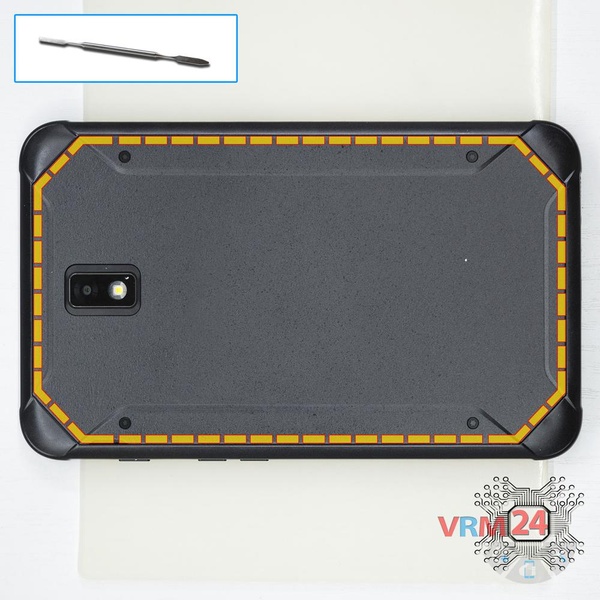

Open the back cover.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 2/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 2/2

Step 2.

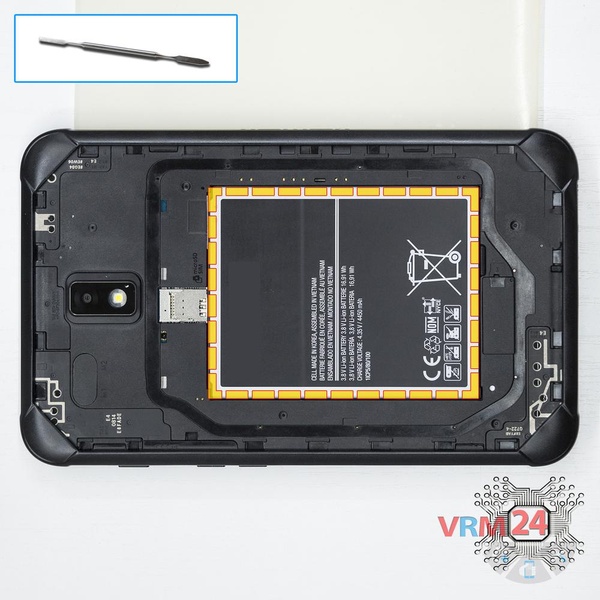

Lift and remove the battery.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 3/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 3/2

Step 3.

Remove the cover.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 4/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 4/2

Step 4.

Pry up the connectors.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 5/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 5/2

Step 5.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 6/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 6/2

Step 6.

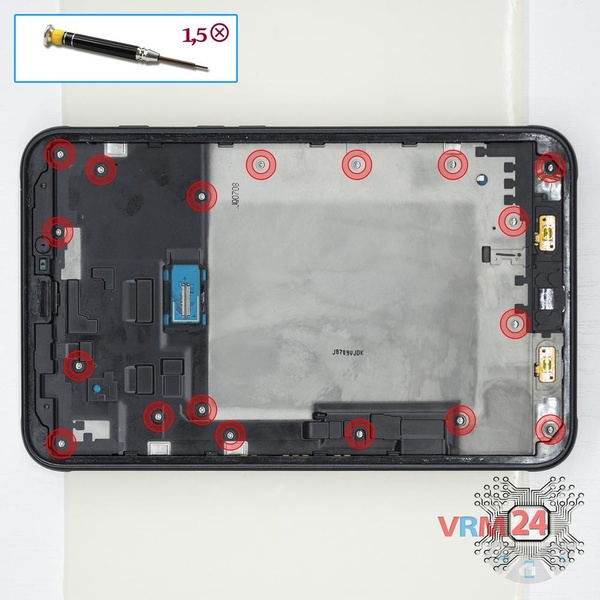

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 18 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 7/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 7/2

Step 7.

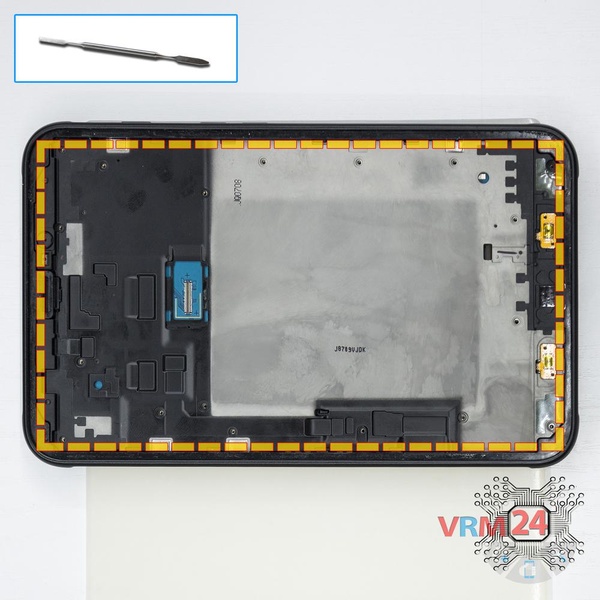

Pry and remove the middle cover.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 8/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts securing the charging port and headphone jack/socket.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 9/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 9/2

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 9/3

Step 9.

Remove the small PCB.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 10/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 10/2

Step 10.

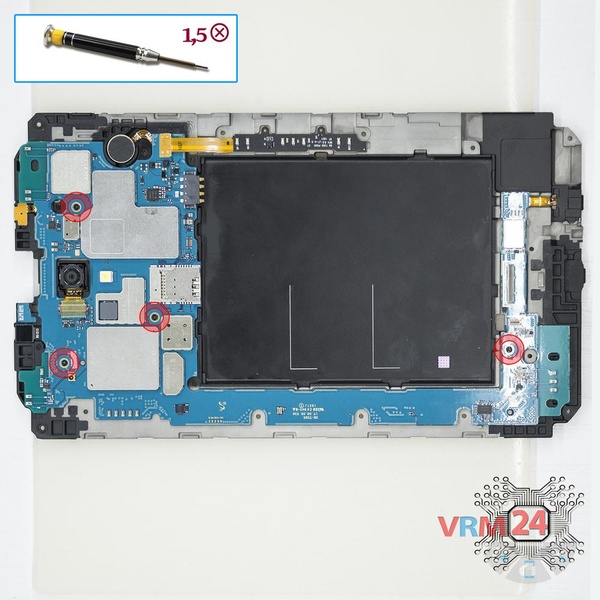

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 11/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 11/2

Step 11.

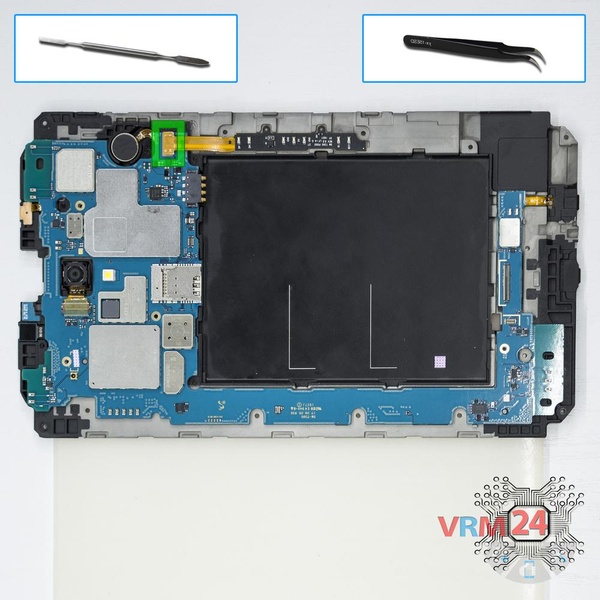

Disconnect the connector on PCB.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 12/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 12/2

Step 12.

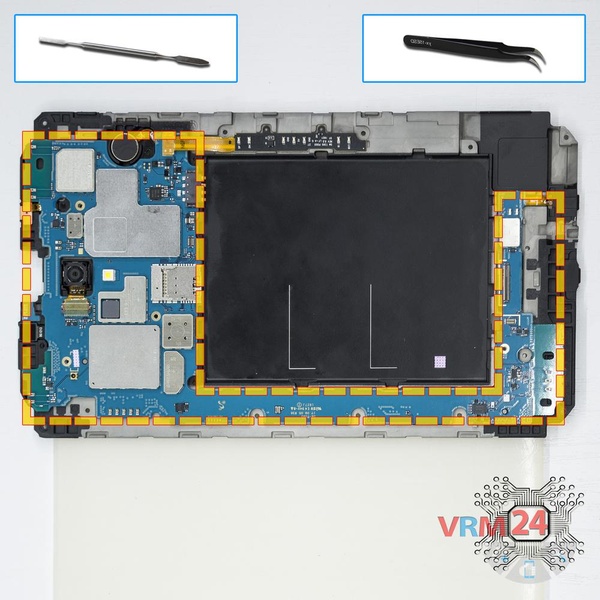

Remove the PCB.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 13/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 13/2

Step 13.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 14/1

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 14/2

How to disassemble Samsung Galaxy Tab Active 2 SM-T395, Step 14/3

Step 14.

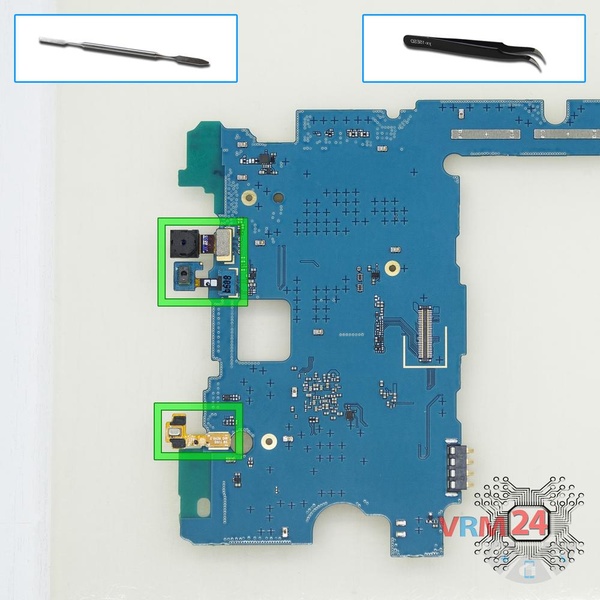

Turn over PCB, disconnect the connectors from the inside and remove the front (selfie) camera, proximity sensor, and microphone.
