Samsung Star 3 Duos GT-S5222
Samsung Star 3 Duos GT-S5222
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Star 3 Duos GT-S5222 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Star 3 Duos GT-S5222, Step 1/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 1/2

Step 1.

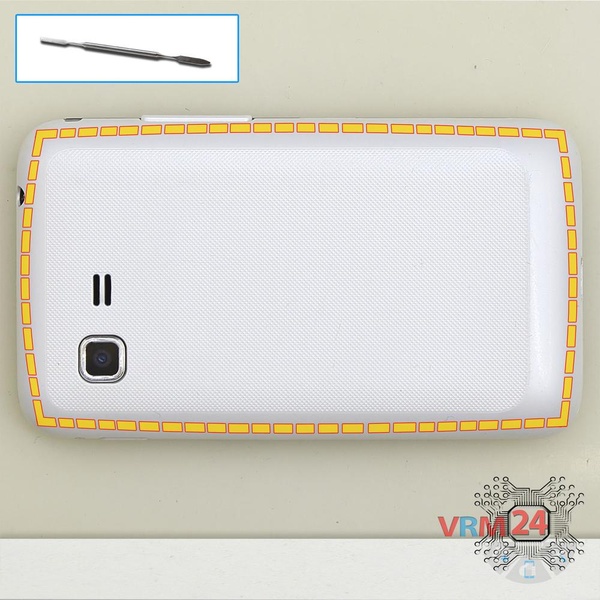

Open the back cover.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 2/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 2/2

Step 2.

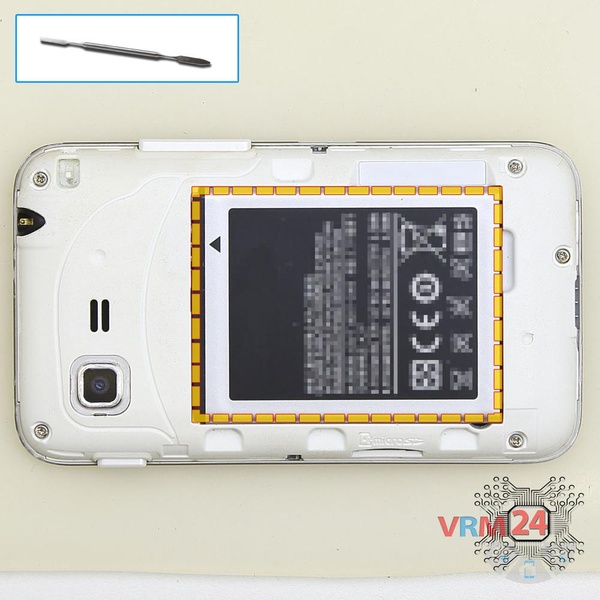

Lift and remove the battery.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 3/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 3/2

Step 3.

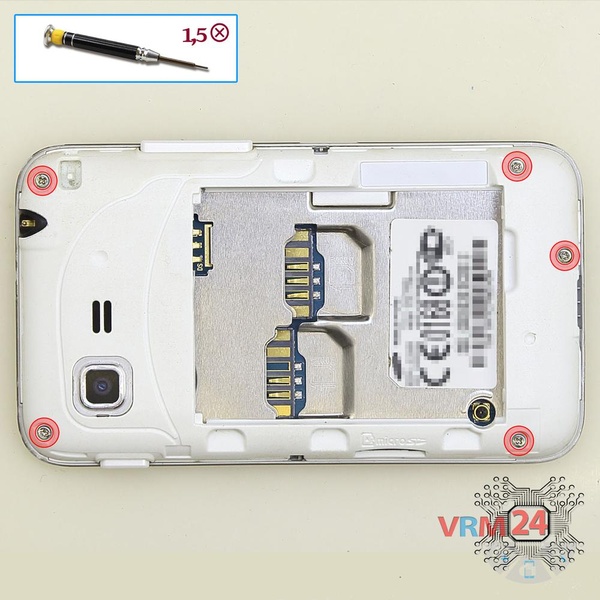

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the frame of the phone.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 4/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 4/2

Step 4.

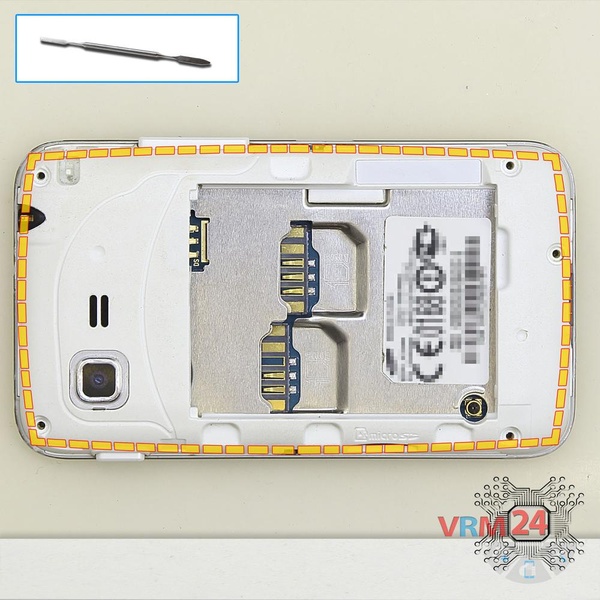

Pry and remove the middle frame.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 5/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 5/2

Step 5.

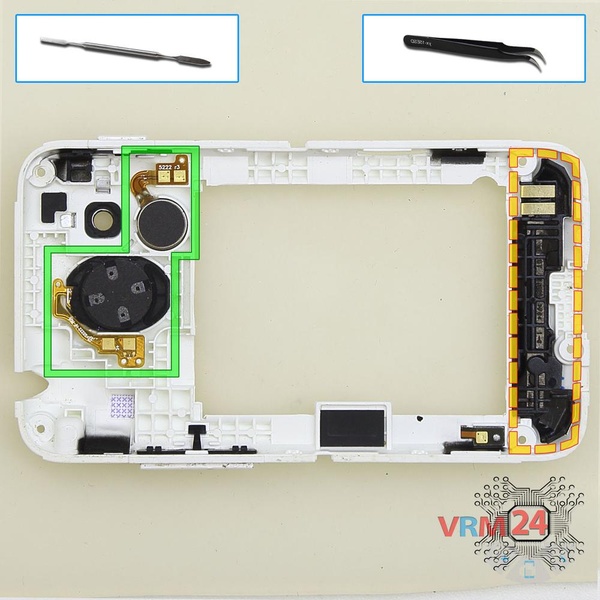

Pry and remove the speaker, vibration motor and part with copper contacts.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 6/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 6/2 How to disassemble Samsung Star 3 Duos GT-S5222, Step 6/3 How to disassemble Samsung Star 3 Duos GT-S5222, Step 6/4 How to disassemble Samsung Star 3 Duos GT-S5222, Step 6/5

Step 6.

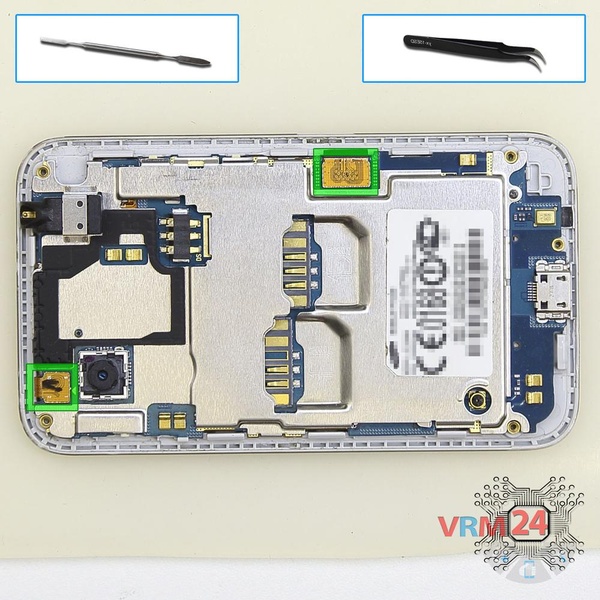

Disconnect connectors on the PCB.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 7/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 7/2

Step 7.

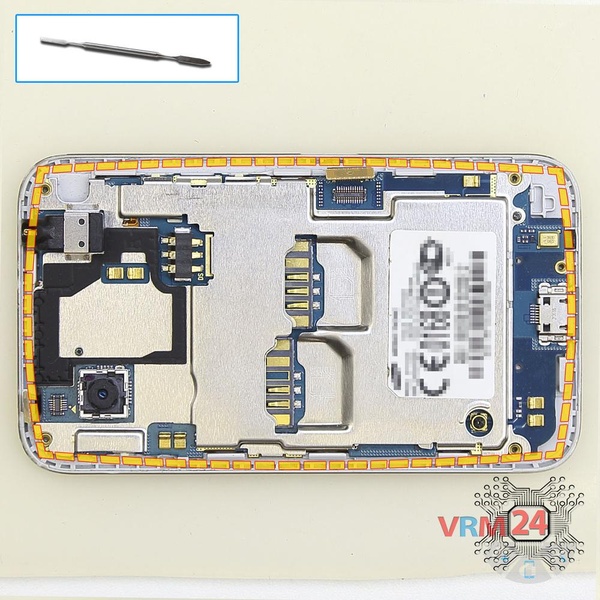

Remove the PCB.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 8/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 8/2

Step 8.

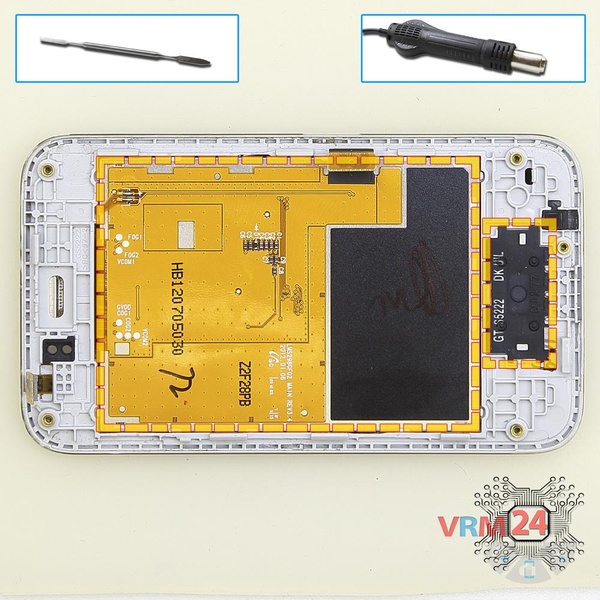

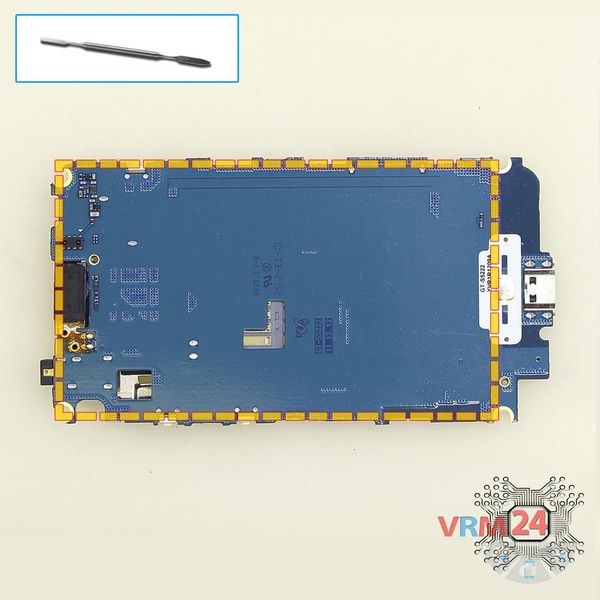

Remove the display and Home button key.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 9/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 9/2

Step 9.

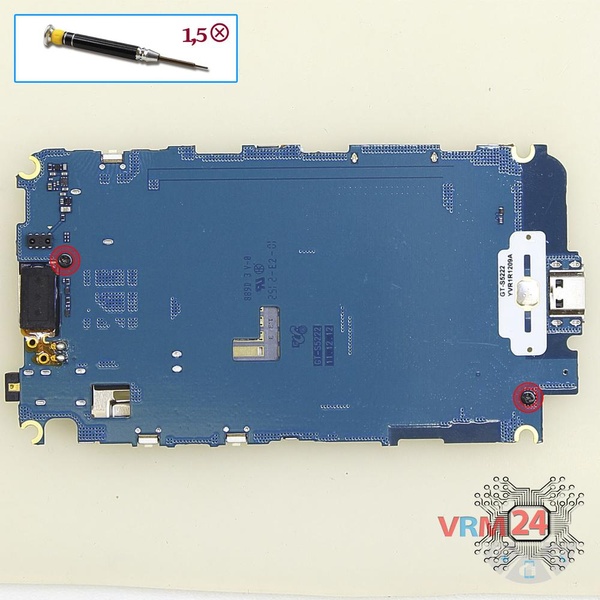

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 10/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 10/2

Step 10.

Remove the protective cover.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 11/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 11/2

Step 11.

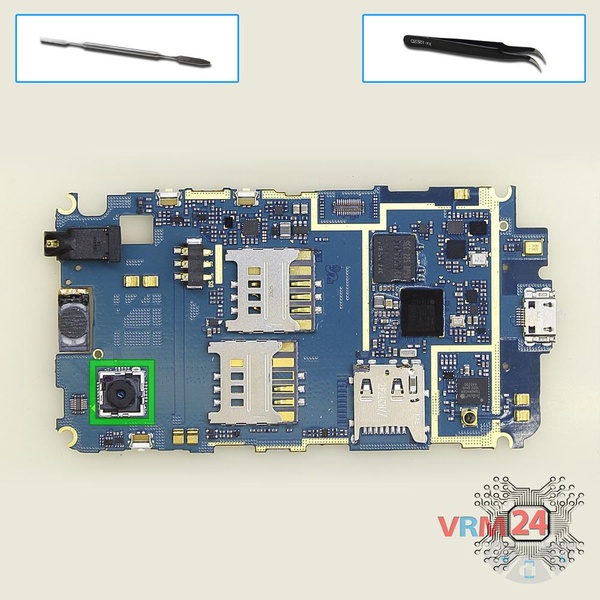

Pry and remove the camera.

How to disassemble Samsung Star 3 Duos GT-S5222, Step 12/1 How to disassemble Samsung Star 3 Duos GT-S5222, Step 12/2 How to disassemble Samsung Star 3 Duos GT-S5222, Step 12/3

Step 12.

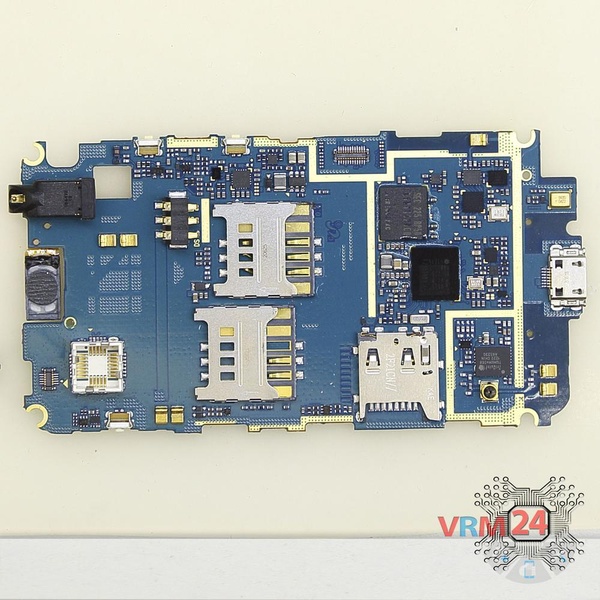

The PCB.

Detailed disassembly instructions of Samsung Star 3 Duos GT-S5222 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Star 3 Duos GT-S5222
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Star 3 Duos GT-S5222 released for markets in different countries.
