Tech review of Asus ZenFone 3 Max ZC520TL

Compare this model

Irene Lebed

Author, Content Specialist

Creates new content, including blogs, events, and news.

Views

Likes

—

Questions

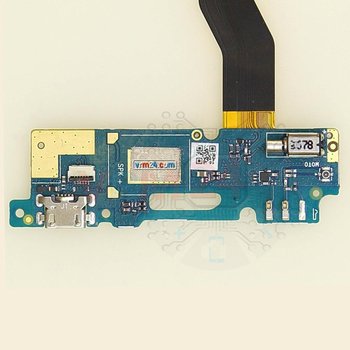

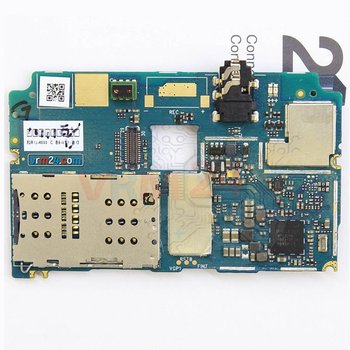

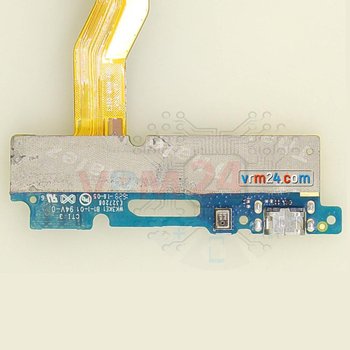

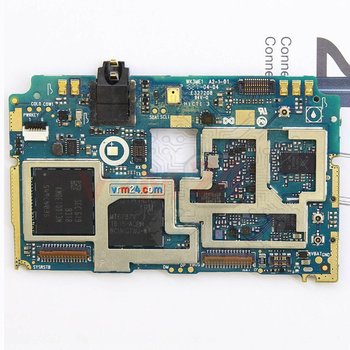

Main and additional circuit boards

Asus ZenFone 3 Max ZC520TL

Side 1

Side 2

Features

Type Smartphone

OS Android 6.0.1 (Marshmallow), ZenUI 3

SIM type/size Micro SIM / Nano SIM

SIM Hybrid Dual SIM

Dimensions 149.5 x 73.7 x 8.6 mm (5.89 x 2.90 x 0.34 in)

Weight 148 g (5.22 oz)

Display

Display type IPS LCD capacitive touchscreen, 16M colors

Size 5.2 inches, 74.5 cm2 (~67.7% screen-to-body ratio)

Resolution 720 x 1280 pixels, 16:9 ratio

PPI density 282

Protection ---

Multimedia

Main camera 13 MP, f/2.2, AF

Main camera Video 1080p, 30fps

Front (selfie) camera 5 MP, f/2.0

Front (selfie) camera Video ---

Audio MP3, AAC, WAV, WMA, FM radio

Headphone jack 3.5mm Jack

Network

Technology GSM / HSPA / LTE

Bands Yes, band 1, 2, 3, 4, 5, 7, 8, 18, 19, 26, 28, 38, 41 - Taiwan, band 1, 3, 5, 8, 40 - India

Interfaces Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot, Bluetooth 4.0, A2DP, EDR

Satellite navigation GPS with A-GPS, GLONASS, BDS

Processor and Memory

System on a chip Mediatek MT6737M

CPU Quad-Core Cortex-A53 1.25 GHz

GPU Mali-T720 MP2

Internal memory 16 GB or 32 GB

RAM 2 or 3 GB

Card slot Micro SD, up to 32 GB (uses shared SIM slot)

Battery

Battery capacity Li-Po 4130 mAh

Charging port Micro USB 2.0, USB On-The-Go

Other

Announced 2016, July

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Views

Likes

—

Questions

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.

This difficulty rating is also applicable for all models Asus ZenFone 3 Max ZC520TL released for markets in different countries.
