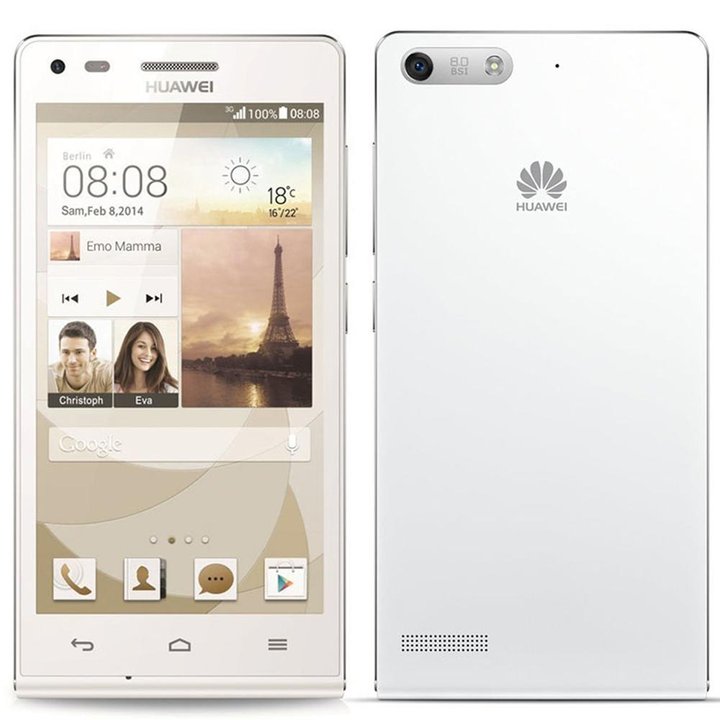

Huawei Ascend G6 / G6-C00
Huawei Ascend G6 / G6-C00
Teardown difficulty:
Moderate
Duration:
4 min

Recommended tools

Screwdriver Torx T4 Screwdriver torx t4
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Ascend G6 / G6-C00 (Huawei Ascend G6 G6-U10 G6-T00 G6-C00) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Huawei Ascend G6 / G6-C00, Step 1/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 1/2

Step 1.

Open the back cover.

How to disassemble Huawei Ascend G6 / G6-C00, Step 2/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 2/2

Step 2.

Peel back & remove the protective label hides the connector.

How to disassemble Huawei Ascend G6 / G6-C00, Step 3/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts, remove the bracket and pry up the connector.

How to disassemble Huawei Ascend G6 / G6-C00, Step 4/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 4/2

Step 4.

Using a screwdrivers (Phillips 1.5 mm PH000), unscrew 8 bolts & a screwdriver (hex T4), unscrew 1 bolt in the frame of the phone.

How to disassemble Huawei Ascend G6 / G6-C00, Step 5/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 5/2

Step 5.

Pry and remove the middle frame.

How to disassemble Huawei Ascend G6 / G6-C00, Step 6/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 6/2 How to disassemble Huawei Ascend G6 / G6-C00, Step 6/3

Step 6.

Pry & remove the vibration motor & buzzer (speaker).

How to disassemble Huawei Ascend G6 / G6-C00, Step 7/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 7/2 How to disassemble Huawei Ascend G6 / G6-C00, Step 7/3

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt, pry up the connector and remove the bracket and headphone jack/socket.

How to disassemble Huawei Ascend G6 / G6-C00, Step 8/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 8/2 How to disassemble Huawei Ascend G6 / G6-C00, Step 8/3 How to disassemble Huawei Ascend G6 / G6-C00, Step 8/4 How to disassemble Huawei Ascend G6 / G6-C00, Step 8/5

Step 8.

Disconnect connectors on the PCB.

How to disassemble Huawei Ascend G6 / G6-C00, Step 9/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 9/2

Step 9.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Huawei Ascend G6 / G6-C00, Step 10/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 10/2

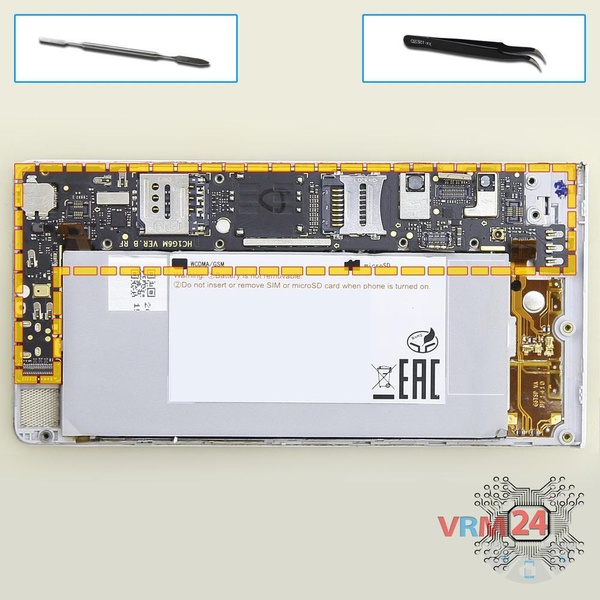

Step 10.

Remove the PCB.

How to disassemble Huawei Ascend G6 / G6-C00, Step 11/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 11/2

Step 11.

Pry and remove the earpiece (speaker).

How to disassemble Huawei Ascend G6 / G6-C00, Step 12/1 How to disassemble Huawei Ascend G6 / G6-C00, Step 12/2 How to disassemble Huawei Ascend G6 / G6-C00, Step 12/3

Step 12.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend G6 / G6-C00 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Ascend G6 / G6-C00
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 4 minutes in time.
Our manual is suitable for all models Huawei Ascend G6 / G6-C00 — Huawei Ascend G6 G6-U10 G6-T00 G6-C00 released for markets in different countries.
