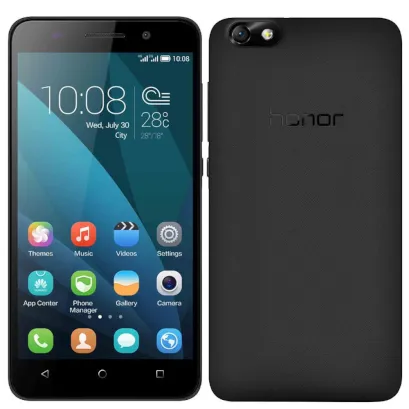

Huawei Honor 4X
Huawei Honor 4X
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Honor 4X (Huawei Honor 4X Che2-L11) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Huawei Honor 4X, Step 1/1 How to disassemble Huawei Honor 4X, Step 1/2

Step 1.

Open the back cover.

How to disassemble Huawei Honor 4X, Step 2/1 How to disassemble Huawei Honor 4X, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 17 bolts and a screwdriver (hex T5), unscrew the 1 bolt in the frame of the phone.

How to disassemble Huawei Honor 4X, Step 3/1 How to disassemble Huawei Honor 4X, Step 3/2

Step 3.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Huawei Honor 4X, Step 4/1 How to disassemble Huawei Honor 4X, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Huawei Honor 4X, Step 5/1 How to disassemble Huawei Honor 4X, Step 5/2 How to disassemble Huawei Honor 4X, Step 5/3 How to disassemble Huawei Honor 4X, Step 5/4 How to disassemble Huawei Honor 4X, Step 5/5

Step 5.

Disconnect connectors on the PCB.

How to disassemble Huawei Honor 4X, Step 6/1 How to disassemble Huawei Honor 4X, Step 6/2

Step 6.

Remove the PCB.

How to disassemble Huawei Honor 4X, Step 7/1 How to disassemble Huawei Honor 4X, Step 7/2 How to disassemble Huawei Honor 4X, Step 7/3

Step 7.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 4X in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor 4X
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Huawei Honor 4X — Huawei Honor 4X Che2-L11 released for markets in different countries.
