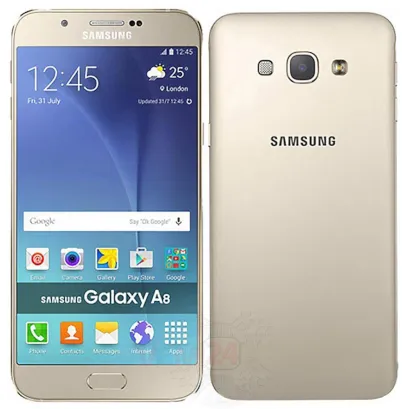

Samsung Galaxy A8 (2015) SM-A8000
Samsung Galaxy A8 (2015) SM-A8000
Teardown difficulty:
Hard
Duration:
17 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy A8 (2015) SM-A8000 (Samsung A8 SM-A8000, SM-A800F, SM-A800I, SM-A800IZ, SM-A800S, SM-A800YZ) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 1/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 1/2

Step 1.

Using the key tool, open the SIM card and Micro SD card trays and remove them.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 2/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 2/2

Step 2.

Separate the display module from the cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun/heating mat/separator, but! the display fragile and glued so tight you should keep in mind it. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 3/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 3/2

Step 3.

Remove the cover.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 4/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 4/2

Step 4.

Pry up the connector and remove the display module.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 5/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 15 screws.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 6/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 6/2

Step 6.

Separate the back cover and the middle cover with PCB.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 7/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 7/2

Step 7.

Disconnect the battery connector. The battery model of Samsung Galaxy A8 (2015) is EB-BA800ABE.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 8/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screws in the PCB.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 9/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 9/2

Step 9.

Disconnect the connector on PCB, and remove the front (selfie) camera.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 10/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 10/2

Step 10.

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 11/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 11/2

Step 11.

Remove the PCB.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 12/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 12/2

Step 12.

Disconnect the connector on PCB, and remove the main camera.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 13/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 13/2

Step 13.

Unstick the daughterboard and remove it.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 14/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 14/2

Step 14.

Unstick the daughterboard with an earpiece speaker and proximity sensor.
How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 15/1 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 15/2 How to disassemble Samsung Galaxy A8 (2015) SM-A8000, Step 15/3

Step 15.

Parts are in the middle cover.

Detailed disassembly instructions of Samsung Galaxy A8 (2015) SM-A8000 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy A8 (2015) SM-A8000
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has hard complexity and takes about 17 minutes in time. Our manual is suitable for all models Samsung Galaxy A8 (2015) SM-A8000 — Samsung A8 SM-A8000, SM-A800F, SM-A800I, SM-A800IZ, SM-A800S, SM-A800YZ released for markets in different countries.
