Recommended tools

Heat gun

Screwdriver Phillips #000

Opening tool / Spudger

Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy S6 Edge SM-G925 (Samsung G925F (Global), G925FQ (Turkey), G925I (LATAM, India, Australia), G925A (AT&T), G925T (T-Mobile), G925S/K/L (Korea), G9250 (China, HK)) with each step description and the required set of tools.

12320

Views

Likes

—

Questions

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Step 1.

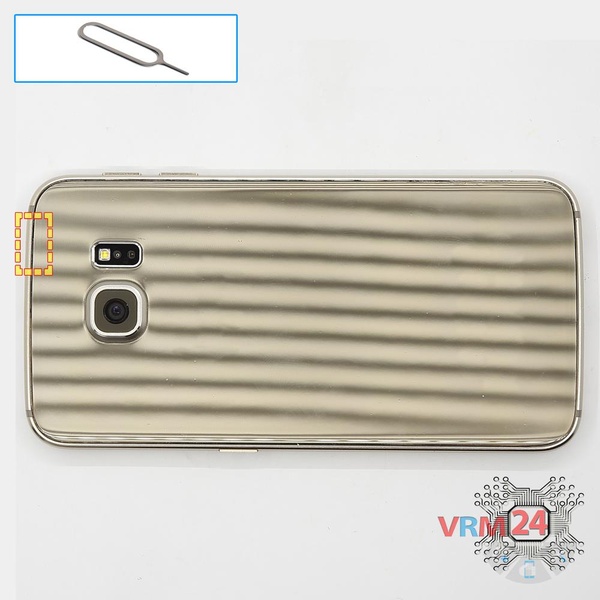

Remove the trays

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠ Warning!

Do not push too hard this may cause damage.

Step 2.

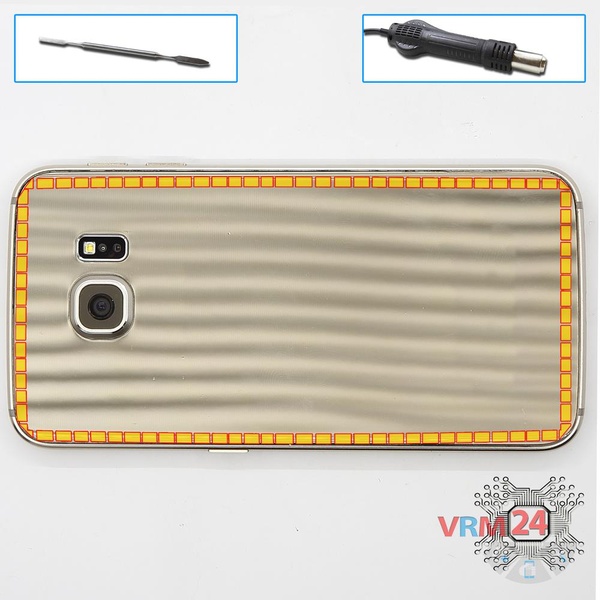

Open the back cover

Open the back cover.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 3.

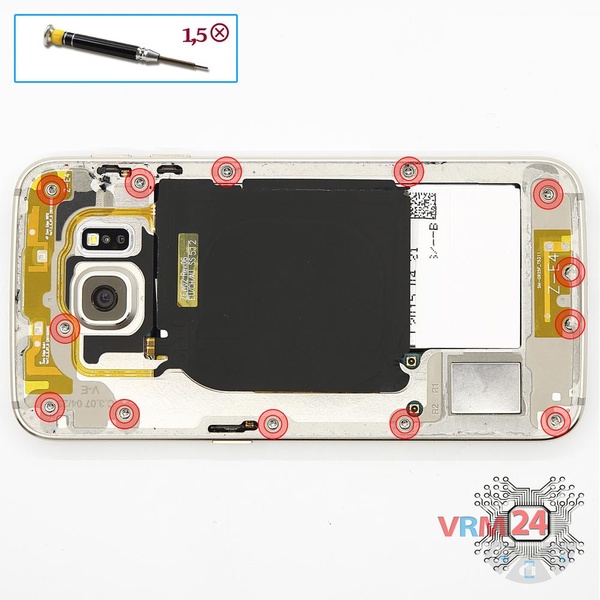

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 13 bolts in the frame of the phone.

Step 4.

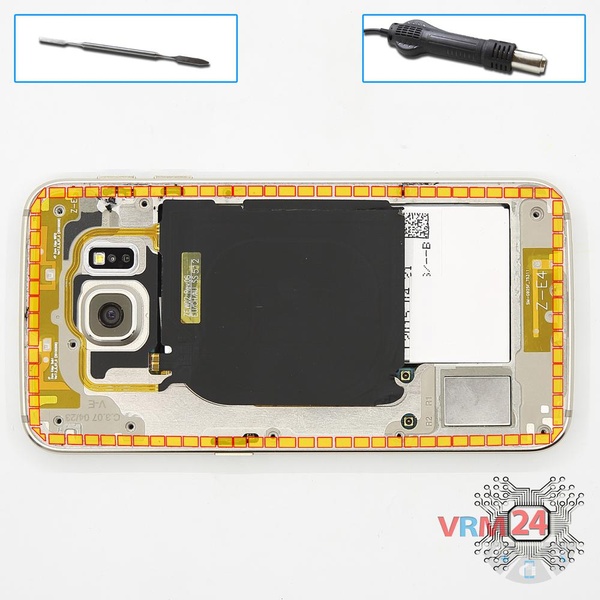

Open the mid-frame

Pry and remove the middle frame.

⚠ Warning!

The frame is glued firmly. For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 5.

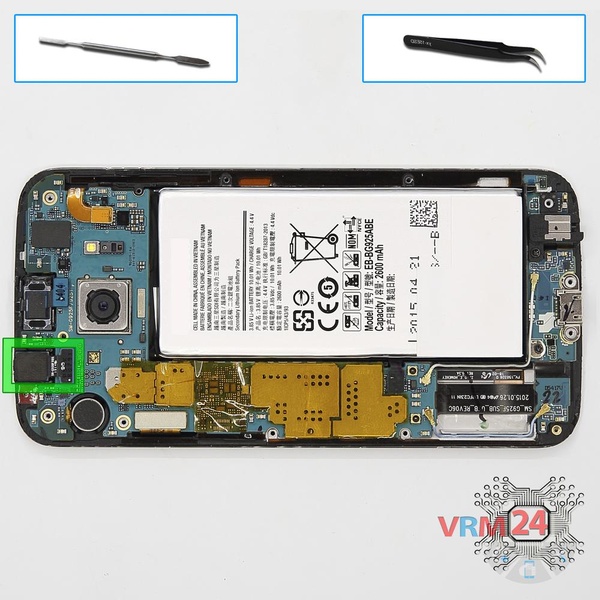

Remove the front camera

Disconnect the connector on PCB, and remove the front (selfie) camera.

Step 6.

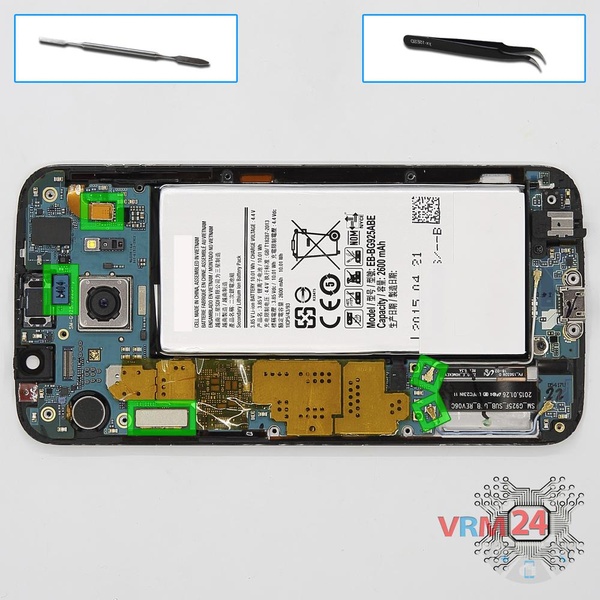

Disconnect the connectors

Disconnect connectors on the main PCB.

Step 7.

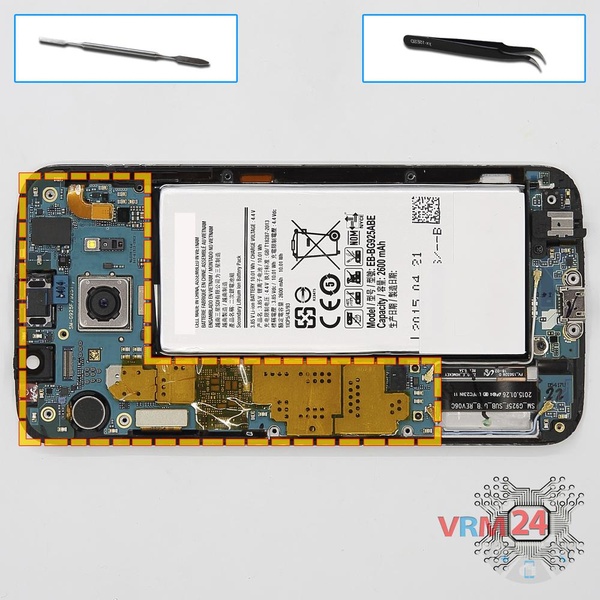

Remove the motherboard

Remove the PCB.

⚠ Warning!

The main PCB connects with the inter-board cable from the inside.

Step 8.

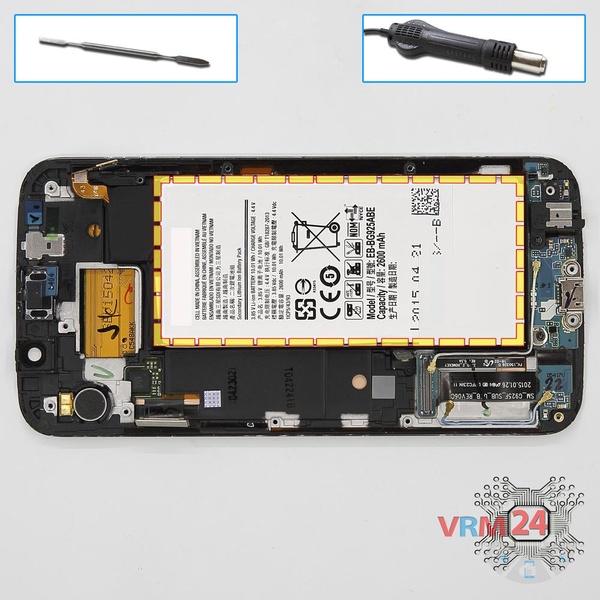

Remove the battery

Remove the battery.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 9.

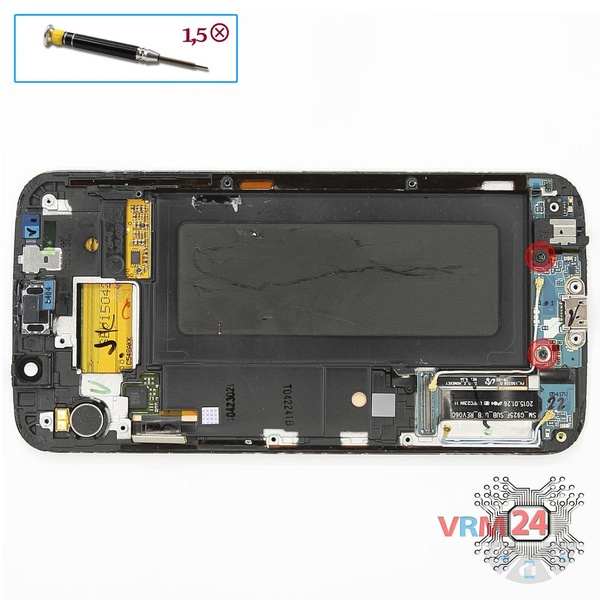

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

Step 10.

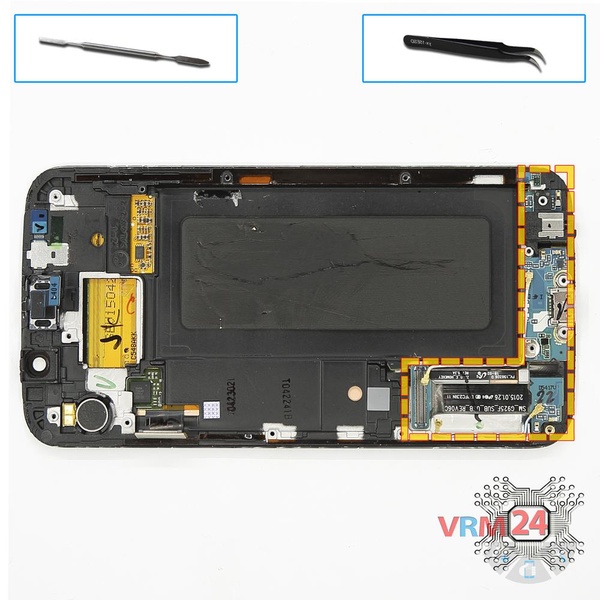

Remove the sub-board

Remove the lower PCB.

Step 11.

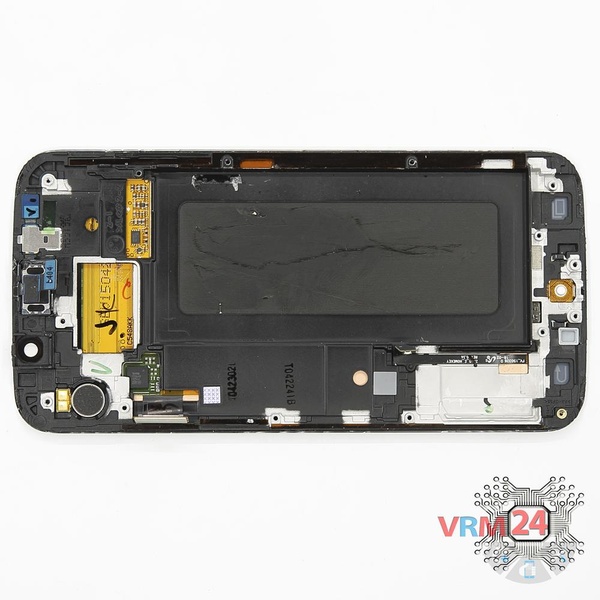

In the display frame remained

Parts are in the frame of the display module.

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 8 minutes in time. Our manual is suitable for all models Samsung Galaxy S6 Edge SM-G925 or Samsung G925F (Global), G925FQ (Turkey), G925I (LATAM, India, Australia), G925A (AT&T), G925T (T-Mobile), G925S/K/L (Korea), G9250 (China, HK) released for markets in different countries.

#instructions #Samsung #Samsung Galaxy S6 Edge SM-G925
