Sony Xperia XA1
Sony Xperia XA1
Teardown difficulty:
Moderate
Duration:
10 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia XA1 (Sony Xperia XA1 G3112, G3116) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Sony Xperia XA1, Step 1/1 How to disassemble Sony Xperia XA1, Step 1/2

Step 1.

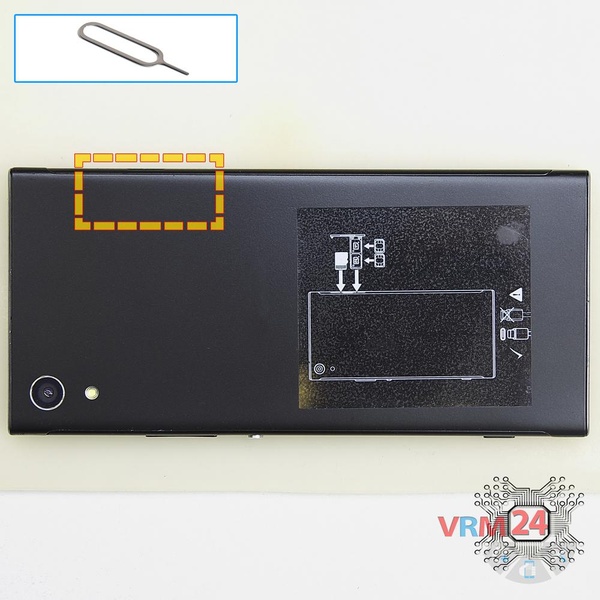

Using the key tool, open the SIM cards tray and remove it.

How to disassemble Sony Xperia XA1, Step 2/1 How to disassemble Sony Xperia XA1, Step 2/2

Step 2.

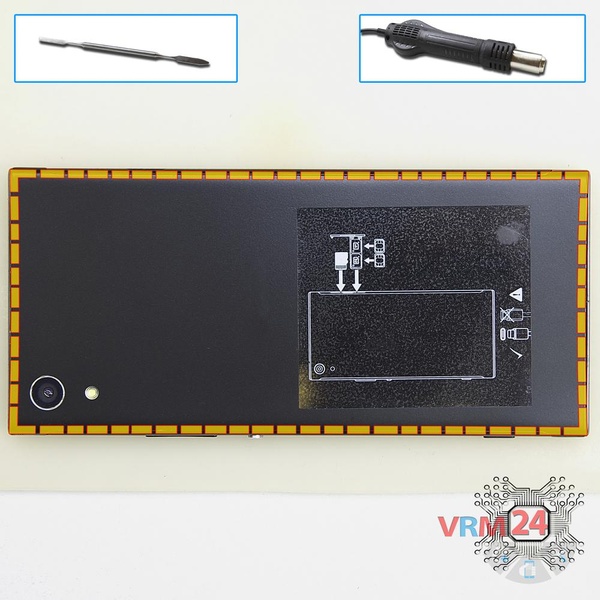

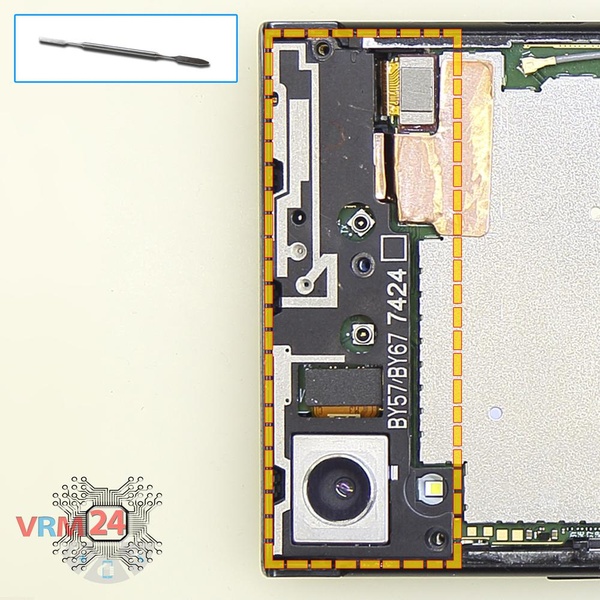

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Sony Xperia XA1, Step 3/1 How to disassemble Sony Xperia XA1, Step 3/2 How to disassemble Sony Xperia XA1, Step 3/3

Step 3.

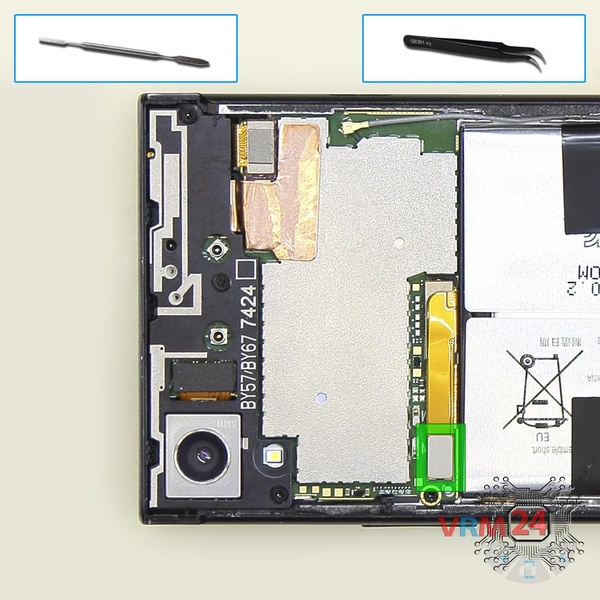

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Sony Xperia XA1, Step 4/1 How to disassemble Sony Xperia XA1, Step 4/2

Step 4.

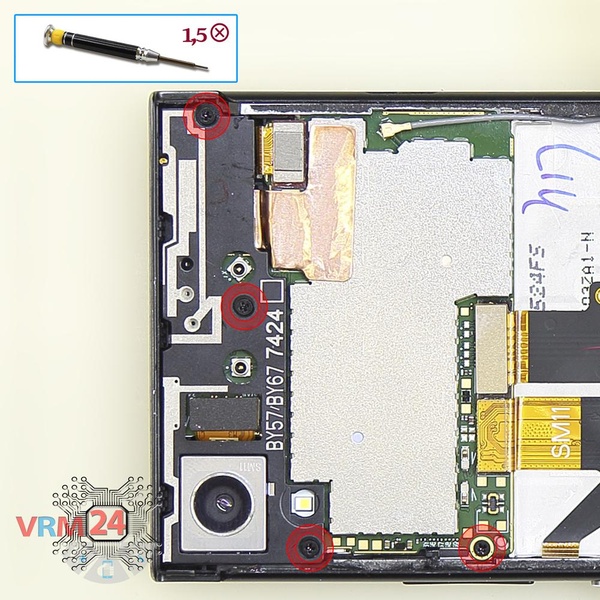

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Sony Xperia XA1, Step 5/1 How to disassemble Sony Xperia XA1, Step 5/2

Step 5.

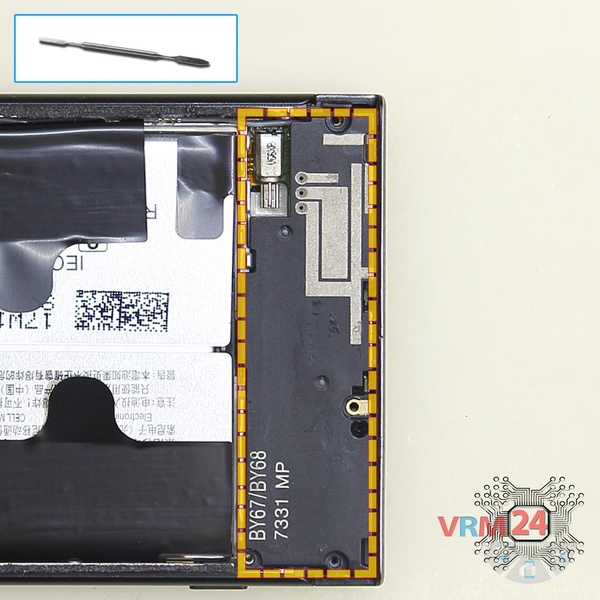

Pry and remove the buzzer (speaker) assembly.

How to disassemble Sony Xperia XA1, Step 6/1 How to disassemble Sony Xperia XA1, Step 6/2

Step 6.

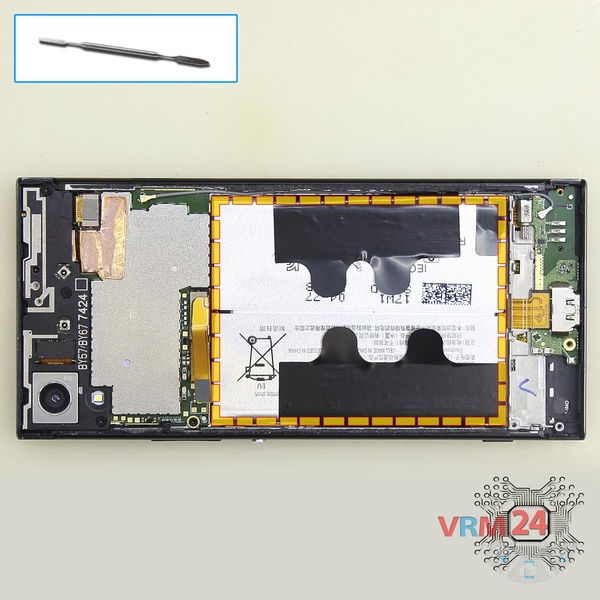

Lift and remove the battery.

How to disassemble Sony Xperia XA1, Step 7/1 How to disassemble Sony Xperia XA1, Step 7/2 How to disassemble Sony Xperia XA1, Step 7/3

Step 7.

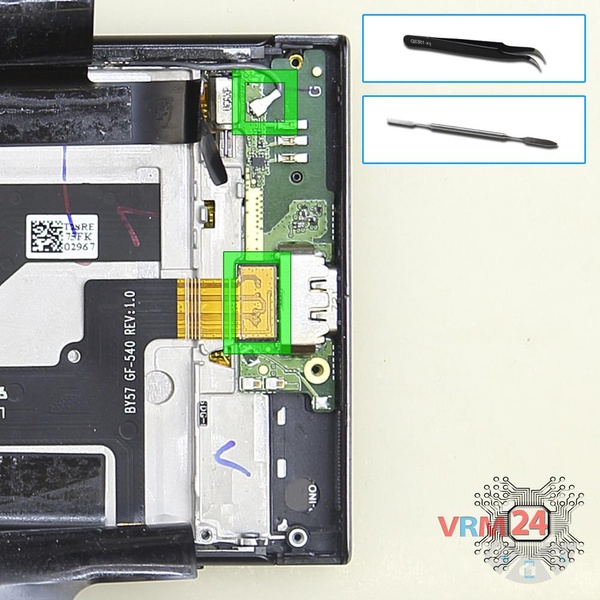

Disconnect connectors on the lower PCB.

How to disassemble Sony Xperia XA1, Step 8/1 How to disassemble Sony Xperia XA1, Step 8/2

Step 8.

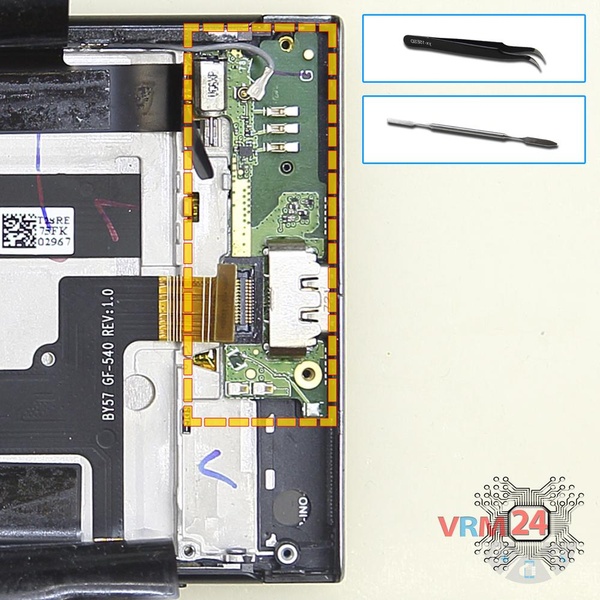

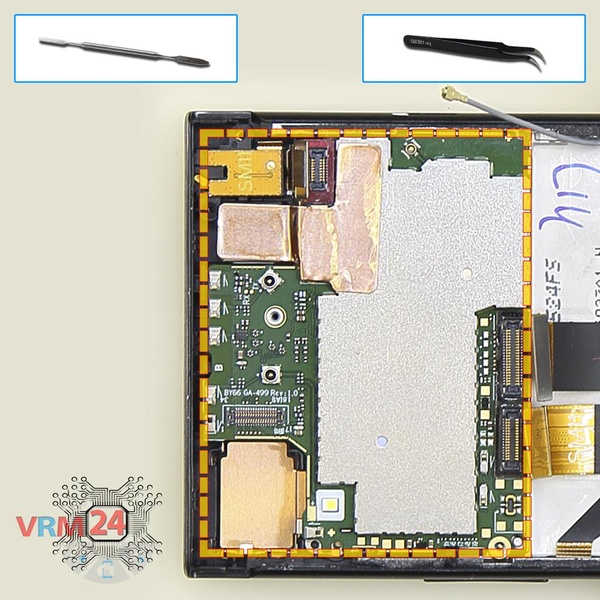

Remove the lower PCB.

How to disassemble Sony Xperia XA1, Step 9/1 How to disassemble Sony Xperia XA1, Step 9/2

Step 9.

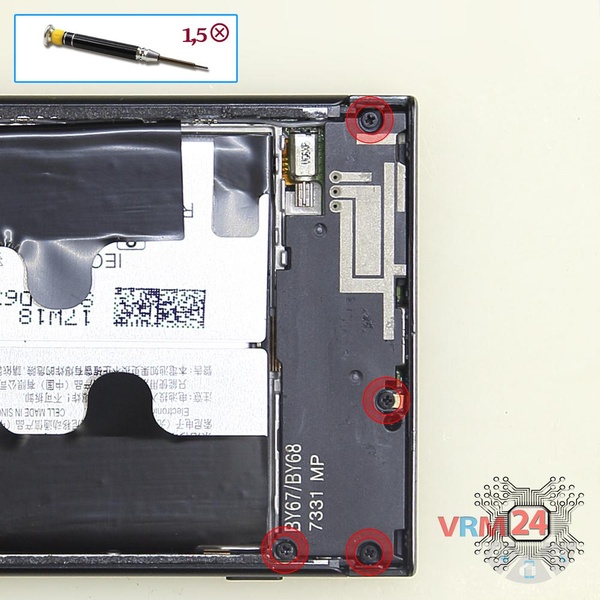

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Sony Xperia XA1, Step 10/1 How to disassemble Sony Xperia XA1, Step 10/2

Step 10.

Remove the upper cover.

How to disassemble Sony Xperia XA1, Step 11/1 How to disassemble Sony Xperia XA1, Step 11/2

Step 11.

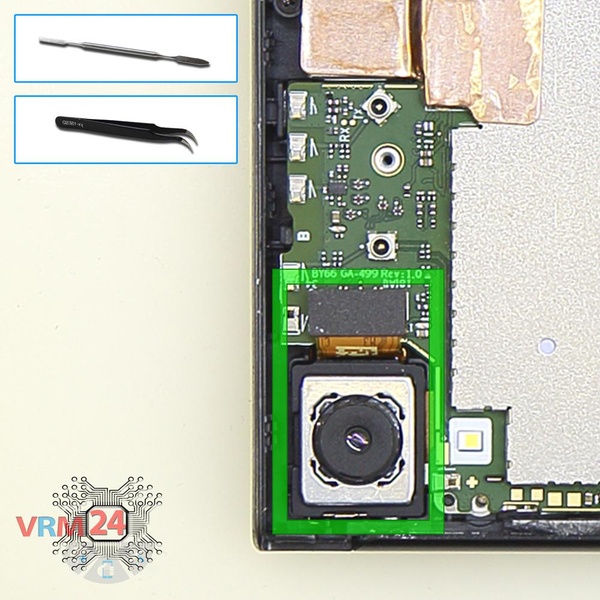

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Sony Xperia XA1, Step 12/1 How to disassemble Sony Xperia XA1, Step 12/2 How to disassemble Sony Xperia XA1, Step 12/3

Step 12.

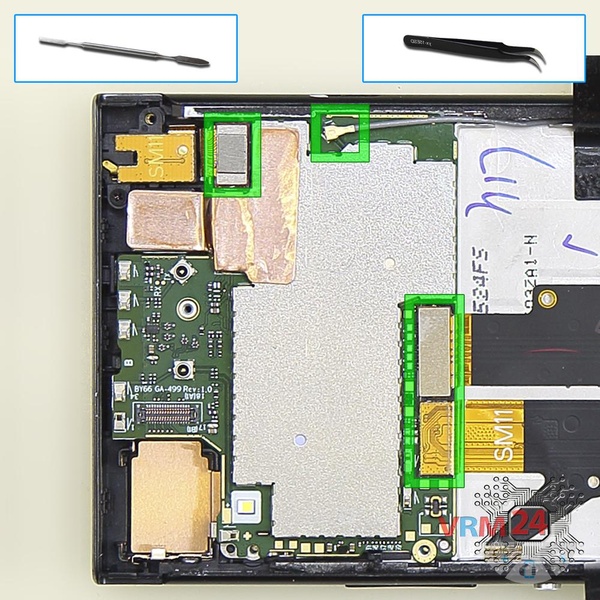

Disconnect connectors on the PCB.

How to disassemble Sony Xperia XA1, Step 13/1 How to disassemble Sony Xperia XA1, Step 13/2

Step 13.

Remove the PCB.

How to disassemble Sony Xperia XA1, Step 14/1 How to disassemble Sony Xperia XA1, Step 14/2

Step 14.

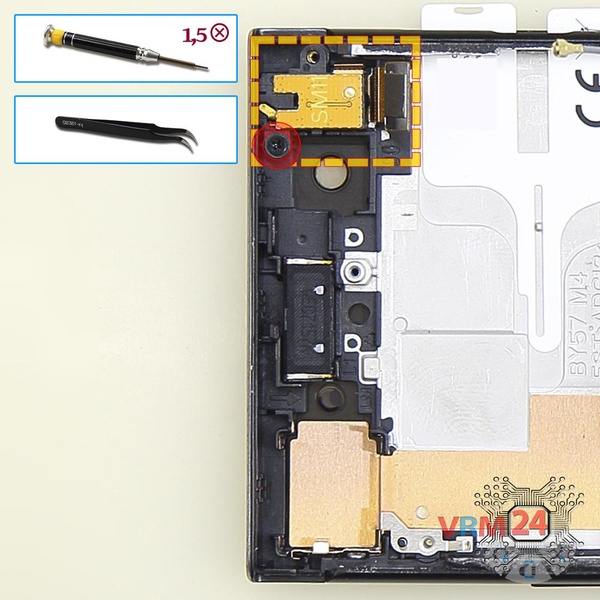

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the headphone jack/socket.

How to disassemble Sony Xperia XA1, Step 15/1 How to disassemble Sony Xperia XA1, Step 15/2

Step 15.

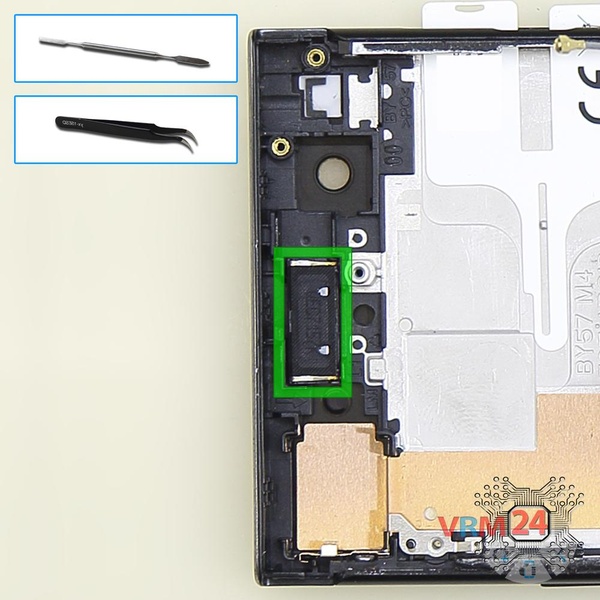

Pry and remove the earpiece (speaker).

How to disassemble Sony Xperia XA1, Step 16/1 How to disassemble Sony Xperia XA1, Step 16/2 How to disassemble Sony Xperia XA1, Step 16/3

Step 16.

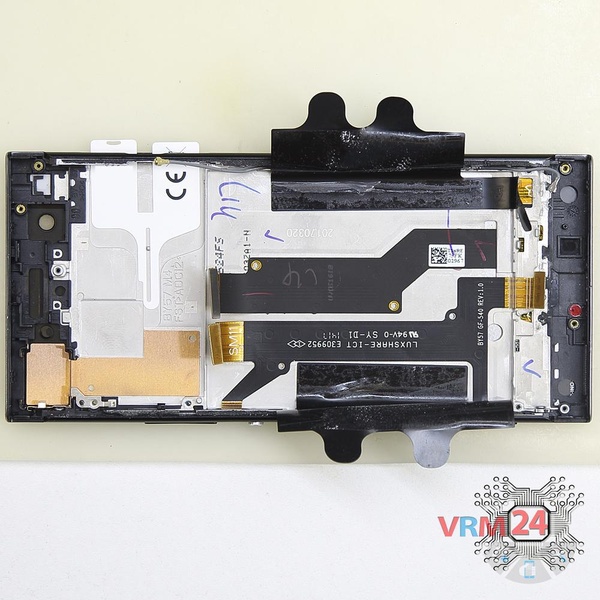

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia XA1 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia XA1
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 10 minutes in time.
Our manual is suitable for all models Sony Xperia XA1 — Sony Xperia XA1 G3112, G3116 released for markets in different countries.
