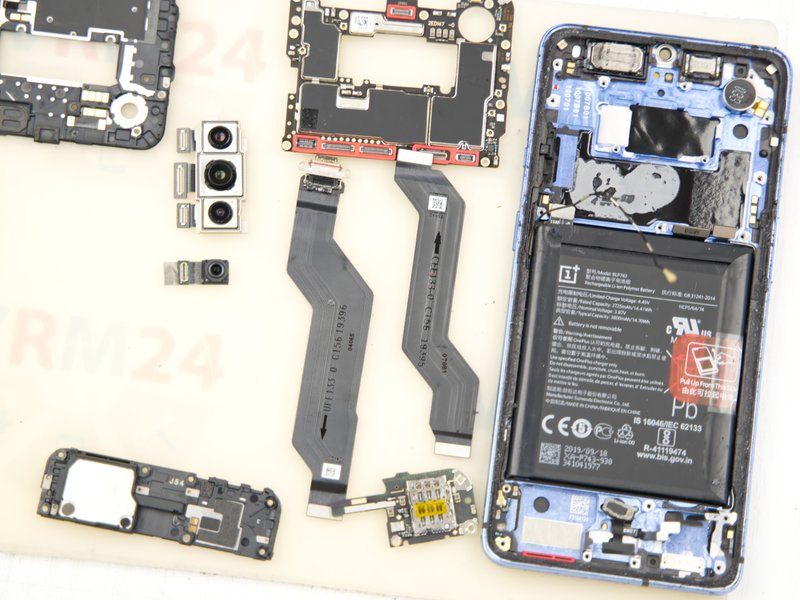

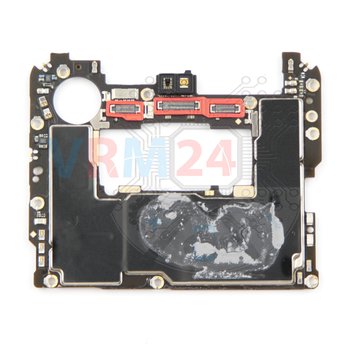

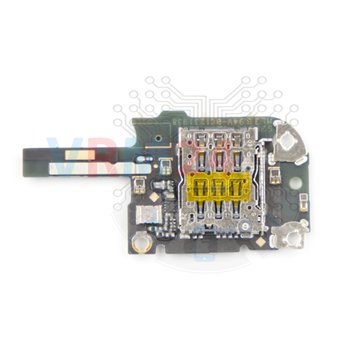

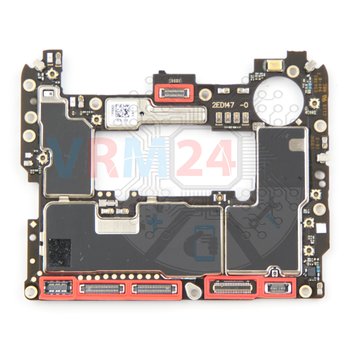

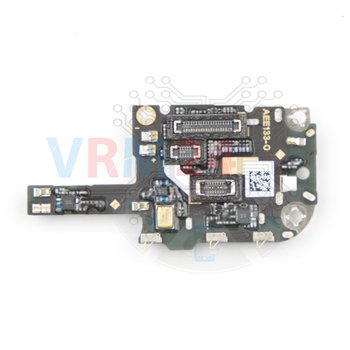

Main and additional circuit boards

OnePlus 7T

Side 1

Side 2

Spare parts

and components

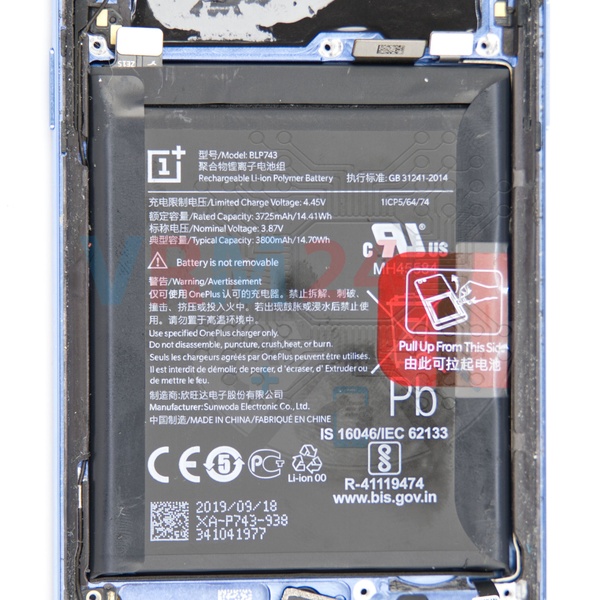

Battery

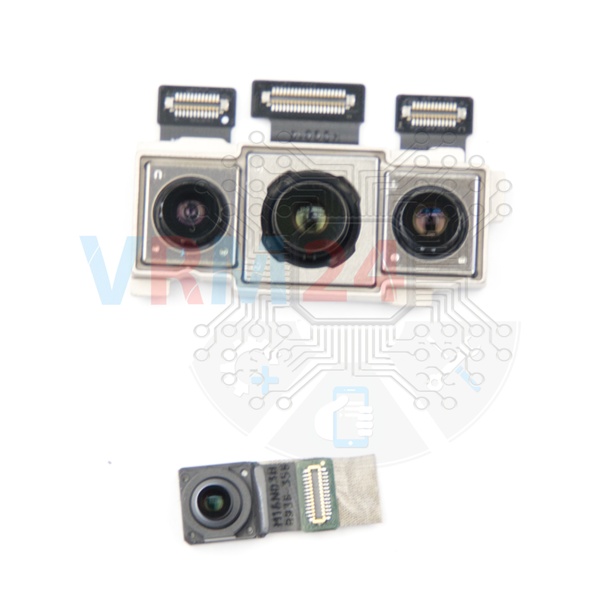

Cameras

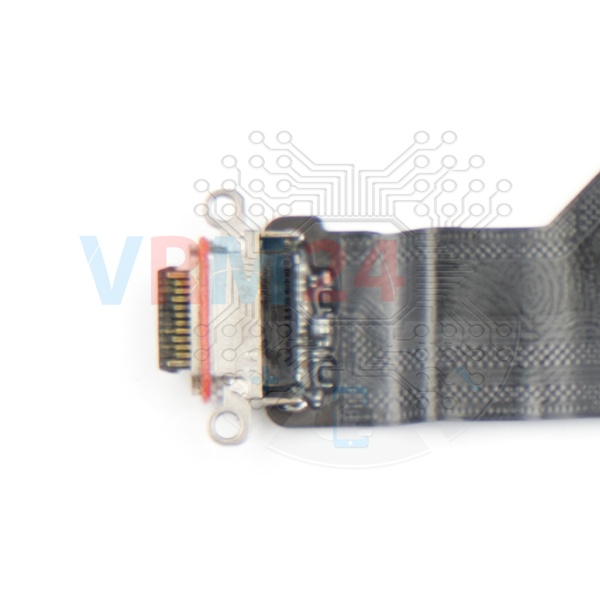

Charging port

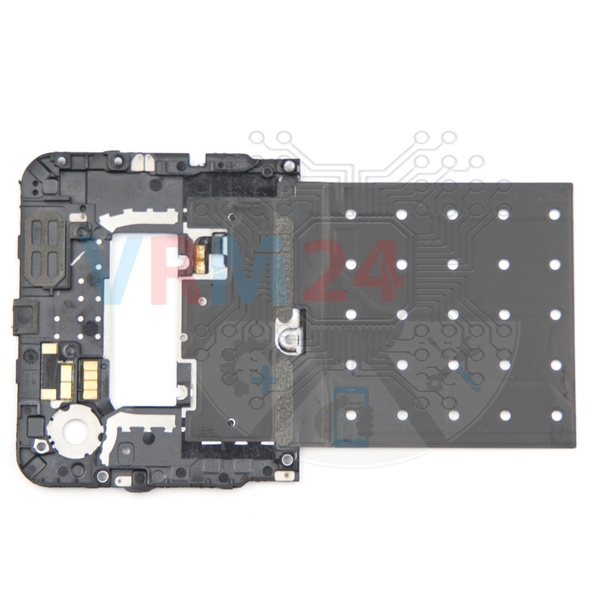

Cover

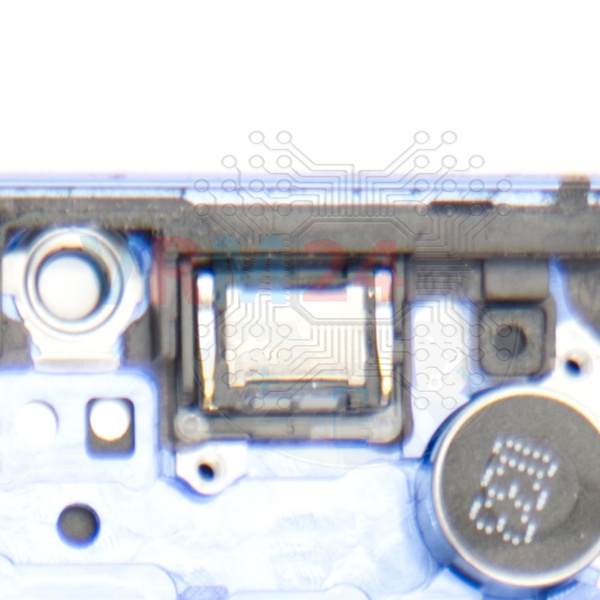

Earpiece speaker

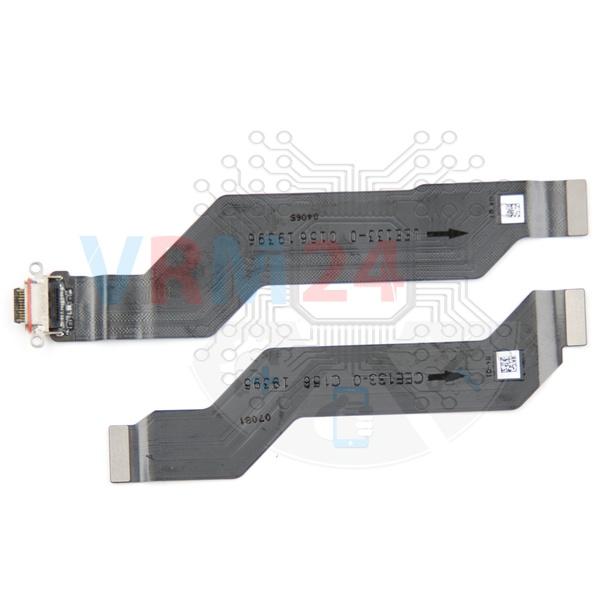

Cable

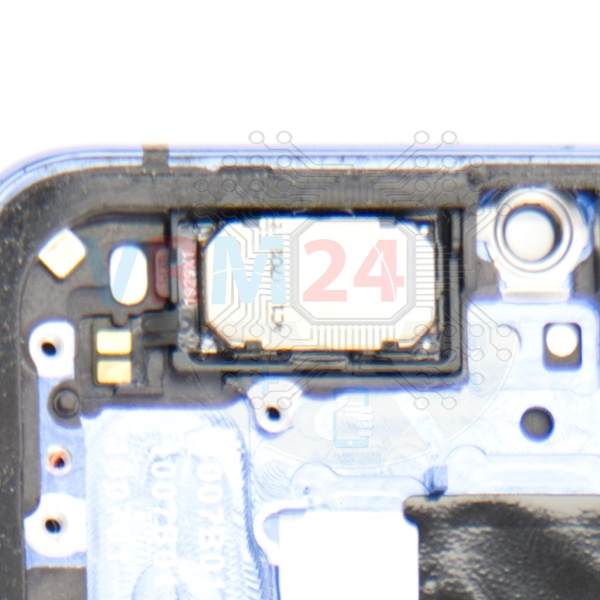

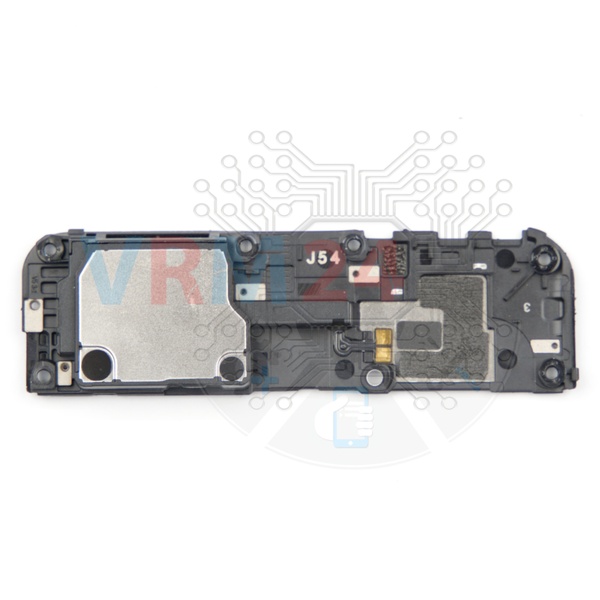

Loudspeaker

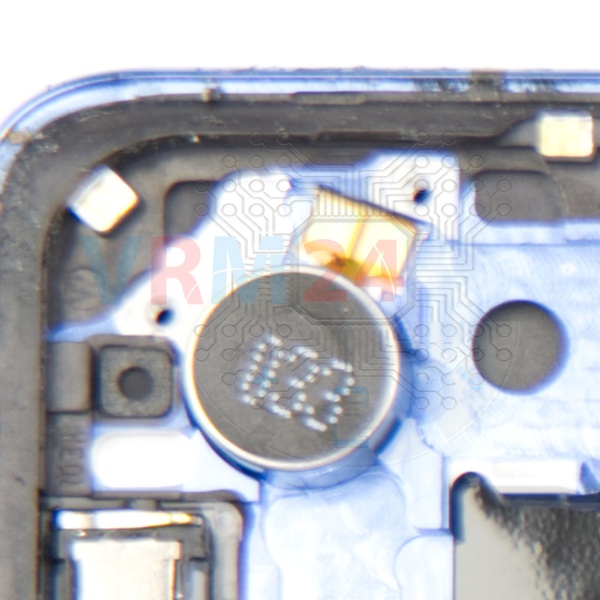

Vibration motor

Features

Type Smartphone

OS Android 10

SIM type/size Nano SIM

SIM Dual SIM

Dimensions 160.9 x 74.4 x 8.1 mm (6.33 x 2.93 x 0.32 in)

Weight 190 g (6.70 oz)

Display

Display type Fluid AMOLED, 90Hz

Size 6.55 inches

Resolution 1080 x 2400 pixels, 20:9 ratio

PPI density 402

Protection Corning Gorilla Glass 5

Multimedia

Main camera 48 MP / 12 MP / 16 MP

Main camera Video 2160p, 60fps

Front (selfie) camera 16 MP

Front (selfie) camera Video 1080p, 30fps

Audio MP3, AAC, WAV, WMA, FM-radio

Headphone jack No

Network

Technology GSM / CDMA / HSPA / LTE

Bands Yes

Interfaces Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot, Bluetooth 5.0, A2DP, LE, aptX HD

Satellite navigation GPS with dual-band A-GPS, GLONASS, BDS, GALILEO, SBAS

Processor and Memory

System on a chip Qualcomm SM8150 Snapdragon 855+

CPU Octa Core 1x Kryo 485 2.96 GHz & 3x Kryo 485 2.42 GHz & 4x Kryo 485 1.78 GHz

GPU Adreno 640

Internal memory 128 GB or 256 GB

RAM 8 GB

Card slot No

Battery

Battery capacity Li-Ion 3800 mAh

Charging port USB Type-C 3.1, USB On-The-Go

Battery model BLP743

Other

Announced 2019, September

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Views

Likes

—

Questions

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models OnePlus 7T released for markets in different countries.
