Tech review of Xiaomi Mi Max 2

Compare this model
Yurii Rodionov

Yurii Rodionov

Author, Content Specialist

Experienced tech specialist

9

Views

—

Share

0

Questions

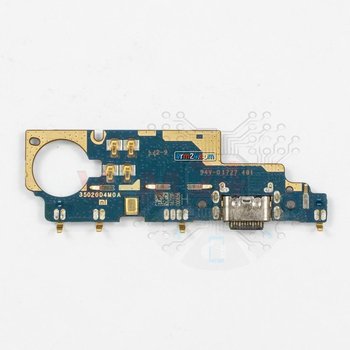

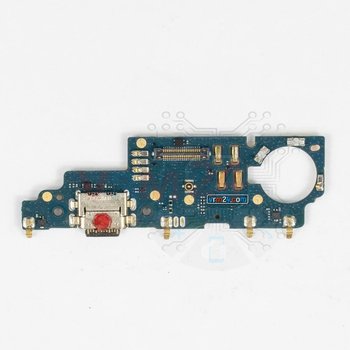

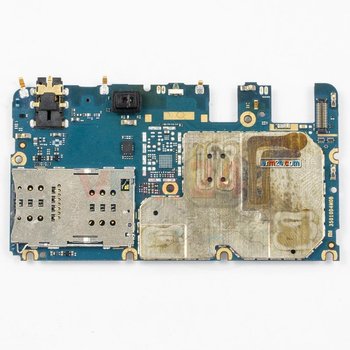

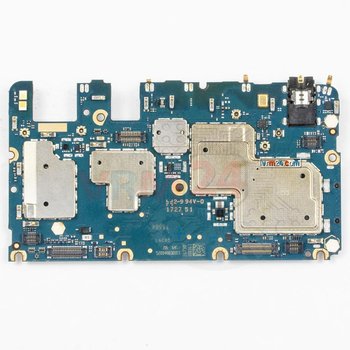

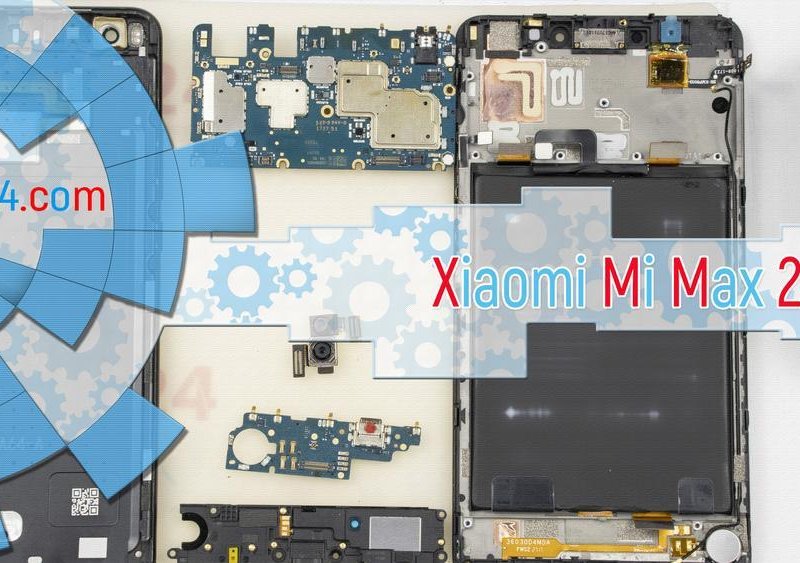

Main and additional circuit boards

Xiaomi Mi Max 2
Side 1
Side 2

Spare parts

and components

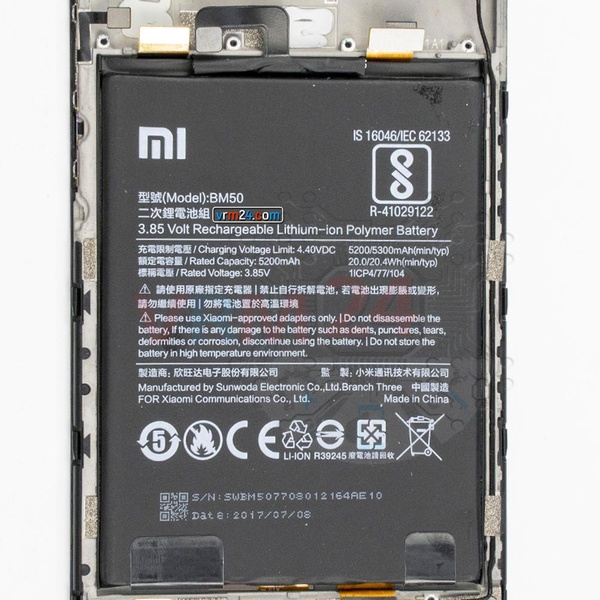

Battery
tech-review-of-Xiaomi Mi Max 2

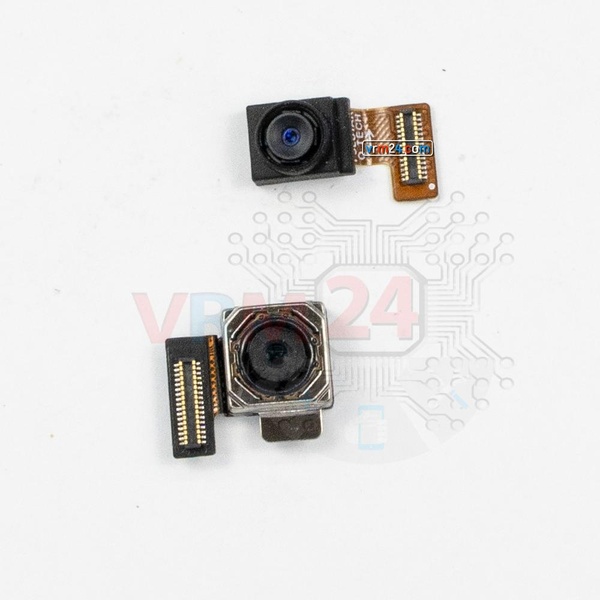

Cameras
tech-review-of-Xiaomi Mi Max 2

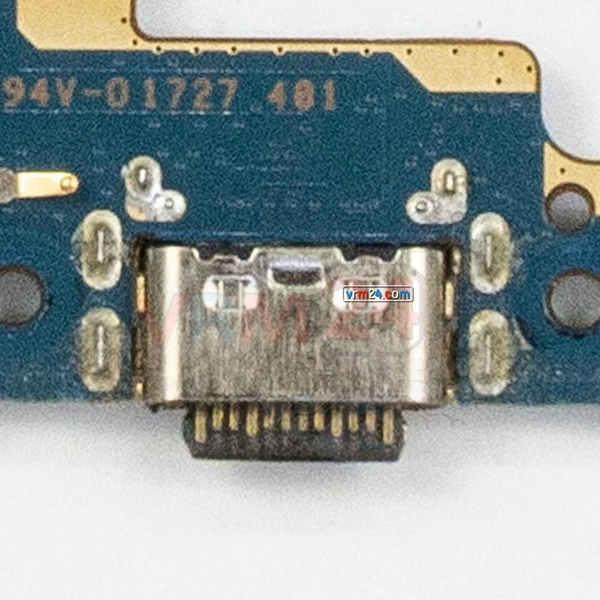

Charging port
tech-review-of-Xiaomi Mi Max 2

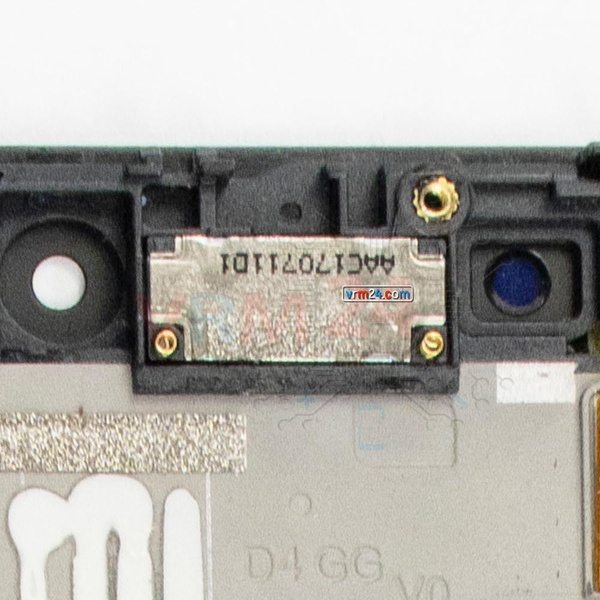

Earpiece speaker
tech-review-of-Xiaomi Mi Max 2

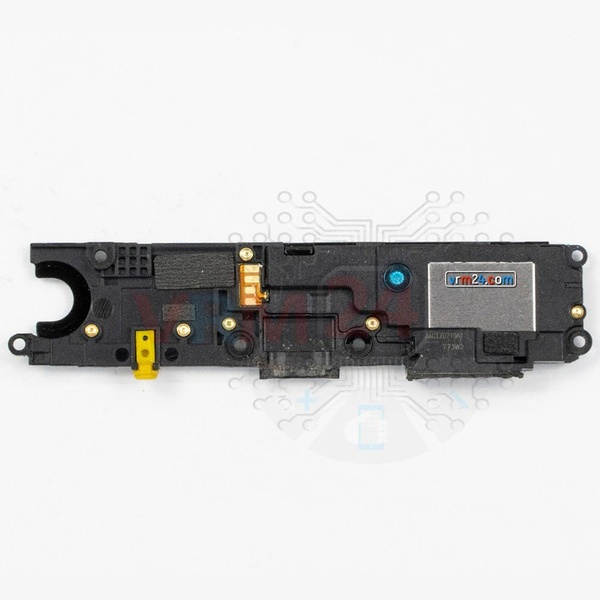

Loudspeaker
tech-review-of-Xiaomi Mi Max 2

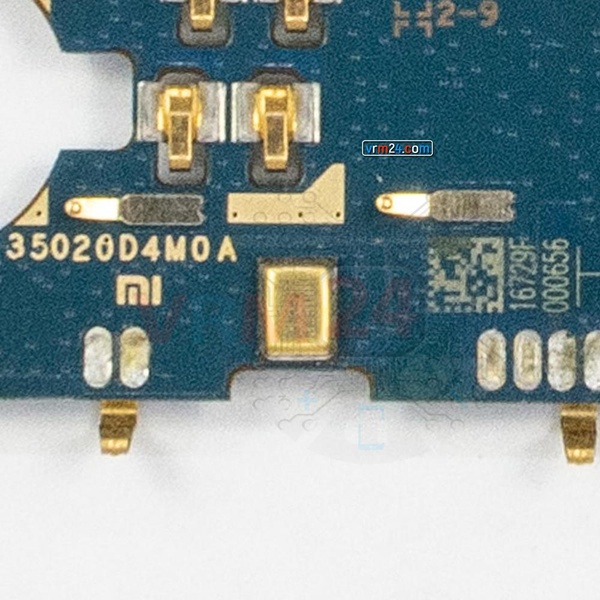

Microphone
tech-review-of-Xiaomi Mi Max 2

Characteristics

and Features

Features

Type Smartphone
OS Android 7.1.1 (Nougat)
SIM type/size Micro SIM + Nano SIM
SIM Dual SIM
Dimensions 174.1 x 88.7 x 7.6 mm (6.85 x 3.49 x 0.30 in)
Weight 211 g (7.44 oz)

Display

Display type IPS LCD
Size 6.44 inches
Resolution 1080 x 1920 pixels, 16:9 ratio
PPI density 342
Protection Corning Gorilla Glass 3

Multimedia

Main camera 12 MP
Main camera Video 2160p, 30fps
Front (selfie) camera 5 MP
Front (selfie) camera Video 1080p, 30fps
Audio MP3, AAC, WAV, WMA, FM-radio
Headphone jack Mini jack 3.5 mm

Network

Technology GSM/3G/4G LTE/LTE-A
Bands Band 1, 3, 5, 7, 8, 38, 39, 40, 41
Interfaces Wi-Fi 802.11, Bluetooth 4.2
Satellite navigation GPS with A-GPS, GLONASS, BDS

Processor and Memory

System on a chip Qualcomm MSM8953 Snapdragon 625
CPU Octa-core Cortex-A53 2.0GHz
GPU Adreno 506
Internal memory 128 GB
RAM 4 GB
Card slot Micro SD, up to 128 GB (uses shared SIM slot)

Battery

Battery capacity Li-Ion 5300 mAh
Charging port USB Type-C
Battery model BM50

Other

Announced 2017, May

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

logo
9

Views

—

Share

0

Questions
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Xiaomi Mi Max 2 — Xiaomi Mi Max 2 MDE40 released for markets in different countries.
