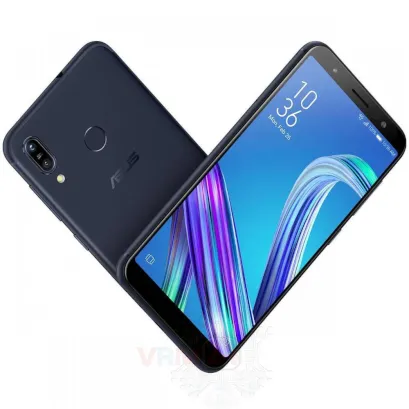

Asus ZenFone Max (M1) ZB555KL
Asus ZenFone Max (M1) ZB555KL
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus ZenFone Max (M1) ZB555KL with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 1/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 1/2

Step 1.

Using the key tool, open the SIM and Micro SD cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 2/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 2/2

Step 2.

Open the back cover.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 3/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 3/2

Step 3.

Pry up the connector and remove the fingerprint sensor.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 4/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 screws.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 5/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 5/2

Step 5.

Remove the cover hiding the PCB.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 6/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 6/2

Step 6.

Disconnect the battery connector. The battery model of Asus ZB555KL is C11P1707.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 7/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 screws.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 8/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 8/2

Step 8.

Pry and remove the buzzer (loudspeaker) assembly.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 9/1

Step 9.

Disconnect connectors on the daughterboard.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 10/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 10/2

Step 10.

Remove the daughterboard, also known as sub-board.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 11/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 screw in the PCB.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 12/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 12/2

Step 12.

Disconnect connectors on PCB and remove the two main and one front (selfie) cameras.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 13/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 13/2

Step 13.

Disconnect connectors on the PCB.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 14/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 14/2

Step 14.

Remove the PCB.
How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 15/1 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 15/2 How to disassemble Asus ZenFone Max (M1) ZB555KL, Step 15/3

Step 15.

Parts are in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone Max (M1) ZB555KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone Max (M1) ZB555KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Asus ZenFone Max (M1) ZB555KL — released for markets in different countries.
