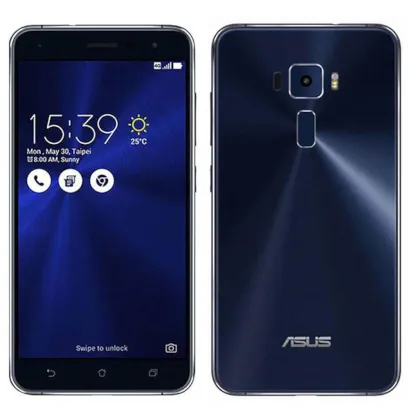

Asus ZenFone 3 ZE520KL
Asus ZenFone 3 ZE520KL
Teardown difficulty:
Hard
Duration:
10 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus ZenFone 3 ZE520KL with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Asus ZenFone 3 ZE520KL, Step 1/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Asus ZenFone 3 ZE520KL, Step 2/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 2/2

Step 2.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Asus ZenFone 3 ZE520KL, Step 3/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 3/2 How to disassemble Asus ZenFone 3 ZE520KL, Step 3/3

Step 3.

Disconnect the fingerprint sensor connector.

How to disassemble Asus ZenFone 3 ZE520KL, Step 4/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 bolts in the frame of the phone.

How to disassemble Asus ZenFone 3 ZE520KL, Step 5/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 5/2

Step 5.

Pry and remove the middle frame with fingerprint sensor.

How to disassemble Asus ZenFone 3 ZE520KL, Step 6/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 6/2

Step 6.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Asus ZenFone 3 ZE520KL, Step 7/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the buzzer (speaker) assembly.

How to disassemble Asus ZenFone 3 ZE520KL, Step 8/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 8/2

Step 8.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Asus ZenFone 3 ZE520KL, Step 9/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 9/2

Step 9.

Disconnect connectors and remove the coaxial cable.

How to disassemble Asus ZenFone 3 ZE520KL, Step 10/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Asus ZenFone 3 ZE520KL, Step 11/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 11/2 How to disassemble Asus ZenFone 3 ZE520KL, Step 11/3

Step 11.

Disconnect connectors on the lower PCB & pry off the vibrator motor.

How to disassemble Asus ZenFone 3 ZE520KL, Step 12/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 12/2

Step 12.

Remove the lower PCB.

How to disassemble Asus ZenFone 3 ZE520KL, Step 13/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 13/2 How to disassemble Asus ZenFone 3 ZE520KL, Step 13/3

Step 13.

Disconnect connectors on the PCB.

How to disassemble Asus ZenFone 3 ZE520KL, Step 14/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 14/2

Step 14.

Remove the PCB.

How to disassemble Asus ZenFone 3 ZE520KL, Step 15/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 15/2

Step 15.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the headphone jack (socket).

How to disassemble Asus ZenFone 3 ZE520KL, Step 16/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 16/2

Step 16.

Pry and remove the main camera.

How to disassemble Asus ZenFone 3 ZE520KL, Step 17/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 17/2

Step 17.

Pry and remove the earpiece (speaker).

How to disassemble Asus ZenFone 3 ZE520KL, Step 18/1 How to disassemble Asus ZenFone 3 ZE520KL, Step 18/2 How to disassemble Asus ZenFone 3 ZE520KL, Step 18/3

Step 18.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone 3 ZE520KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone 3 ZE520KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 10 minutes in time.
Our manual is suitable for all models Asus ZenFone 3 ZE520KL released for markets in different countries.
