Nokia 2 TA-1029
Nokia 2 TA-1029
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx Т2 Screwdriver torx т2
Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 2 TA-1029 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia 2 TA-1029, Step 1/1 How to disassemble Nokia 2 TA-1029, Step 1/2

Step 1.

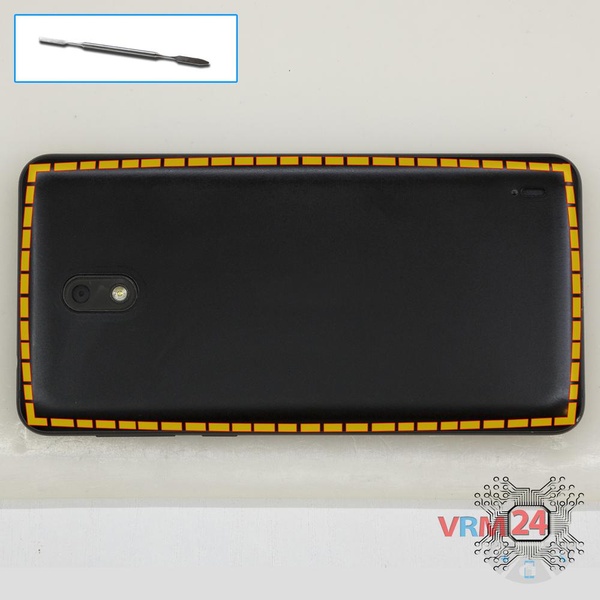

Open the back cover.

How to disassemble Nokia 2 TA-1029, Step 2/1 How to disassemble Nokia 2 TA-1029, Step 2/2

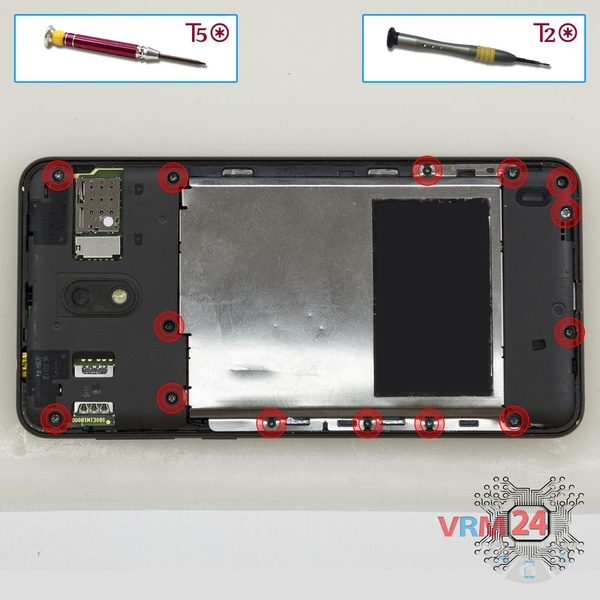

Step 2.

Using a screwdriver (hex T5) and a screwdriver (hex T2), unscrew 14 bolts in the frame of the phone.

How to disassemble Nokia 2 TA-1029, Step 3/1 How to disassemble Nokia 2 TA-1029, Step 3/2

Step 3.

Pry & remove the upper cover.

How to disassemble Nokia 2 TA-1029, Step 4/1 How to disassemble Nokia 2 TA-1029, Step 4/2

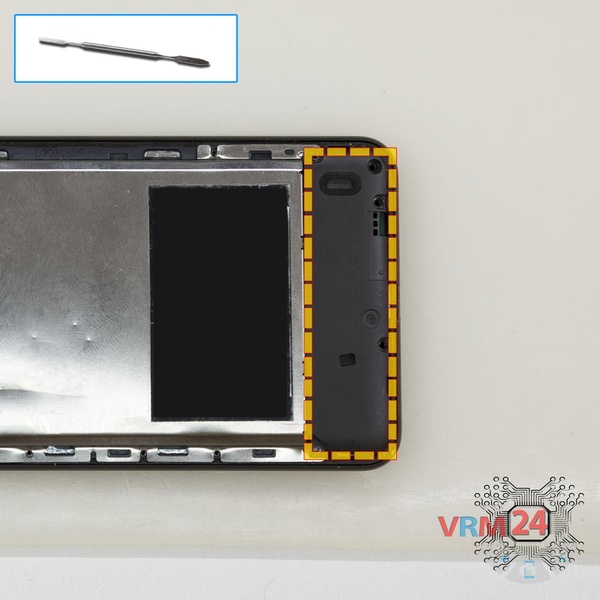

Step 4.

Pry and remove the buzzer (speaker) & vibration motor assembly.

How to disassemble Nokia 2 TA-1029, Step 5/1 How to disassemble Nokia 2 TA-1029, Step 5/2

Step 5.

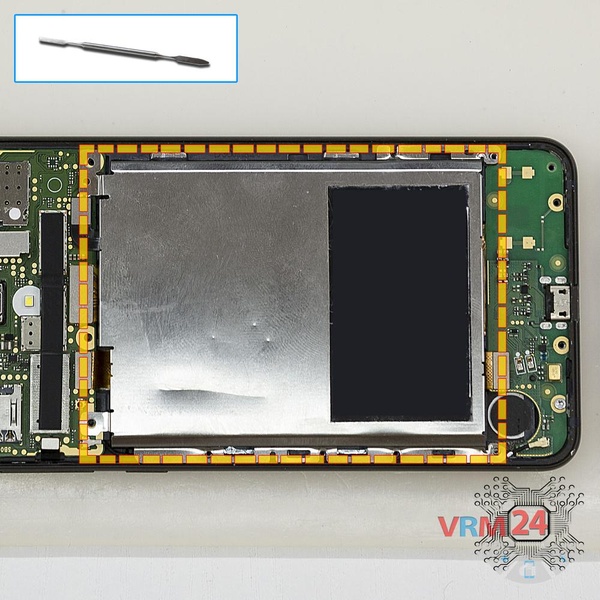

Remove the battery cover.

How to disassemble Nokia 2 TA-1029, Step 6/1 How to disassemble Nokia 2 TA-1029, Step 6/2

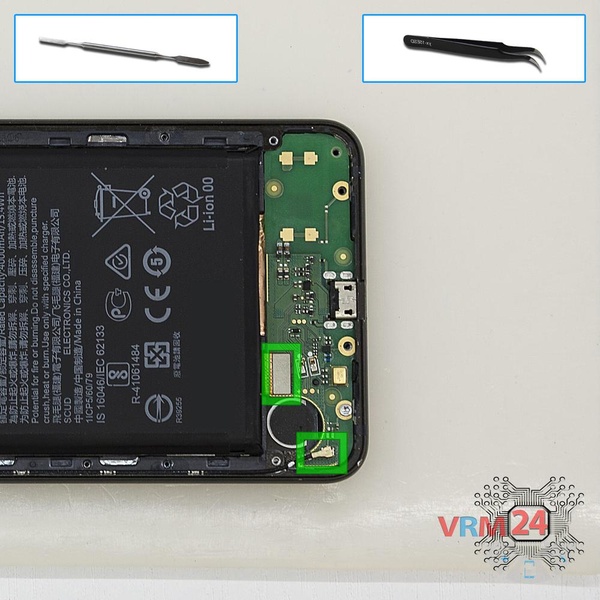

Step 6.

Disconnect connectors on the lower PCB.

How to disassemble Nokia 2 TA-1029, Step 7/1 How to disassemble Nokia 2 TA-1029, Step 7/2

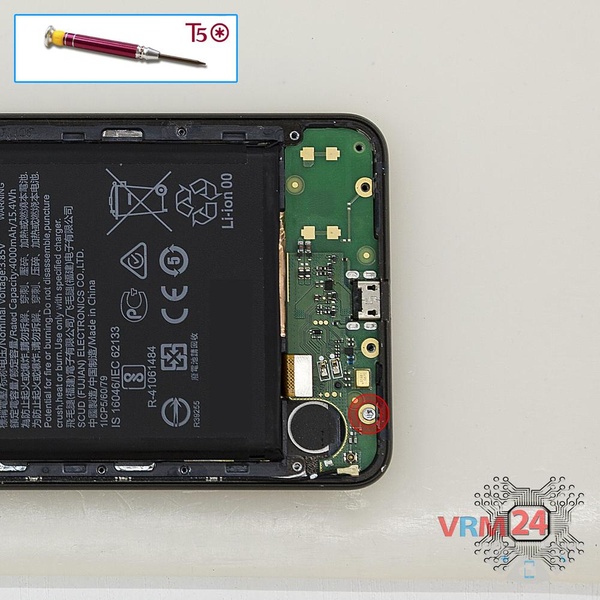

Step 7.

Using a screwdriver (hex T5), unscrew 1 bolt in the lower PCB.

How to disassemble Nokia 2 TA-1029, Step 8/1 How to disassemble Nokia 2 TA-1029, Step 8/2

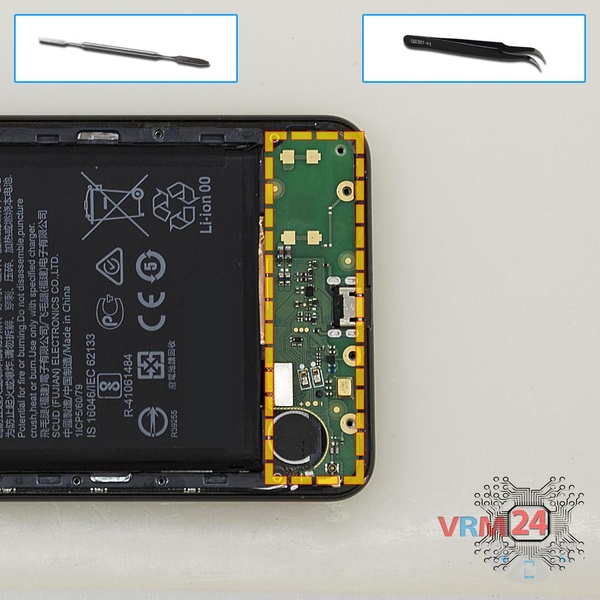

Step 8.

Remove the lower PCB.

How to disassemble Nokia 2 TA-1029, Step 9/1 How to disassemble Nokia 2 TA-1029, Step 9/2

Step 9.

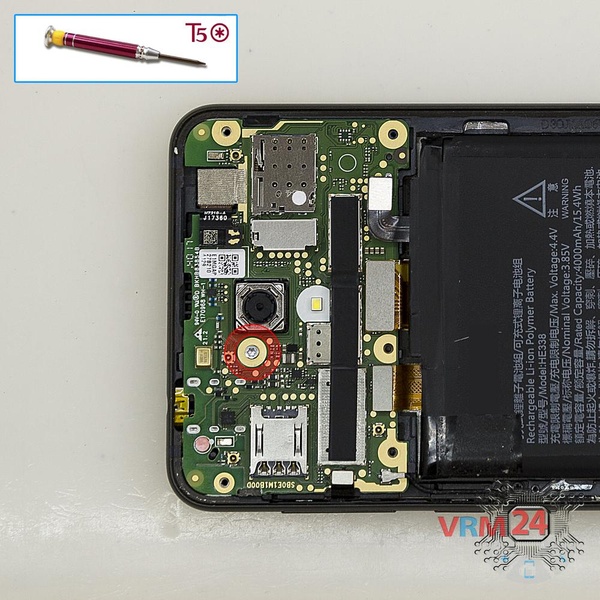

Using a screwdriver (hex T5), unscrew 1 bolt in the PCB.

How to disassemble Nokia 2 TA-1029, Step 10/1 How to disassemble Nokia 2 TA-1029, Step 10/2 How to disassemble Nokia 2 TA-1029, Step 10/3

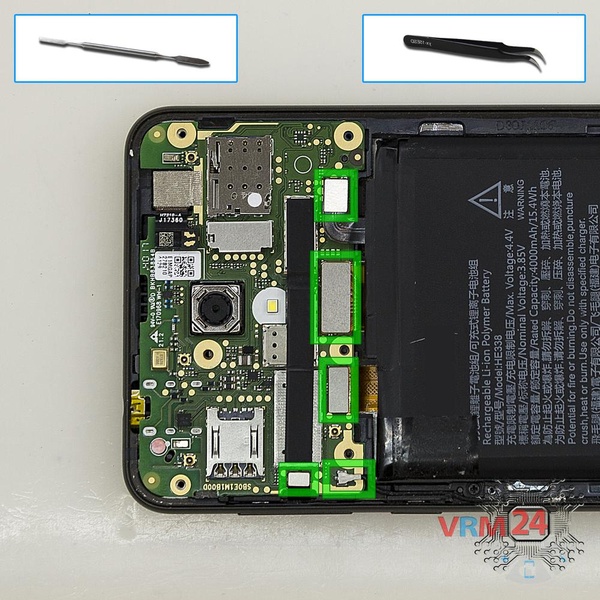

Step 10.

Disconnect connectors on the PCB.

How to disassemble Nokia 2 TA-1029, Step 11/1 How to disassemble Nokia 2 TA-1029, Step 11/2

Step 11.

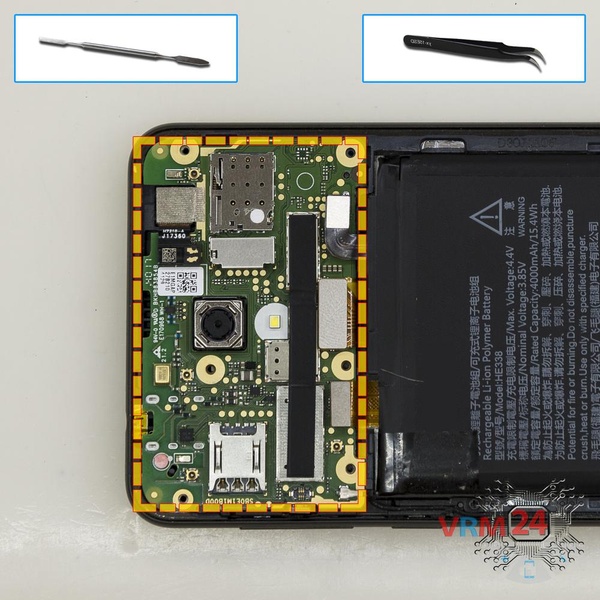

Remove the PCB.

How to disassemble Nokia 2 TA-1029, Step 12/1 How to disassemble Nokia 2 TA-1029, Step 12/2 How to disassemble Nokia 2 TA-1029, Step 12/3

Step 12.

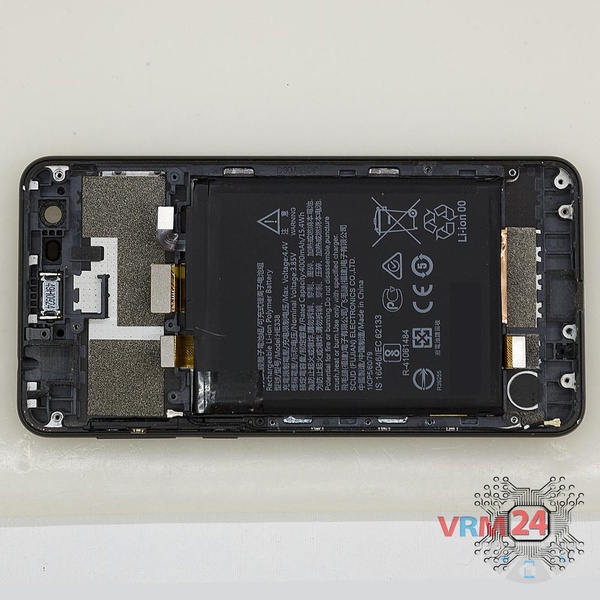

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia 2 TA-1029 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia 2 TA-1029
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Nokia 2 TA-1029 released for markets in different countries.
