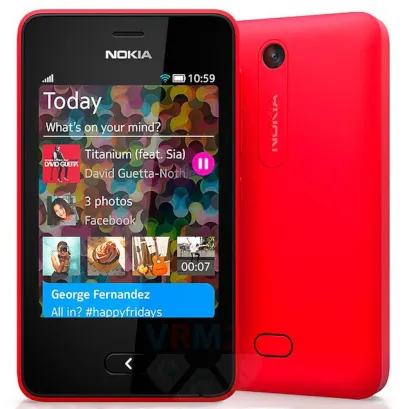

Nokia Asha 501 RM-902
Nokia Asha 501 RM-902
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Torx T3 Screwdriver torx t3
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Asha 501 RM-902 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia Asha 501 RM-902, Step 1/1

Step 1.

Open the back cover.

How to disassemble Nokia Asha 501 RM-902, Step 2/1

Step 2.

Lift and remove the battery.

How to disassemble Nokia Asha 501 RM-902, Step 3/1 How to disassemble Nokia Asha 501 RM-902, Step 3/2

Step 3.

Using a screwdriver (hex T3), unscrew 4 bolts in the frame of the phone.

How to disassemble Nokia Asha 501 RM-902, Step 4/1 How to disassemble Nokia Asha 501 RM-902, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Nokia Asha 501 RM-902, Step 5/1

Step 5.

The middle frame with speaker (buzzer).

How to disassemble Nokia Asha 501 RM-902, Step 6/1 How to disassemble Nokia Asha 501 RM-902, Step 6/2

Step 6.

Disconnect the connector on PCB.

How to disassemble Nokia Asha 501 RM-902, Step 7/1 How to disassemble Nokia Asha 501 RM-902, Step 7/2

Step 7.

Remove the PCB.

How to disassemble Nokia Asha 501 RM-902, Step 8/1 How to disassemble Nokia Asha 501 RM-902, Step 8/2

Step 8.

Separate the display from the frame with touchscreen.

Detailed disassembly instructions of Nokia Asha 501 RM-902 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Asha 501 RM-902
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia Asha 501 RM-902 released for markets in different countries.
