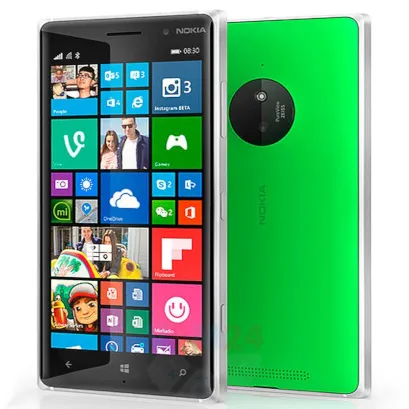

Nokia Lumia 830 RM-984
Nokia Lumia 830 RM-984
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Lumia 830 RM-984 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Nokia Lumia 830 RM-984, Step 1/1 How to disassemble Nokia Lumia 830 RM-984, Step 1/2

Step 1.

Open the back cover.

How to disassemble Nokia Lumia 830 RM-984, Step 2/1 How to disassemble Nokia Lumia 830 RM-984, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Nokia Lumia 830 RM-984, Step 3/1 How to disassemble Nokia Lumia 830 RM-984, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 6 bolts in the frame of the phone.

How to disassemble Nokia Lumia 830 RM-984, Step 4/1 How to disassemble Nokia Lumia 830 RM-984, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Nokia Lumia 830 RM-984, Step 5/1 How to disassemble Nokia Lumia 830 RM-984, Step 5/2 How to disassemble Nokia Lumia 830 RM-984, Step 5/3

Step 5.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Nokia Lumia 830 RM-984, Step 6/1 How to disassemble Nokia Lumia 830 RM-984, Step 6/2 How to disassemble Nokia Lumia 830 RM-984, Step 6/3

Step 6.

Disconnect the coaxial cable connector and remove the lower PCB with microphone.

How to disassemble Nokia Lumia 830 RM-984, Step 7/1 How to disassemble Nokia Lumia 830 RM-984, Step 7/2

Step 7.

Disconnect connectors on the PCB.

How to disassemble Nokia Lumia 830 RM-984, Step 8/1 How to disassemble Nokia Lumia 830 RM-984, Step 8/2 How to disassemble Nokia Lumia 830 RM-984, Step 8/3

Step 8.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Nokia Lumia 830 RM-984, Step 9/1 How to disassemble Nokia Lumia 830 RM-984, Step 9/2 How to disassemble Nokia Lumia 830 RM-984, Step 9/3

Step 9.

Remove the front (selfie) camera and proximity sensor.

How to disassemble Nokia Lumia 830 RM-984, Step 10/1 How to disassemble Nokia Lumia 830 RM-984, Step 10/2 How to disassemble Nokia Lumia 830 RM-984, Step 10/3 How to disassemble Nokia Lumia 830 RM-984, Step 10/4

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia Lumia 830 RM-984 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 830 RM-984
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Nokia Lumia 830 RM-984 released for markets in different countries.
