Disassembly/Repair of the mobile device Oukitel K10000 Max IP68 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Oukitel K10000 Max IP68, Step 1/1 How to disassemble Oukitel K10000 Max IP68, Step 1/2

Step 1.

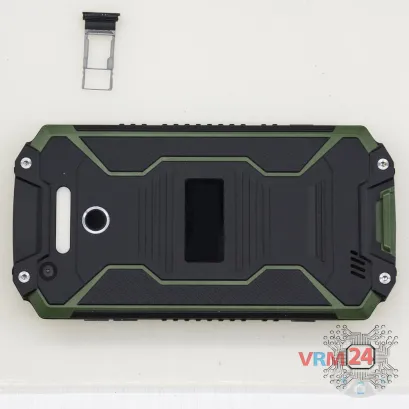

Open the SIM card slot and remove it.

How to disassemble Oukitel K10000 Max IP68, Step 2/1 How to disassemble Oukitel K10000 Max IP68, Step 2/2

Step 2.

Using a screwdriver (hex T5), unscrew 8 bolts on the edges of the phone and unscrew 4 bolts securing the back cover with a hex screwdriver key.

How to disassemble Oukitel K10000 Max IP68, Step 3/1 How to disassemble Oukitel K10000 Max IP68, Step 3/2

Step 3.

Open the back cover.

How to disassemble Oukitel K10000 Max IP68, Step 4/1 How to disassemble Oukitel K10000 Max IP68, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts at the upper part.

How to disassemble Oukitel K10000 Max IP68, Step 5/1 How to disassemble Oukitel K10000 Max IP68, Step 5/2

Step 5.

Pry and remove the upper part.

How to disassemble Oukitel K10000 Max IP68, Step 6/1 How to disassemble Oukitel K10000 Max IP68, Step 6/2 How to disassemble Oukitel K10000 Max IP68, Step 6/3

Step 6.

Disconnect the battery connector and remove it.

How to disassemble Oukitel K10000 Max IP68, Step 7/1 How to disassemble Oukitel K10000 Max IP68, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Oukitel K10000 Max IP68, Step 8/1 How to disassemble Oukitel K10000 Max IP68, Step 8/2 How to disassemble Oukitel K10000 Max IP68, Step 8/3

Step 8.

Disconnect the connectors on the PCB.

⚠️ Warning!

One connector is located on the inside.

How to disassemble Oukitel K10000 Max IP68, Step 9/1 How to disassemble Oukitel K10000 Max IP68, Step 9/2

Step 9.

Remove the PCB.

How to disassemble Oukitel K10000 Max IP68, Step 10/1 How to disassemble Oukitel K10000 Max IP68, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the lower part.

How to disassemble Oukitel K10000 Max IP68, Step 11/1 How to disassemble Oukitel K10000 Max IP68, Step 11/2

Step 11.

Pry and remove the lower part with the speaker (buzzer).

How to disassemble Oukitel K10000 Max IP68, Step 12/1 How to disassemble Oukitel K10000 Max IP68, Step 12/2 How to disassemble Oukitel K10000 Max IP68, Step 12/3

Step 12.

Disconnect the coaxial cable connector on the lower PCB.

How to disassemble Oukitel K10000 Max IP68, Step 13/1 How to disassemble Oukitel K10000 Max IP68, Step 13/2 How to disassemble Oukitel K10000 Max IP68, Step 13/3

Step 13.

Remove the PCB.

How to disassemble Oukitel K10000 Max IP68, Step 14/1 How to disassemble Oukitel K10000 Max IP68, Step 14/2 How to disassemble Oukitel K10000 Max IP68, Step 14/3

Step 14.

Parts in the frame of the display module.

How to disassemble Oukitel K10000 Max IP68, Step 15/1

Step 15.

The back cover.

Detailed disassembly instructions of Oukitel K10000 Max IP68 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
