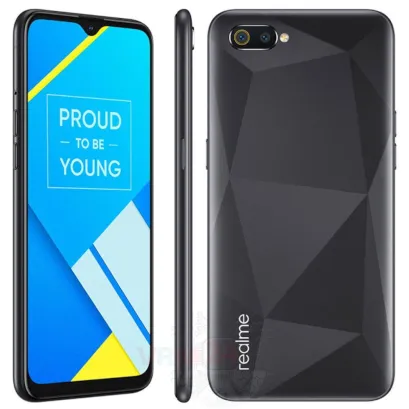

Disassembly/Repair of the mobile device Realme C2 (Realme C2 RMX1941) with each step description and the required set of tools.

10455

Views

—

Share

3

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Remove the trays

Step 1.

Remove the trays

Using the key tool, open the SIM and Micro SD cards tray and remove it.

âš  Warning!

Do not push too hard this may cause damage.

Open the back cover

Step 2.

Open the back cover
Open the back cover.
Unscrew the screws

Step 3.

Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 screws.
Open the cover

Step 4.

Open the cover
Open the cover.
Disconnect the battery connector

Step 5.

Disconnect the battery connector

Disconnect the battery connector. The battery model of Realme C2 is BLP720.

âš  Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

Unscrew the screws

Step 6.

Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 10 screws.

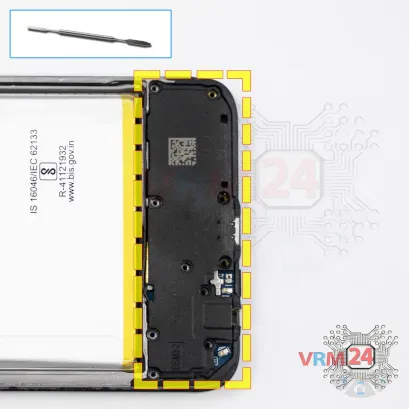

Remove the loudspeaker

Step 7.

Remove the loudspeaker
Remove the cover with a loudspeaker.
Disconnect the connectors

Step 8.

Disconnect the connectors
Disconnect connectors on the daughterboard.
Remove the sub-board

Step 9.

Remove the sub-board
Remove the daughterboard, also known as sub-board.
Remove the coaxial cable

Step 10.

Remove the coaxial cable
Pry up the connector and remove the coaxial cable.
Remove the front camera

Step 11.

Remove the front camera
Disconnect the connector on PCB, and remove the front (selfie) camera.
Remove the rear camera

Step 12.

Remove the rear camera
Disconnect connectors on PCB and remove the two rear cameras.
Remove the motherboard

Step 13.

Remove the motherboard
Remove the PCB.
In the display frame remained

Step 14.

In the display frame remained
Parts are in the frame of the display module.
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 12 minutes in time. Our manual is suitable for all models Realme C2 or Realme C2 RMX1941 released for markets in different countries.
#instructions #Realme #Realme C2
Detailed disassembly instructions of Realme C2 in the video, made by our mobile repair & service center:
