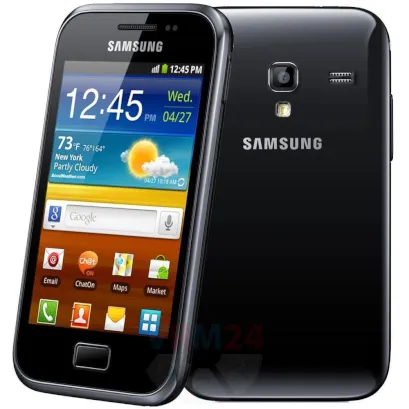

Samsung Galaxy Ace Plus GT-S7500
Samsung Galaxy Ace Plus GT-S7500
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Ace Plus GT-S7500 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 1/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 1/2

Step 1.

Open the back cover.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 2/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 3/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 4/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 5/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 5/2 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 5/3 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 5/4

Step 5.

Disconnect connectors on the PCB and pry up vibration motor & volume buttons flex cable.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 6/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 6/2 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 6/3

Step 6.

Turn over the PCB, disconnect the connector from the inside and remove it.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 7/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 7/2 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 7/3

Step 7.

Disconnect connectors on PCB and remove the main camera and buzzer (speaker) assembly.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 8/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt securing the headphone jack/socket.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 9/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 9/2 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 9/3

Step 9.

Remove the bracket and headphone jack/socket.

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 10/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 10/2

Step 10.

Pry and remove the earpiece (speaker).

How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 11/1 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 11/2 How to disassemble Samsung Galaxy Ace Plus GT-S7500, Step 11/3

Step 11.

Parts are in the frame of the display module.

Detailed disassembly instructions of Samsung Galaxy Ace Plus GT-S7500 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Ace Plus GT-S7500
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Samsung Galaxy Ace Plus GT-S7500 released for markets in different countries.
