Samsung Galaxy Mini GT-S5570
Samsung Galaxy Mini GT-S5570
Teardown difficulty:
Easy

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Samsung Galaxy Mini GT-S5570 (Samsung T-Mobile Move, Samsung Galaxy Pop for India) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Samsung Galaxy Mini GT-S5570, Step 1/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 1/2

Step 1.

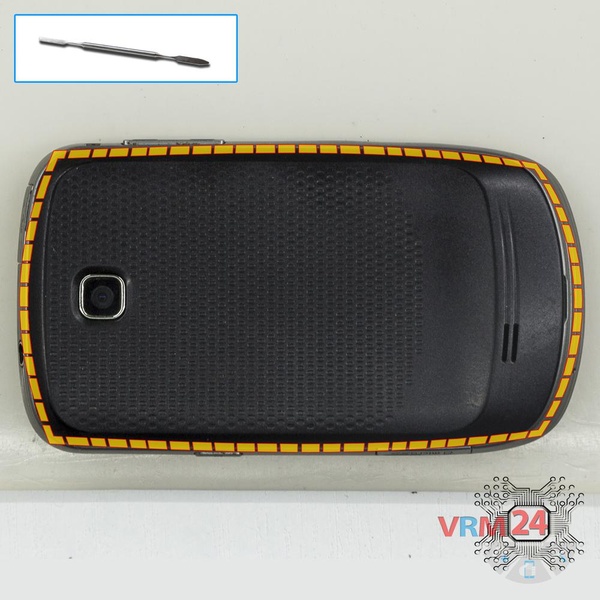

Open the back cover.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 2/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 2/2

Step 2.

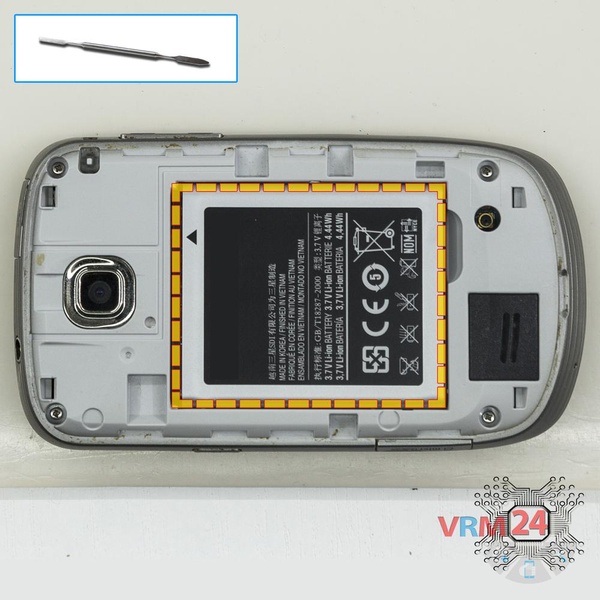

Lift and remove the battery.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 3/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 3/2

Step 3.

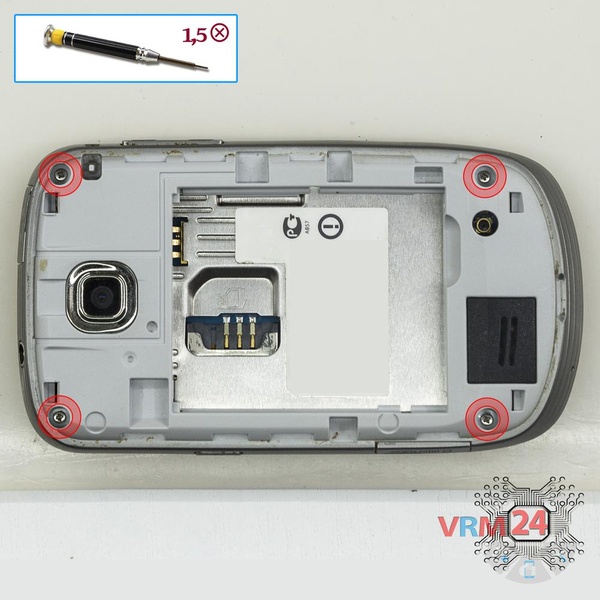

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the frame of the phone.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 4/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 4/2

Step 4.

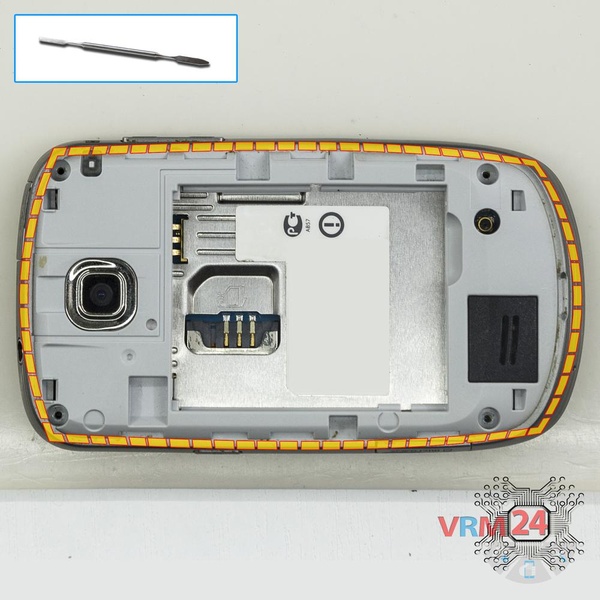

Pry and remove the middle frame.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 5/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 5/2 How to disassemble Samsung Galaxy Mini GT-S5570, Step 5/3

Step 5.

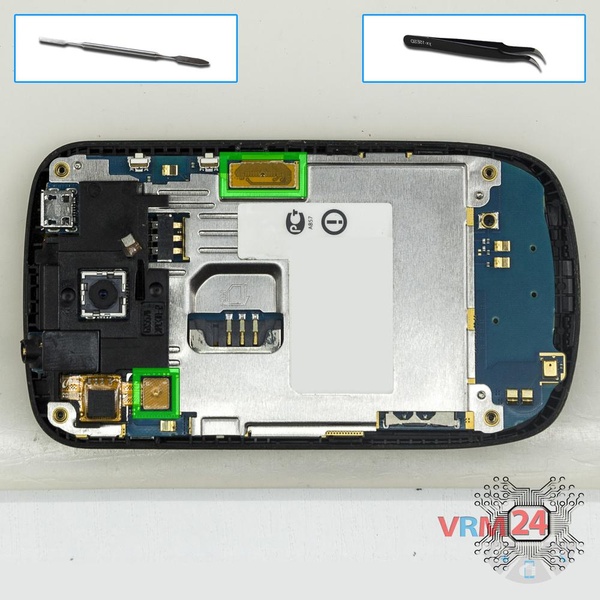

Disconnect connectors on the PCB.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 6/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 6/2

Step 6.

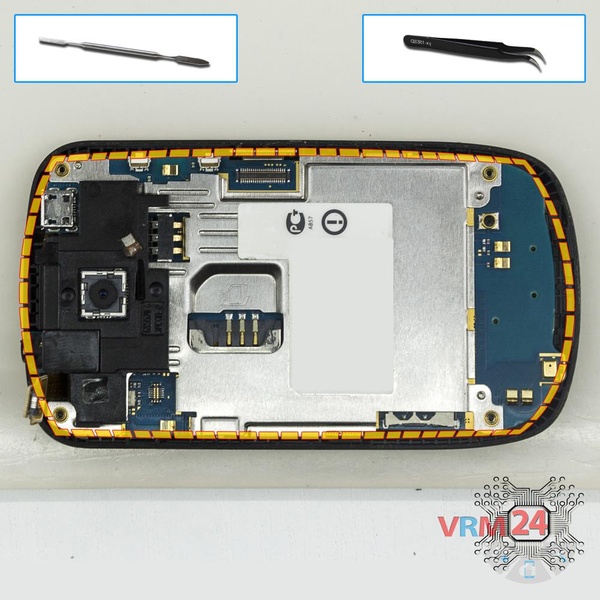

Remove the PCB.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 7/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 7/2

Step 7.

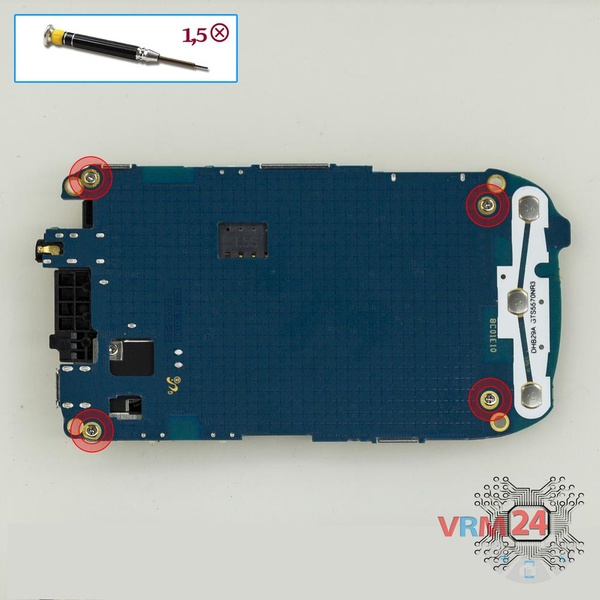

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the PCB.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 8/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 8/2

Step 8.

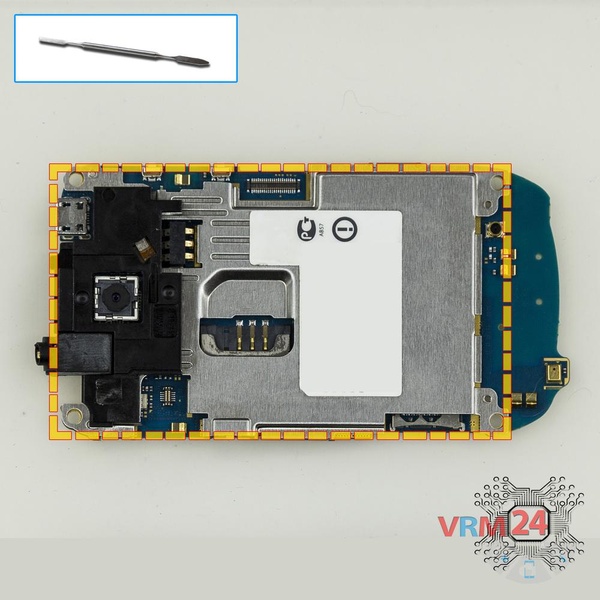

Remove the protective cover.

How to disassemble Samsung Galaxy Mini GT-S5570, Step 9/1 How to disassemble Samsung Galaxy Mini GT-S5570, Step 9/2 How to disassemble Samsung Galaxy Mini GT-S5570, Step 9/3

Step 9.

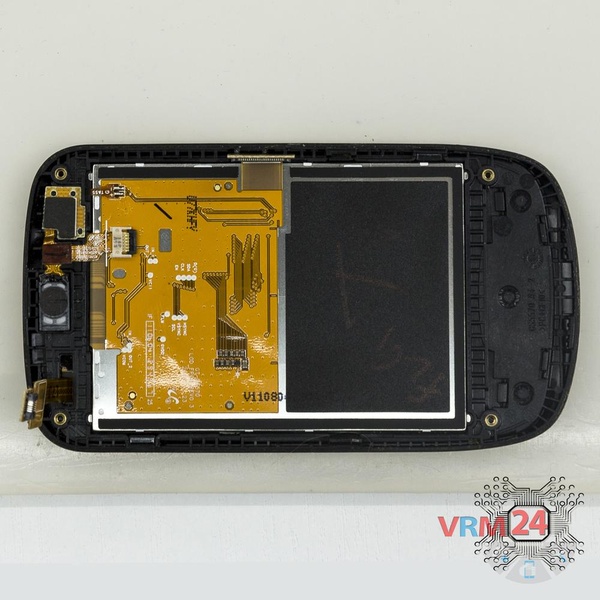

Parts are in the frame of the display module.

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Samsung #Samsung Galaxy Mini GT-S5570
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about minutes in time.
Our manual is suitable for all models Samsung Galaxy Mini GT-S5570 — Samsung T-Mobile Move, Samsung Galaxy Pop for India released for markets in different countries.
