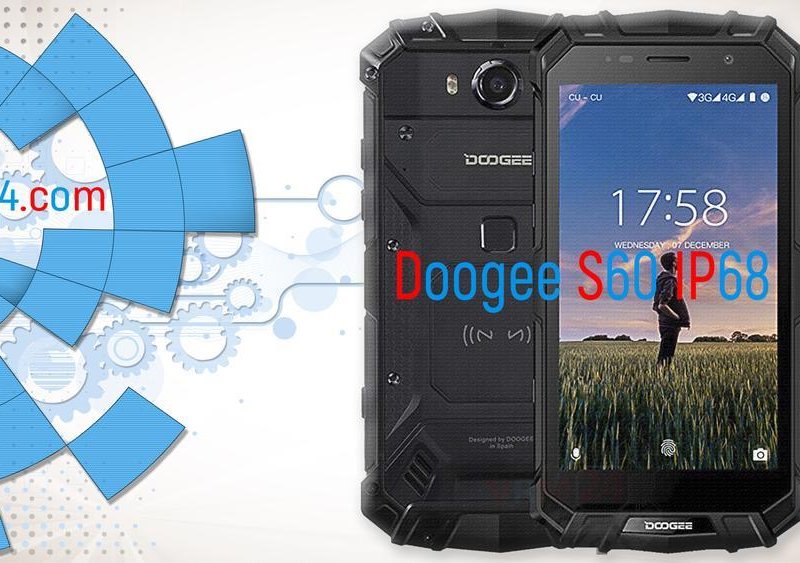

Tech review of Doogee S60 IP68

Compare this model

Irene Lebed

Author, Content Specialist

Creates new content, including blogs, events, and news.

Views

Likes

—

Questions

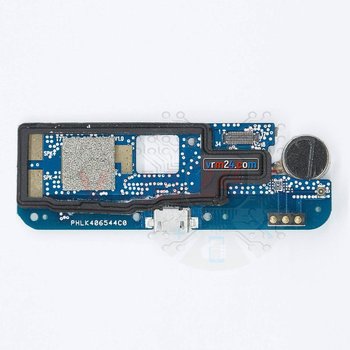

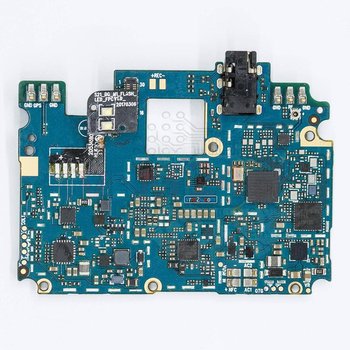

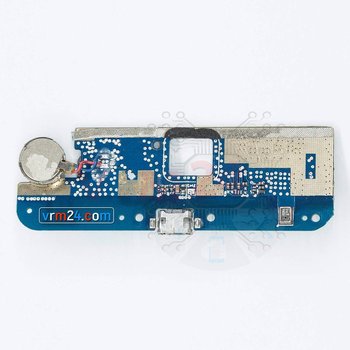

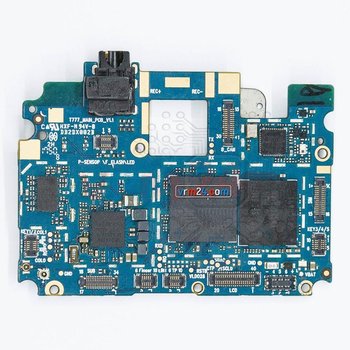

Main and additional circuit boards

Doogee S60 IP68

Side 1

Side 2

Spare parts

and components

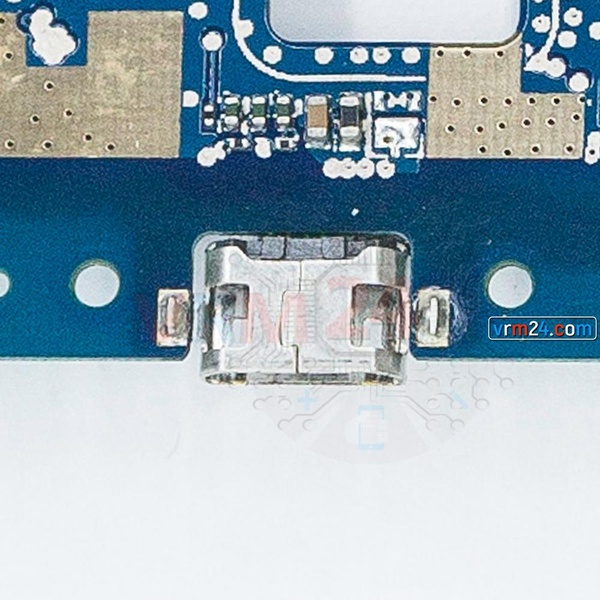

Charging port

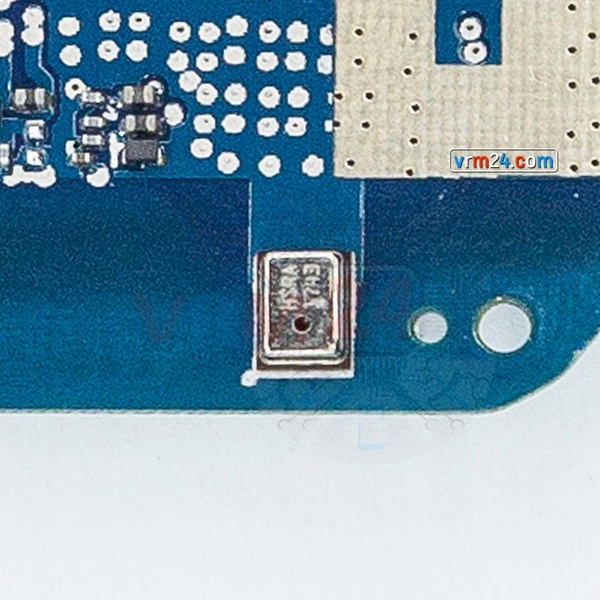

Microphone

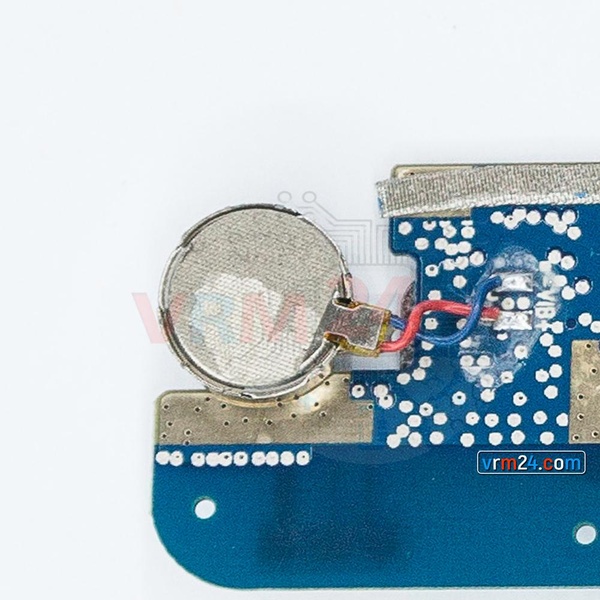

Vibration motor

Features

Type Smartphone

OS Android 7.0 (Nougat)

SIM type/size Micro SIM

SIM Dual SIM

Dimensions 164 x 81 x 15.5 mm (64.57 x 31.89 x 6.10 in)

Weight 290 g (0.64 oz)

Display

Display type IPS LCD capacitive touchscreen, 16M colors

Size 5.2 inches

Resolution 1080 x 1920 pixels, 16:9 ratio

PPI density 424

Protection Corning Gorilla Glass 5

Multimedia

Main camera 21 MP, AF

Main camera Video 1080p, 30fps

Front (selfie) camera 8 MP

Front (selfie) camera Video 1080p, 30fps

Audio MP3, AAC, AMR, FLAC, MIDI, OGG, WAV, WMA, FM radio

Headphone jack 3.5mm Jack

Network

Technology GSM / HSPA / LTE

Bands Yes, bands 700, 800, 850, 900, 1700, 1800, 1900, 2100, 2600 MHz

Interfaces Wi-Fi, Bluetooth 4.1

Satellite navigation GPS with A-GPS, GLONASS

Processor and Memory

System on a chip Mediatek Helio P25 MT6757T

CPU Octa-Core Cortex-A53 2.6 GHz

GPU Mali-T880 MP2

Internal memory 64 GB

RAM 6 GB

Card slot Micro SD, up to 128 GB (dedicated slot)

Battery

Battery capacity Li-Po 5580 mAh

Charging port Micro USB 2.0

Other

Announced 2017, December

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

Views

Likes

—

Questions

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.

This difficulty rating is also applicable for all models Doogee S60 IP68 released for markets in different countries.
