Tech review of Samsung Galaxy M01 SM-M015

Compare this model
Yurii Rodionov

Yurii Rodionov

Author, Content Specialist

Experienced tech specialist

6

Views

—

Share

0

Questions

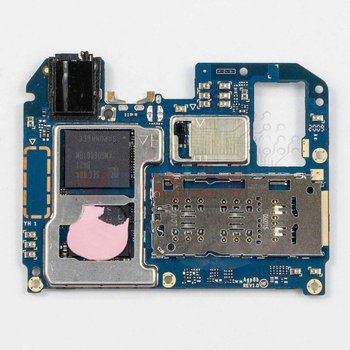

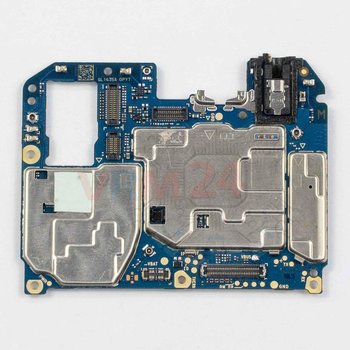

Main and additional circuit boards

Samsung Galaxy M01 SM-M015
Side 1
Side 2

Spare parts

and components

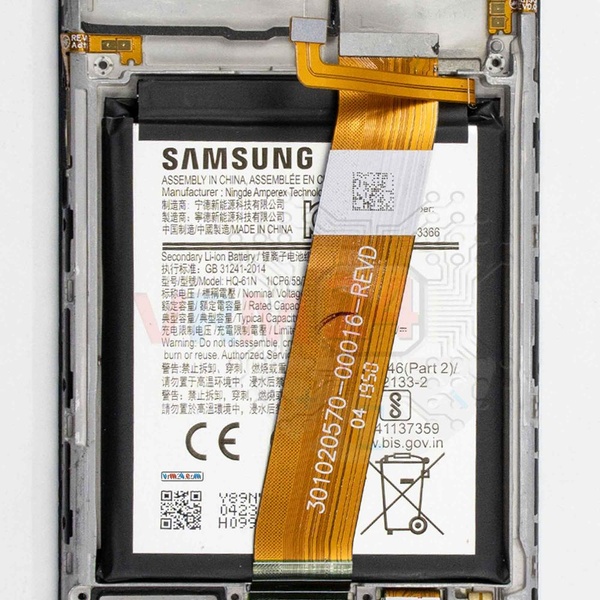

Battery
tech-review-of-Samsung Galaxy M01 SM-M015

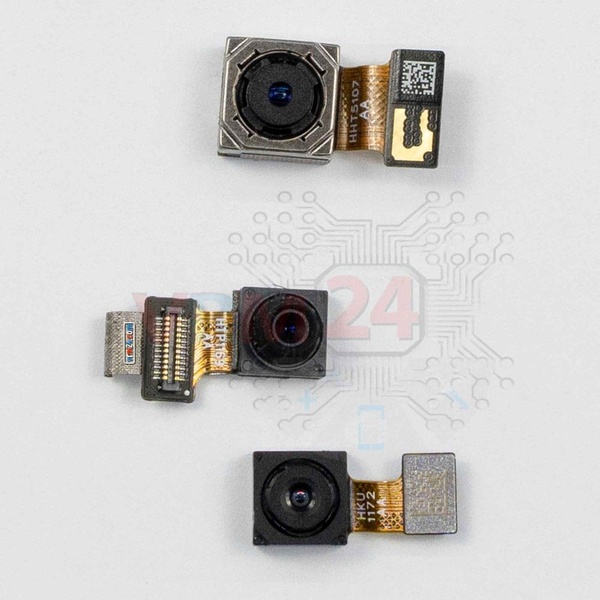

Cameras
tech-review-of-Samsung Galaxy M01 SM-M015

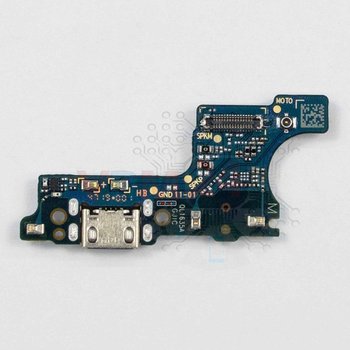

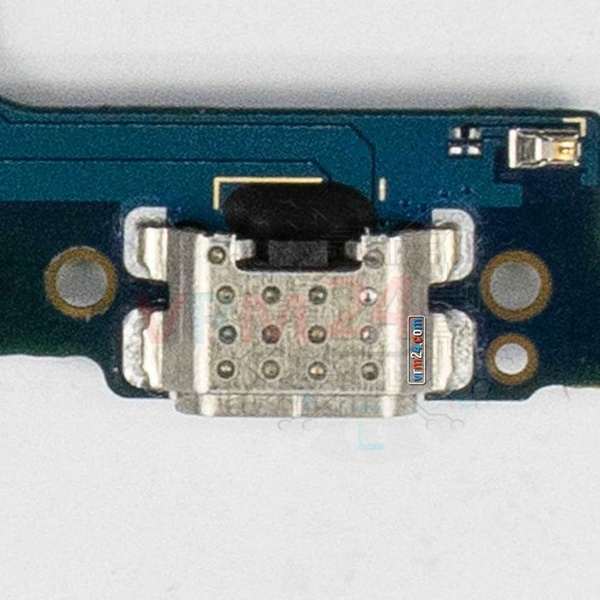

Charging port
tech-review-of-Samsung Galaxy M01 SM-M015
tech-review-of-Samsung Galaxy M01 SM-M015
tech-review-of-Samsung Galaxy M01 SM-M015

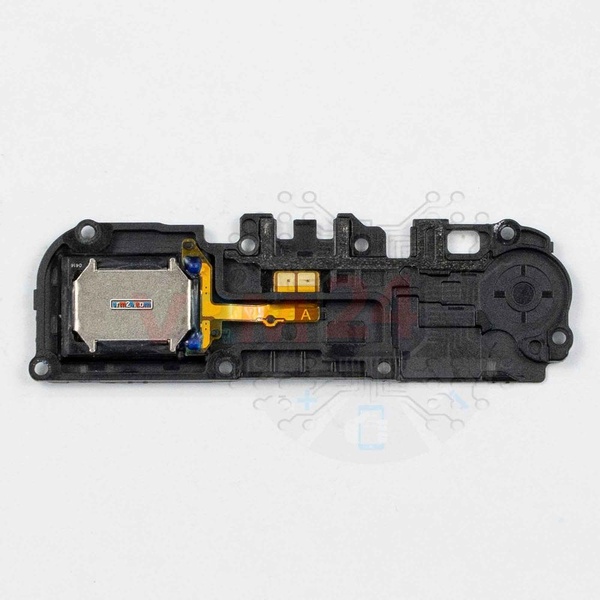

Loudspeaker
tech-review-of-Samsung Galaxy M01 SM-M015

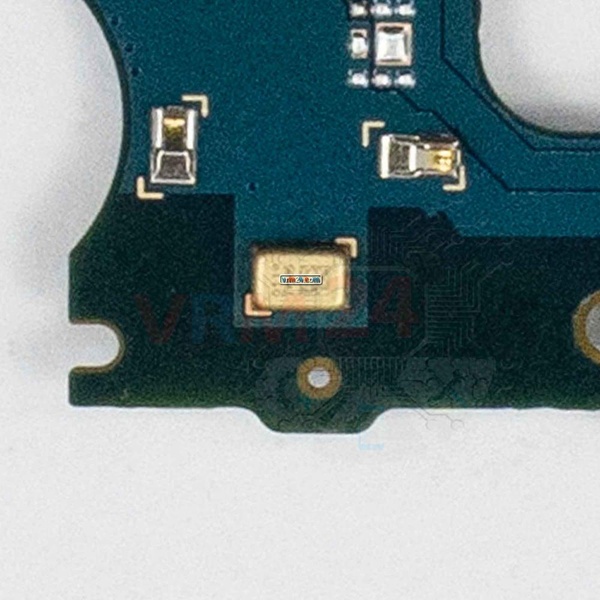

Microphone
tech-review-of-Samsung Galaxy M01 SM-M015

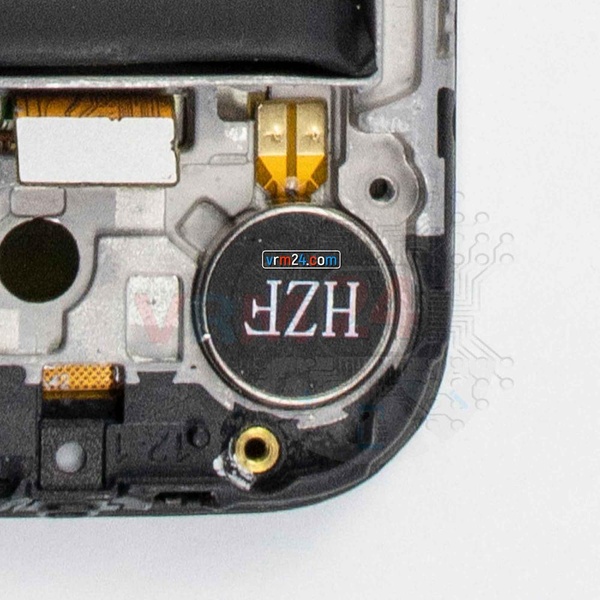

Vibration motor
tech-review-of-Samsung Galaxy M01 SM-M015

Characteristics

and Features

Features

Type Smartphone
OS Android 10
SIM type/size Nano SIM
SIM Dual SIM
Dimensions 147.5 x 70.9 x 9.8 mm (5.81 x 2.79 x 0.39 in)
Weight 168 g (5.93 oz)

Display

Display type IPS LCD
Size 5.7 inches
Resolution 720 x 1520 pixels, 19:9 ratio
PPI density 294
Protection ---

Multimedia

Main camera 13 MP/ 2 MP
Main camera Video 1080p, 30fps
Front (selfie) camera 5 MP
Front (selfie) camera Video ---
Audio MP3, AAC, WAV, WMA, FM-radio
Headphone jack Mini jack 3.5 mm

Network

Technology GSM/3G/4G LTE/VoLTE
Bands Band 1, 3, 5, 7, 8, 20, 28, 38, 40, 41
Interfaces Wi-Fi 802.11, Bluetooth 4.2
Satellite navigation GPS with A-GPS, GLONASS, BDS

Processor and Memory

System on a chip Qualcomm SDM439 Snapdragon 439
CPU Octa-core 4x Cortex-A53 1.95 GHz + 4x Cortex A53 1.45 GHz
GPU Adreno 505
Internal memory 32 GB
RAM 3 GB
Card slot Micro SD, up to 512 GB (dedicated slot)

Battery

Battery capacity Li-Ion 4000 mAh
Charging port Micro USB 2.0
Battery model HQ-61N

Other

Announced 2020, June

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

logo
6

Views

—

Share

0

Questions
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Samsung Galaxy M01 SM-M015 released for markets in different countries.
