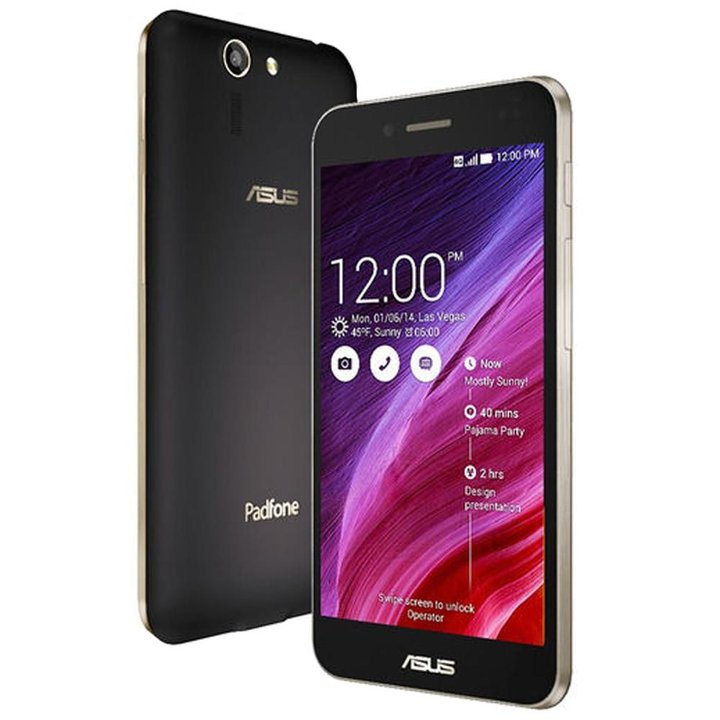

Asus PadFone S PF500KL
Asus PadFone S PF500KL
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Asus PadFone S PF500KL (Asus PadFone S T00N) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Asus PadFone S T00N, Step 1/1 How to disassemble Asus PadFone S T00N, Step 1/2

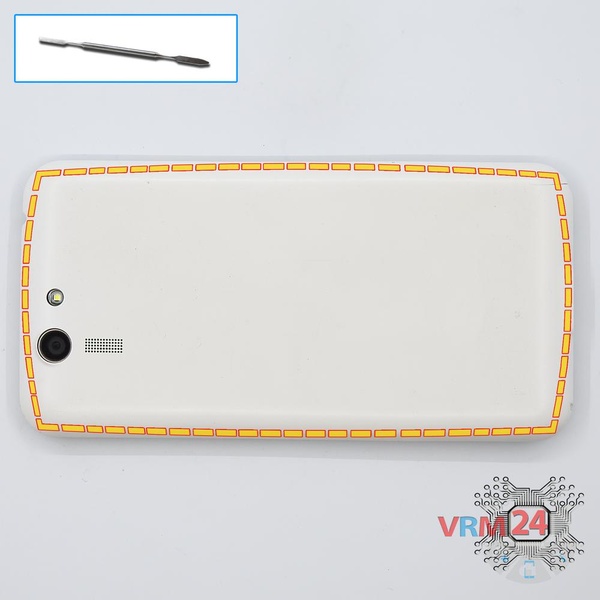

Step 1.

Open the back cover.

How to disassemble Asus PadFone S T00N, Step 2/1 How to disassemble Asus PadFone S T00N, Step 2/2

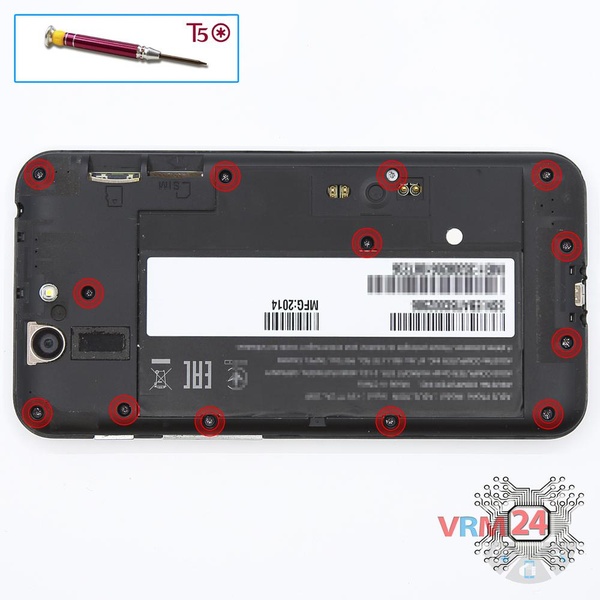

Step 2.

Using a screwdriver (hex T5), unscrew 13 bolts in the frame of the phone.

How to disassemble Asus PadFone S T00N, Step 3/1 How to disassemble Asus PadFone S T00N, Step 3/2

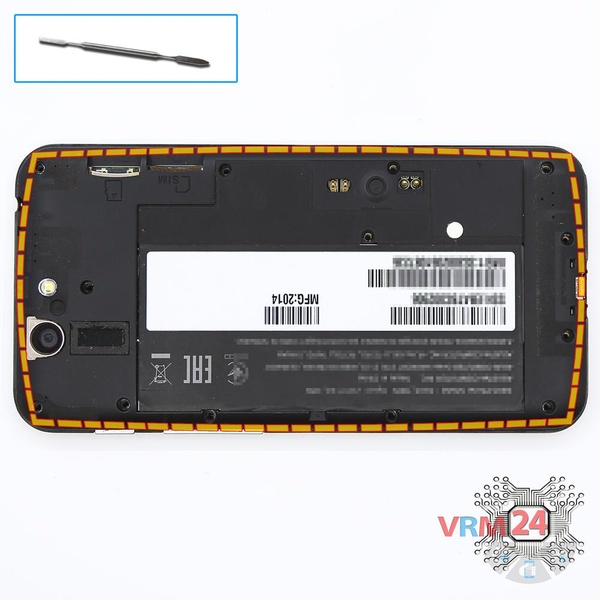

Step 3.

Pry and remove the middle frame.

How to disassemble Asus PadFone S T00N, Step 4/1

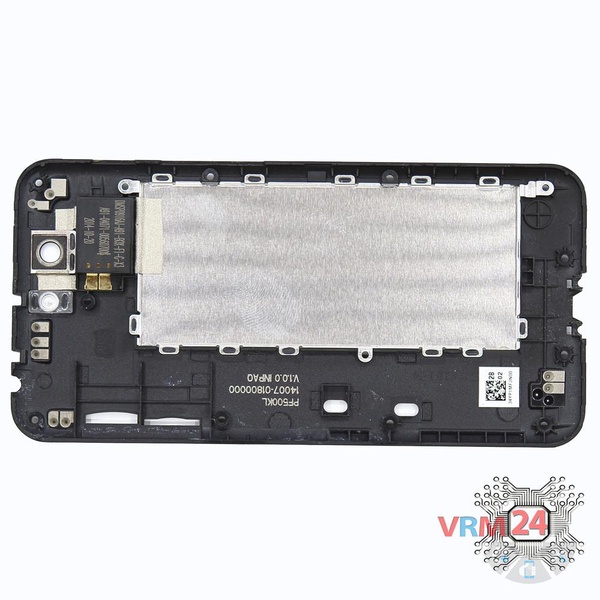

Step 4.

The middle frame.

How to disassemble Asus PadFone S T00N, Step 5/1 How to disassemble Asus PadFone S T00N, Step 5/2 How to disassemble Asus PadFone S T00N, Step 5/3

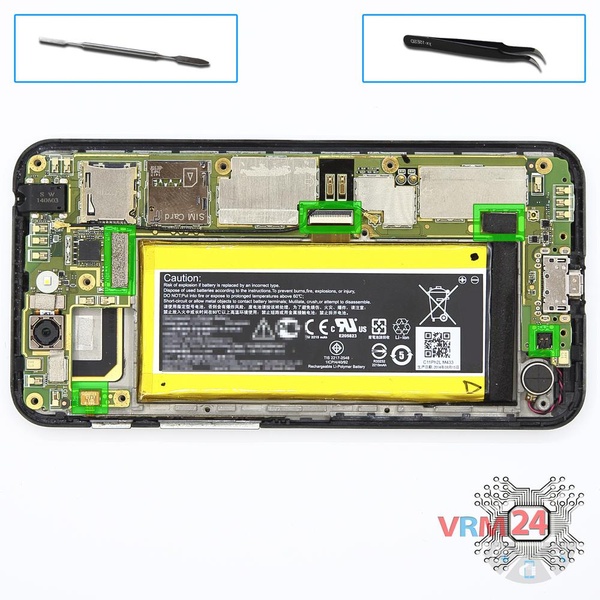

Step 5.

Disconnect connectors on the PCB.

How to disassemble Asus PadFone S T00N, Step 6/1 How to disassemble Asus PadFone S T00N, Step 6/2

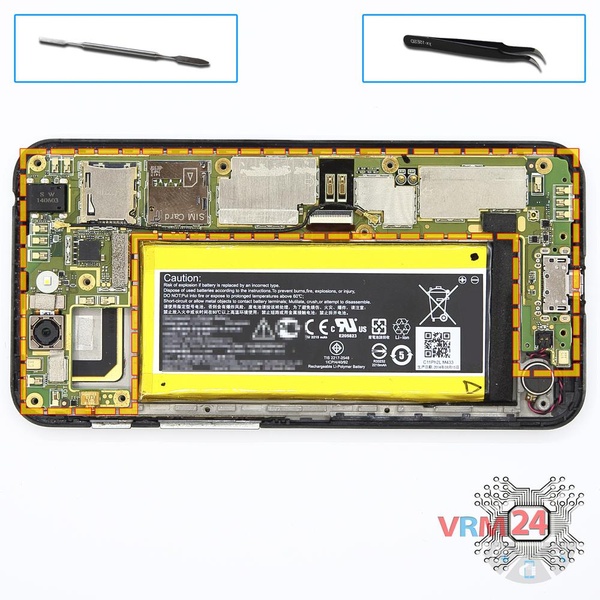

Step 6.

Remove the PCB.

How to disassemble Asus PadFone S T00N, Step 7/1 How to disassemble Asus PadFone S T00N, Step 7/2

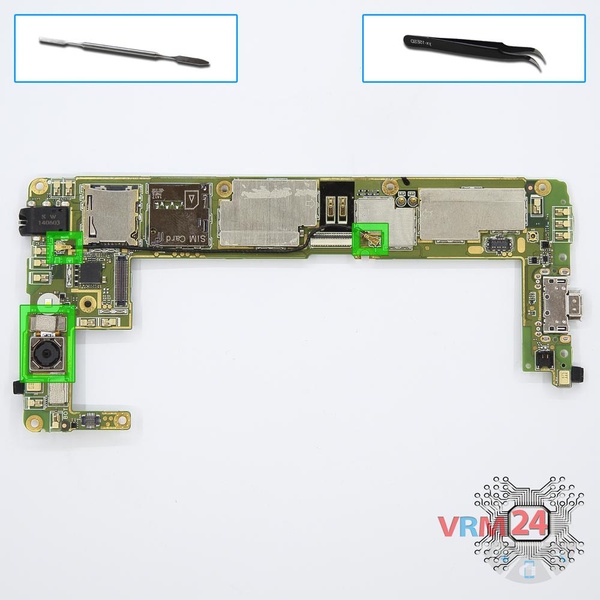

Step 7.

Disconnect connectors on the PCB and remove the coaxial cable, main and front (selfie) cameras.

How to disassemble Asus PadFone S T00N, Step 8/1 How to disassemble Asus PadFone S T00N, Step 8/2 How to disassemble Asus PadFone S T00N, Step 8/3

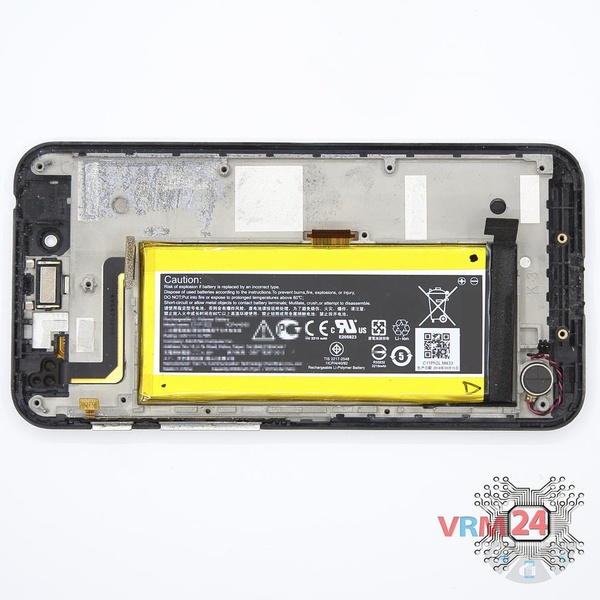

Step 8.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus PadFone S PF500KL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus PadFone S PF500KL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Asus PadFone S PF500KL — Asus PadFone S T00N released for markets in different countries.
