Asus ZenFone 2 ZE550ML
Asus ZenFone 2 ZE550ML
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

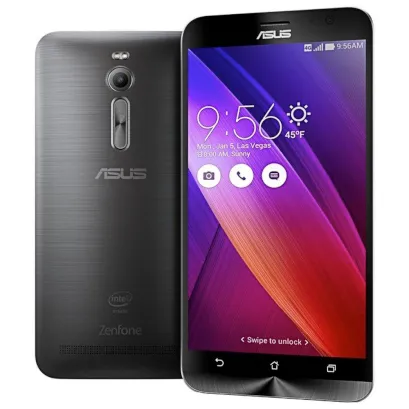

Disassembly/Repair of the mobile device Asus ZenFone 2 ZE550ML with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Asus ZenFone 2 ZE550ML, Step 1/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 1/2

Step 1.

Open the back cover.

How to disassemble Asus ZenFone 2 ZE550ML, Step 2/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.

How to disassemble Asus ZenFone 2 ZE550ML, Step 3/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Asus ZenFone 2 ZE550ML, Step 4/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 4/2 How to disassemble Asus ZenFone 2 ZE550ML, Step 4/3

Step 4.

Pry and remove the lower part with buzzer (speaker).

How to disassemble Asus ZenFone 2 ZE550ML, Step 5/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 5/2

Step 5.

Lift and remove the battery.

⚠️ Warning!

If the battery is glued to the frame, it is recommended to gently heat the surface of the battery to soften the under it.

How to disassemble Asus ZenFone 2 ZE550ML, Step 6/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 6/2 How to disassemble Asus ZenFone 2 ZE550ML, Step 6/3 How to disassemble Asus ZenFone 2 ZE550ML, Step 6/4

Step 6.

Pry and remove the lower PCB.

How to disassemble Asus ZenFone 2 ZE550ML, Step 7/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 7/2

Step 7.

Remove the heat sink sheet.

How to disassemble Asus ZenFone 2 ZE550ML, Step 8/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 8/2 How to disassemble Asus ZenFone 2 ZE550ML, Step 8/3 How to disassemble Asus ZenFone 2 ZE550ML, Step 8/4

Step 8.

Remove the PCB.

How to disassemble Asus ZenFone 2 ZE550ML, Step 9/1 How to disassemble Asus ZenFone 2 ZE550ML, Step 9/2 How to disassemble Asus ZenFone 2 ZE550ML, Step 9/3 How to disassemble Asus ZenFone 2 ZE550ML, Step 9/4

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Asus ZenFone 2 ZE550ML in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus ZenFone 2 ZE550ML
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Asus ZenFone 2 ZE550ML released for markets in different countries.
