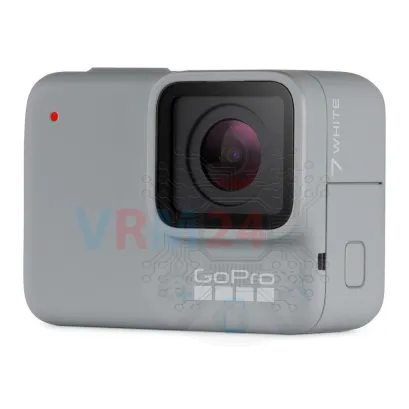

Disassembly/Repair of the mobile device GoPro HERO7 (GoPro HERO7 (CHDHX-701)) with each step description and the required set of tools.

15119

Views

—

Share

5

Questions

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Step 1.

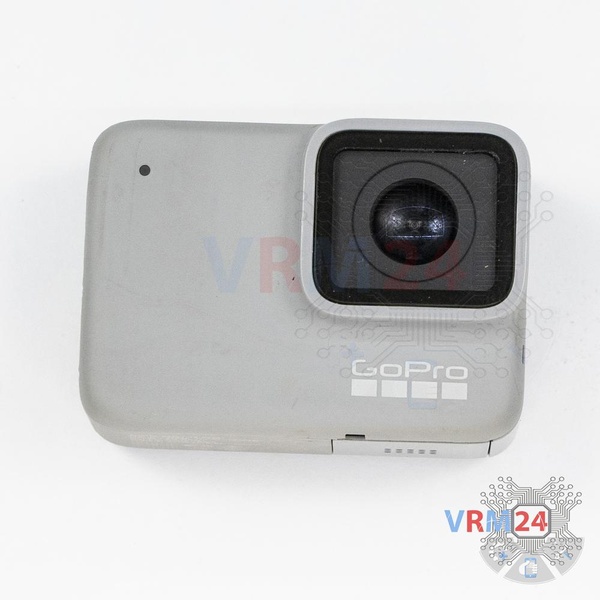

Before disassembling!

⚠ Before disassembling, do not forget to turn your phone off.


Step 2.

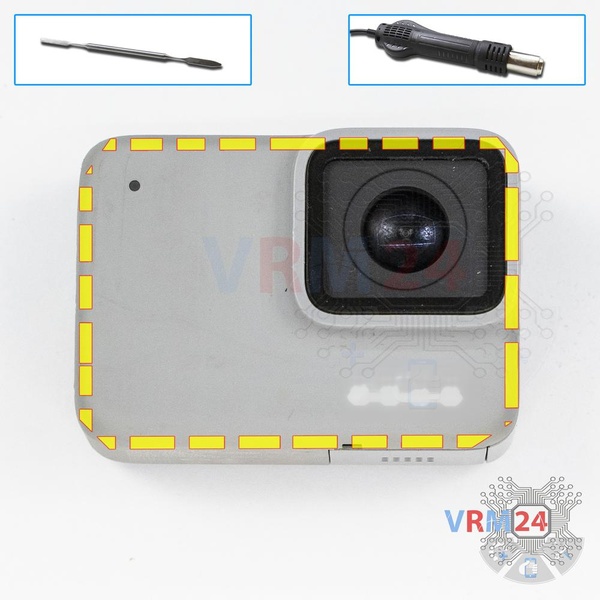

Open the display module

Open the front cover.

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️ The surface of the front cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided.

Do not use a lever or any force for separation that could damage the elements inside.


Step 3.

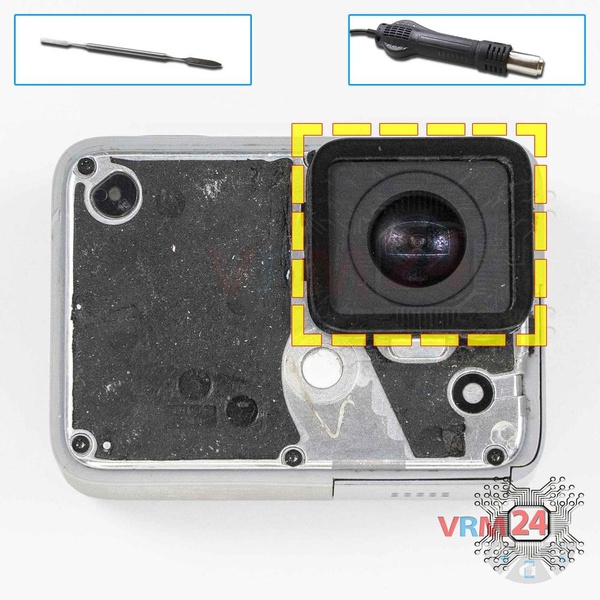

Open the touchscreen

Remove the glass.

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️ The surface of the glass must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F. Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided.

Do not use a lever or any force for separation that could damage the elements inside.


Step 4.

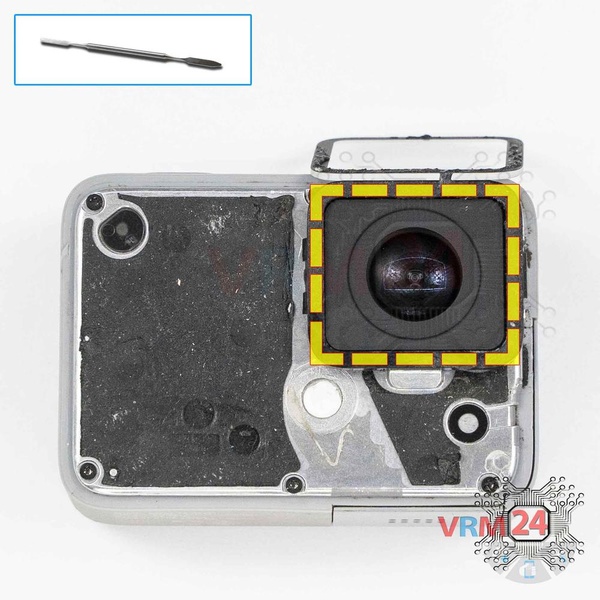

Open the cover

Remove the cover hiding the screws.


Step 5.

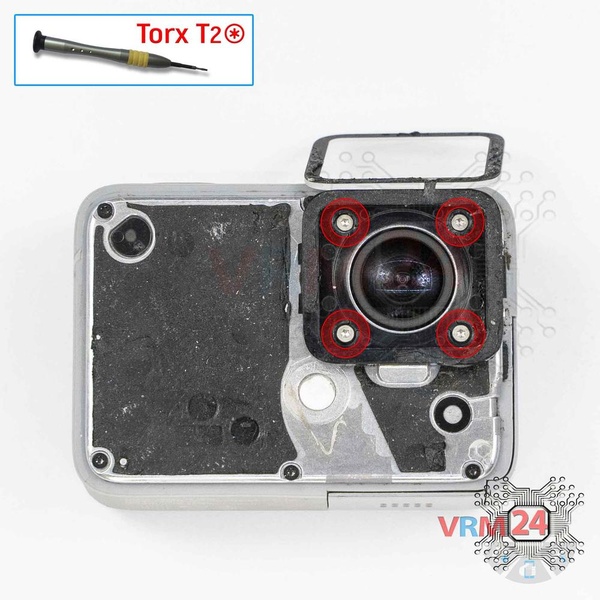

Unscrew the screws

Using a screwdriver (Torx T2), unscrew the 4 screws.

ℹ️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


Step 6.

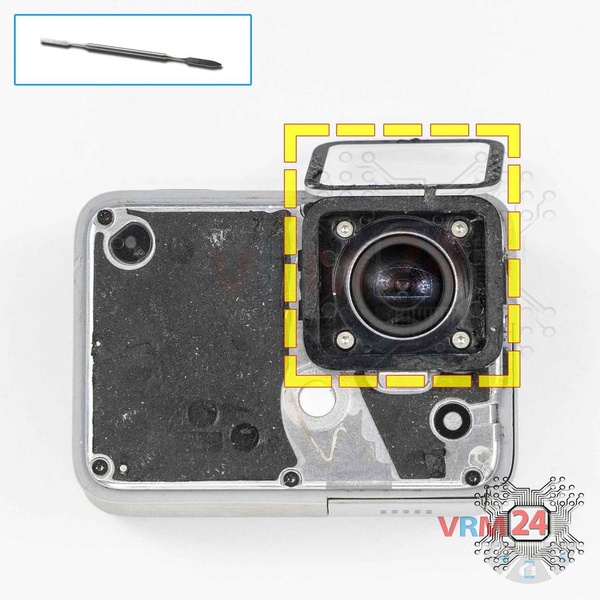

Remove the bracket

Carefully remove the square bezel.


Step 7.

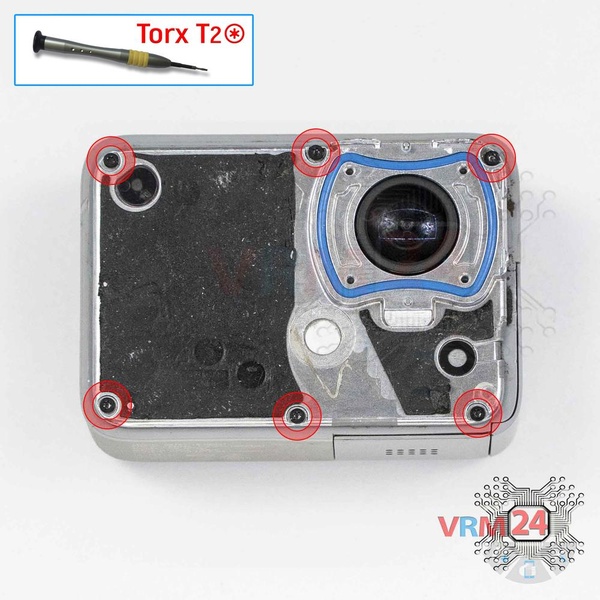

Unscrew the screws

Using a screwdriver (Torx T2), unscrew the 6 screws.


Step 8.

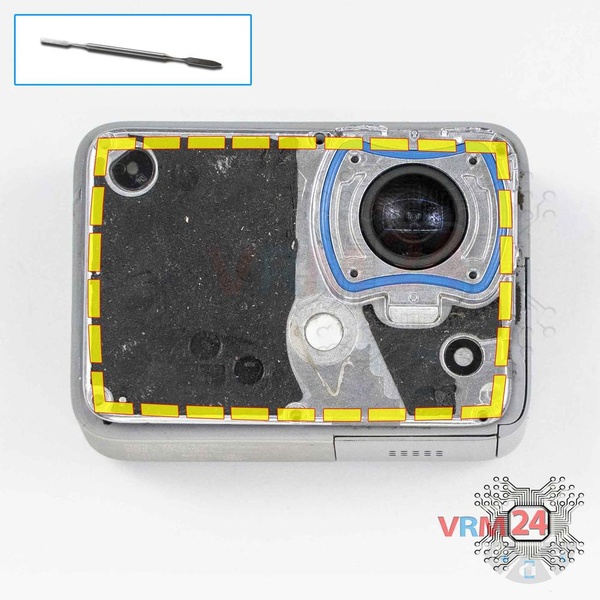

Open the display module

Open the housing with display. Do it carefully, watch the cables.


Step 9.

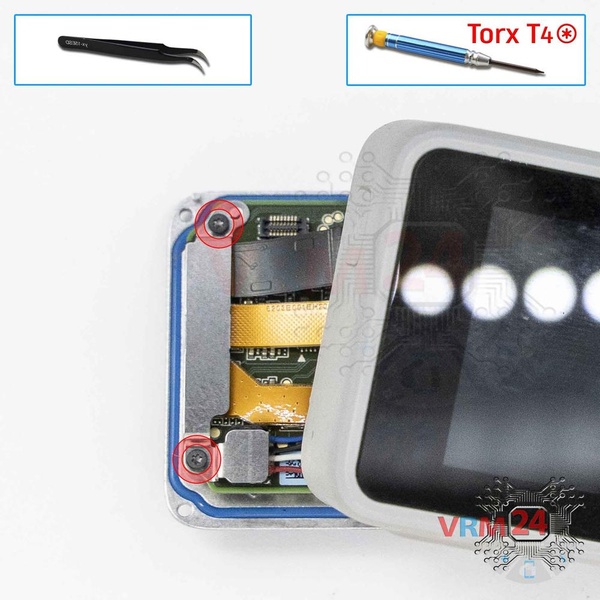

Remove the bracket

Using a screwdriver (Torx T4), unscrew the 2 screws and remove the bracket holding the connectors.

⚠ Try to control and perform all actions carefully so as not to accidentally touch or short circuit anything on the printed circuit board.

If the screws are different: ℹ️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its part. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

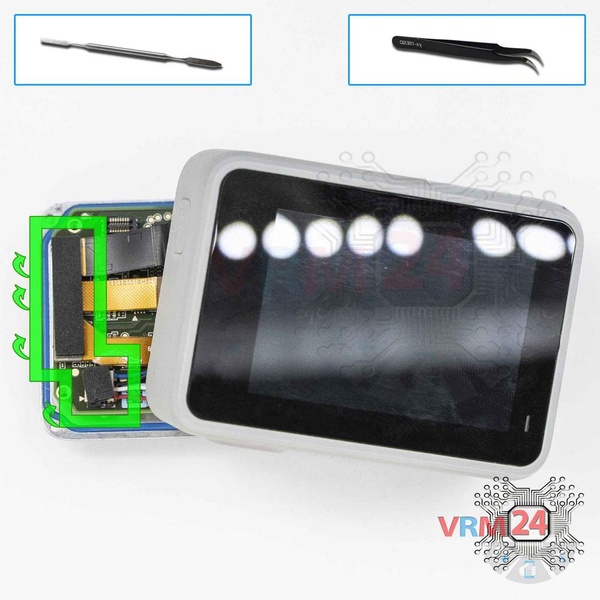

Step 10.

Disconnect the connectors

Pry up the connectors.

⚠ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


Step 11.

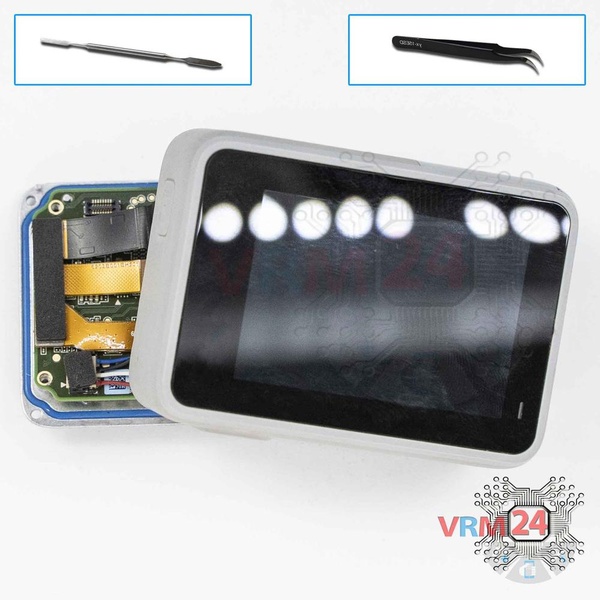

Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

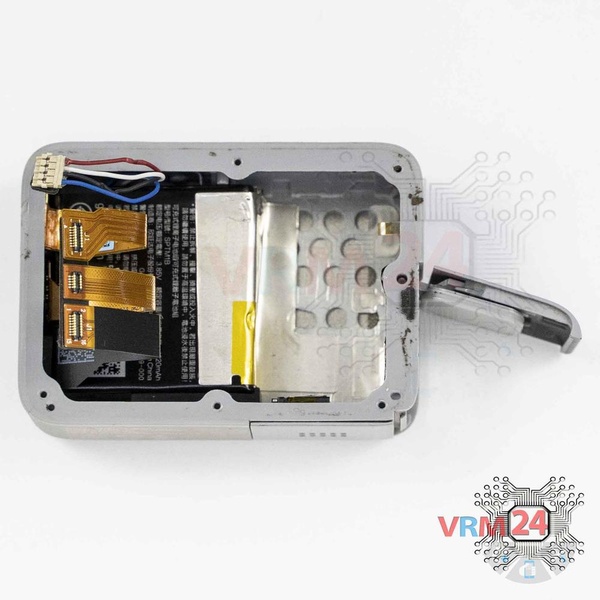

Step 12.

In the housing remained

The housing.


Step 13.

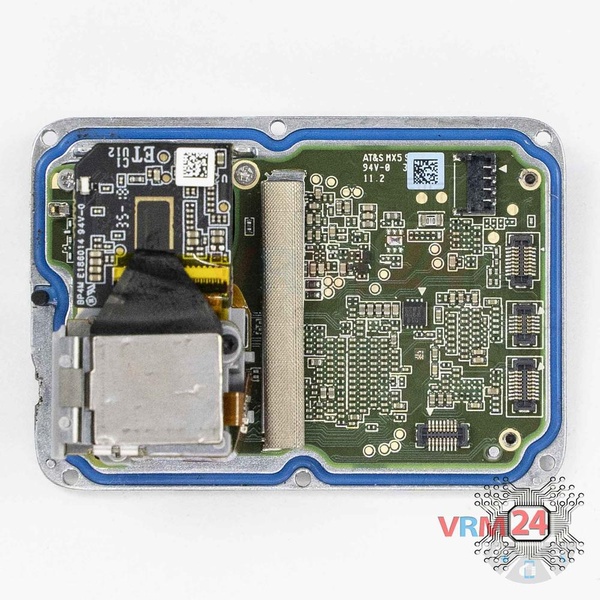

On the motherboard

The motherboard.

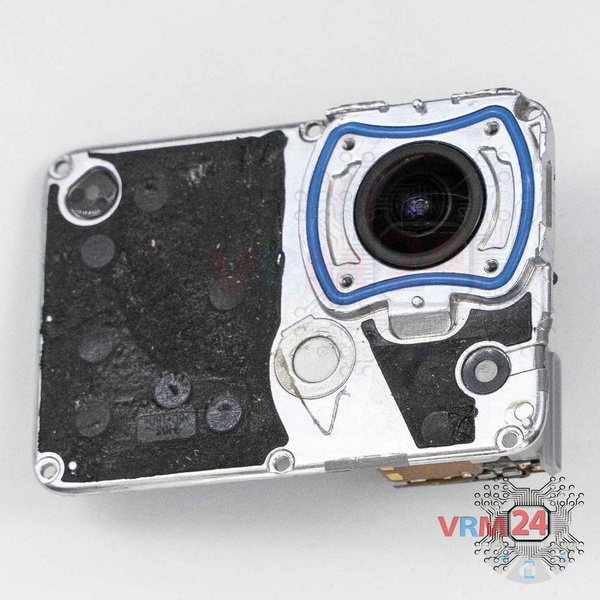

Step 14.

Turn over the PCB

The front cover on the reverse side is PSB.


Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

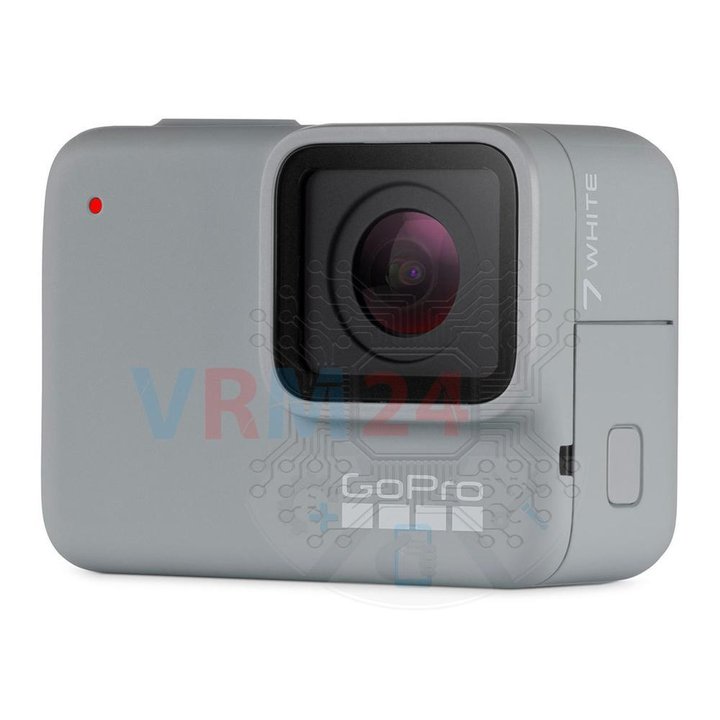

Disassembling\Repair has hard complexity and takes about 9 minutes in time. Our manual is suitable for all models GoPro HERO7 — GoPro HERO7 (CHDHX-701) released for markets in different countries.
Detailed disassembly instructions of GoPro HERO7 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
