HOMTOM S9 Plus
HOMTOM S9 Plus
Teardown difficulty:
Moderate
Duration:
18 min

Recommended tools

Heat gun Heat gun
Soldering Iron Soldering iron
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

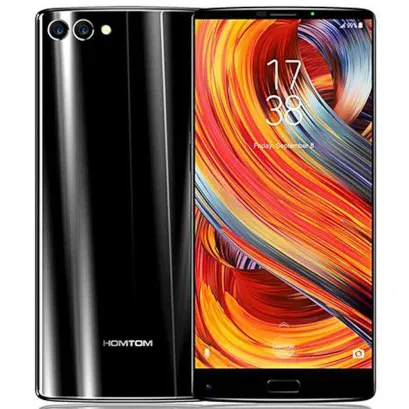

Disassembly/Repair of the mobile device HOMTOM S9 Plus with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble HOMTOM S9 Plus, Step 1/1 How to disassemble HOMTOM S9 Plus, Step 1/2

Step 1.

Open the back cover.

How to disassemble HOMTOM S9 Plus, Step 2/1 How to disassemble HOMTOM S9 Plus, Step 2/2

Step 2.

Using the key tool, open the SIM card slot and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble HOMTOM S9 Plus, Step 3/1 How to disassemble HOMTOM S9 Plus, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 21 bolts in the frame of the phone.

How to disassemble HOMTOM S9 Plus, Step 4/1 How to disassemble HOMTOM S9 Plus, Step 4/2

Step 4.

Remove the protective panel.

How to disassemble HOMTOM S9 Plus, Step 5/1 How to disassemble HOMTOM S9 Plus, Step 5/2 How to disassemble HOMTOM S9 Plus, Step 5/3

Step 5.

Disconnect the connector and remove the battery.

How to disassemble HOMTOM S9 Plus, Step 6/1 How to disassemble HOMTOM S9 Plus, Step 6/2 How to disassemble HOMTOM S9 Plus, Step 6/3

Step 6.

Lift the lower part, unsolder the contacts of the speaker on the PCB and remove the part.

How to disassemble HOMTOM S9 Plus, Step 7/1 How to disassemble HOMTOM S9 Plus, Step 7/2 How to disassemble HOMTOM S9 Plus, Step 7/3

Step 7.

Disconnect the connectors and remove the coaxial cable.

How to disassemble HOMTOM S9 Plus, Step 8/1 How to disassemble HOMTOM S9 Plus, Step 8/2 How to disassemble HOMTOM S9 Plus, Step 8/3

Step 8.

Disconnect the inter-board connector on the lower printed circuit board.

How to disassemble HOMTOM S9 Plus, Step 9/1 How to disassemble HOMTOM S9 Plus, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 1 bolt in the lower PCB.

How to disassemble HOMTOM S9 Plus, Step 10/1 How to disassemble HOMTOM S9 Plus, Step 10/2

Step 10.

Rrmove the lower PCB.

How to disassemble HOMTOM S9 Plus, Step 11/1 How to disassemble HOMTOM S9 Plus, Step 11/2

Step 11.

Disconnect the connector on PCB and remove the main camera.

How to disassemble HOMTOM S9 Plus, Step 12/1 How to disassemble HOMTOM S9 Plus, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 1 bolt in the PCB.

How to disassemble HOMTOM S9 Plus, Step 13/1 How to disassemble HOMTOM S9 Plus, Step 13/2

Step 13.

Disconnect the connectors on the PCB

How to disassemble HOMTOM S9 Plus, Step 14/1 How to disassemble HOMTOM S9 Plus, Step 14/2

Step 14.

Remove the PCB.

How to disassemble HOMTOM S9 Plus, Step 15/1 How to disassemble HOMTOM S9 Plus, Step 15/2 How to disassemble HOMTOM S9 Plus, Step 15/3

Step 15.

Parts in the frame of the display module.

Detailed disassembly instructions of HOMTOM S9 Plus in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #HOMTOM #HOMTOM S9 Plus
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 18 minutes in time.
Our manual is suitable for all models HOMTOM S9 Plus released for markets in different countries.
