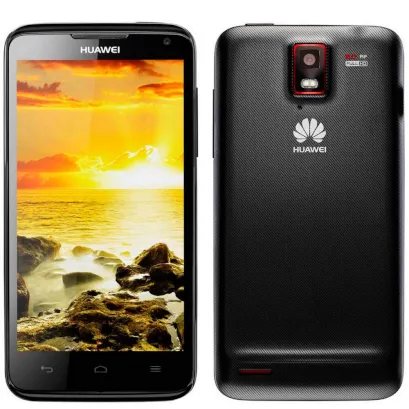

Huawei Ascend D1 Quad XL
Huawei Ascend D1 Quad XL
Teardown difficulty:
Moderate
Duration:
8 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Ascend D1 Quad XL (Huawei Ascend D1 Quad XL u9510e) with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Huawei Ascend D1 Quad XL, Step 1/1 How to disassemble Huawei Ascend D1 Quad XL, Step 1/2

Step 1.

Open the back cover.

How to disassemble Huawei Ascend D1 Quad XL, Step 2/1 How to disassemble Huawei Ascend D1 Quad XL, Step 2/2

Step 2.

Using a screwdriver (hex T5), unscrew 4 bolts and a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the back and also unscrew 4 bolts on the edges.

How to disassemble Huawei Ascend D1 Quad XL, Step 3/1 How to disassemble Huawei Ascend D1 Quad XL, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Huawei Ascend D1 Quad XL, Step 4/1 How to disassemble Huawei Ascend D1 Quad XL, Step 4/2

Step 4.

Pry and remove the buzzer (speaker).

How to disassemble Huawei Ascend D1 Quad XL, Step 5/1 How to disassemble Huawei Ascend D1 Quad XL, Step 5/2 How to disassemble Huawei Ascend D1 Quad XL, Step 5/3

Step 5.

Disconnect connector on the PCB and remove the battery.

How to disassemble Huawei Ascend D1 Quad XL, Step 6/1 How to disassemble Huawei Ascend D1 Quad XL, Step 6/2

Step 6.

Disconnect connectors and remove the coaxial cable.

How to disassemble Huawei Ascend D1 Quad XL, Step 7/1 How to disassemble Huawei Ascend D1 Quad XL, Step 7/2

Step 7.

Disconnect the volume buttons key.

How to disassemble Huawei Ascend D1 Quad XL, Step 8/1 How to disassemble Huawei Ascend D1 Quad XL, Step 8/2 How to disassemble Huawei Ascend D1 Quad XL, Step 8/3

Step 8.

Disconnect connector on the PCB.

How to disassemble Huawei Ascend D1 Quad XL, Step 9/1 How to disassemble Huawei Ascend D1 Quad XL, Step 9/2 How to disassemble Huawei Ascend D1 Quad XL, Step 9/3

Step 9.

Disconnect connector on the PCB.

How to disassemble Huawei Ascend D1 Quad XL, Step 10/1 How to disassemble Huawei Ascend D1 Quad XL, Step 10/2

Step 10.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Huawei Ascend D1 Quad XL, Step 11/1 How to disassemble Huawei Ascend D1 Quad XL, Step 11/2 How to disassemble Huawei Ascend D1 Quad XL, Step 11/3 How to disassemble Huawei Ascend D1 Quad XL, Step 11/4

Step 11.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Huawei Ascend D1 Quad XL, Step 12/1 How to disassemble Huawei Ascend D1 Quad XL, Step 12/2

Step 12.

Disconnect the flat cable with proximity sensor.

How to disassemble Huawei Ascend D1 Quad XL, Step 13/1 How to disassemble Huawei Ascend D1 Quad XL, Step 13/2

Step 13.

Remove the inter-board cables with vibration motor & microphone.

How to disassemble Huawei Ascend D1 Quad XL, Step 14/1 How to disassemble Huawei Ascend D1 Quad XL, Step 14/2

Step 14.

Pry and remove the earpiece (speaker).

How to disassemble Huawei Ascend D1 Quad XL, Step 15/1 How to disassemble Huawei Ascend D1 Quad XL, Step 15/2 How to disassemble Huawei Ascend D1 Quad XL, Step 15/3

Step 15.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend D1 Quad XL in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Ascend D1 Quad XL
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 8 minutes in time.
Our manual is suitable for all models Huawei Ascend D1 Quad XL — Huawei Ascend D1 Quad XL u9510e released for markets in different countries.
