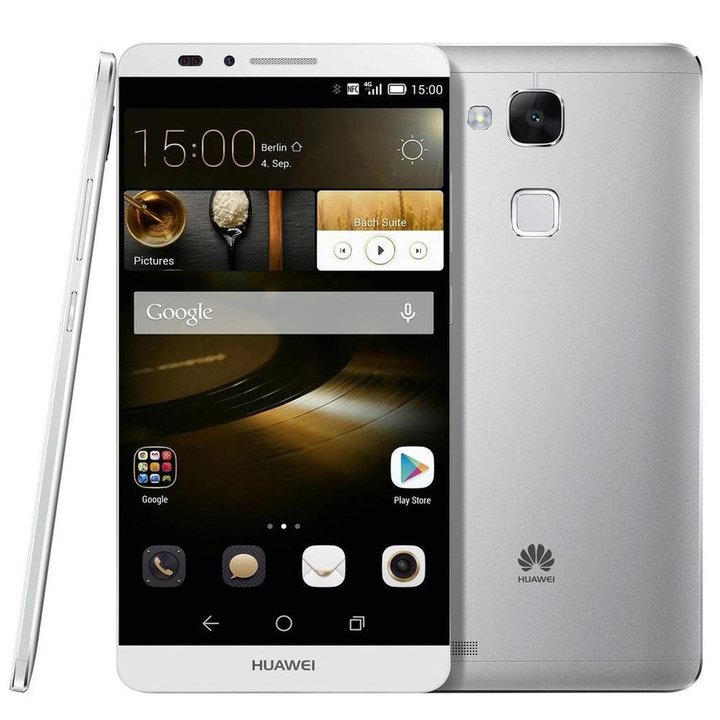

Huawei Ascend Mate 7
Huawei Ascend Mate 7
Teardown difficulty:
Hard
Duration:
9 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Ascend Mate 7 (Huawei Ascend Mate 7 MT7-TL09 MT7-TL10) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Huawei Ascend Mate 7, Step 1/1

Step 1.

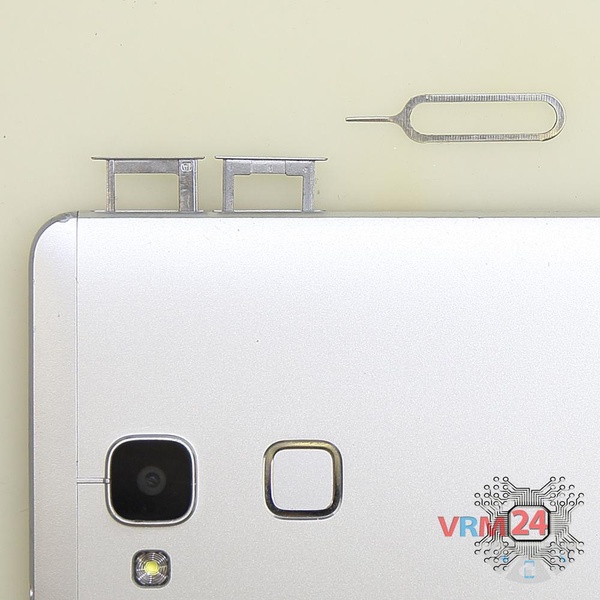

Using the key tool, open the SIM card and MMC card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei Ascend Mate 7, Step 2/1 How to disassemble Huawei Ascend Mate 7, Step 2/2

Step 2.

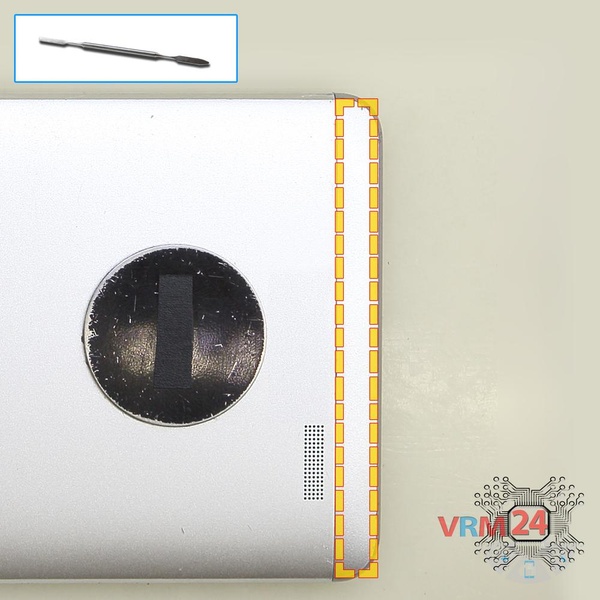

Open the bottom cover.

How to disassemble Huawei Ascend Mate 7, Step 3/1 How to disassemble Huawei Ascend Mate 7, Step 3/2

Step 3.

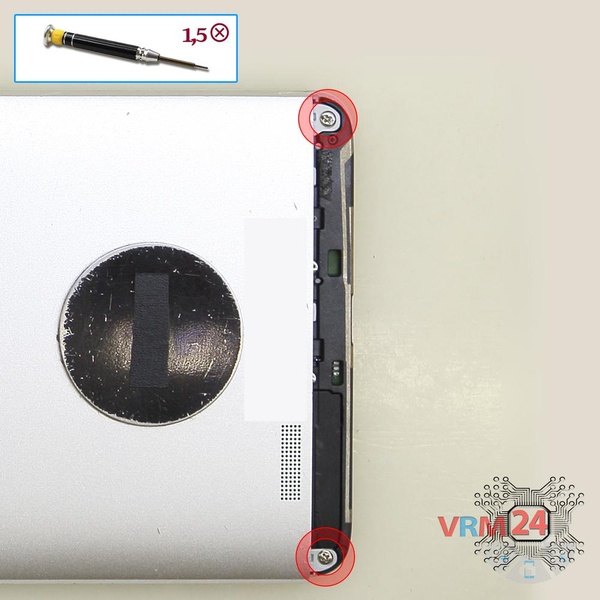

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 2 bolts on the end of the phone.

How to disassemble Huawei Ascend Mate 7, Step 4/1 How to disassemble Huawei Ascend Mate 7, Step 4/2

Step 4.

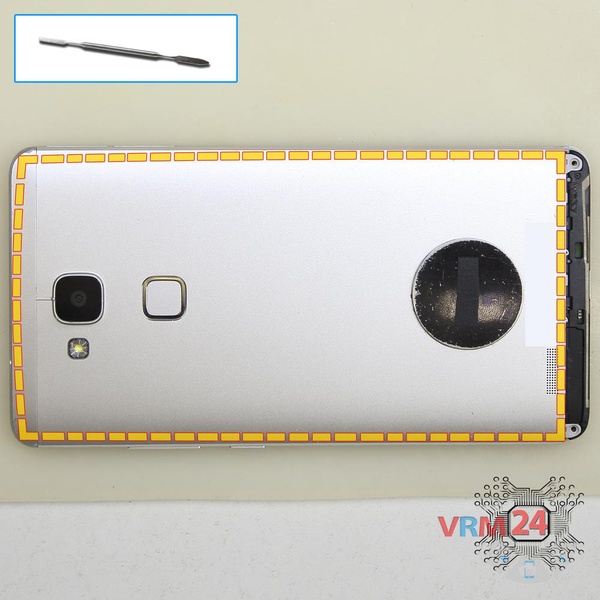

Open the back cover.

⚠️ Warning!

The fingerprint sensor (located on the cover) connects to the PCB by a cable, so you need to open carefully.

How to disassemble Huawei Ascend Mate 7, Step 5/1 How to disassemble Huawei Ascend Mate 7, Step 5/2 How to disassemble Huawei Ascend Mate 7, Step 5/3

Step 5.

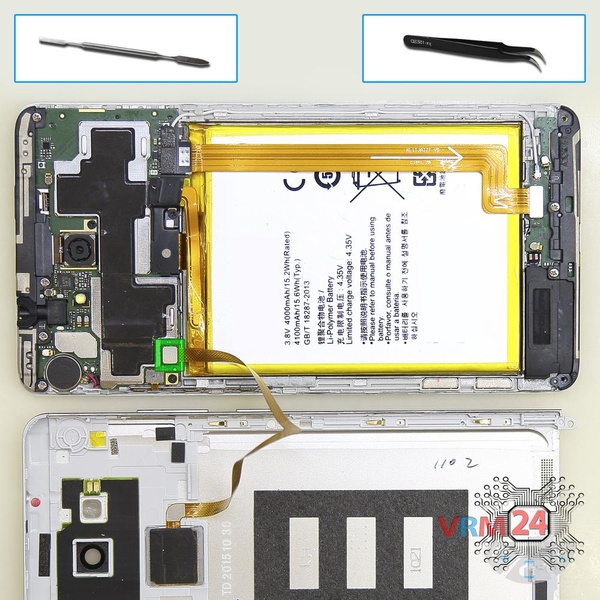

Pry up the fingerprint sensor connector.

How to disassemble Huawei Ascend Mate 7, Step 6/1 How to disassemble Huawei Ascend Mate 7, Step 6/2

Step 6.

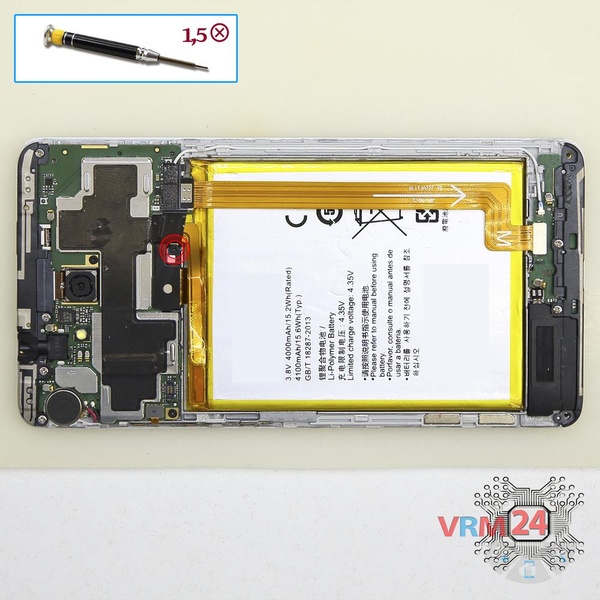

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the bracket holds the connectors.

How to disassemble Huawei Ascend Mate 7, Step 7/1 How to disassemble Huawei Ascend Mate 7, Step 7/2 How to disassemble Huawei Ascend Mate 7, Step 7/3

Step 7.

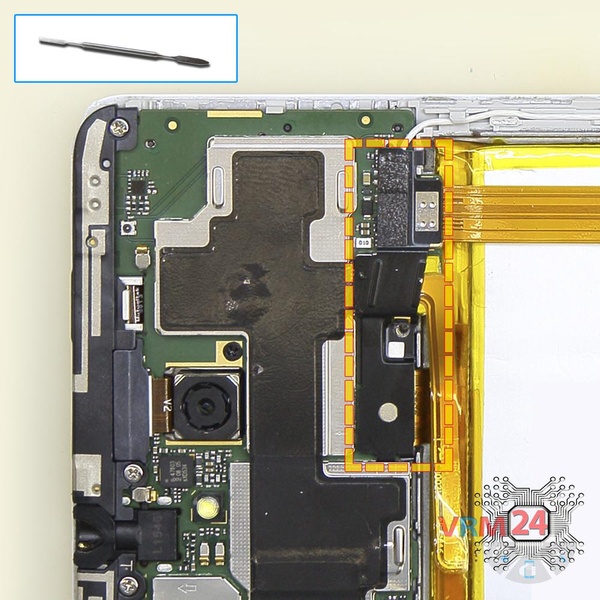

Remove the bracket.

How to disassemble Huawei Ascend Mate 7, Step 8/1 How to disassemble Huawei Ascend Mate 7, Step 8/2 How to disassemble Huawei Ascend Mate 7, Step 8/3

Step 8.

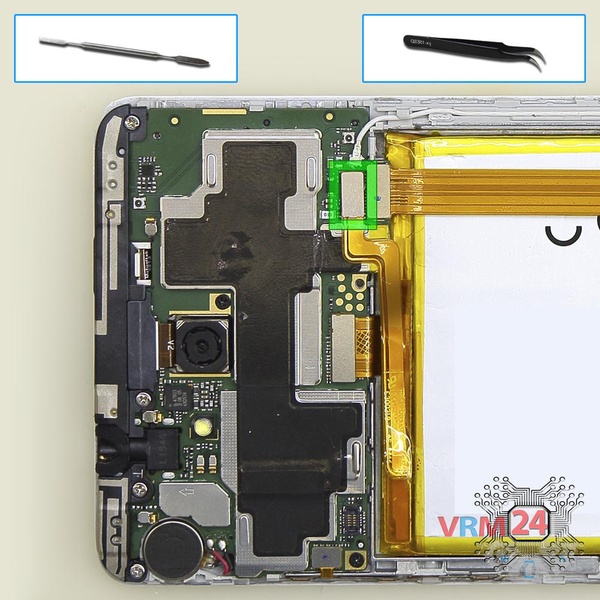

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei Ascend Mate 7, Step 9/1 How to disassemble Huawei Ascend Mate 7, Step 9/2

Step 9.

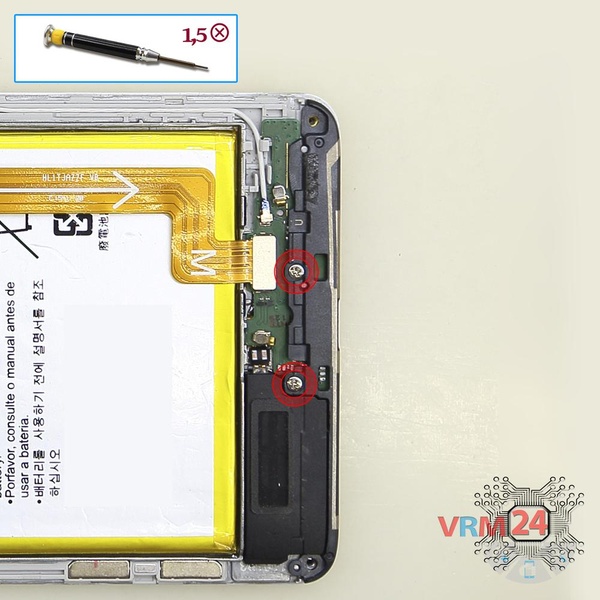

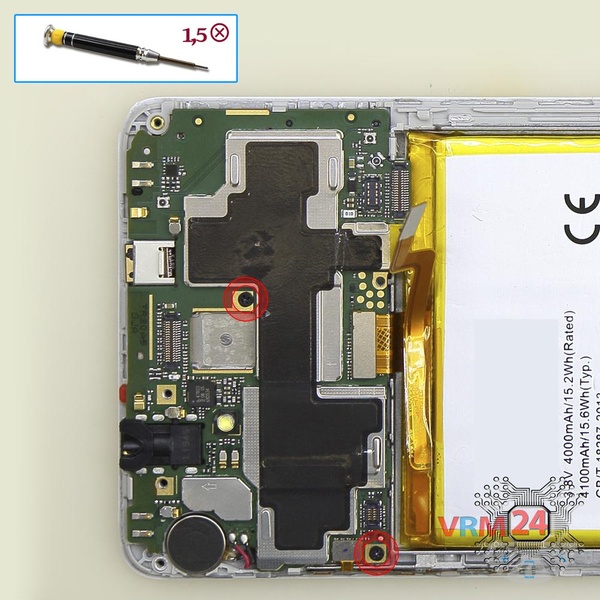

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

How to disassemble Huawei Ascend Mate 7, Step 10/1 How to disassemble Huawei Ascend Mate 7, Step 10/2 How to disassemble Huawei Ascend Mate 7, Step 10/3 How to disassemble Huawei Ascend Mate 7, Step 10/4

Step 10.

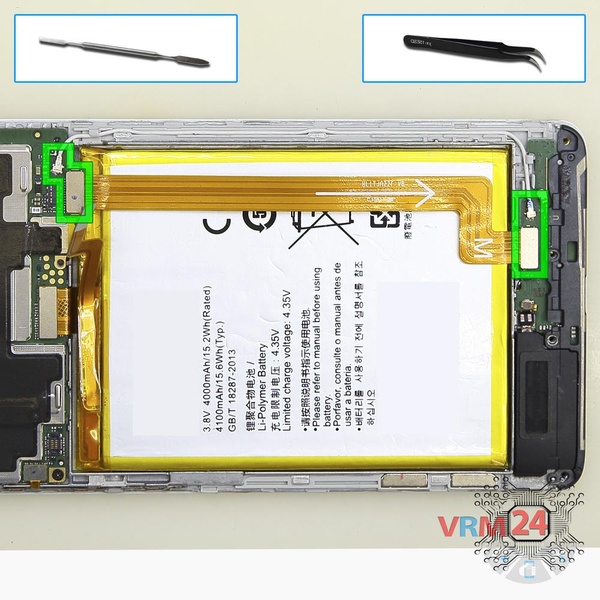

Disconnect connectors and remove the inter-board cable & coaxial cable.

How to disassemble Huawei Ascend Mate 7, Step 11/1 How to disassemble Huawei Ascend Mate 7, Step 11/2

Step 11.

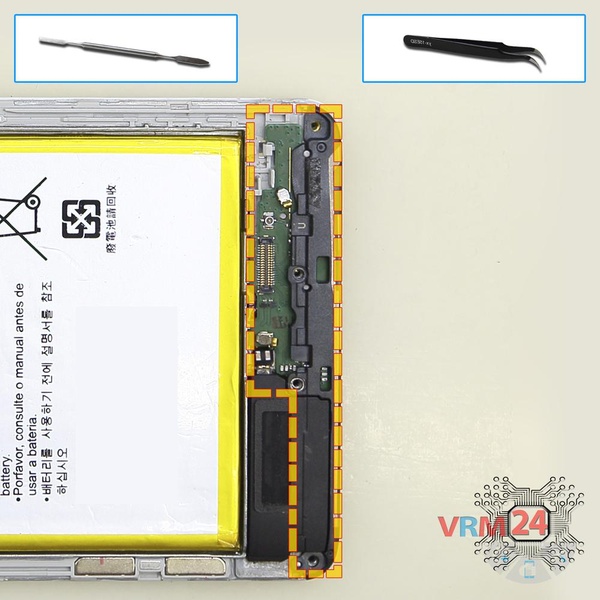

Remove the lower PCB.

How to disassemble Huawei Ascend Mate 7, Step 12/1 How to disassemble Huawei Ascend Mate 7, Step 12/2

Step 12.

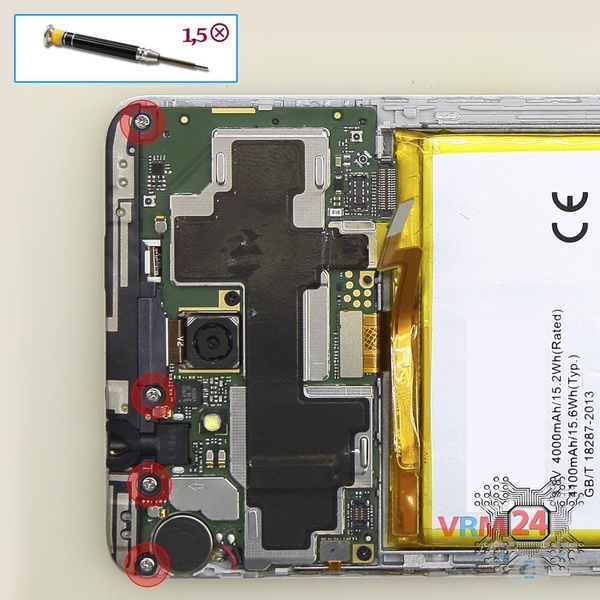

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Huawei Ascend Mate 7, Step 13/1 How to disassemble Huawei Ascend Mate 7, Step 13/2

Step 13.

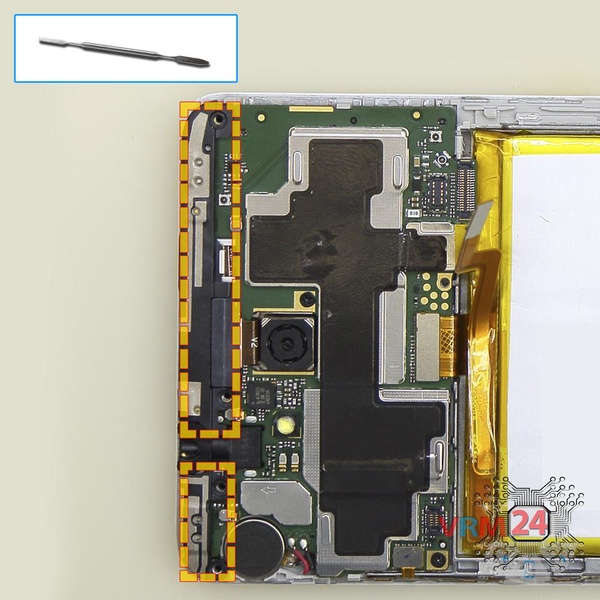

Pry and remove the upper cover with antennas.

How to disassemble Huawei Ascend Mate 7, Step 14/1 How to disassemble Huawei Ascend Mate 7, Step 14/2

Step 14.

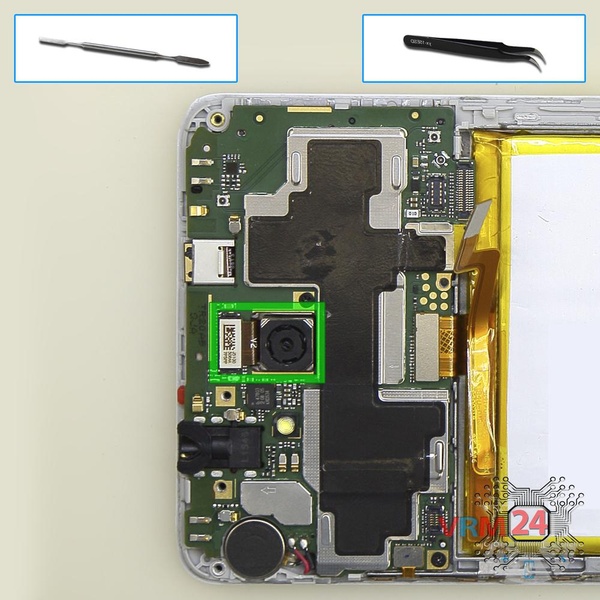

Disconnect connector on the PCB and remove the main camera.

How to disassemble Huawei Ascend Mate 7, Step 15/1 How to disassemble Huawei Ascend Mate 7, Step 15/2

Step 15.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Huawei Ascend Mate 7, Step 16/1 How to disassemble Huawei Ascend Mate 7, Step 16/2 How to disassemble Huawei Ascend Mate 7, Step 16/3

Step 16.

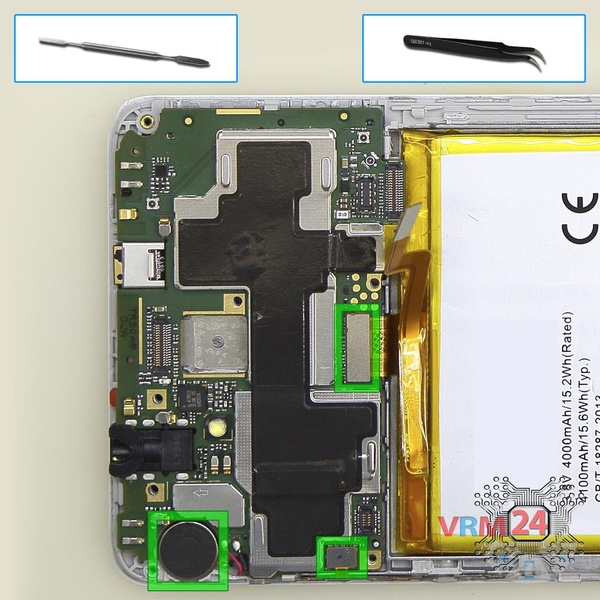

Disconnect connectors on the PCB and pry up vibration motor.

How to disassemble Huawei Ascend Mate 7, Step 17/1 How to disassemble Huawei Ascend Mate 7, Step 17/2

Step 17.

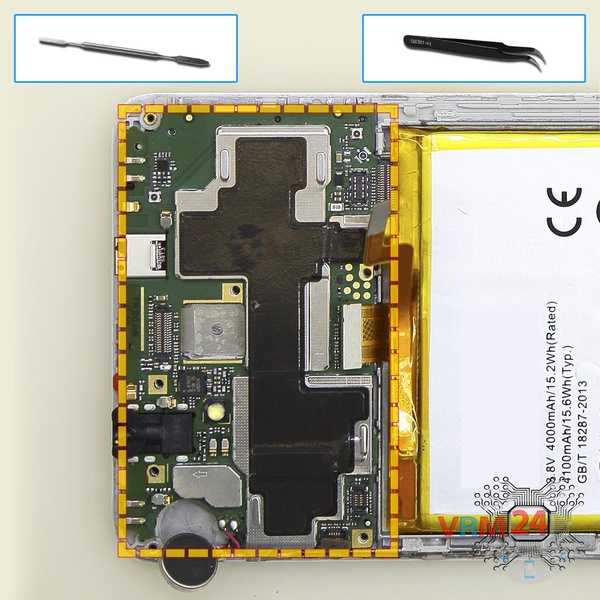

Remove the PCB.

How to disassemble Huawei Ascend Mate 7, Step 18/1 How to disassemble Huawei Ascend Mate 7, Step 18/2

Step 18.

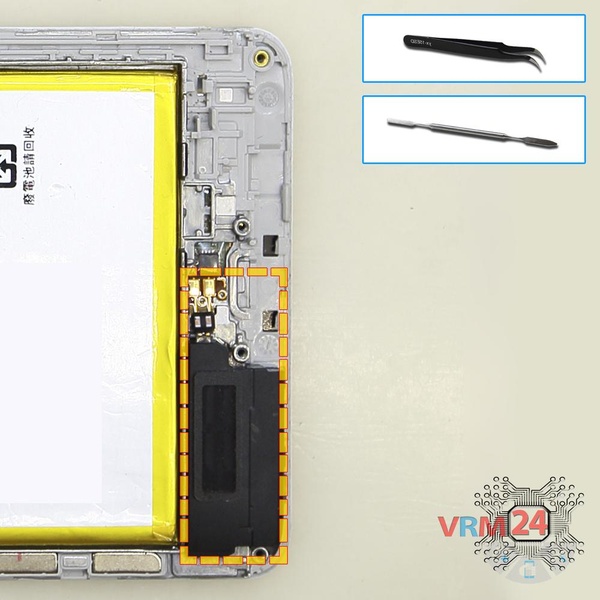

Pry and remove the buzzer (speaker) assembly.

How to disassemble Huawei Ascend Mate 7, Step 19/1 How to disassemble Huawei Ascend Mate 7, Step 19/2

Step 19.

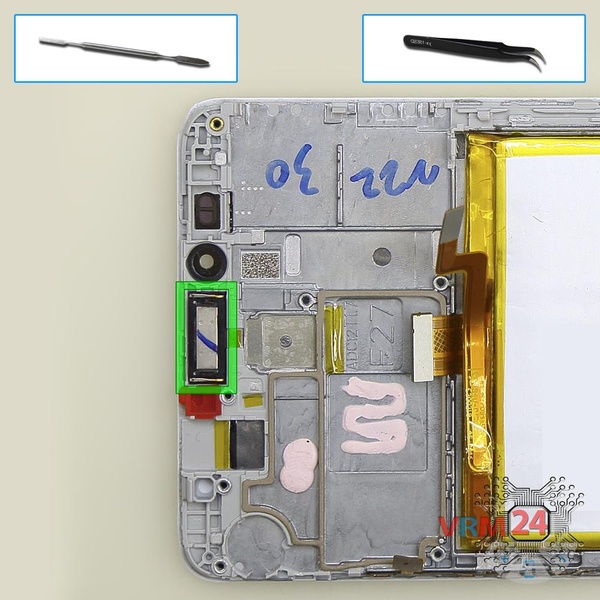

Pry and remove the earpiece (speaker).

How to disassemble Huawei Ascend Mate 7, Step 20/1 How to disassemble Huawei Ascend Mate 7, Step 20/2 How to disassemble Huawei Ascend Mate 7, Step 20/3

Step 20.

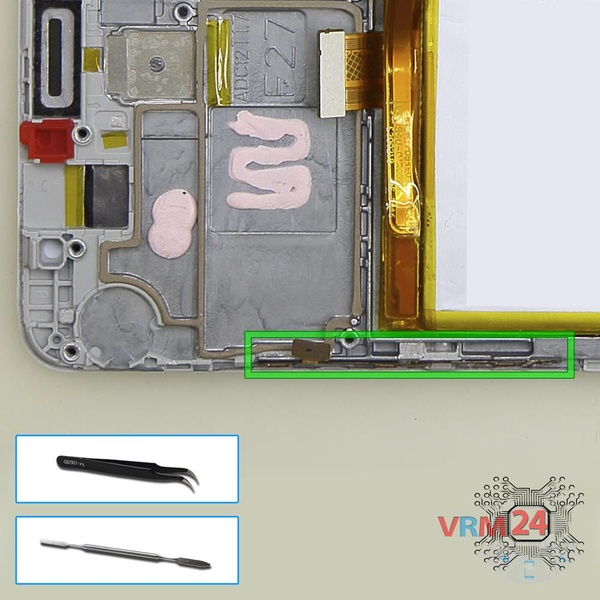

Pry & remove the power & volume buttons flex cable.

How to disassemble Huawei Ascend Mate 7, Step 21/1 How to disassemble Huawei Ascend Mate 7, Step 21/2 How to disassemble Huawei Ascend Mate 7, Step 21/3

Step 21.

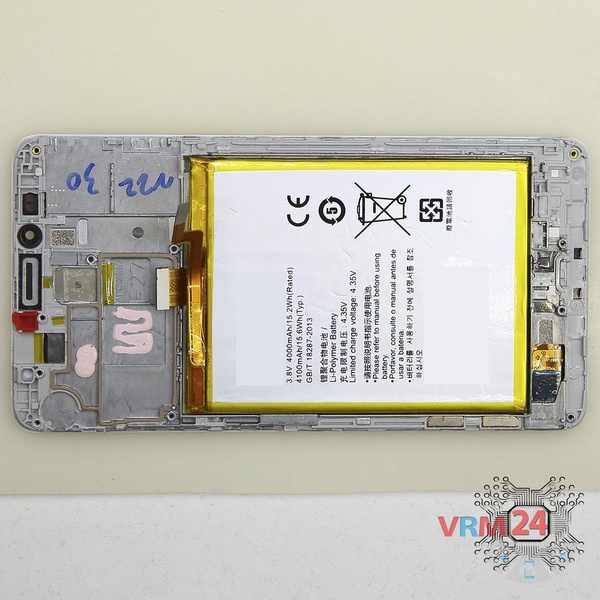

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Ascend Mate 7 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Ascend Mate 7
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 9 minutes in time.
Our manual is suitable for all models Huawei Ascend Mate 7 — Huawei Ascend Mate 7 MT7-TL09 MT7-TL10 released for markets in different countries.
