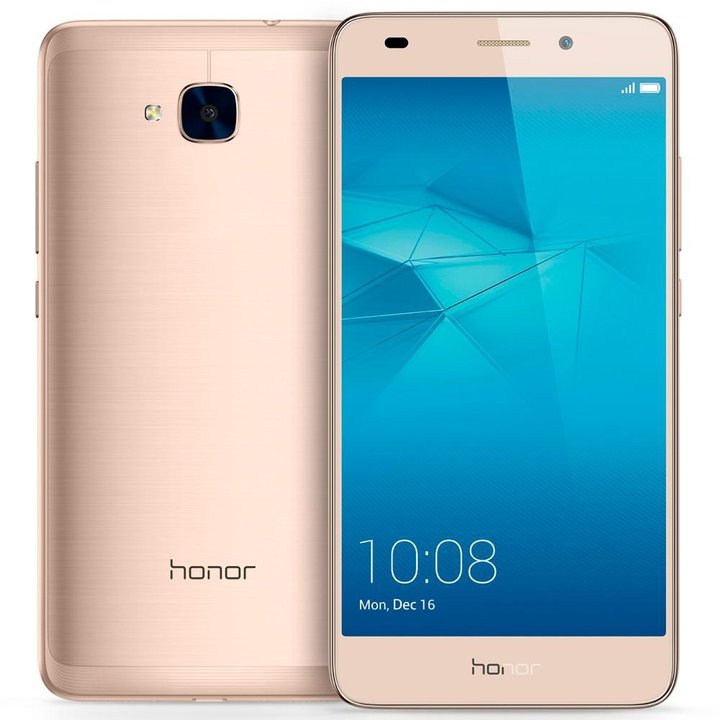

Huawei Honor 5C
Huawei Honor 5C
Teardown difficulty:
Hard
Duration:
10 min

Recommended tools

Screwdriver Torx Т2 Screwdriver torx т2
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Huawei Honor 5C (Huawei Honor 5C (NEM-L51)) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Huawei Honor 5C, Step 1/1 How to disassemble Huawei Honor 5C, Step 1/2

Step 1.

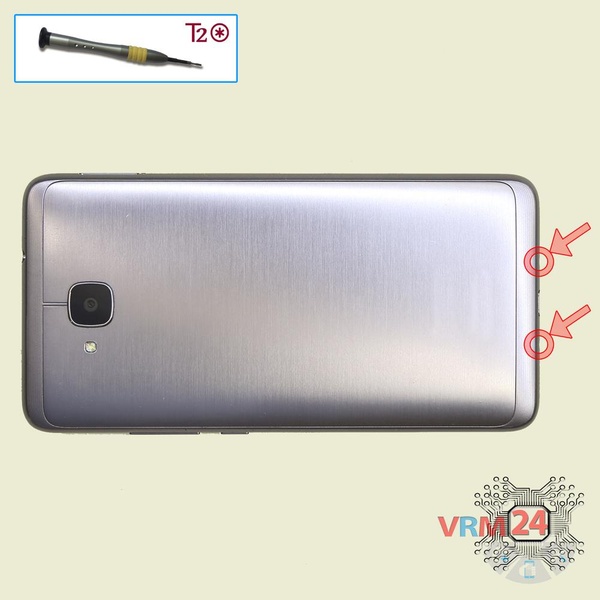

Using a screwdriver (hex T2), unscrew the 2 bolts on the end of the phone.

How to disassemble Huawei Honor 5C, Step 2/1 How to disassemble Huawei Honor 5C, Step 2/2

Step 2.

Using the key tool, open the SIM and MMC cards tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Huawei Honor 5C, Step 3/1 How to disassemble Huawei Honor 5C, Step 3/2

Step 3.

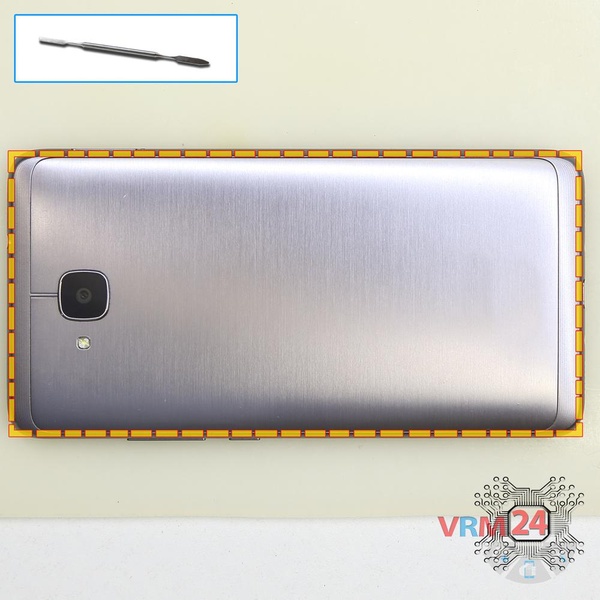

Open the back cover.

How to disassemble Huawei Honor 5C, Step 4/1 How to disassemble Huawei Honor 5C, Step 4/2

Step 4.

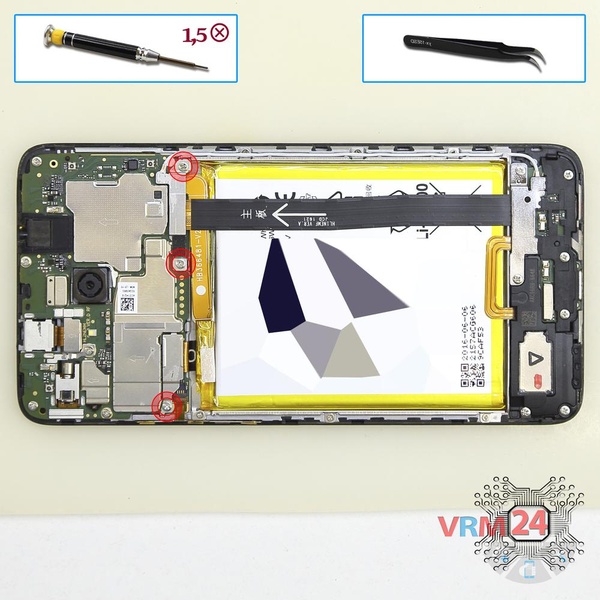

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts and remove the brackets holds the connectors.

How to disassemble Huawei Honor 5C, Step 5/1 How to disassemble Huawei Honor 5C, Step 5/2 How to disassemble Huawei Honor 5C, Step 5/3

Step 5.

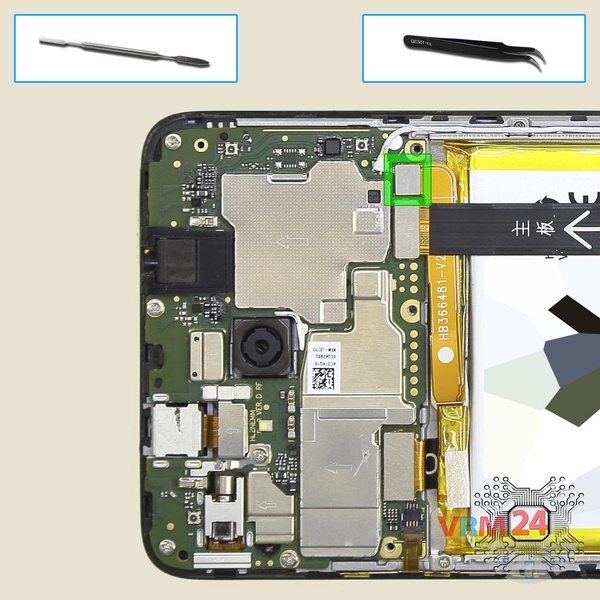

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Huawei Honor 5C, Step 6/1 How to disassemble Huawei Honor 5C, Step 6/2

Step 6.

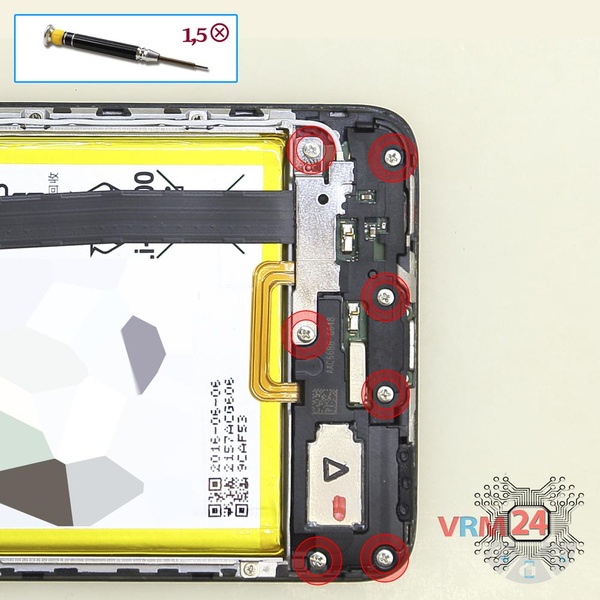

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the lower part.

How to disassemble Huawei Honor 5C, Step 7/1 How to disassemble Huawei Honor 5C, Step 7/2

Step 7.

Remove the lower cover.

How to disassemble Huawei Honor 5C, Step 8/1 How to disassemble Huawei Honor 5C, Step 8/2

Step 8.

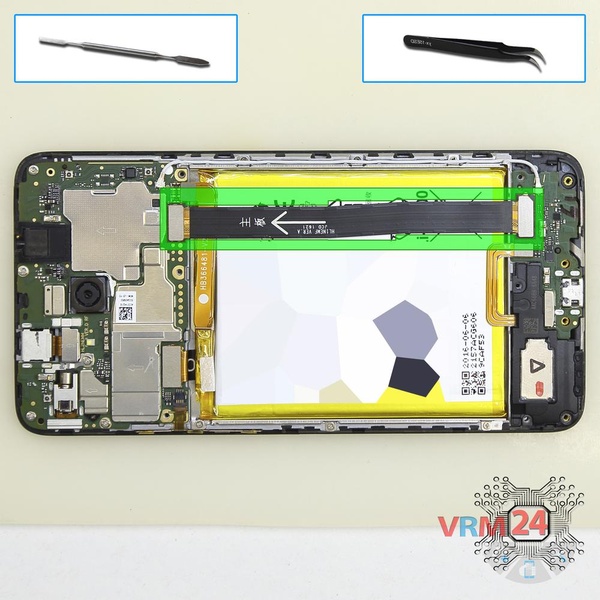

Disconnect connectors and remove the inter-board cable.

How to disassemble Huawei Honor 5C, Step 9/1 How to disassemble Huawei Honor 5C, Step 9/2

Step 9.

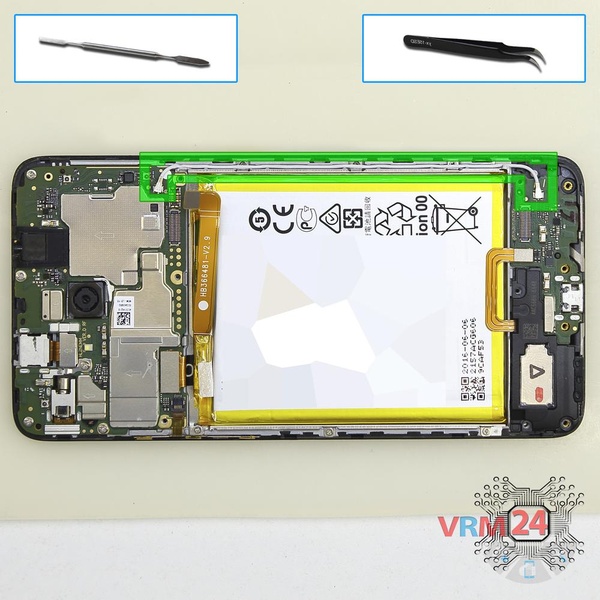

Disconnect connectors and remove the coaxial cable.

How to disassemble Huawei Honor 5C, Step 10/1 How to disassemble Huawei Honor 5C, Step 10/2 How to disassemble Huawei Honor 5C, Step 10/3

Step 10.

Disconnect connector on the lower PCB and remove it.

How to disassemble Huawei Honor 5C, Step 11/1 How to disassemble Huawei Honor 5C, Step 11/2

Step 11.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Huawei Honor 5C, Step 12/1 How to disassemble Huawei Honor 5C, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts securing the battery.

How to disassemble Huawei Honor 5C, Step 13/1 How to disassemble Huawei Honor 5C, Step 13/2

Step 13.

Pry and remove the battery.

How to disassemble Huawei Honor 5C, Step 14/1 How to disassemble Huawei Honor 5C, Step 14/2

Step 14.

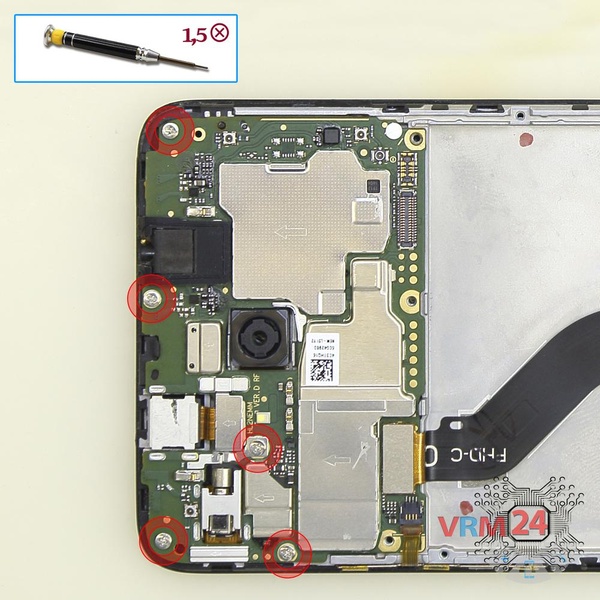

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the PCB.

How to disassemble Huawei Honor 5C, Step 15/1 How to disassemble Huawei Honor 5C, Step 15/2 How to disassemble Huawei Honor 5C, Step 15/3

Step 15.

Disconnect connectors on the PCB.

How to disassemble Huawei Honor 5C, Step 16/1 How to disassemble Huawei Honor 5C, Step 16/2

Step 16.

Remove the PCB.

How to disassemble Huawei Honor 5C, Step 17/1 How to disassemble Huawei Honor 5C, Step 17/2

Step 17.

Pry and remove the vibration motor & power & volume buttons flex cable.

How to disassemble Huawei Honor 5C, Step 18/1 How to disassemble Huawei Honor 5C, Step 18/2

Step 18.

Pry and remove the earpiece (speaker).

How to disassemble Huawei Honor 5C, Step 19/1 How to disassemble Huawei Honor 5C, Step 19/2 How to disassemble Huawei Honor 5C, Step 19/3

Step 19.

Parts in the frame of the display module.

Detailed disassembly instructions of Huawei Honor 5C in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Huawei #Huawei Honor 5C
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has hard complexity and takes about 10 minutes in time.
Our manual is suitable for all models Huawei Honor 5C — Huawei Honor 5C (NEM-L51) released for markets in different countries.
