Lenovo S90 Sisley
Lenovo S90 Sisley
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers
Eject tool Eject tool

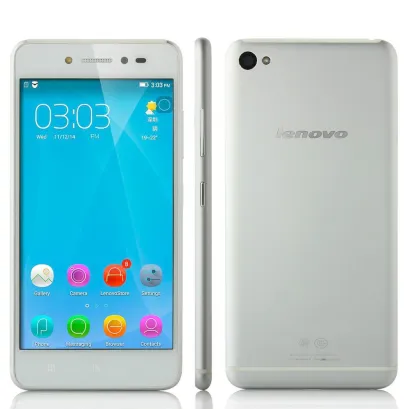

Disassembly/Repair of the mobile device Lenovo S90 Sisley with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Lenovo S90 Sisley, Step 1/1

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Lenovo S90 Sisley, Step 2/1 How to disassemble Lenovo S90 Sisley, Step 2/2

Step 2.

Using a screwdriver (hex T5), unscrew the 2 bolts on the end of the phone.

How to disassemble Lenovo S90 Sisley, Step 3/1 How to disassemble Lenovo S90 Sisley, Step 3/2

Step 3.

Open the back cover.

How to disassemble Lenovo S90 Sisley, Step 4/1 How to disassemble Lenovo S90 Sisley, Step 4/2 How to disassemble Lenovo S90 Sisley, Step 4/3

Step 4.

Using a screwdriver (hex T5), unscrew the 2 bolts on the back cover and remove the buzzer (speaker) assembly.

How to disassemble Lenovo S90 Sisley, Step 5/1 How to disassemble Lenovo S90 Sisley, Step 5/2 How to disassemble Lenovo S90 Sisley, Step 5/3

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolts and remove the bracket holds the battery connector.

How to disassemble Lenovo S90 Sisley, Step 6/1 How to disassemble Lenovo S90 Sisley, Step 6/2 How to disassemble Lenovo S90 Sisley, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the battery.

How to disassemble Lenovo S90 Sisley, Step 7/1 How to disassemble Lenovo S90 Sisley, Step 7/2

Step 7.

Disconnect the connector on the lower PCB and remove it.

How to disassemble Lenovo S90 Sisley, Step 8/1 How to disassemble Lenovo S90 Sisley, Step 8/2 How to disassemble Lenovo S90 Sisley, Step 8/3

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the PCB.

How to disassemble Lenovo S90 Sisley, Step 9/1 How to disassemble Lenovo S90 Sisley, Step 9/2 How to disassemble Lenovo S90 Sisley, Step 9/3

Step 9.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Lenovo S90 Sisley, Step 10/1 How to disassemble Lenovo S90 Sisley, Step 10/2 How to disassemble Lenovo S90 Sisley, Step 10/3 How to disassemble Lenovo S90 Sisley, Step 10/4

Step 10.

Overturn the board, disconnect the connector from the inside and remove it.

How to disassemble Lenovo S90 Sisley, Step 11/1 How to disassemble Lenovo S90 Sisley, Step 11/2 How to disassemble Lenovo S90 Sisley, Step 11/3 How to disassemble Lenovo S90 Sisley, Step 11/4 How to disassemble Lenovo S90 Sisley, Step 11/5

Step 11.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo S90 Sisley in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo S90 Sisley
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Lenovo S90 Sisley released for markets in different countries.
