Lenovo Tab 2 A10-70
Lenovo Tab 2 A10-70
Teardown difficulty:
Easy
Duration:
14 min

Recommended tools

Soldering Iron Soldering iron
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Lenovo Tab 2 A10-70 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Lenovo Tab 2 A10-70, Step 1/1 How to disassemble Lenovo Tab 2 A10-70, Step 1/2

Step 1.

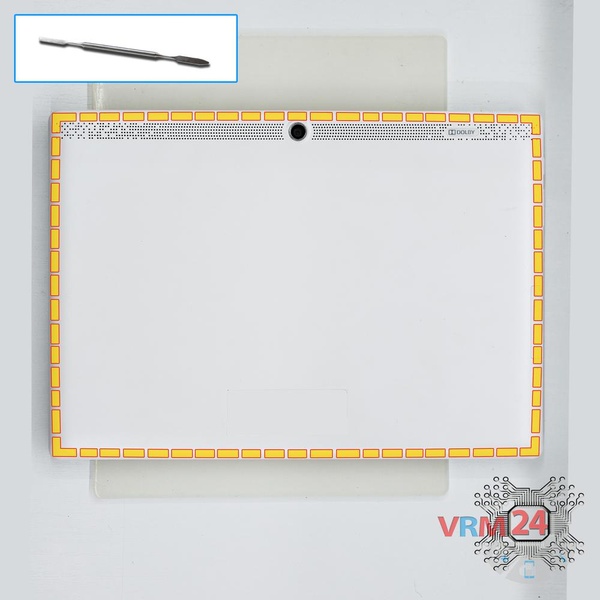

Open the back cover.

How to disassemble Lenovo Tab 2 A10-70, Step 2/1 How to disassemble Lenovo Tab 2 A10-70, Step 2/2

Step 2.

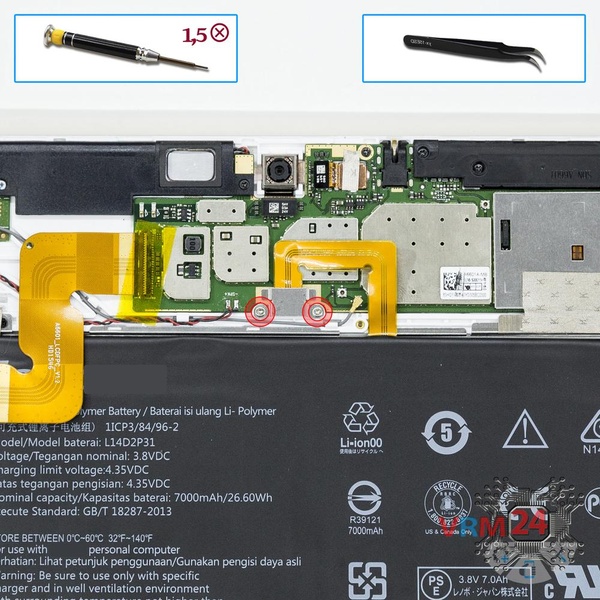

Using a screwdriver (Phillips 1.5 mm cross-head), unscrew 2 bolts, remove the battery connector holder and disconnect the connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Lenovo Tab 2 A10-70, Step 3/1 How to disassemble Lenovo Tab 2 A10-70, Step 3/2

Step 3.

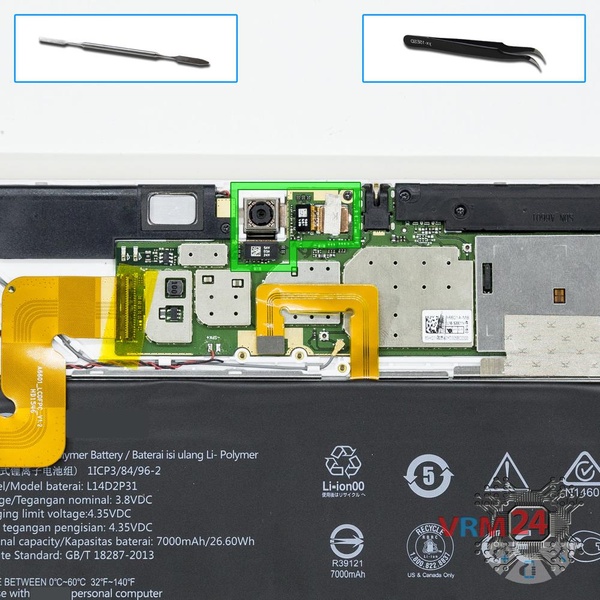

Disconnect the connectors on PCB and remove the main and front (selfie) cameras.

How to disassemble Lenovo Tab 2 A10-70, Step 4/1 How to disassemble Lenovo Tab 2 A10-70, Step 4/2 How to disassemble Lenovo Tab 2 A10-70, Step 4/3

Step 4.

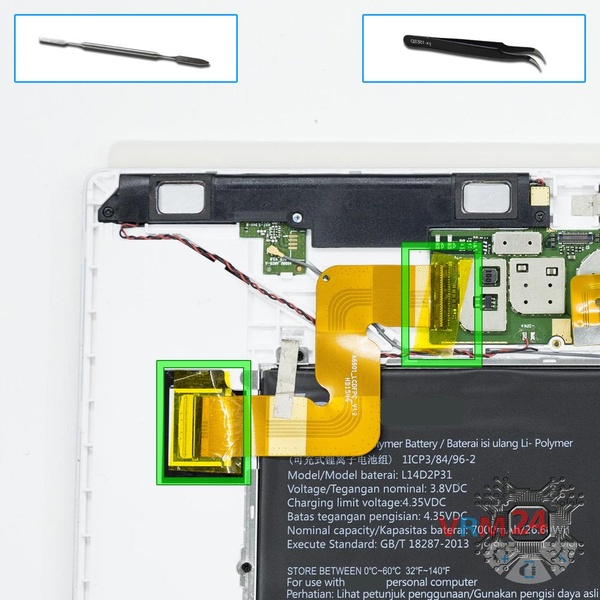

Disconnect the connectors and remove inter-board cable.

How to disassemble Lenovo Tab 2 A10-70, Step 5/1 How to disassemble Lenovo Tab 2 A10-70, Step 5/2 How to disassemble Lenovo Tab 2 A10-70, Step 5/3

Step 5.

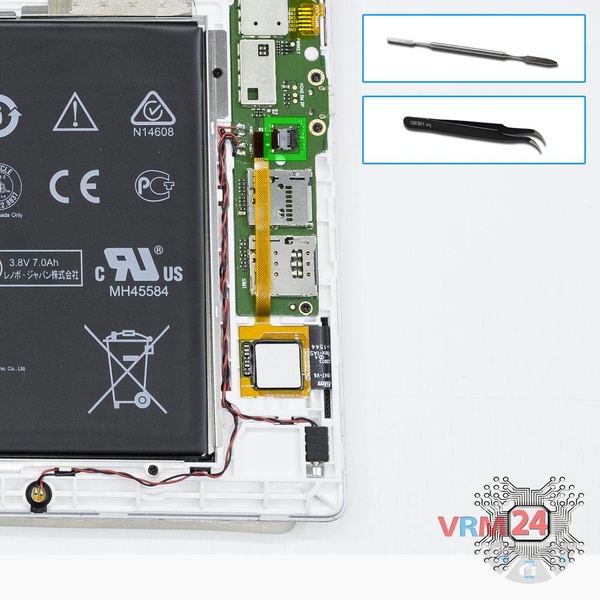

Disconnect the touchscreen connector on the PCB.

How to disassemble Lenovo Tab 2 A10-70, Step 6/1 How to disassemble Lenovo Tab 2 A10-70, Step 6/2

Step 6.

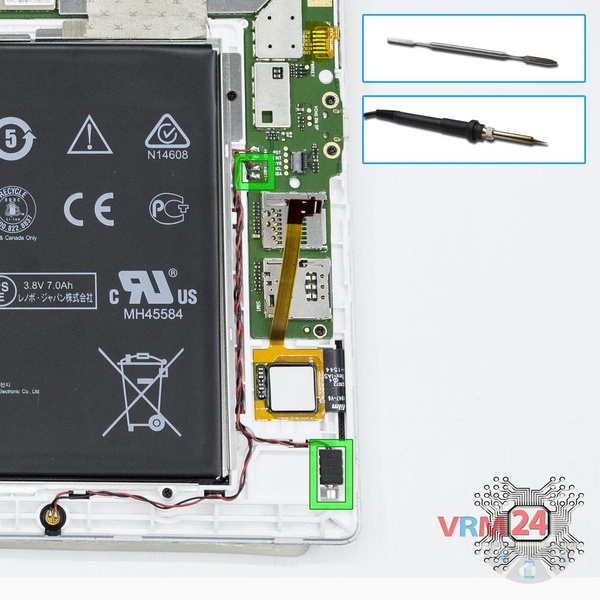

Using a soldering iron, unsolder the contacts and remove the vibrator.

How to disassemble Lenovo Tab 2 A10-70, Step 7/1 How to disassemble Lenovo Tab 2 A10-70, Step 7/2

Step 7.

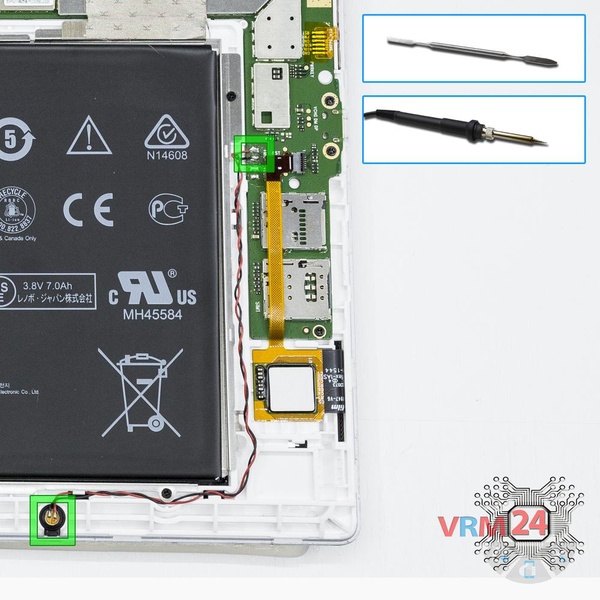

Using a soldering iron, unsolder the contacts and remove the microphone.

How to disassemble Lenovo Tab 2 A10-70, Step 8/1 How to disassemble Lenovo Tab 2 A10-70, Step 8/2

Step 8.

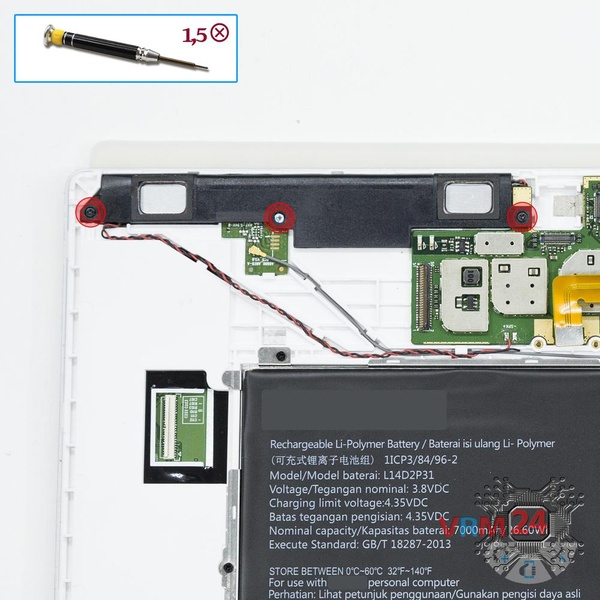

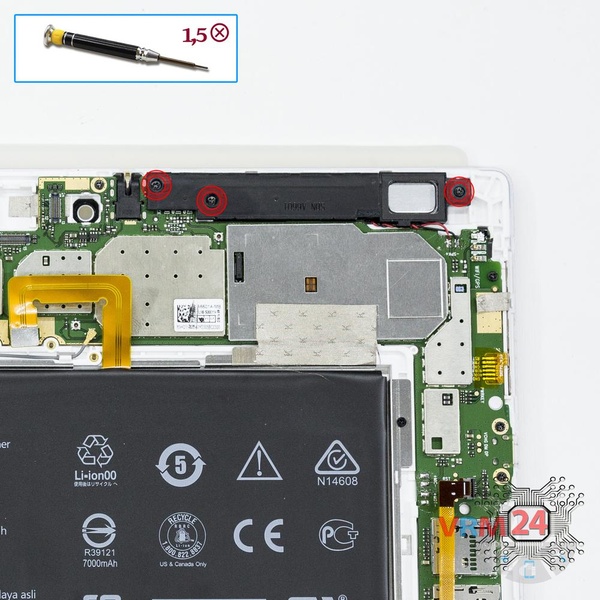

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the 3 bolts in the part with the speaker.

How to disassemble Lenovo Tab 2 A10-70, Step 9/1 How to disassemble Lenovo Tab 2 A10-70, Step 9/2

Step 9.

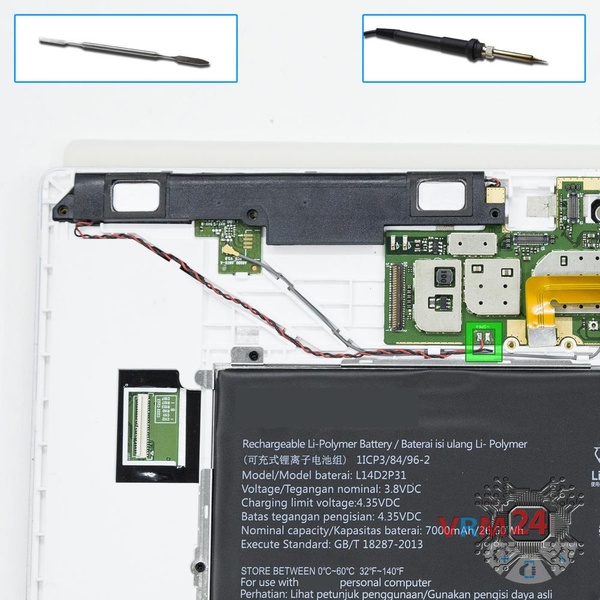

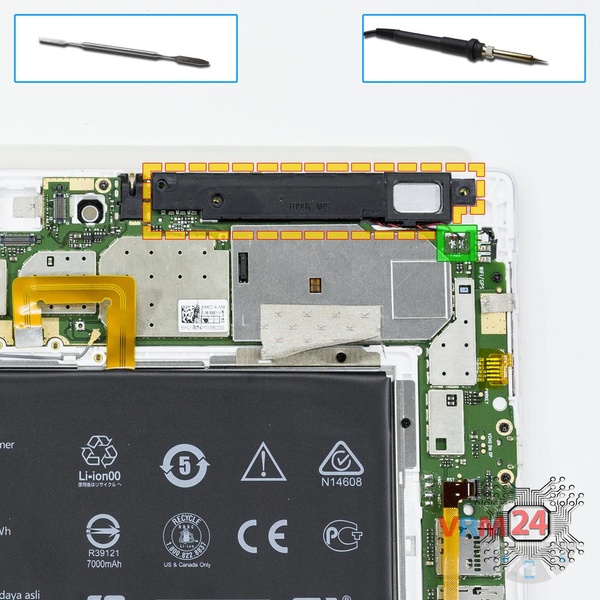

Using a soldering iron, unsolder the contacts and remove the part with the speaker.

How to disassemble Lenovo Tab 2 A10-70, Step 10/1 How to disassemble Lenovo Tab 2 A10-70, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the part with speaker.

How to disassemble Lenovo Tab 2 A10-70, Step 11/1 How to disassemble Lenovo Tab 2 A10-70, Step 11/2

Step 11.

Using a soldering iron, unsolder the contacts of the part with the speaker.

How to disassemble Lenovo Tab 2 A10-70, Step 12/1 How to disassemble Lenovo Tab 2 A10-70, Step 12/2 How to disassemble Lenovo Tab 2 A10-70, Step 12/3

Step 12.

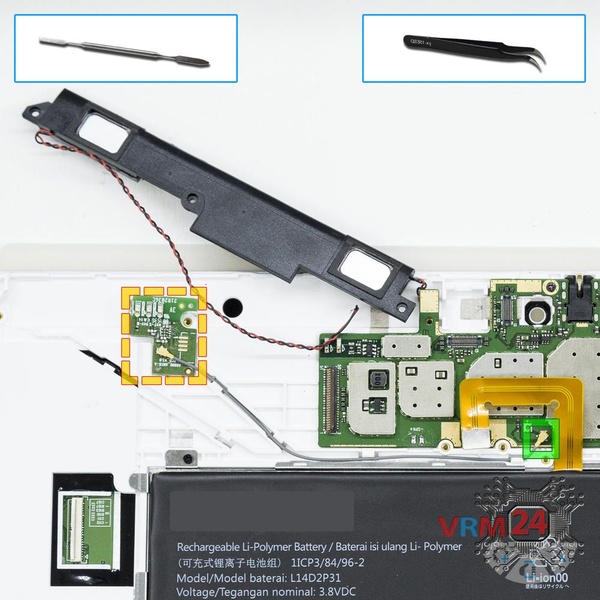

Disconnect the coaxial cable connector and remove the coaxial cable and the board with the contacts of the external antenna.

How to disassemble Lenovo Tab 2 A10-70, Step 13/1 How to disassemble Lenovo Tab 2 A10-70, Step 13/2

Step 13.

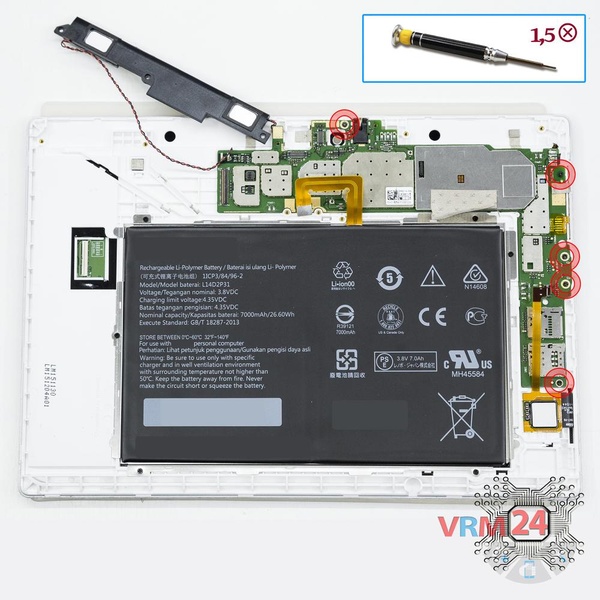

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 5 bolts in the PCB.

How to disassemble Lenovo Tab 2 A10-70, Step 14/1 How to disassemble Lenovo Tab 2 A10-70, Step 14/2

Step 14.

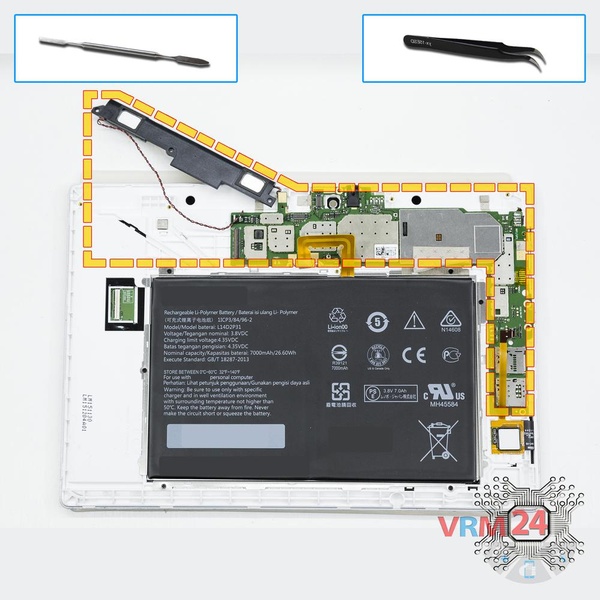

Remove the PCB.

How to disassemble Lenovo Tab 2 A10-70, Step 15/1 How to disassemble Lenovo Tab 2 A10-70, Step 15/2

Step 15.

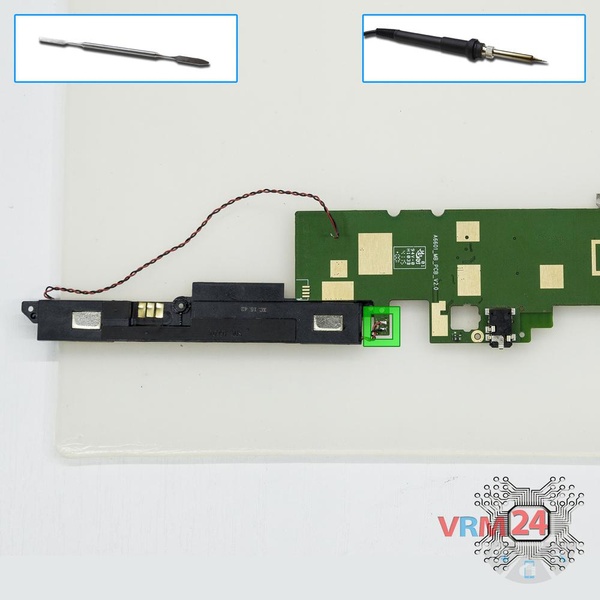

Turn over the PCB and unsolder the part with the speaker.

How to disassemble Lenovo Tab 2 A10-70, Step 16/1 How to disassemble Lenovo Tab 2 A10-70, Step 16/2 How to disassemble Lenovo Tab 2 A10-70, Step 16/3

Step 16.

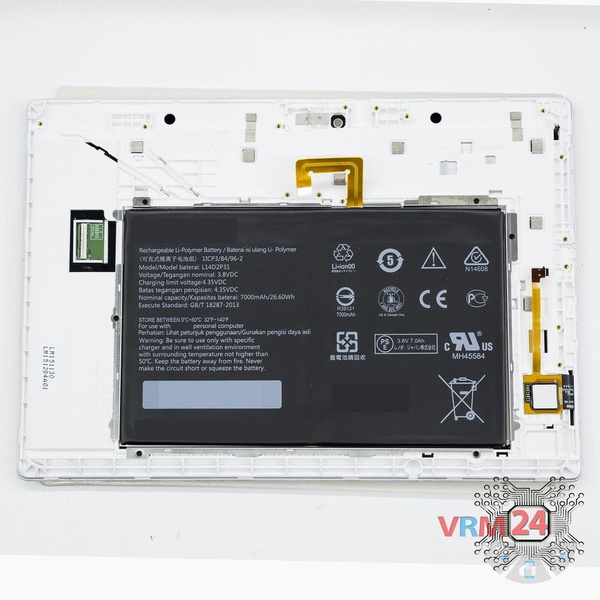

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo Tab 2 A10-70 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo Tab 2 A10-70
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 14 minutes in time.
Our manual is suitable for all models Lenovo Tab 2 A10-70 released for markets in different countries.
