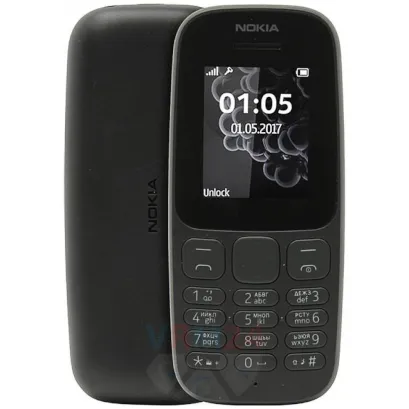

Disassembly/Repair of the mobile device Nokia 105 TA-1010 with each step description and the required set of tools.

14254

Views

—

Share

5

Questions

Vadim Popoff

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Open the back cover

Step 1.

Open the back cover

Open the back cover.

Remove the battery

Step 2.

Remove the battery

Lift and remove the battery.

Unscrew the screws

Step 3.

Unscrew the screws

Using a screwdriver (hex T5), unscrew 4 bolts.

Remove the frame

Step 4.

Remove the frame

Pry & remove the front frame.

Remove the motherboard

Step 5.

Remove the motherboard

Remove the PCB.

In the middle cover

Step 6.

In the middle cover

Parts are in the middle frame.

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer
Disassembling\Repair has easy complexity and takes about 4 minutes in time. Our manual is suitable for all models Nokia 105 TA-1010 or Нокия 105 released for markets in different countries.
#instructions #Nokia #Nokia 105 TA-1010
Detailed disassembly instructions of Nokia 105 TA-1010 in the video, made by our mobile repair & service center:
