Nokia 5.1 TA-1075
Nokia 5.1 TA-1075
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Five-point P0.8 mm Screwdriver five-point p0.8 mm
Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 5.1 TA-1075 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia 5.1 TA-1075, Step 1/1 How to disassemble Nokia 5.1 TA-1075, Step 1/2

Step 1.

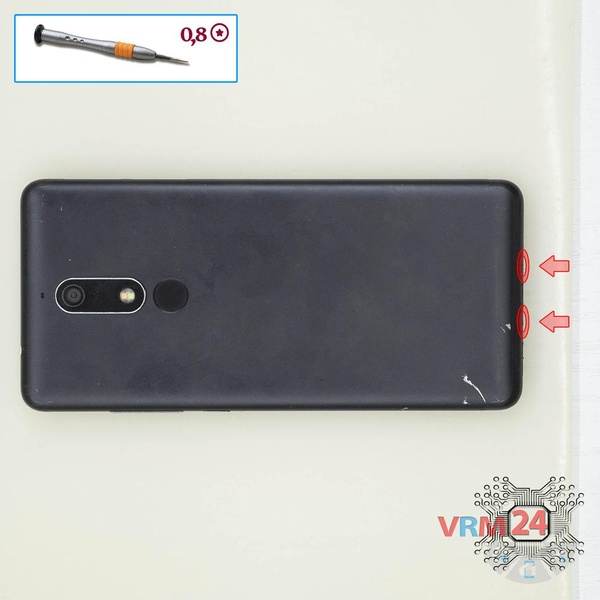

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew 2 bolts on the end of the phone.

How to disassemble Nokia 5.1 TA-1075, Step 2/1 How to disassemble Nokia 5.1 TA-1075, Step 2/2

Step 2.

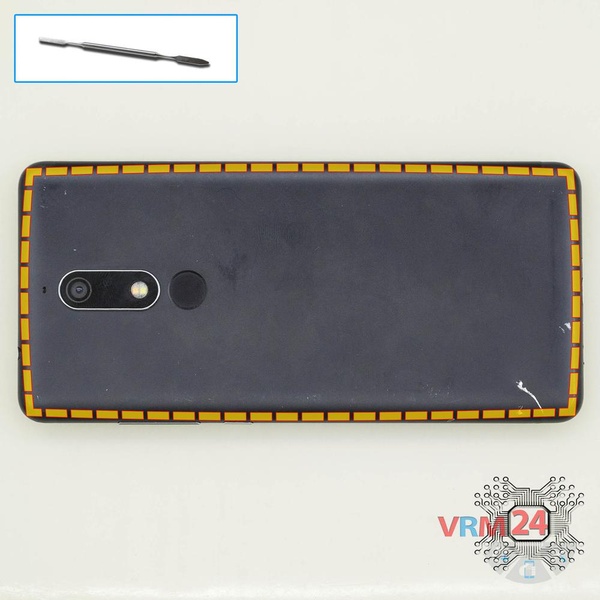

Open the back cover and turn it over.

How to disassemble Nokia 5.1 TA-1075, Step 3/1 How to disassemble Nokia 5.1 TA-1075, Step 3/2

Step 3.

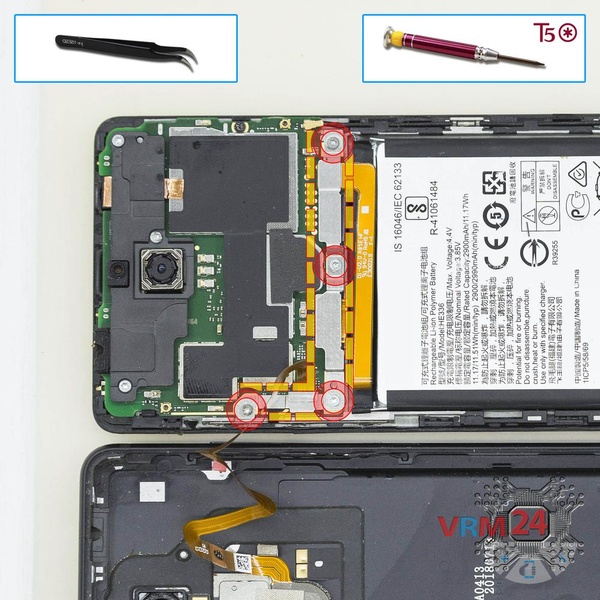

Using a screwdriver (hex T5), unscrew 4 bolts the bracket holding the connectors.

How to disassemble Nokia 5.1 TA-1075, Step 4/1 How to disassemble Nokia 5.1 TA-1075, Step 4/2

Step 4.

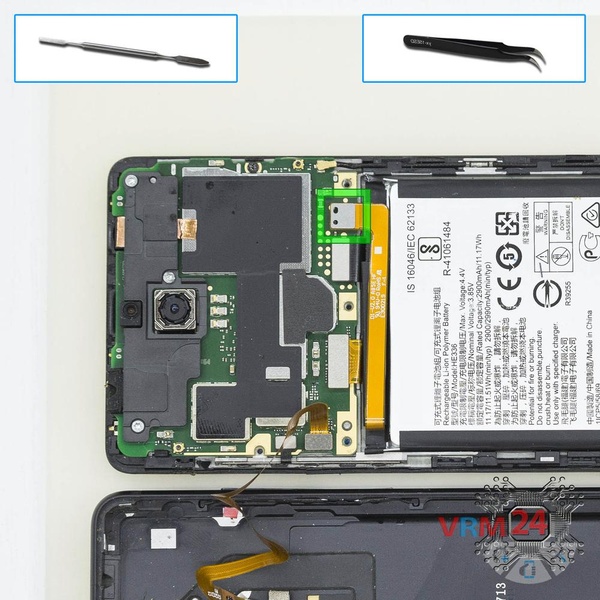

Disconnect the battery connector. The battery model of Nokia 5.1 is HE336.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Nokia 5.1 TA-1075, Step 5/1 How to disassemble Nokia 5.1 TA-1075, Step 5/2 How to disassemble Nokia 5.1 TA-1075, Step 5/3

Step 5.

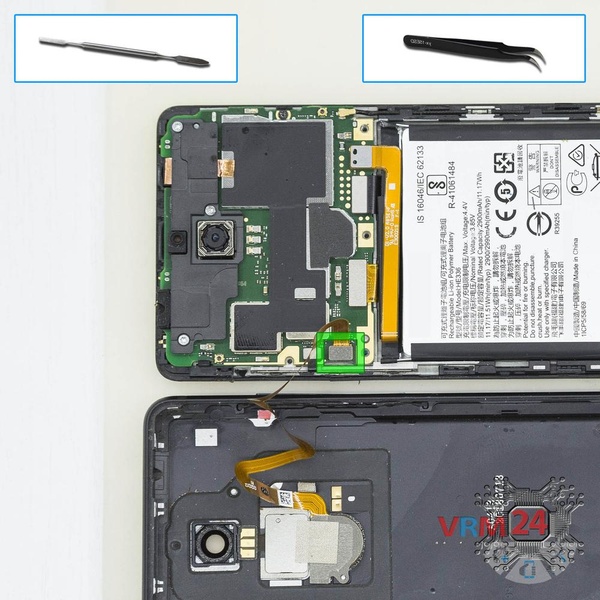

Pry up the fingerprint sensor connector and remove the cover.

How to disassemble Nokia 5.1 TA-1075, Step 6/1 How to disassemble Nokia 5.1 TA-1075, Step 6/2

Step 6.

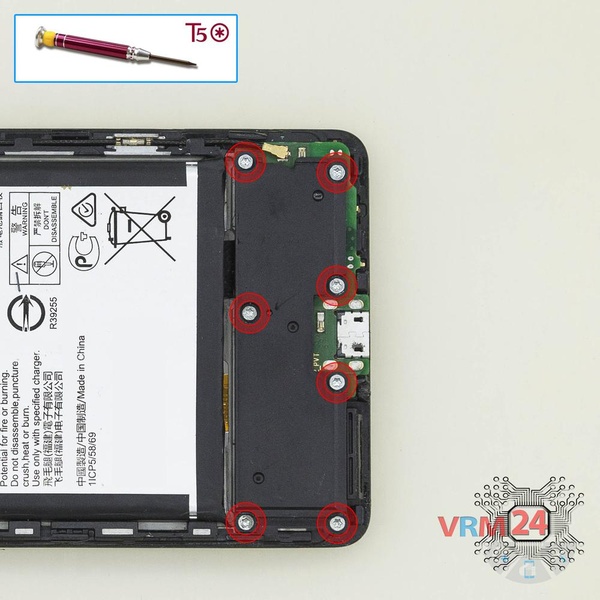

Using a screwdriver (hex T5), unscrew 7 bolts.

How to disassemble Nokia 5.1 TA-1075, Step 7/1 How to disassemble Nokia 5.1 TA-1075, Step 7/2

Step 7.

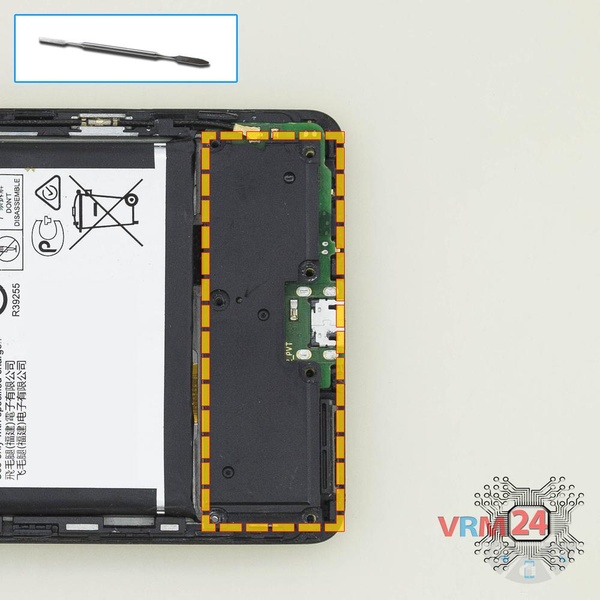

Pry and remove the buzzer (speaker) and vibration motor assembly.

How to disassemble Nokia 5.1 TA-1075, Step 8/1 How to disassemble Nokia 5.1 TA-1075, Step 8/2

Step 8.

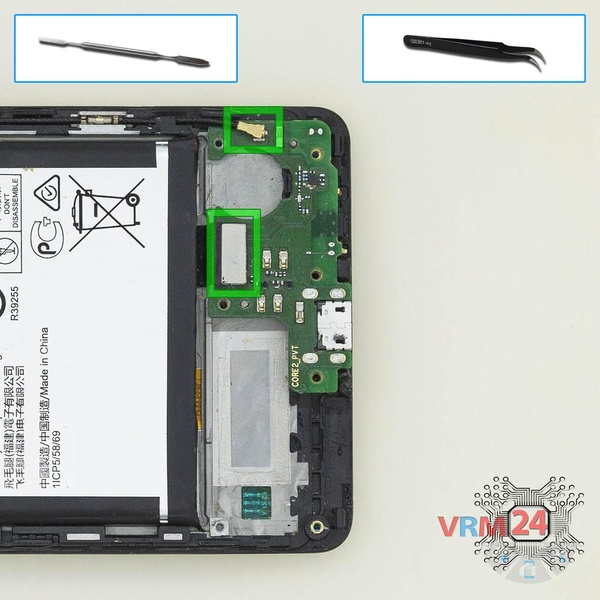

Disconnect connectors on the daughterboard.

How to disassemble Nokia 5.1 TA-1075, Step 9/1 How to disassemble Nokia 5.1 TA-1075, Step 9/2

Step 9.

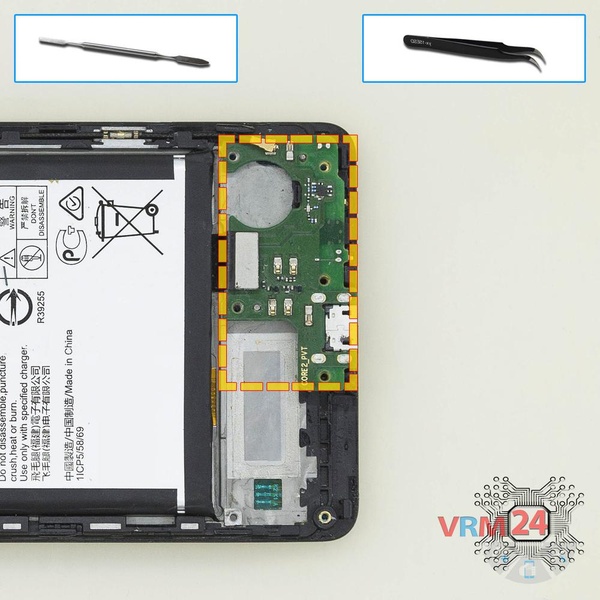

Remove the daughterboard, also known as sub-board.

How to disassemble Nokia 5.1 TA-1075, Step 10/1 How to disassemble Nokia 5.1 TA-1075, Step 10/2

Step 10.

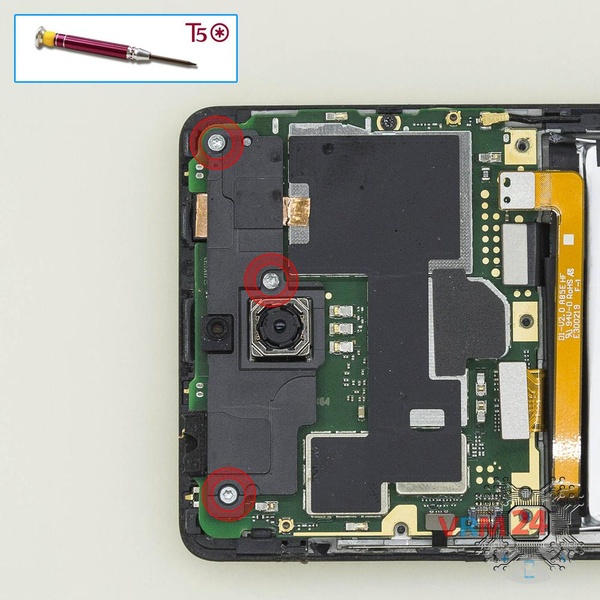

Using a screwdriver (hex T5), unscrew 3 bolts.

How to disassemble Nokia 5.1 TA-1075, Step 11/1 How to disassemble Nokia 5.1 TA-1075, Step 11/2

Step 11.

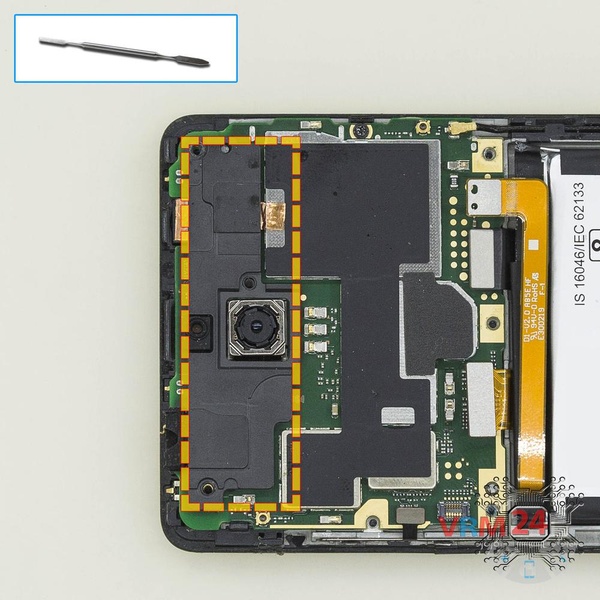

Remove the upper cover.

How to disassemble Nokia 5.1 TA-1075, Step 12/1 How to disassemble Nokia 5.1 TA-1075, Step 12/2

Step 12.

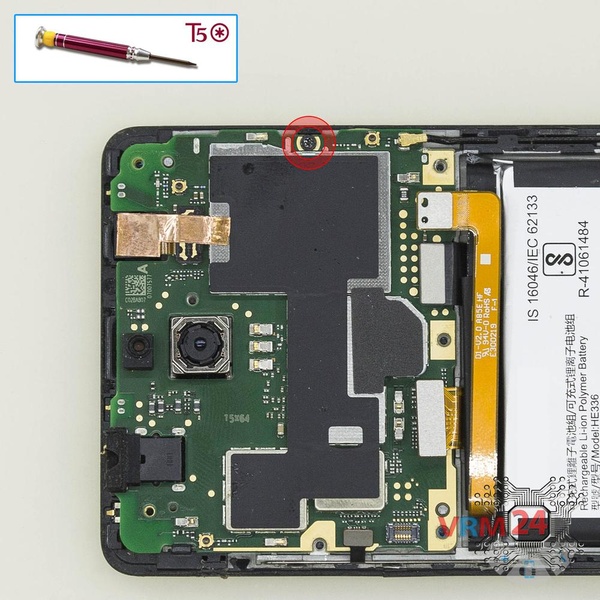

Using a screwdriver (hex T5), unscrew 1 bolt in the PCB.

How to disassemble Nokia 5.1 TA-1075, Step 13/1 How to disassemble Nokia 5.1 TA-1075, Step 13/2

Step 13.

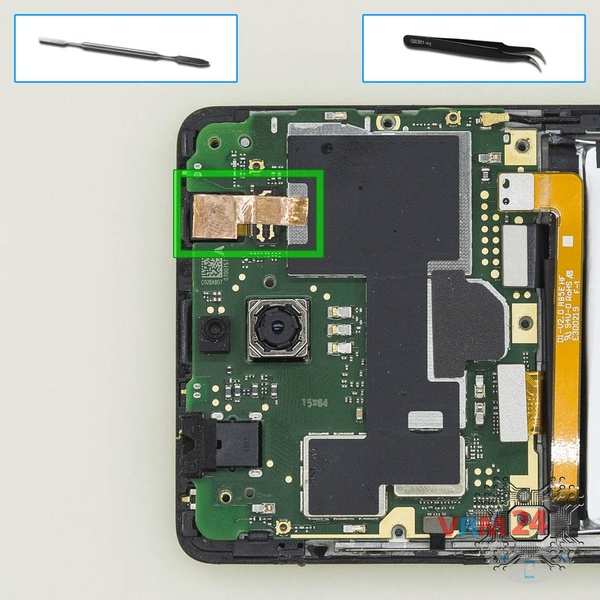

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Nokia 5.1 TA-1075, Step 14/1 How to disassemble Nokia 5.1 TA-1075, Step 14/2

Step 14.

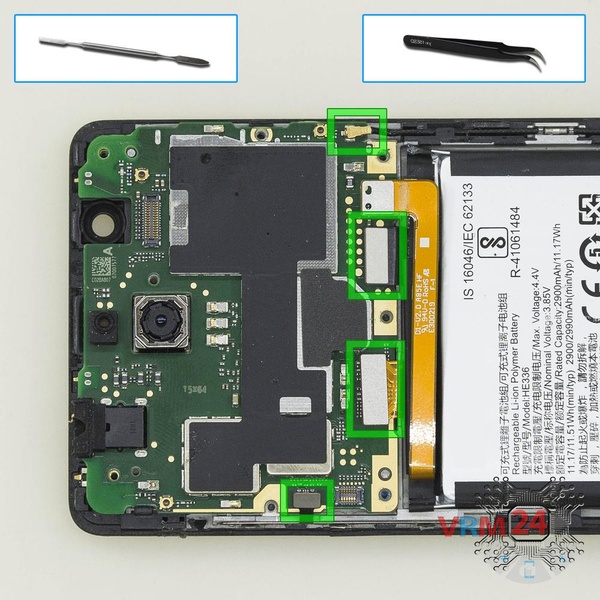

Disconnect connectors on the PCB.

How to disassemble Nokia 5.1 TA-1075, Step 15/1 How to disassemble Nokia 5.1 TA-1075, Step 15/2

Step 15.

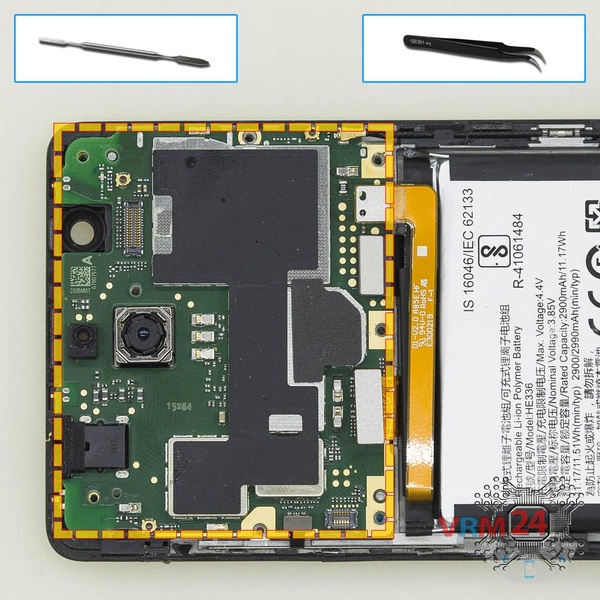

Remove the PCB.

How to disassemble Nokia 5.1 TA-1075, Step 16/1 How to disassemble Nokia 5.1 TA-1075, Step 16/2

Step 16.

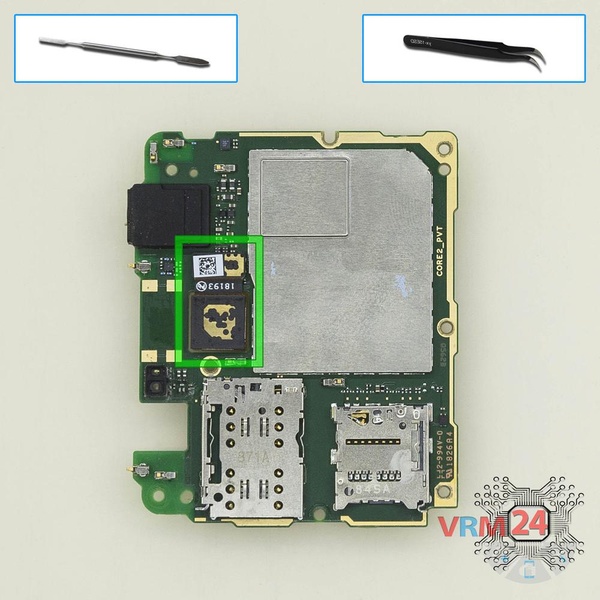

Disconnect the connector on PCB, and remove the main camera.

Detailed disassembly instructions of Nokia 5.1 TA-1075 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia 5.1 TA-1075
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Nokia 5.1 TA-1075 released for markets in different countries.
