Sony Xperia M
Sony Xperia M
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

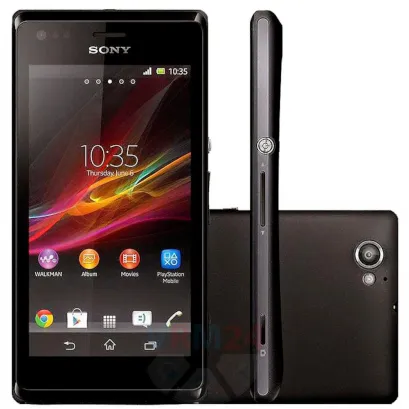

Disassembly/Repair of the mobile device Sony Xperia M (Sony Xperia M C2005) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Sony Xperia M, Step 1/1 How to disassemble Sony Xperia M, Step 1/2

Step 1.

Open the back cover.

How to disassemble Sony Xperia M, Step 2/1 How to disassemble Sony Xperia M, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Sony Xperia M, Step 3/1 How to disassemble Sony Xperia M, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and a screwdriver (hex T5), unscrew 6 bolts.

How to disassemble Sony Xperia M, Step 4/1 How to disassemble Sony Xperia M, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Sony Xperia M, Step 5/1

Step 5.

The middle frame.

How to disassemble Sony Xperia M, Step 6/1 How to disassemble Sony Xperia M, Step 6/2 How to disassemble Sony Xperia M, Step 6/3

Step 6.

Disconnect connectors on the lower PCB and remove it.

⚠️ Warning!

One of the connectors is inside.

How to disassemble Sony Xperia M, Step 7/1 How to disassemble Sony Xperia M, Step 7/2 How to disassemble Sony Xperia M, Step 7/3 How to disassemble Sony Xperia M, Step 7/4

Step 7.

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble Sony Xperia M, Step 8/1 How to disassemble Sony Xperia M, Step 8/2 How to disassemble Sony Xperia M, Step 8/3

Step 8.

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia M in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia M
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Sony Xperia M — Sony Xperia M C2005 released for markets in different countries.
