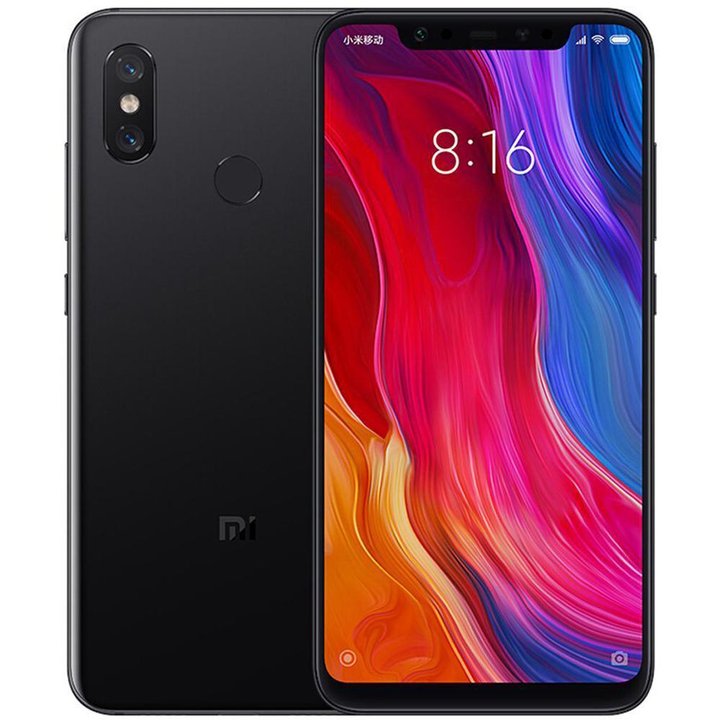

Disassembly/Repair of the mobile device Xiaomi Mi 8 Dual (Xiaomi Mi 8 Dual M1803E1A) with each step description and the required set of tools.

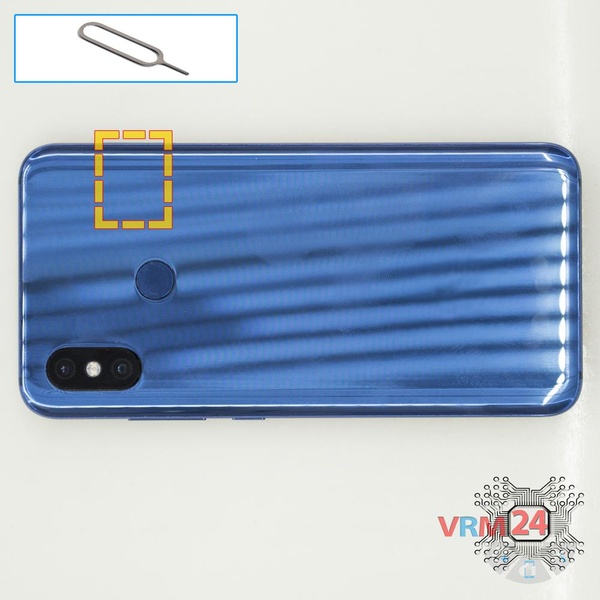

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM card out.

⚠️️ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.

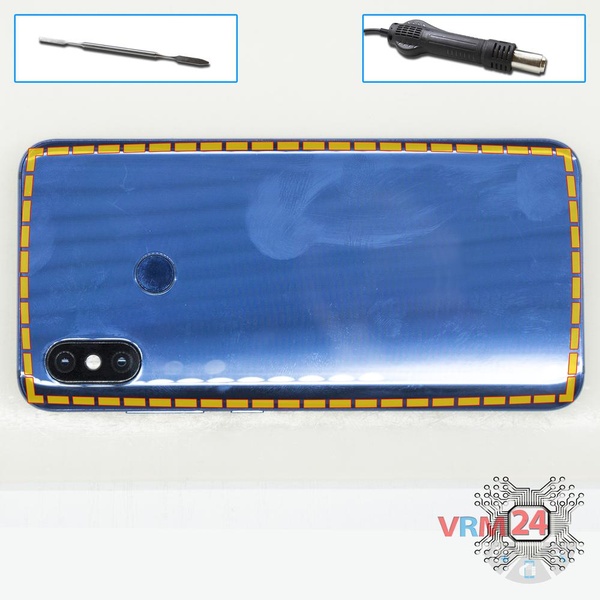

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹ️️ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often the most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.

⚠️️ Pay attention to the fingerprint sensor cable! The cable connects the fingerprint sensor on the back cover to the motherboard.

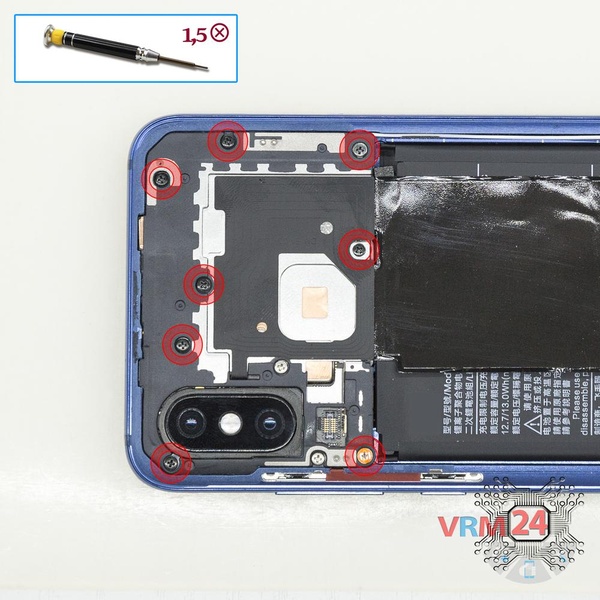

Using a screwdriver (Phillips 1.5 mm PH #000), unscrew the eight screws.

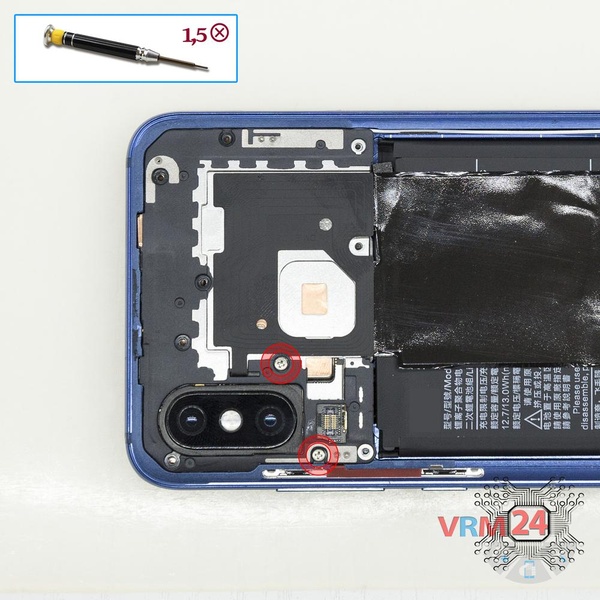

Using a screwdriver (Phillips 1.5 mm PH000), unscrew the two short silver screws.

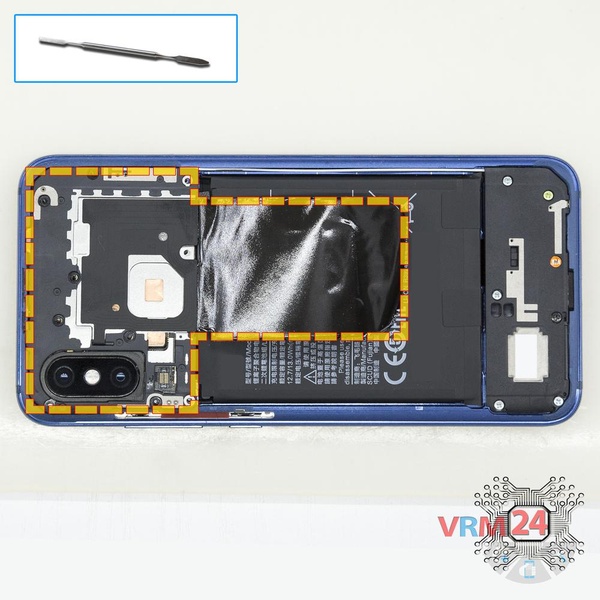

Pry over the edges. Move an opening tool along the edge detach the clips and remove the cover with antenna pads and tracks and an NFC tag.

ℹ️️ Try to lift the cover by the edges and not push anything between them to not accidentally touch or short-circuit anything on the circuit board.

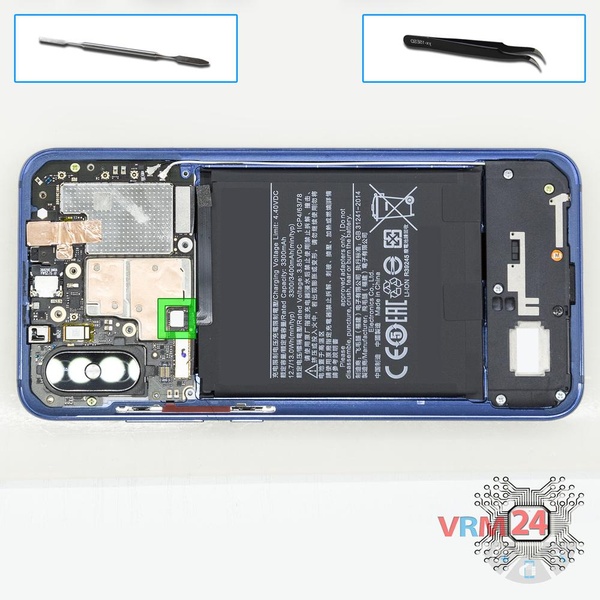

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹ️️ The Xiaomi Mi 8 Dual model has a battery BM3E with 3400 mAh capacity (aka rechargeable battery).

⚠️️ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

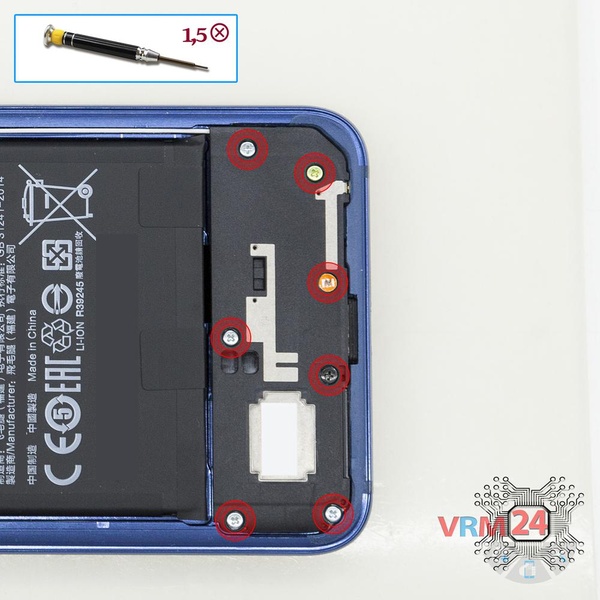

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the seven screws.

The screws are different: ℹ️️ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.

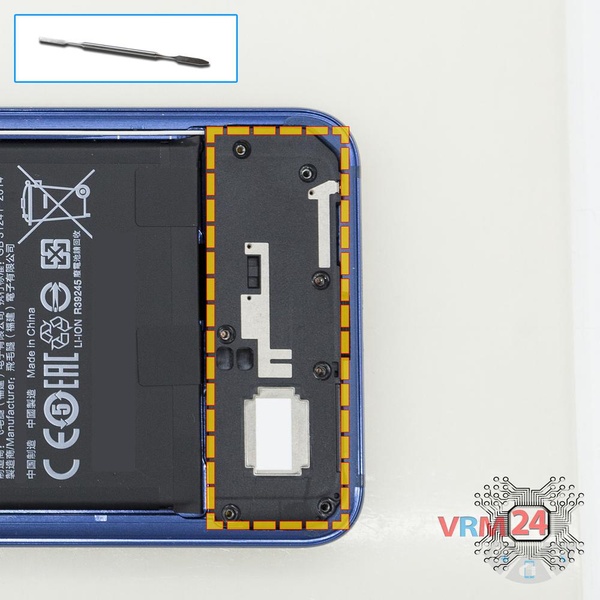

Pry over the edge and remove the loudspeaker assembly with antenna tracks.

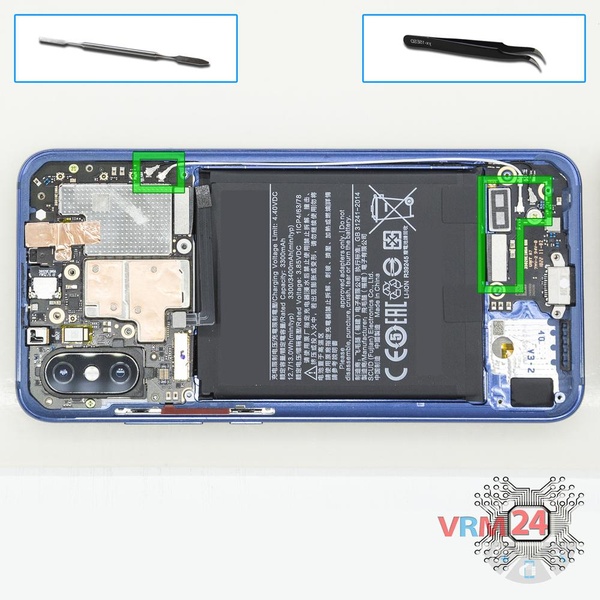

Disconnect the connectors of the two coaxial cables, inter-board cable connector.

⚠️️ Do not pull on the cable or pry it with a sharp tool, the connectors are pretty weak and break easily, or the cable falls out of the end (lug).

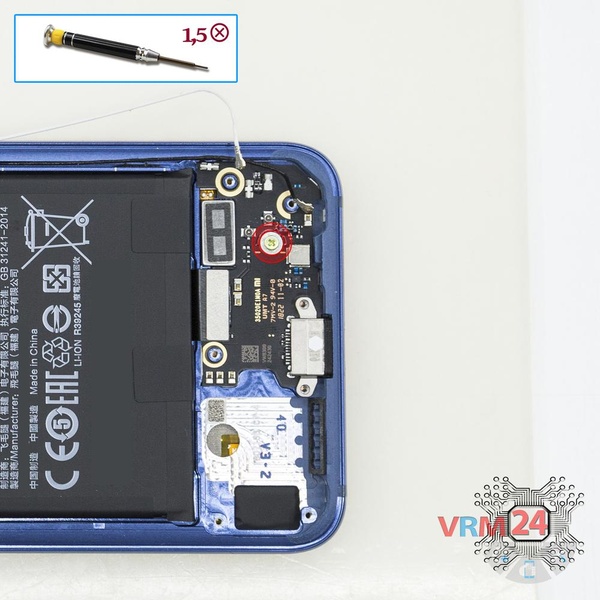

Using a screwdriver (Philips 1.5 mm PH #000), unscrew one screw securing the sub-board.

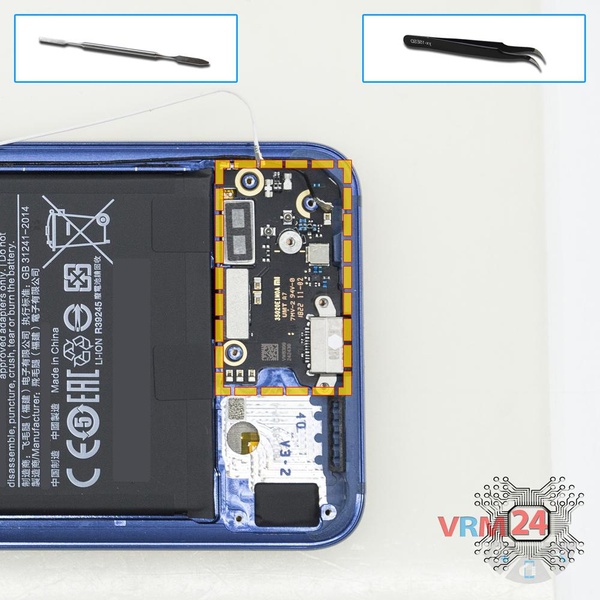

Remove the sub-board. It may be glued to the frame or attached with attachments like latches or hooks, so be careful.

ℹ️️ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, and an antenna unit.

⚠️️ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.

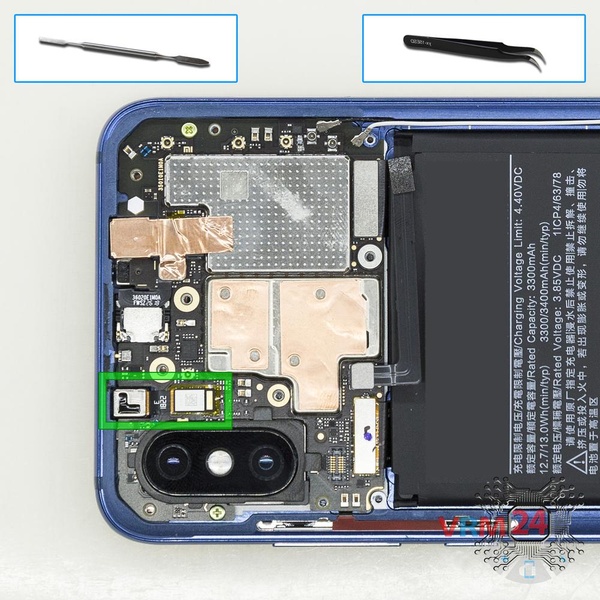

Disconnect the connector on the motherboard, and remove the front (selfie) camera.

Pry up the connector, and detach the another front (selfie) camera.

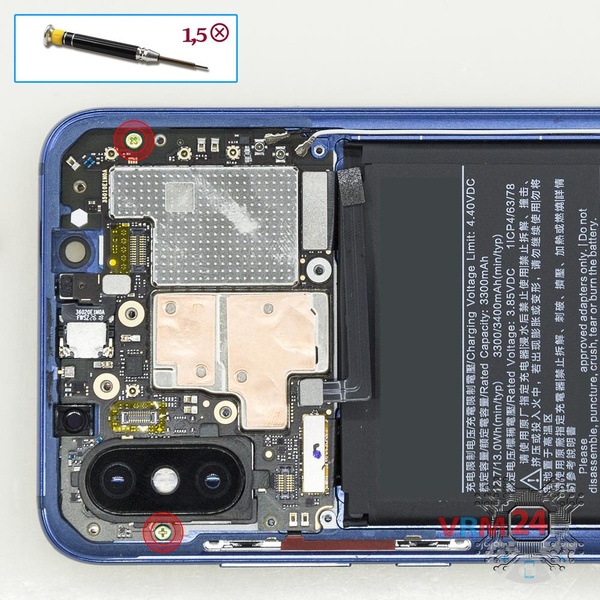

Using a screwdriver (Philips 1.5 mm PH #000), unscrew the two screws securing the motherboard.

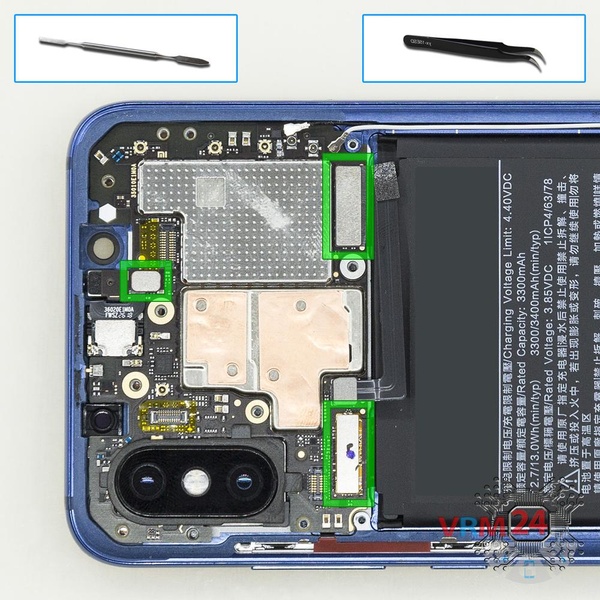

Pry up the connectors of the display module cable, inter-board cable, and sensor cable.

⚠️️ Be careful when removing the cables from the connectors, the cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

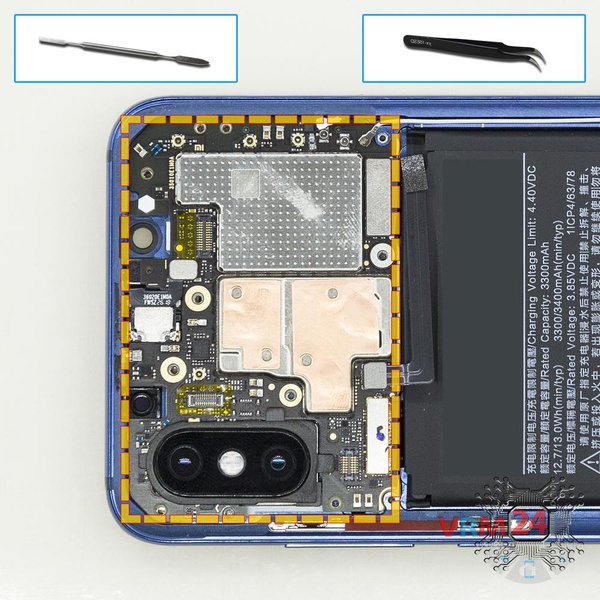

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

The motherboard, also, may be attached with attachments like latches or hooks, be careful.

⚠️️ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.

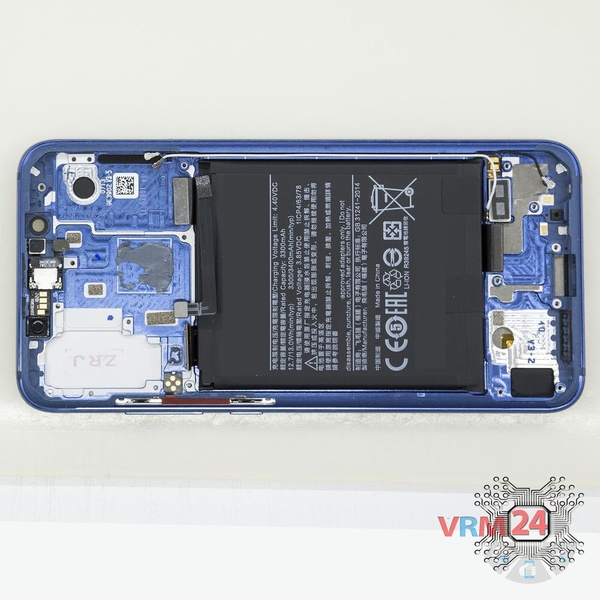

ℹ️️ In the display frame remained: the earpiece speaker, battery, and two coaxial cables.
