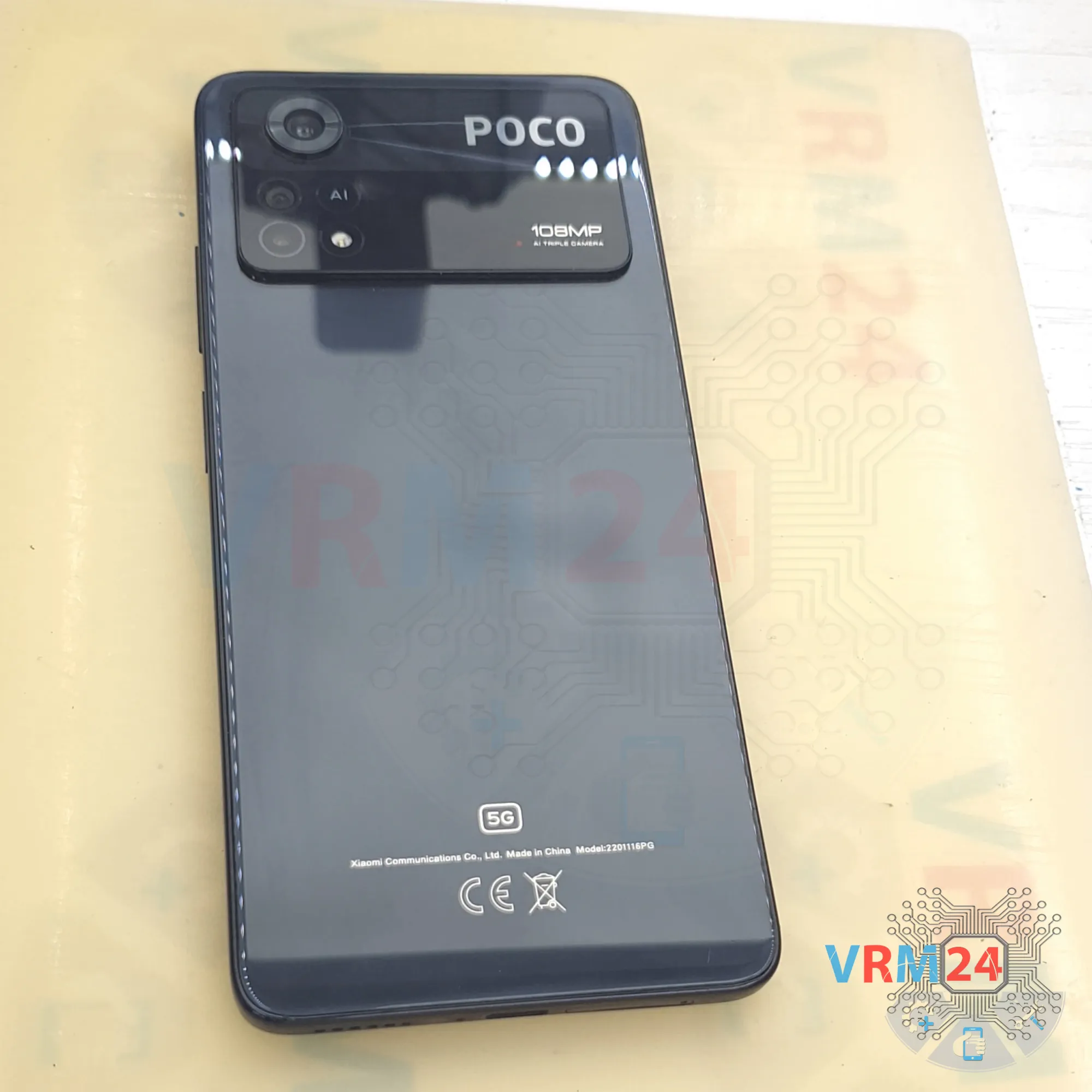

Step 1. Before disassembling!

âš ī¸ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble Xiaomi POCO X4 Pro, Step 2/1 How to disassemble Xiaomi POCO X4 Pro, Step 2/2 How to disassemble Xiaomi POCO X4 Pro, Step 2/3

Step 2. Remove the tray

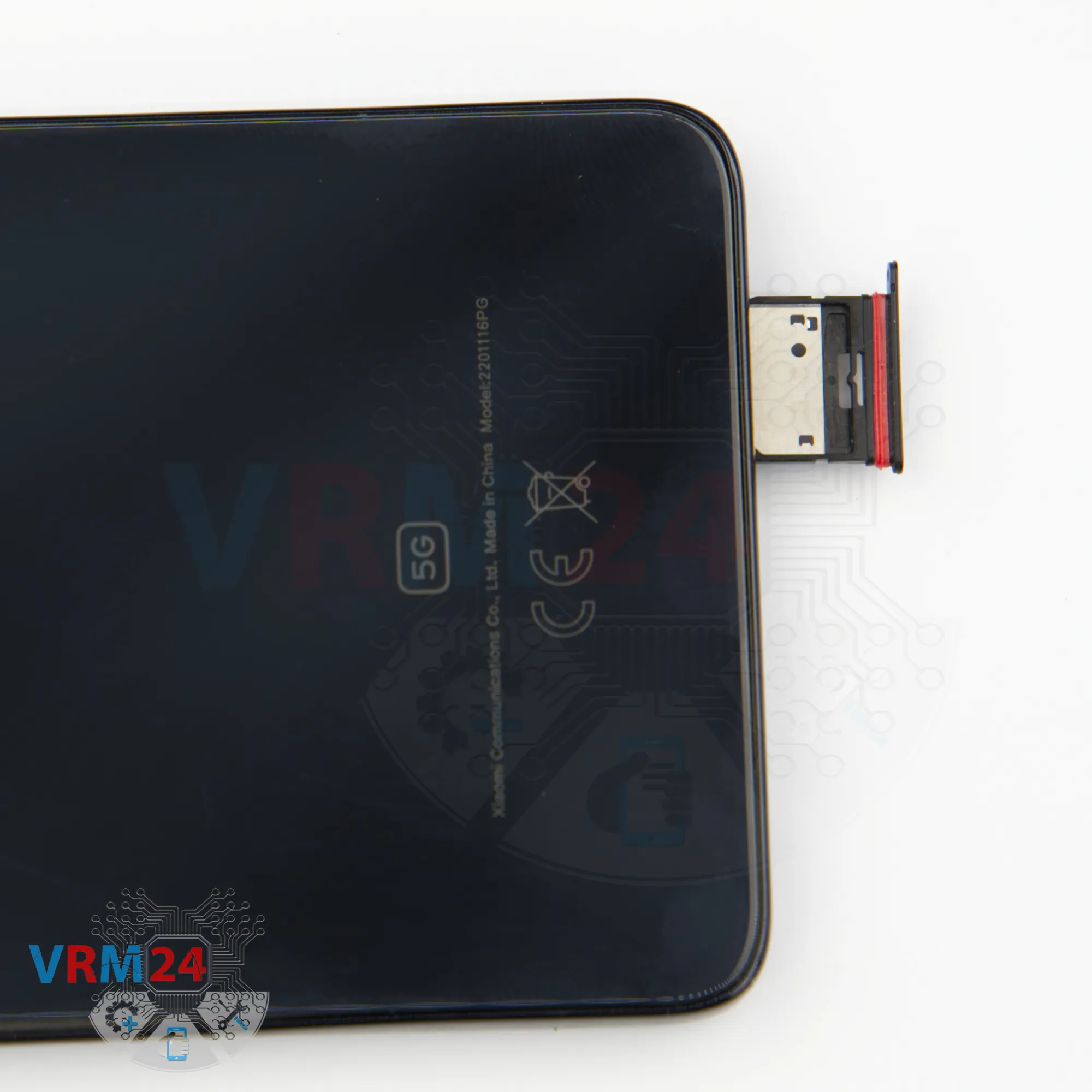

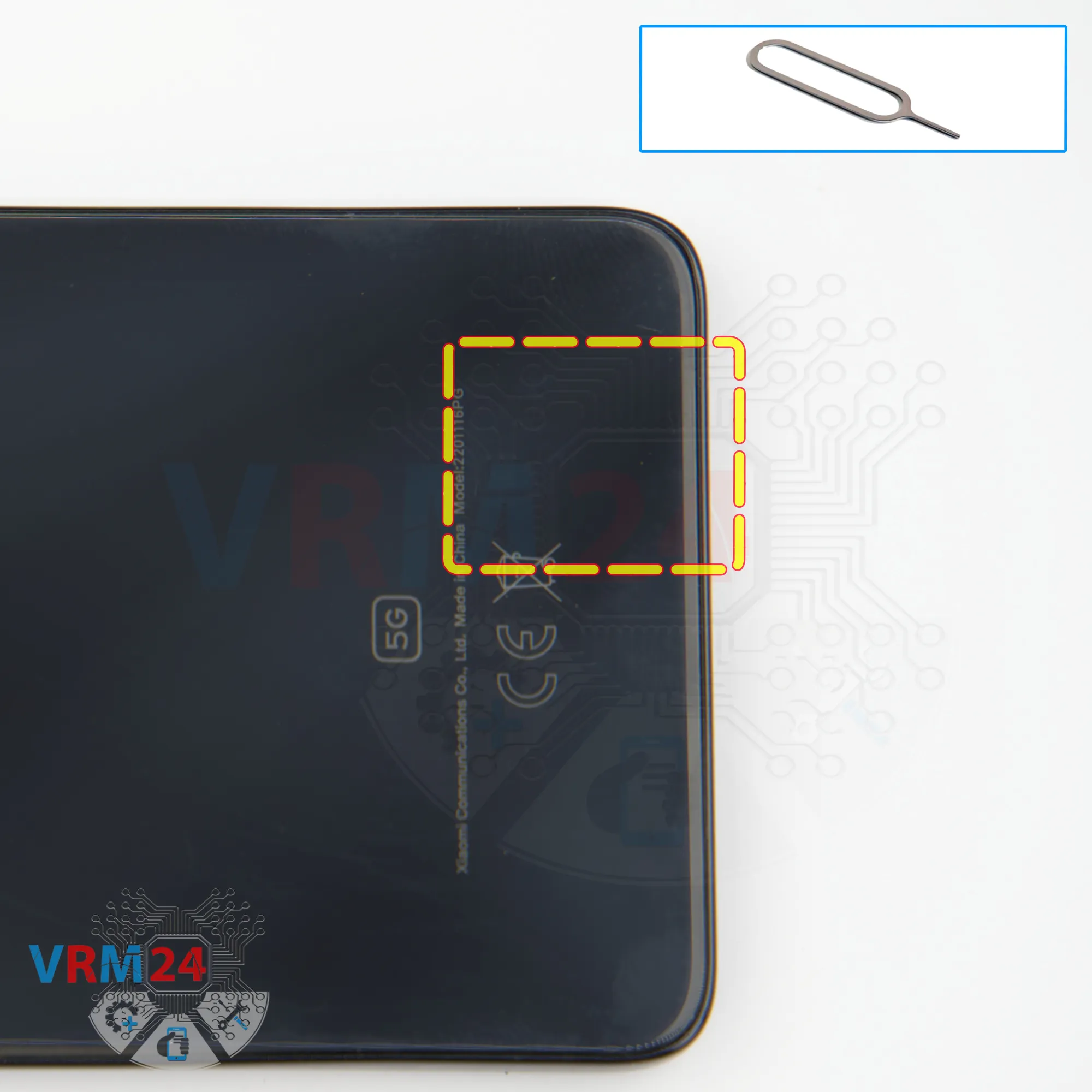

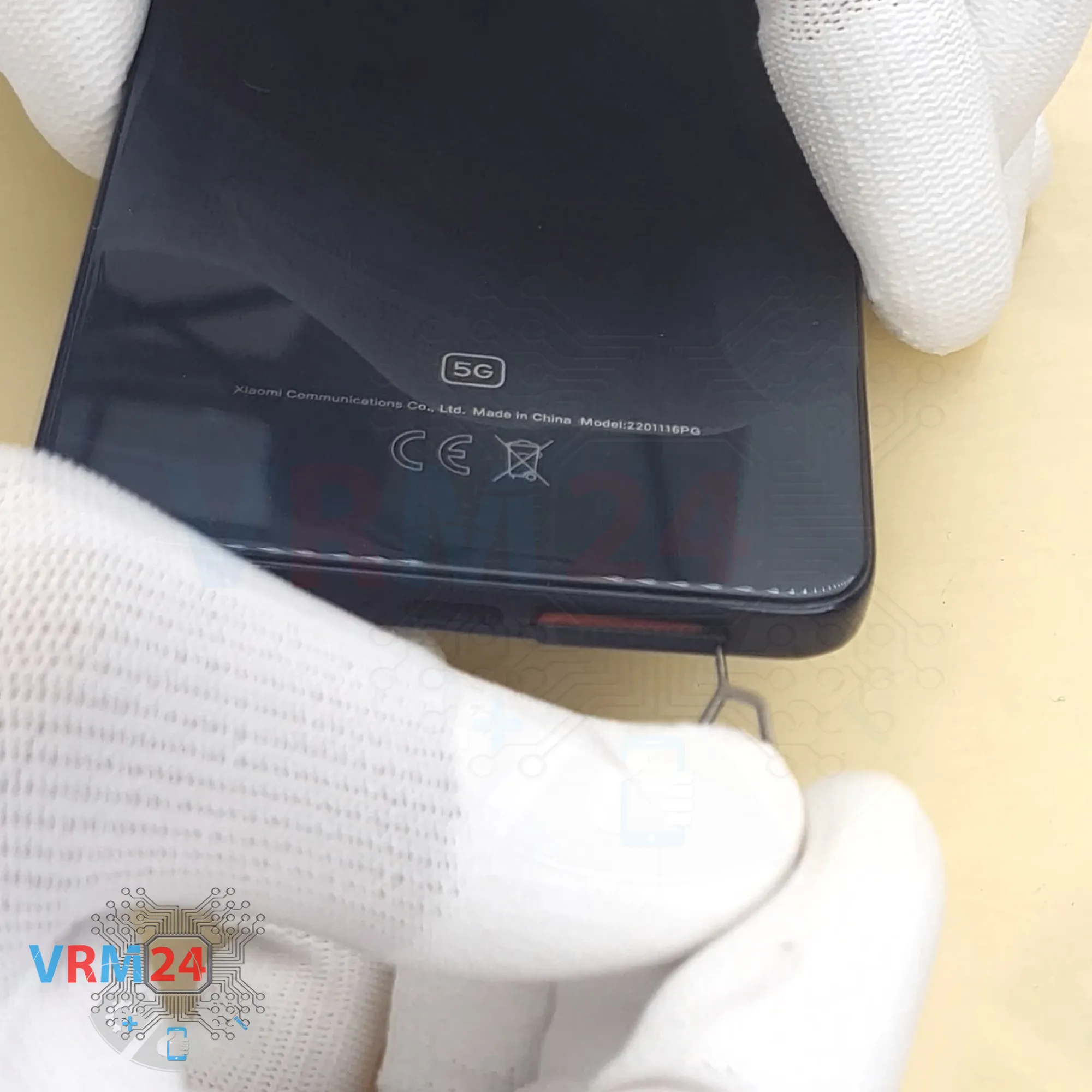

First, we need to remove the SIM card tray. To do this, use the special eject tool. Insert it into the hole and push out the card tray.


How to disassemble Xiaomi POCO X4 Pro, Step 3/1 How to disassemble Xiaomi POCO X4 Pro, Step 3/2 How to disassemble Xiaomi POCO X4 Pro, Step 3/3 How to disassemble Xiaomi POCO X4 Pro, Step 3/4

Step 3. Open the back cover

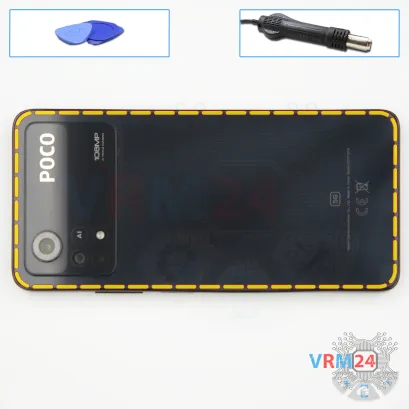

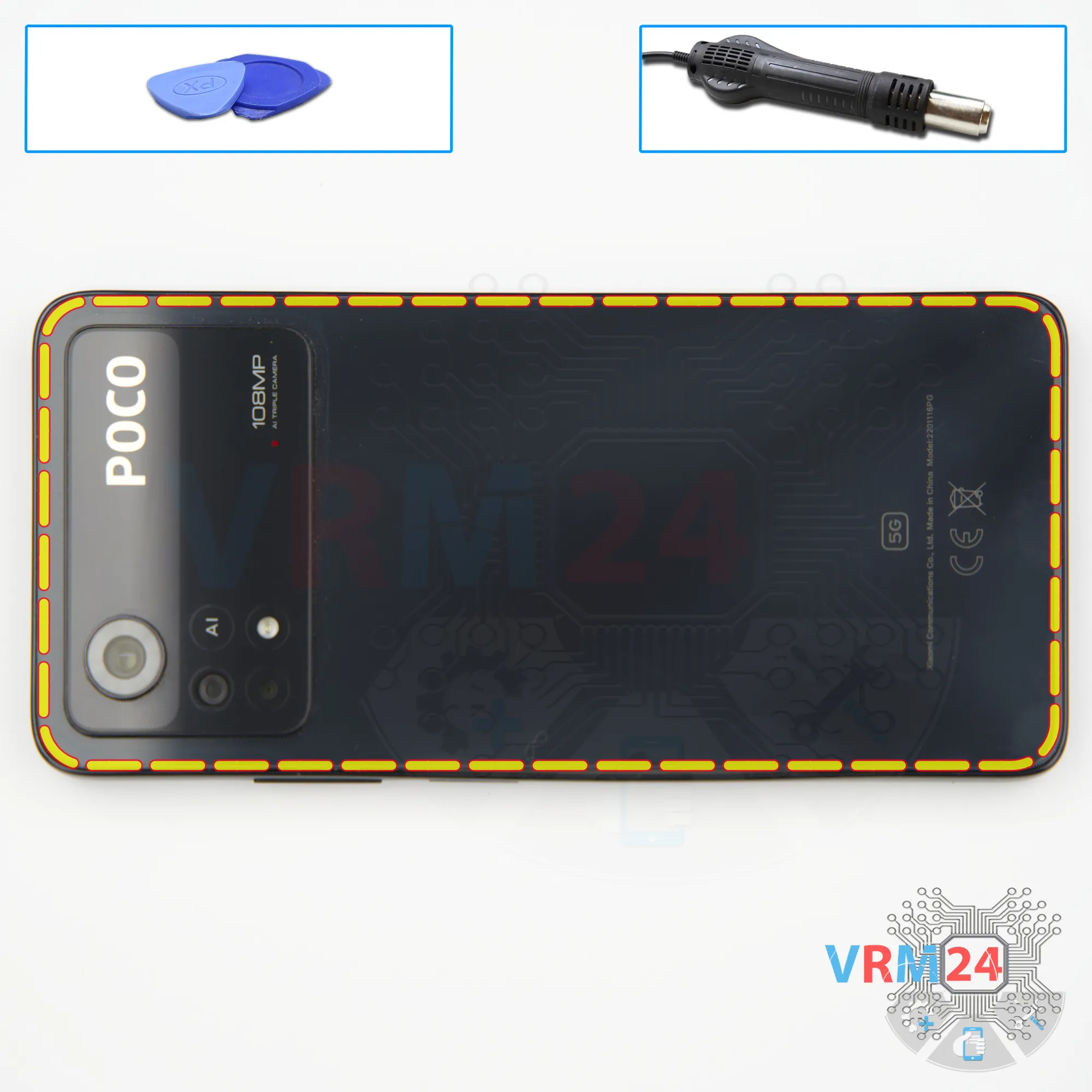

After that, we need to heat the surface of the back cover to about 70°C or 160°F. We use a heating pad for this, but you can also use a hair dryer.

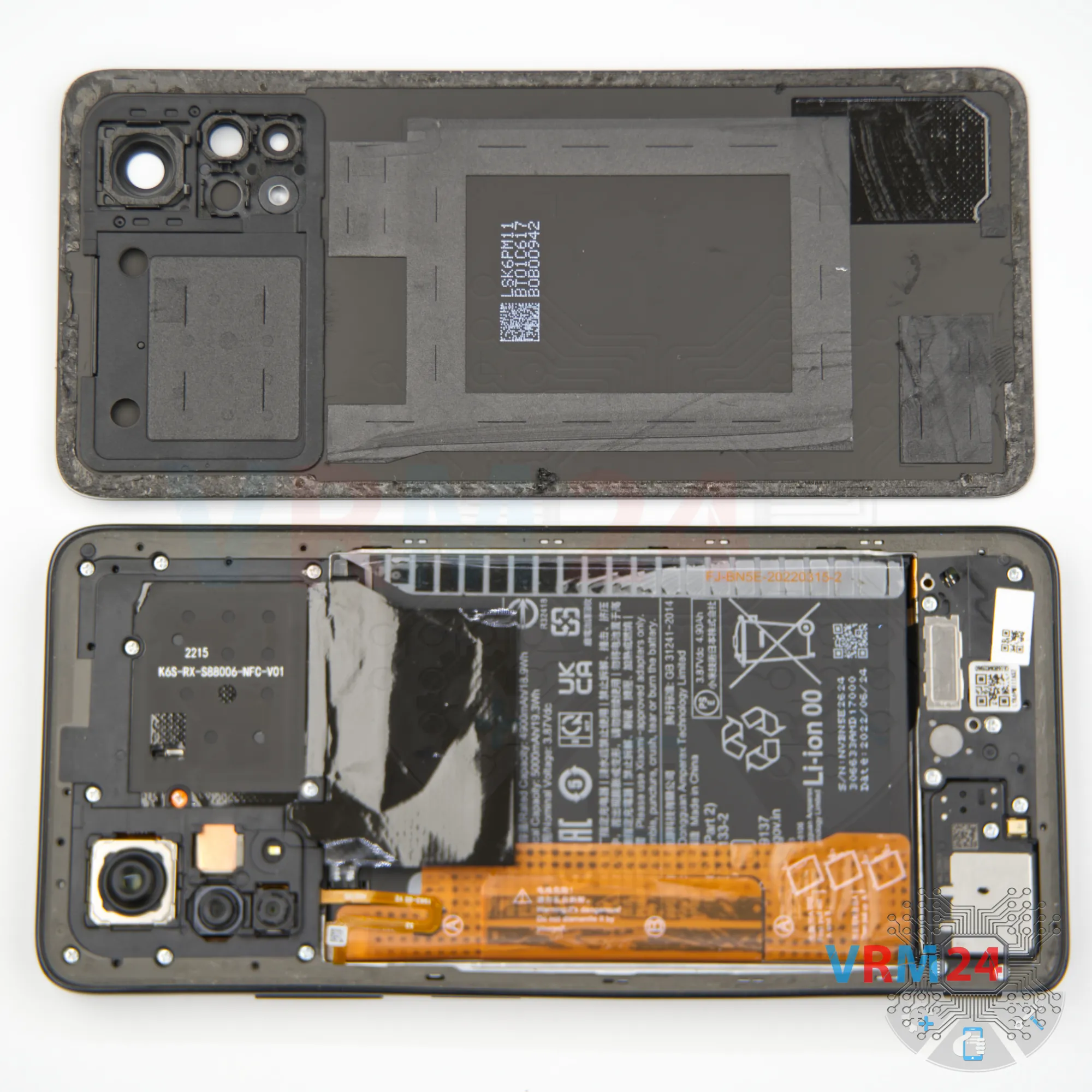

After 5–10 minutes, we can start separating the back cover. For this, we use a thin plastic film, insert it into the gap between the back cover and the mid-frame, and carefully slide it along the edge, cutting through the adhesive layer.

As always, you need to be especially careful around the camera area, since the cover there is glued down more firmly. Take care not to accidentally touch or damage the lenses.


How to disassemble Xiaomi POCO X4 Pro, Step 4/1 How to disassemble Xiaomi POCO X4 Pro, Step 4/2

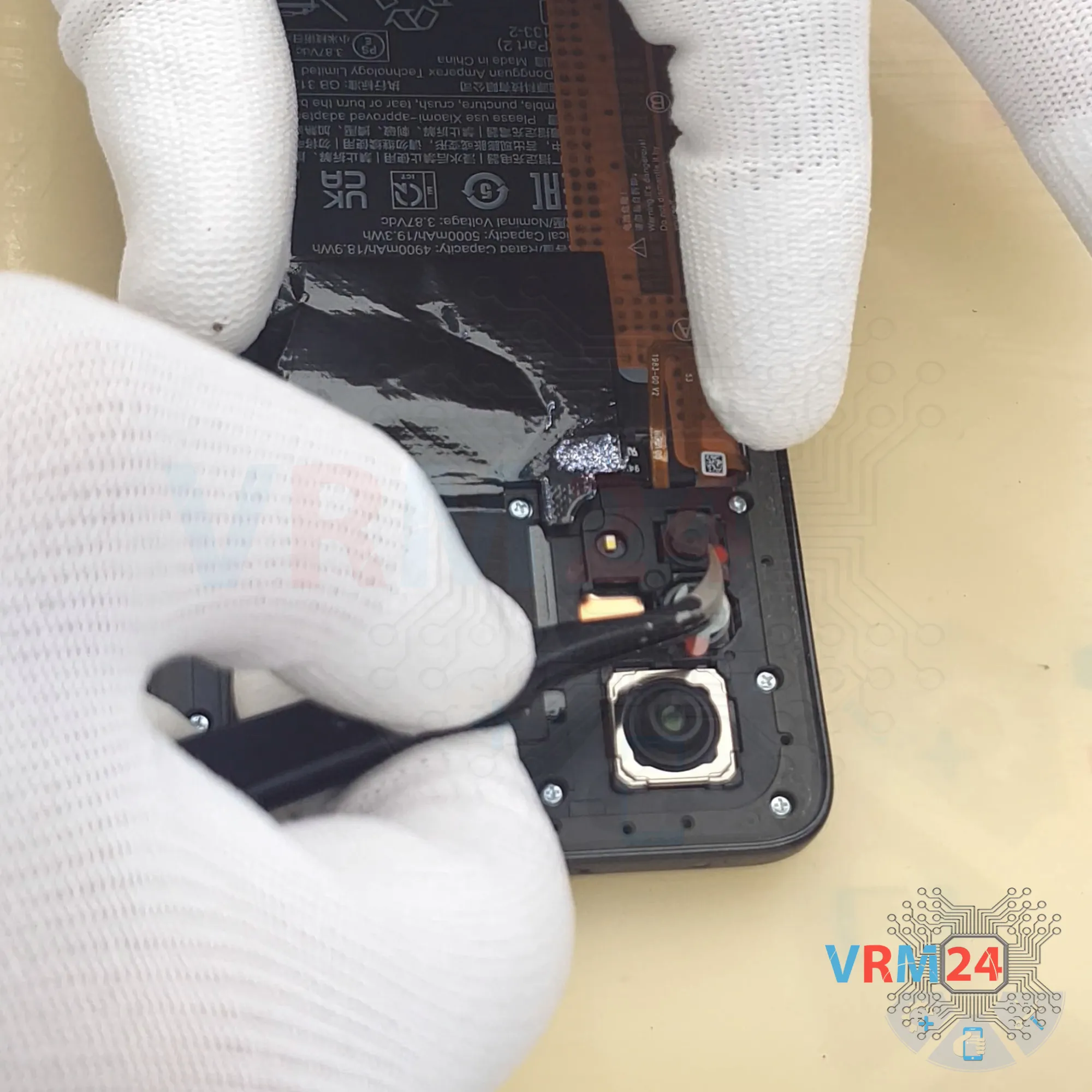

Step 4. Protecting camera lenses

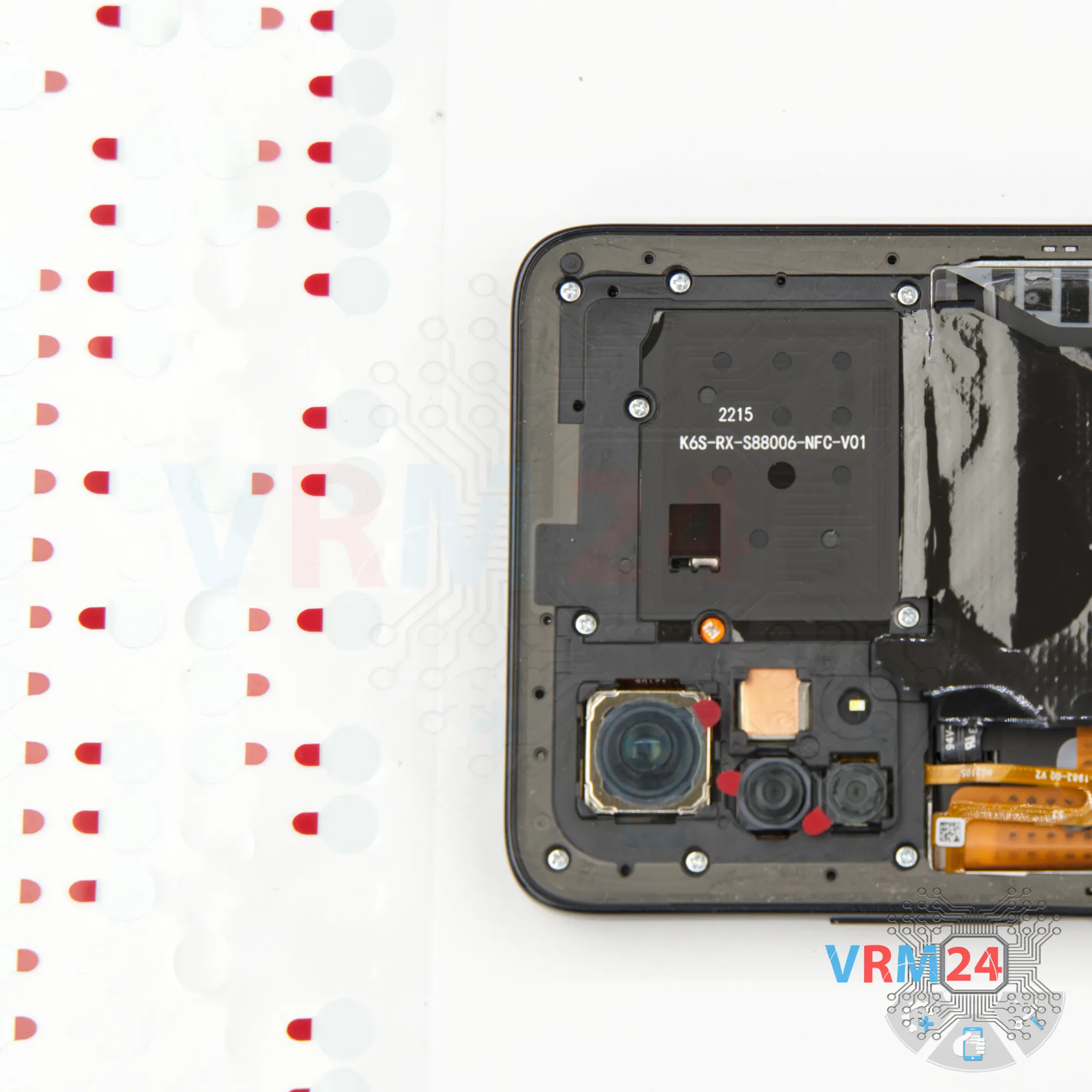

Next, we can cover the camera lenses. For this, we use a protective film.

Place the film over the lenses so that dust doesn’t get on them.

Make sure to apply the protective film around the rim of the camera, not directly onto the lenses themselves.


How to disassemble Xiaomi POCO X4 Pro, Step 5/1 How to disassemble Xiaomi POCO X4 Pro, Step 5/2 How to disassemble Xiaomi POCO X4 Pro, Step 5/3

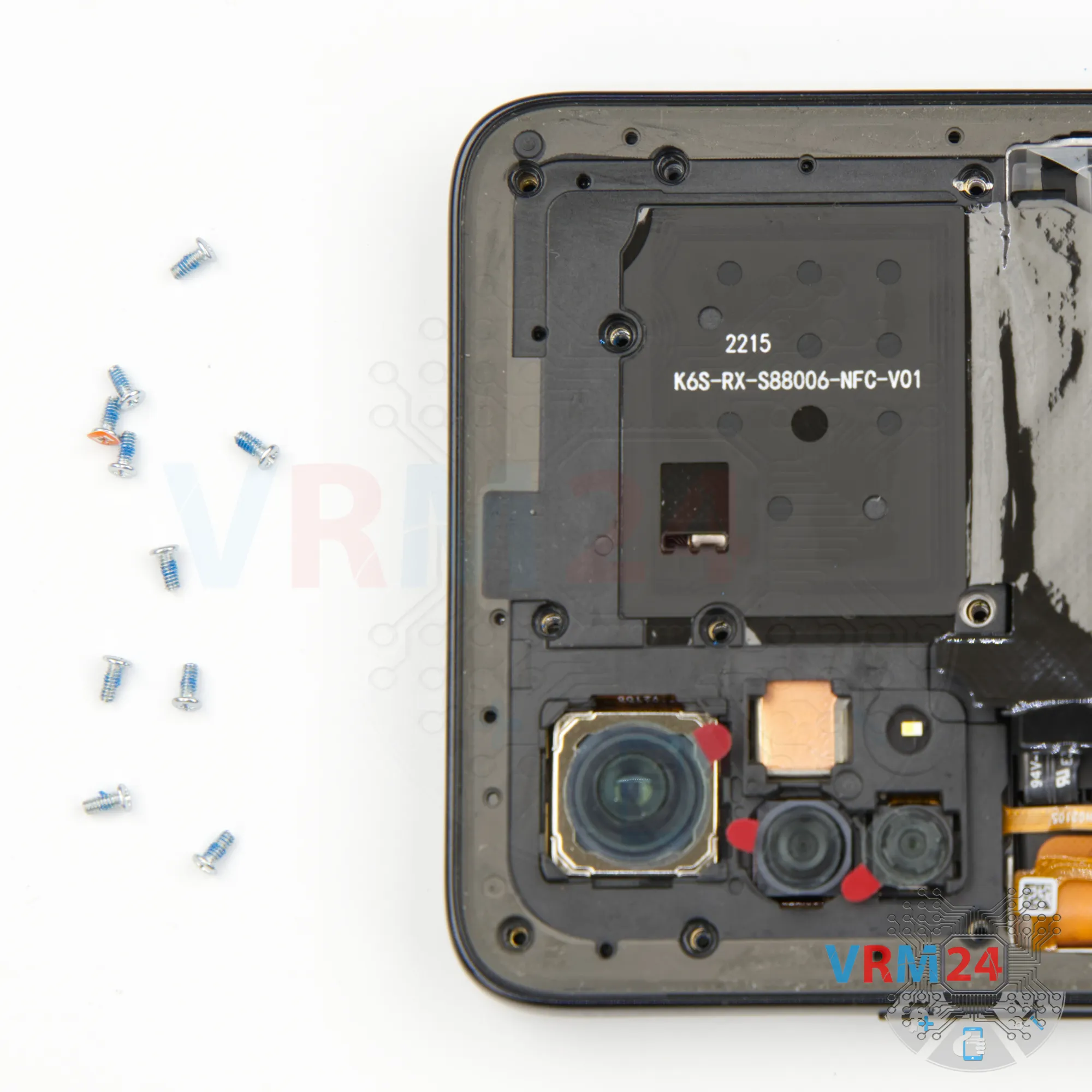

Step 5. Unscrew the screws

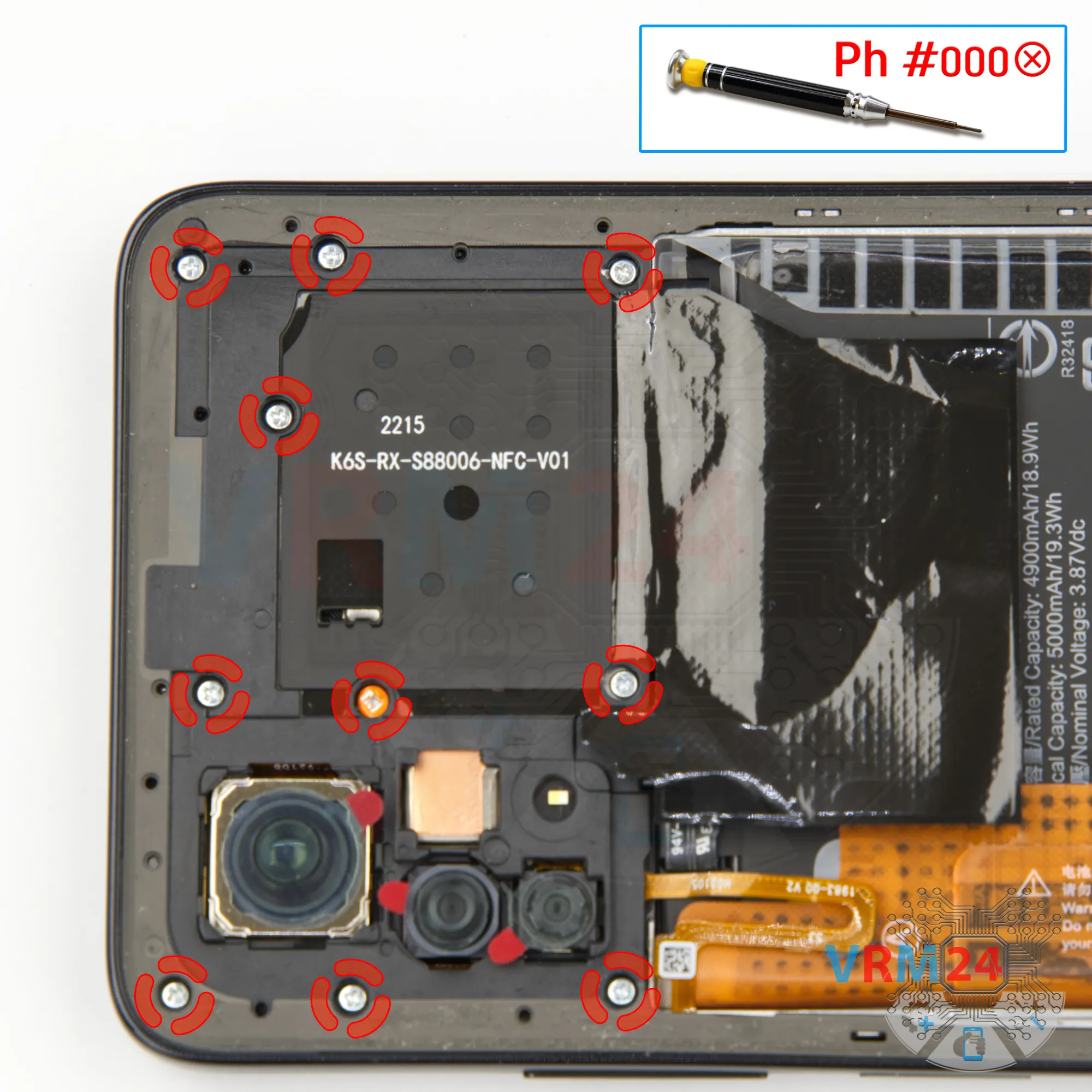

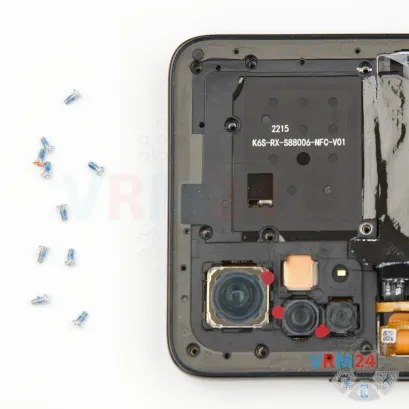

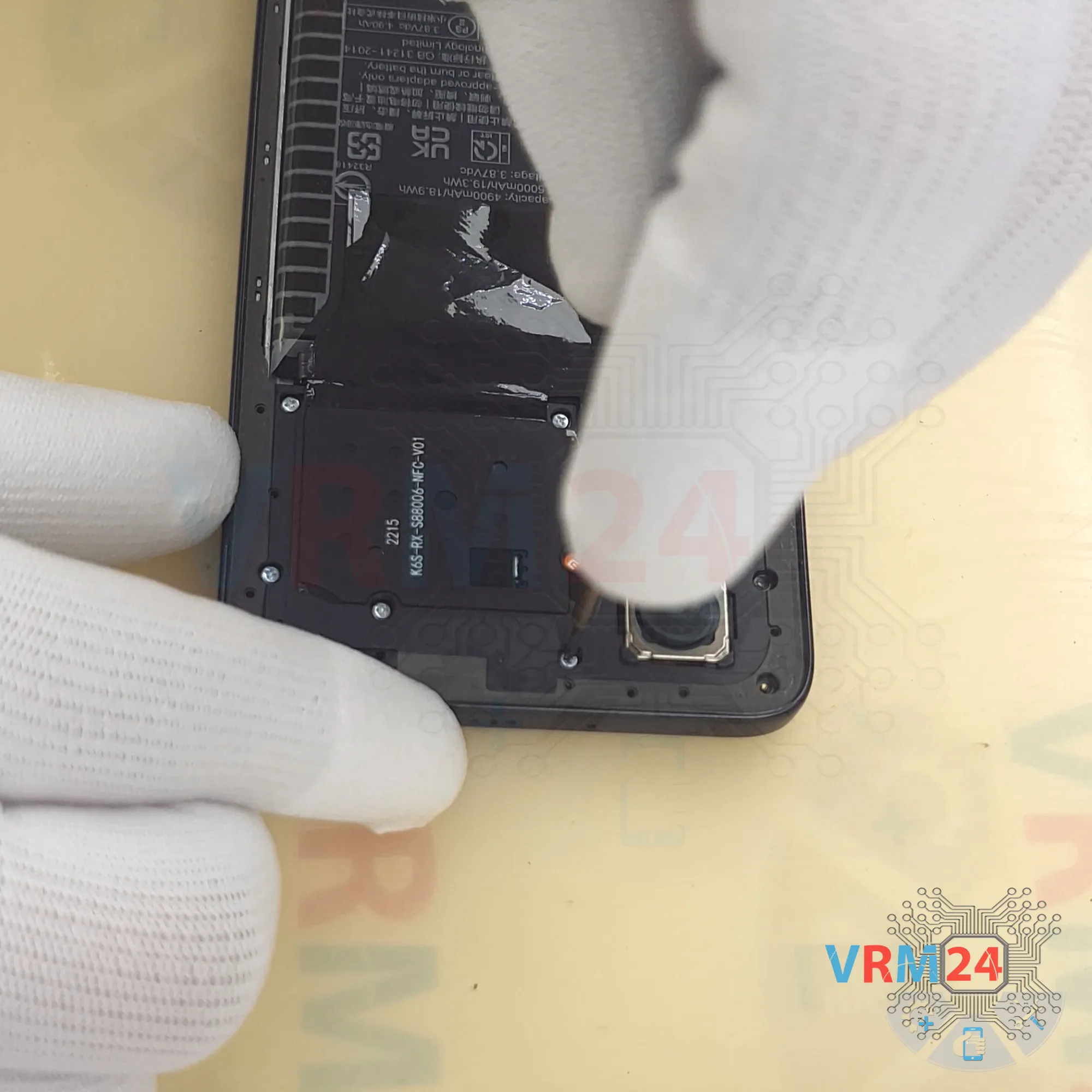

Now we move on to removing the screws. For this, we use a 1.5 mm Phillips screwdriver, or Phillips #000.

The screws appear to be identical, but it’s better to place them on a special surface in a set order, just in case, for reassembly. Sometimes screws don’t fit properly into the wrong holes.


How to disassemble Xiaomi POCO X4 Pro, Step 6/1 How to disassemble Xiaomi POCO X4 Pro, Step 6/2 How to disassemble Xiaomi POCO X4 Pro, Step 6/3

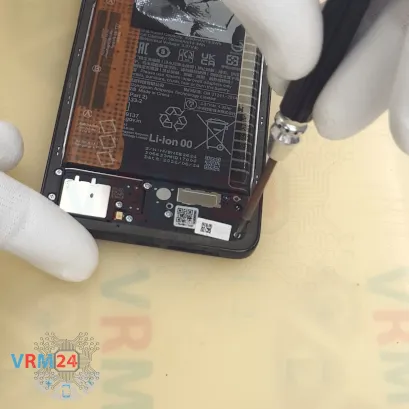

Step 6. Unscrew the screws

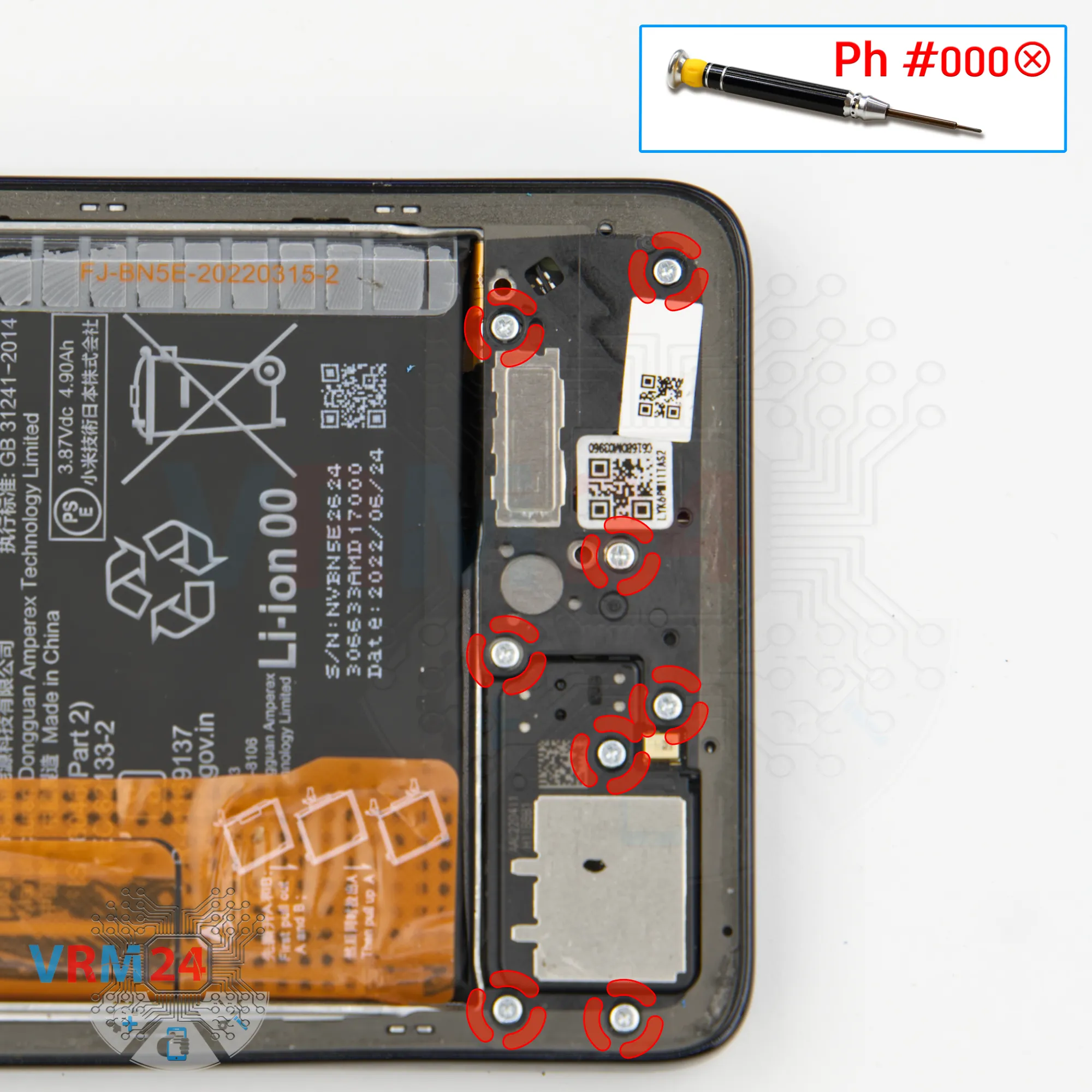

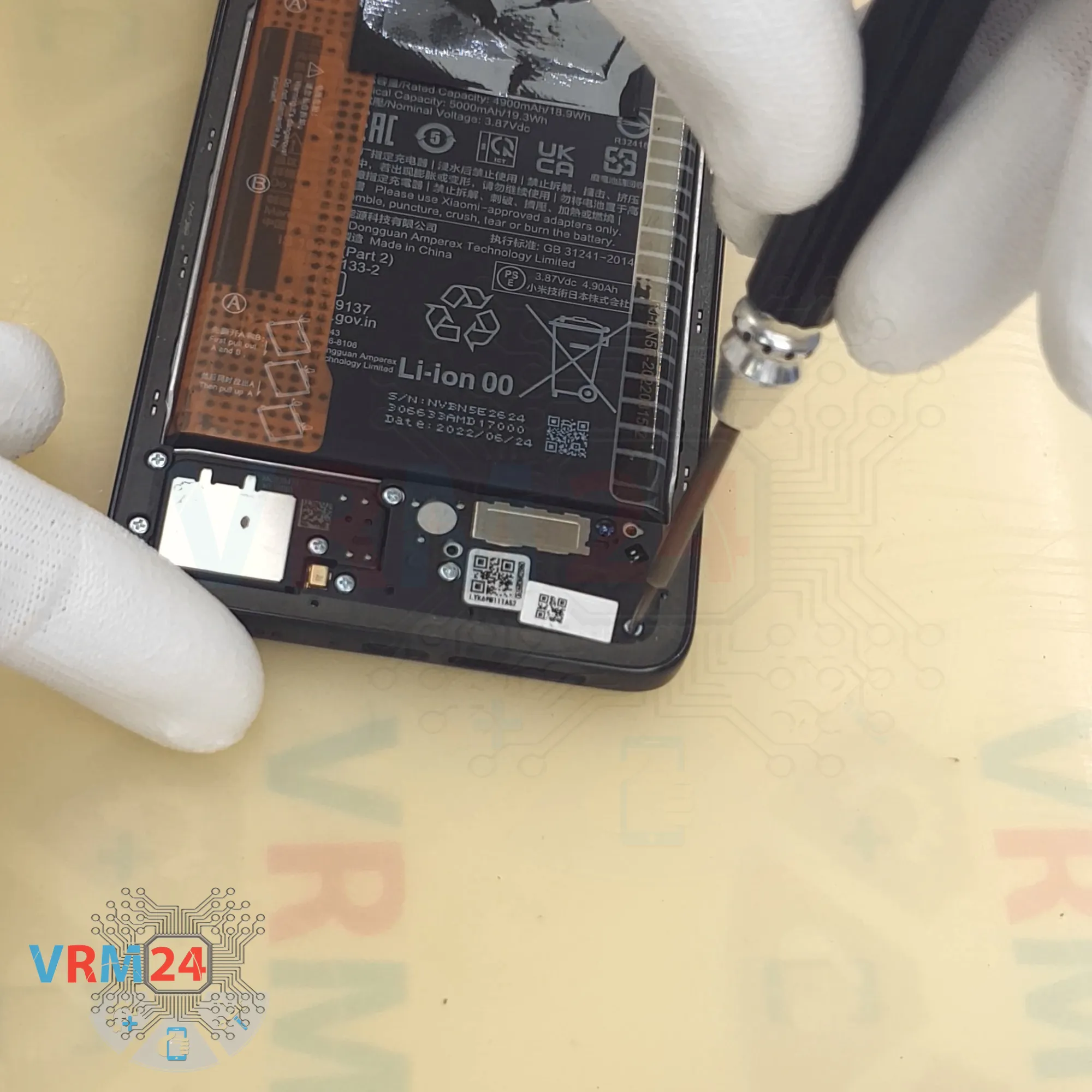

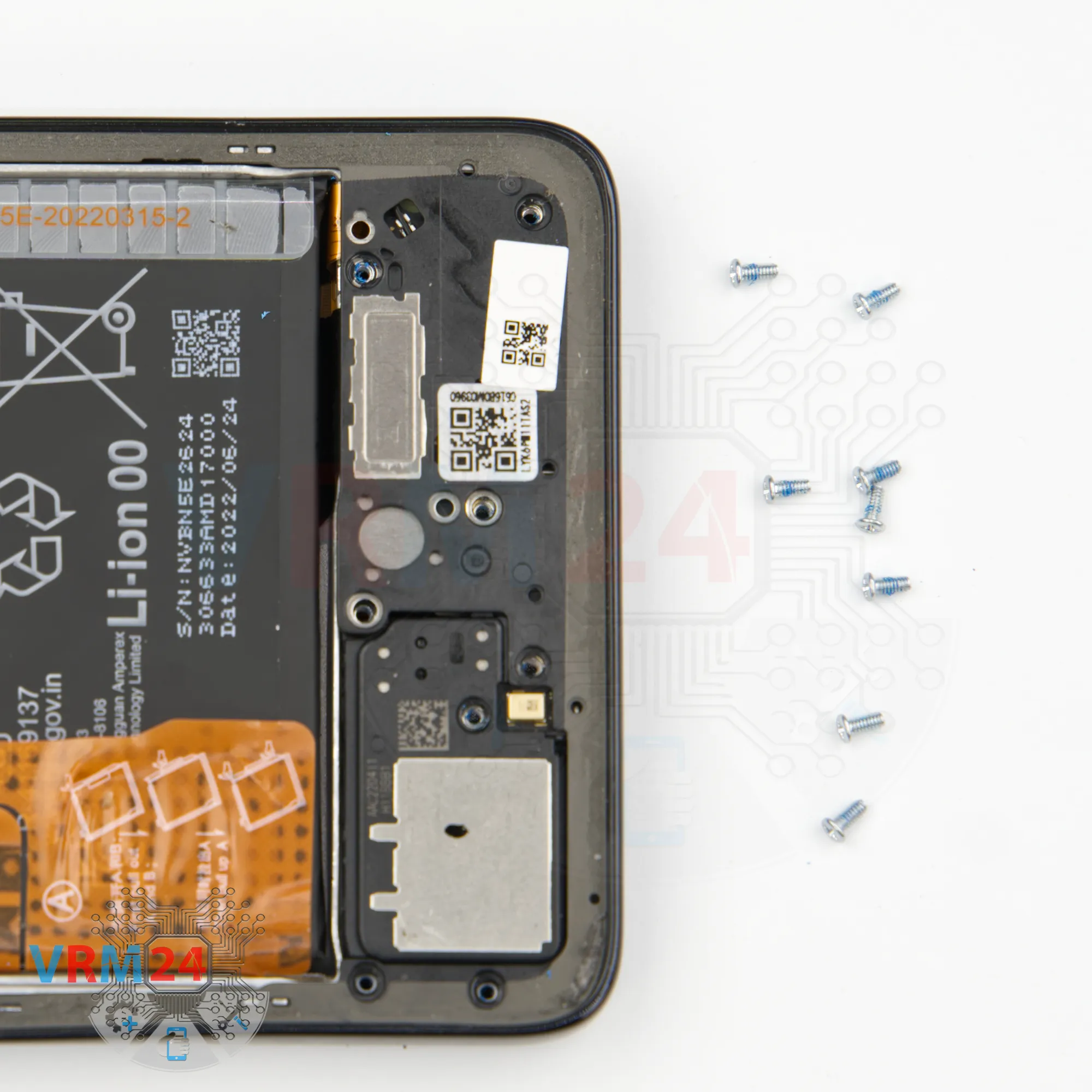

And we unscrew the screws at the bottom. For this, we use the same a 1.5 mm Phillips screwdriver, or Phillips #000.


How to disassemble Xiaomi POCO X4 Pro, Step 7/1 How to disassemble Xiaomi POCO X4 Pro, Step 7/2 How to disassemble Xiaomi POCO X4 Pro, Step 7/3 How to disassemble Xiaomi POCO X4 Pro, Step 7/4

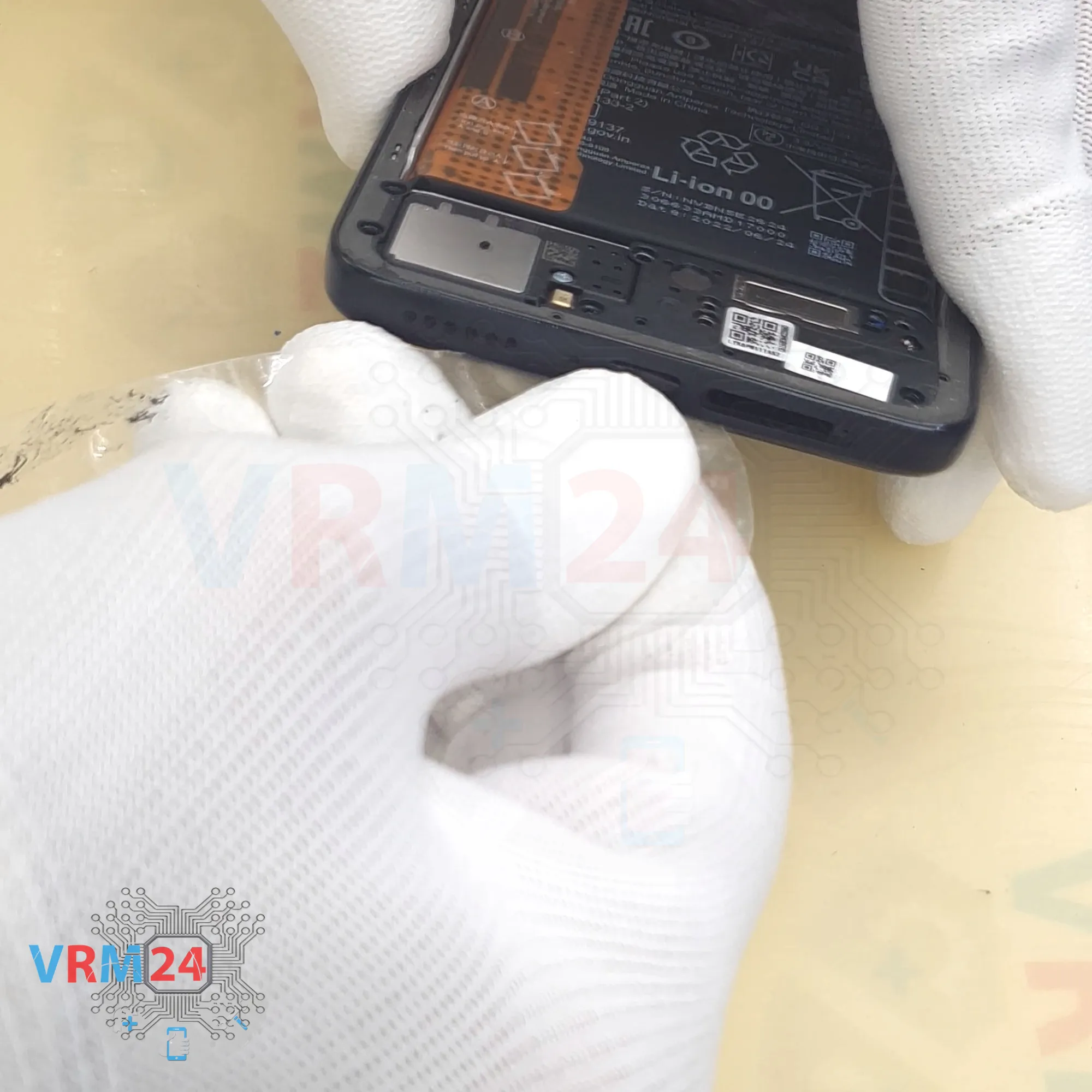

Step 7. Open the mid-frame

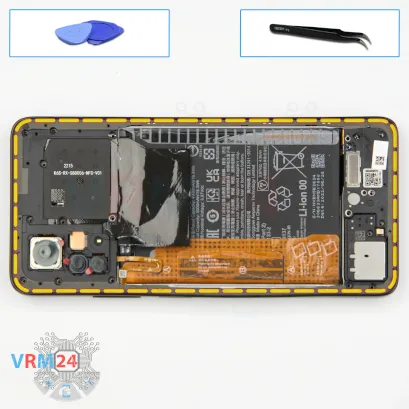

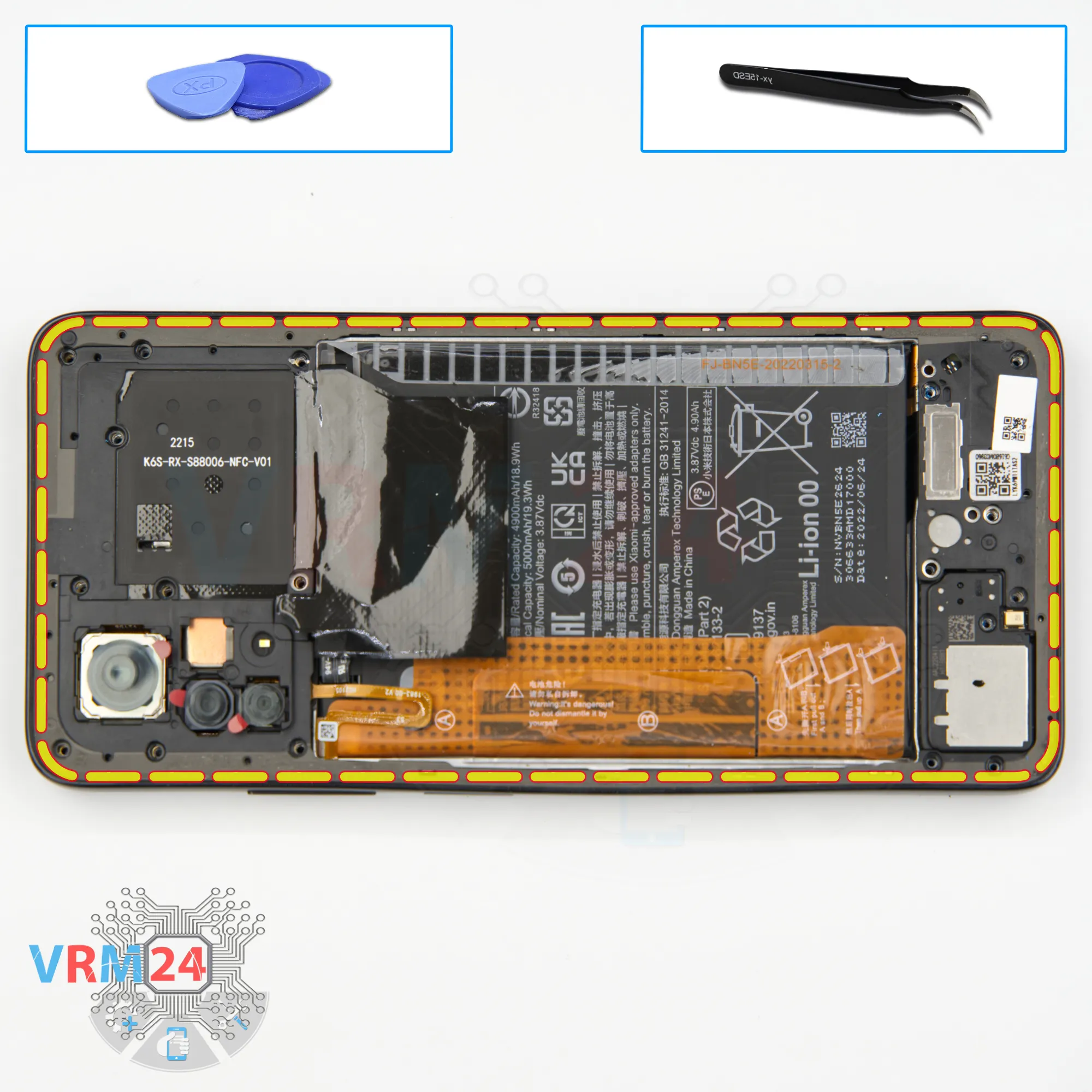

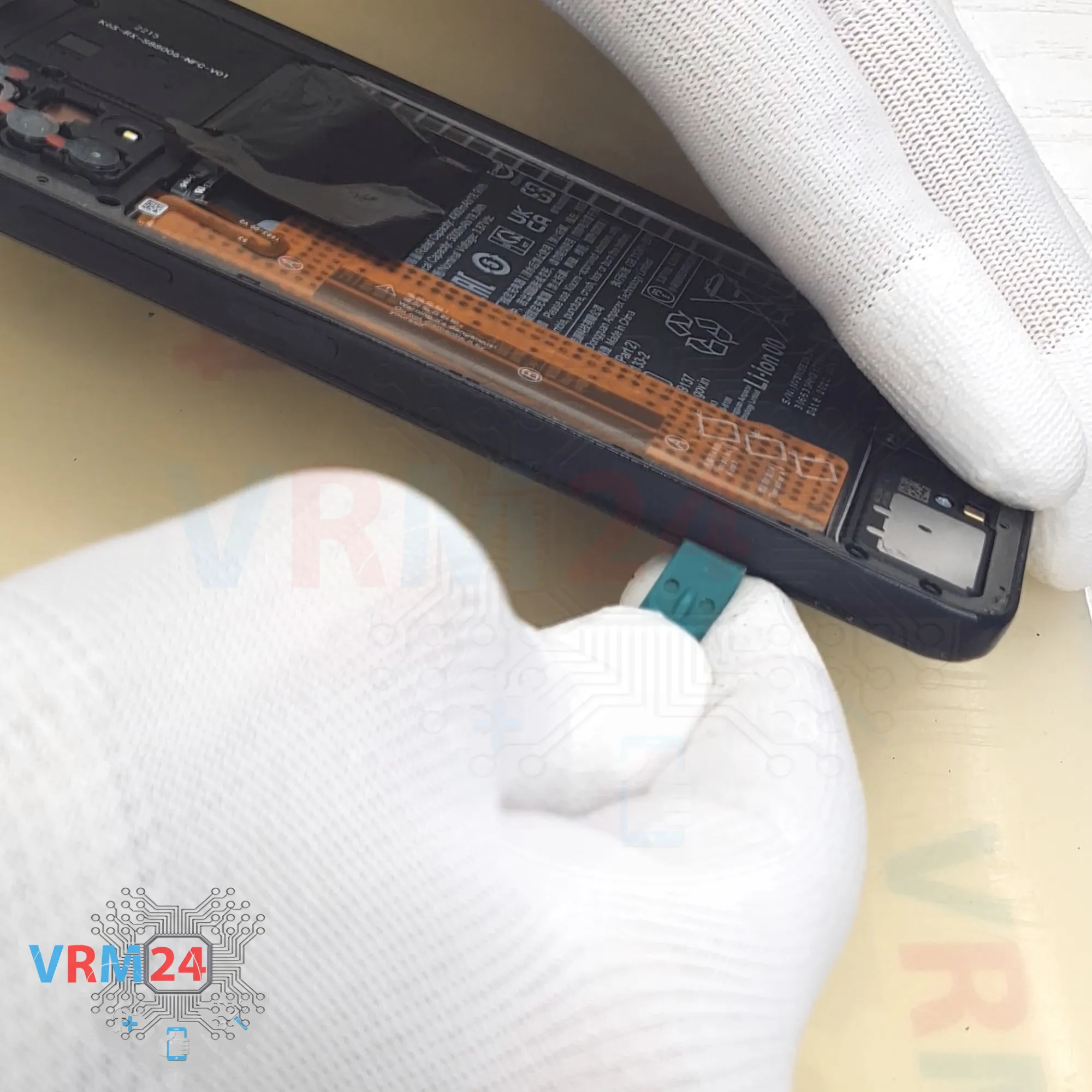

After removing the screws, we need to detach the mid-frame. We use a thin plastic film again.

First, find the right spot where you can insert the film into the gap between the mid-frame and the display frame.

The easiest place to start is near the SIM tray slot. Then carefully slide the film along the edge to release a few clips, and after that, you can switch to a thicker tool.

We work our way around the edge with the tool. Be very careful at the corners, as the frame holds firmly there. Also, take care around the display edges to avoid damaging them.

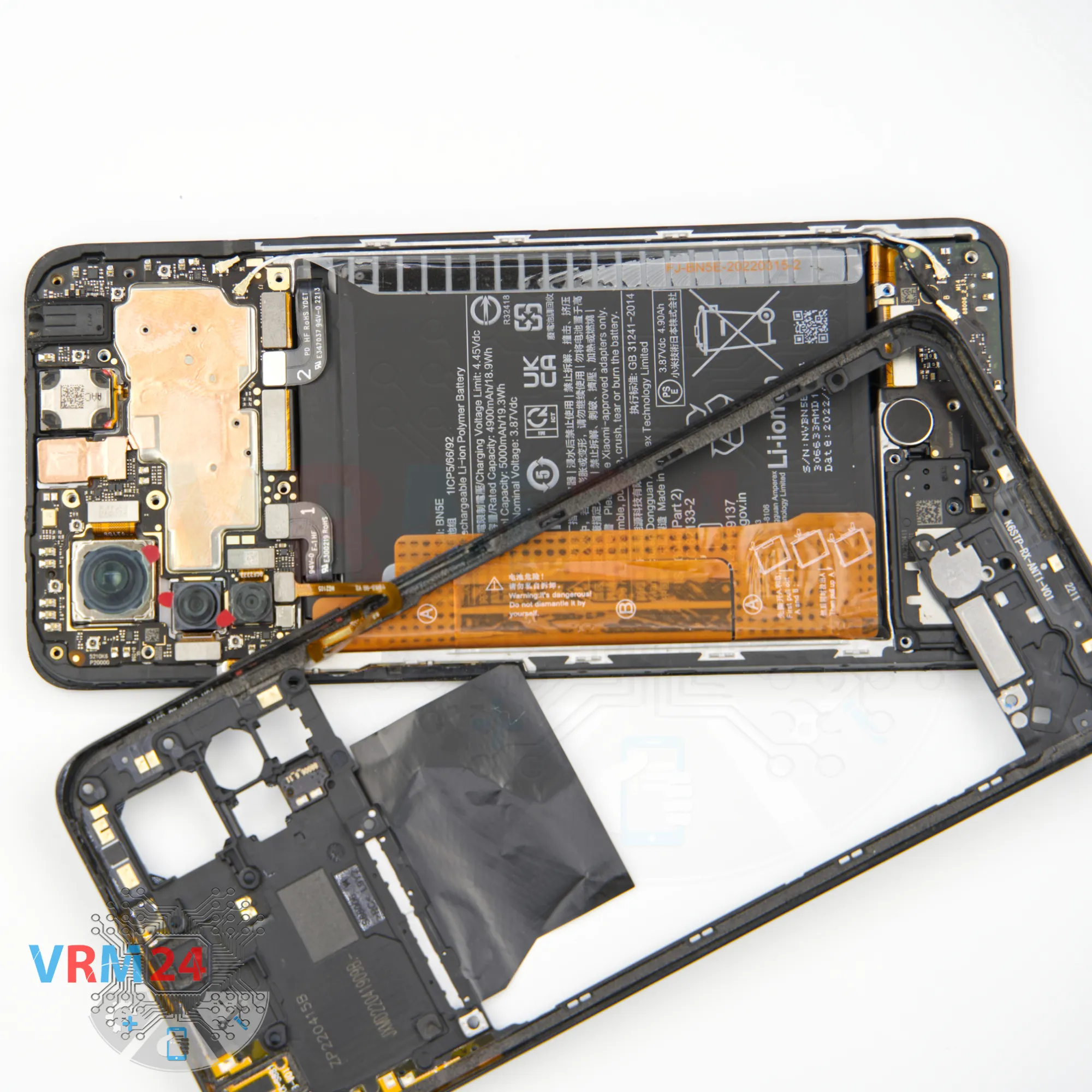

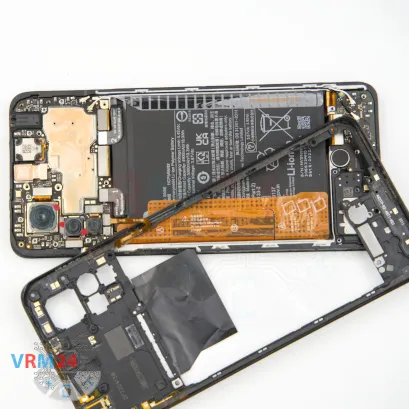

Now we can carefully try to detach the mid-frame. Gently rock and lift it.


How to disassemble Xiaomi POCO X4 Pro, Step 8/1 How to disassemble Xiaomi POCO X4 Pro, Step 8/2

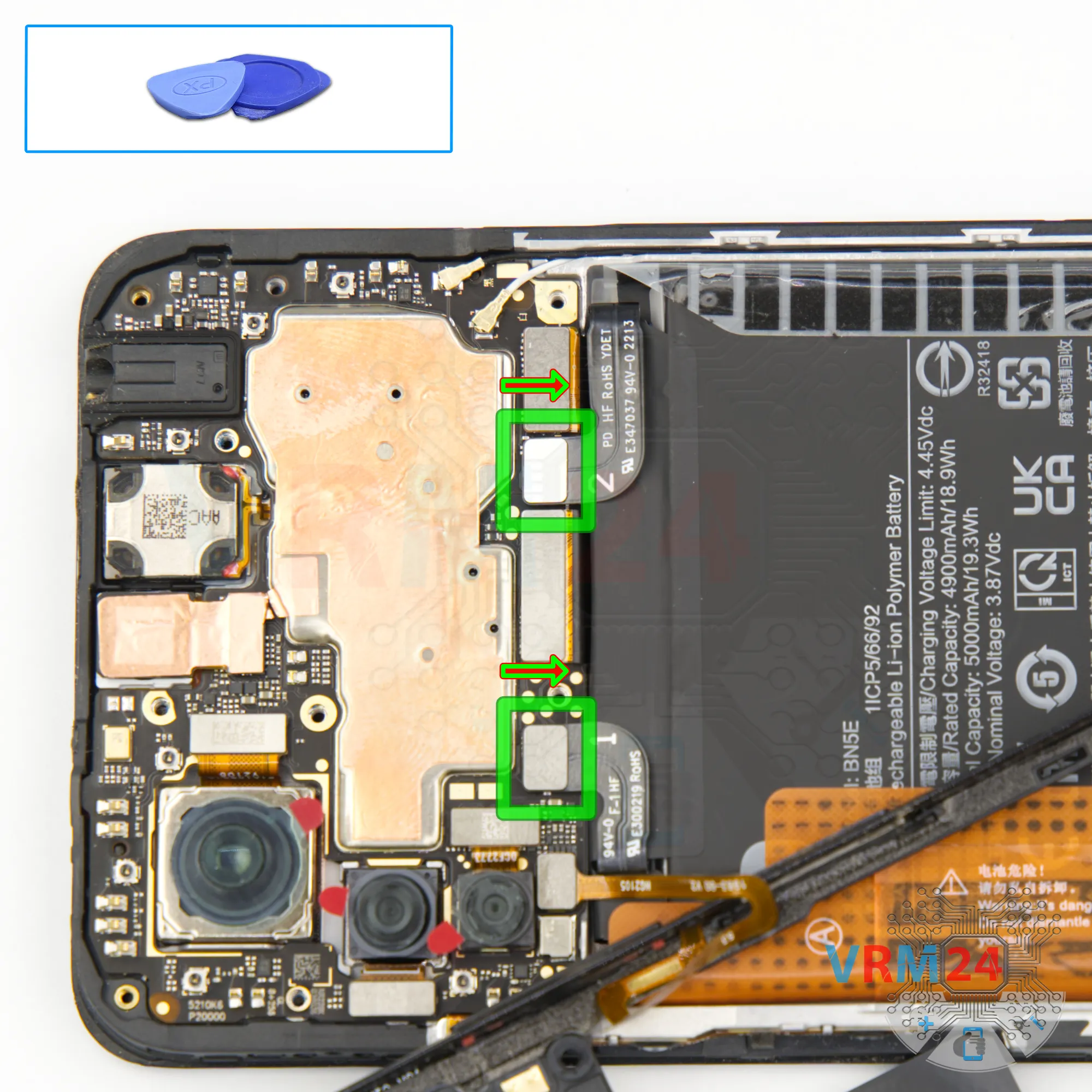

Step 8. Disconnect the battery connector

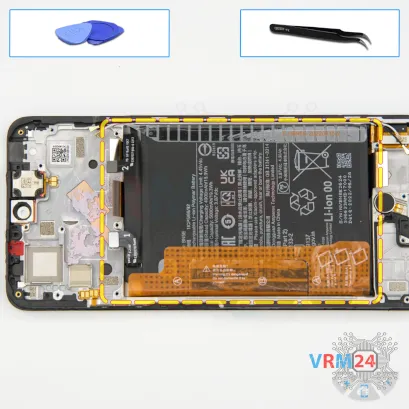

Disconnect the battery connectors as soon as you can. Use a non-metallic or plastic tool to avoid any damage.

â„šī¸ī¸ The Xiaomi POCO X4 Pro 5G 2201116PG model has a battery BN5E with a capacity of 5000 mAh (also known as a rechargeable battery).


How to disassemble Xiaomi POCO X4 Pro, Step 9/1 How to disassemble Xiaomi POCO X4 Pro, Step 9/2 How to disassemble Xiaomi POCO X4 Pro, Step 9/3 How to disassemble Xiaomi POCO X4 Pro, Step 9/4

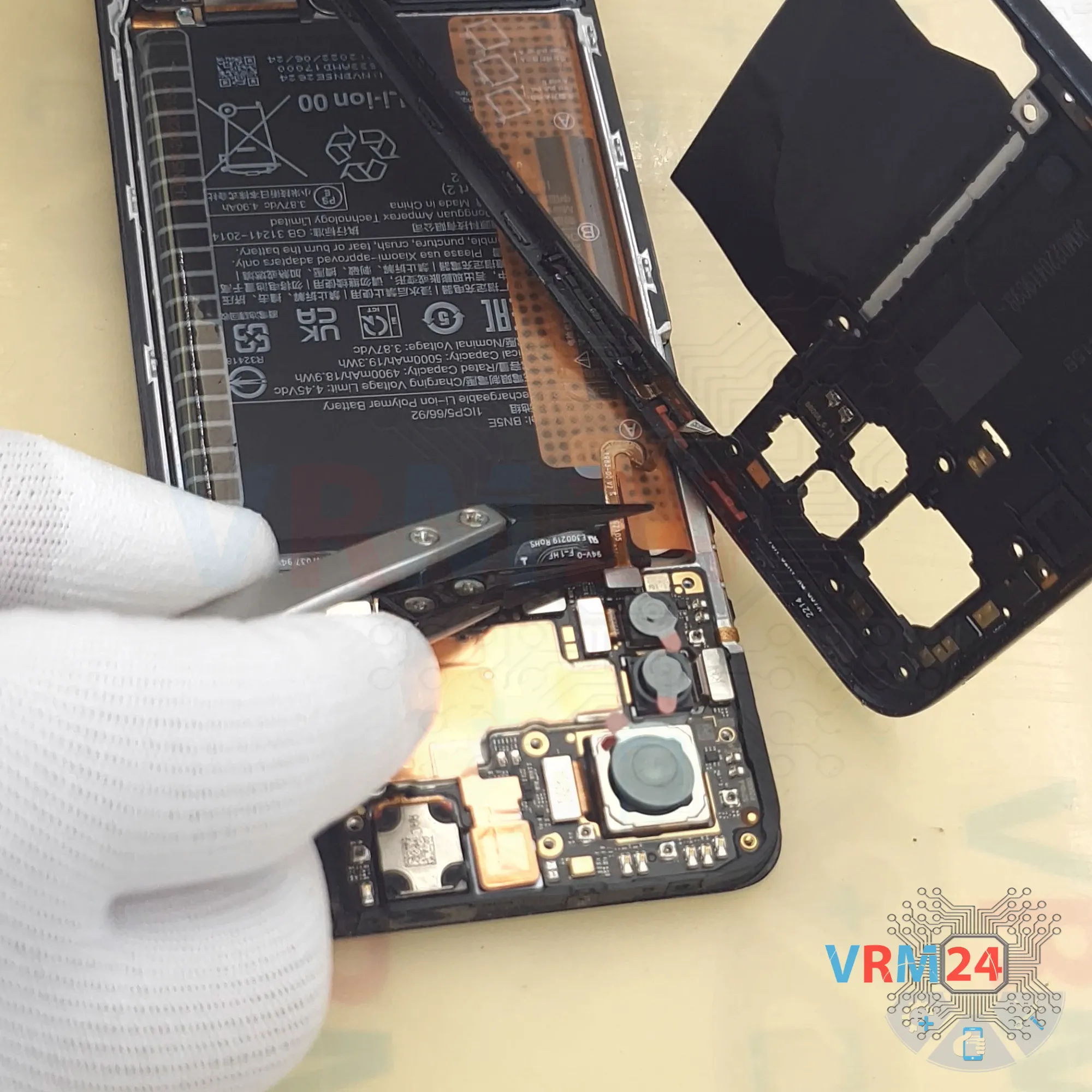

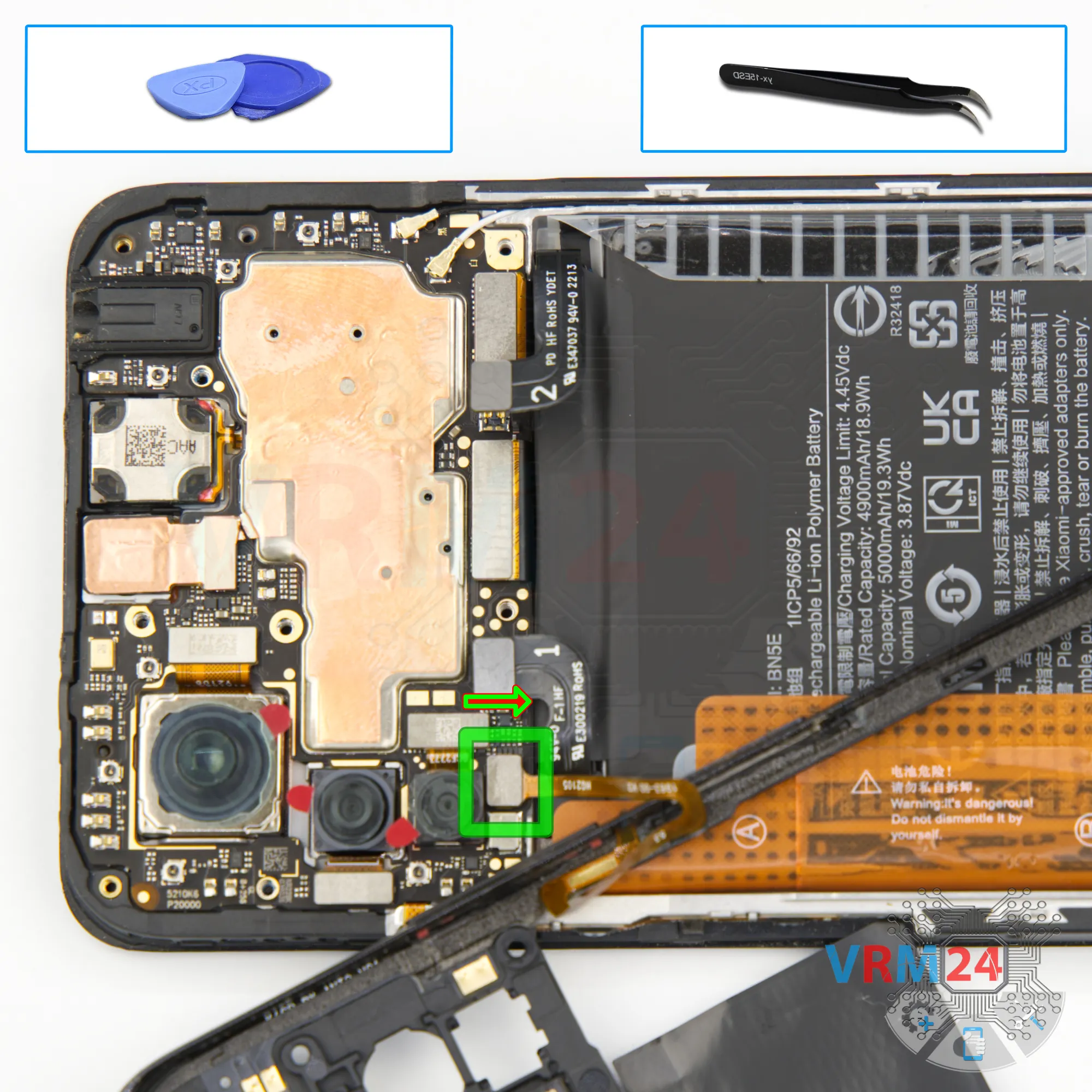

Step 9. Disconnect the connector

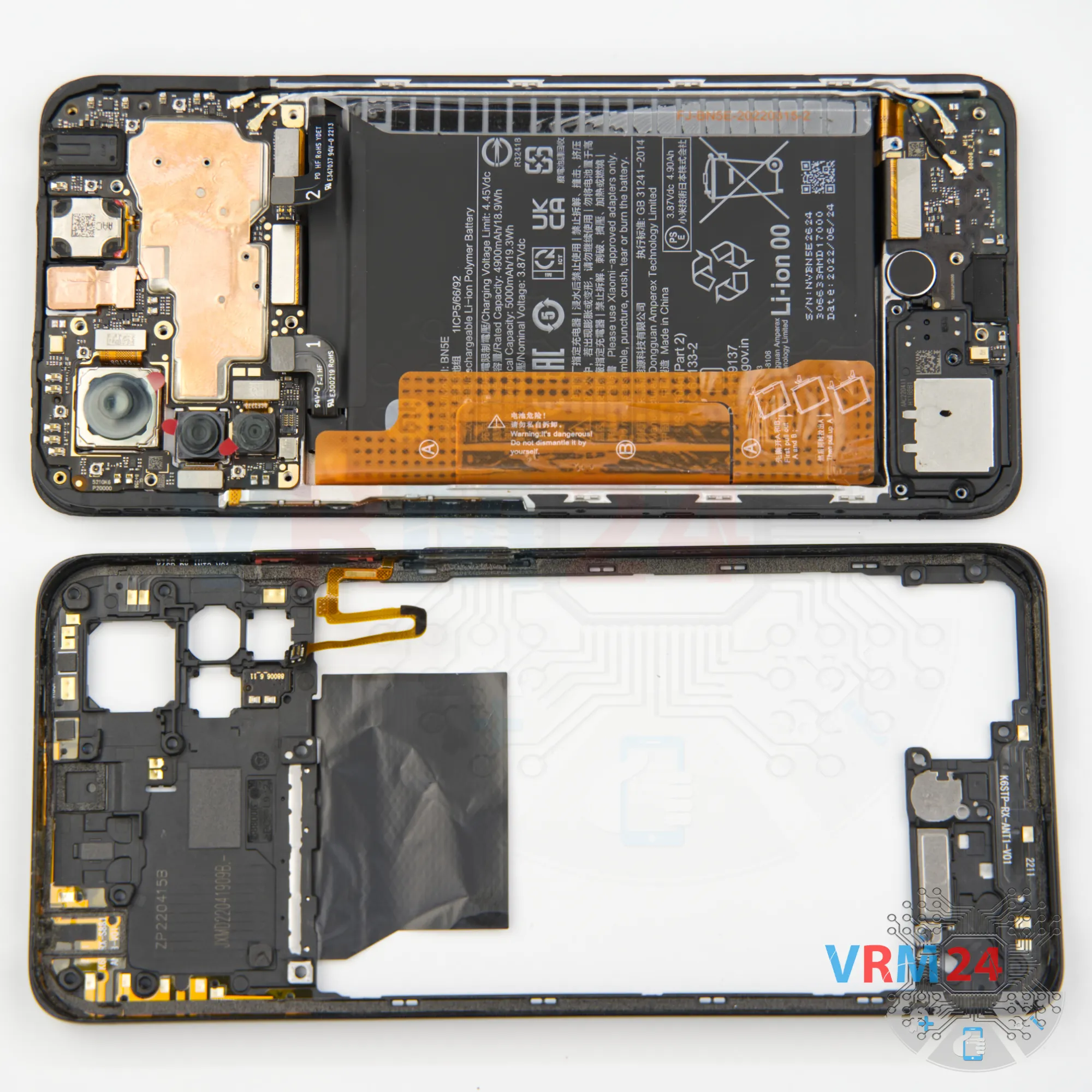

Please note that the cable is also taped to the battery.

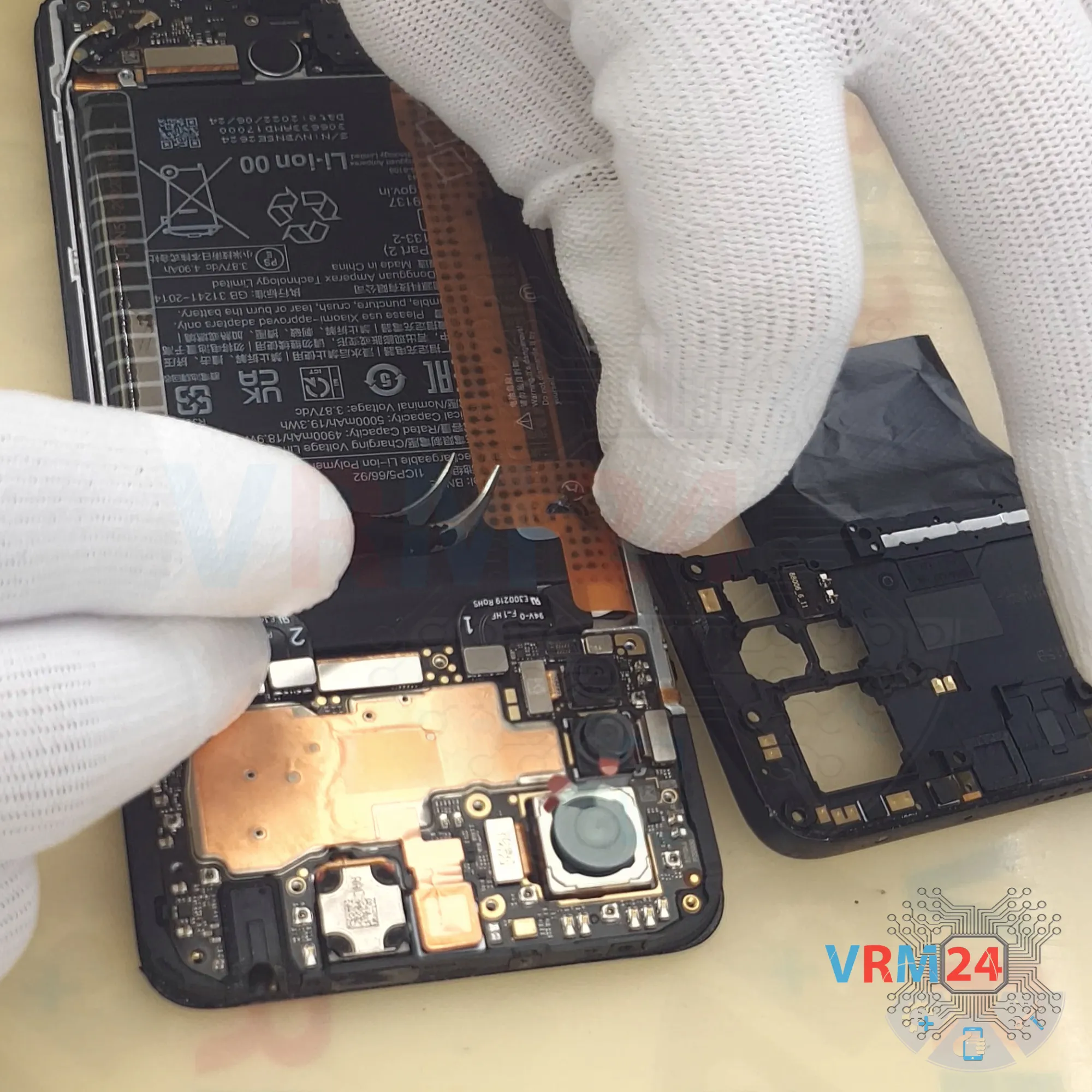

We carefully disconnect the connector and peel off the fingerprint scanner cable.


How to disassemble Xiaomi POCO X4 Pro, Step 10/1 How to disassemble Xiaomi POCO X4 Pro, Step 10/2 How to disassemble Xiaomi POCO X4 Pro, Step 10/3

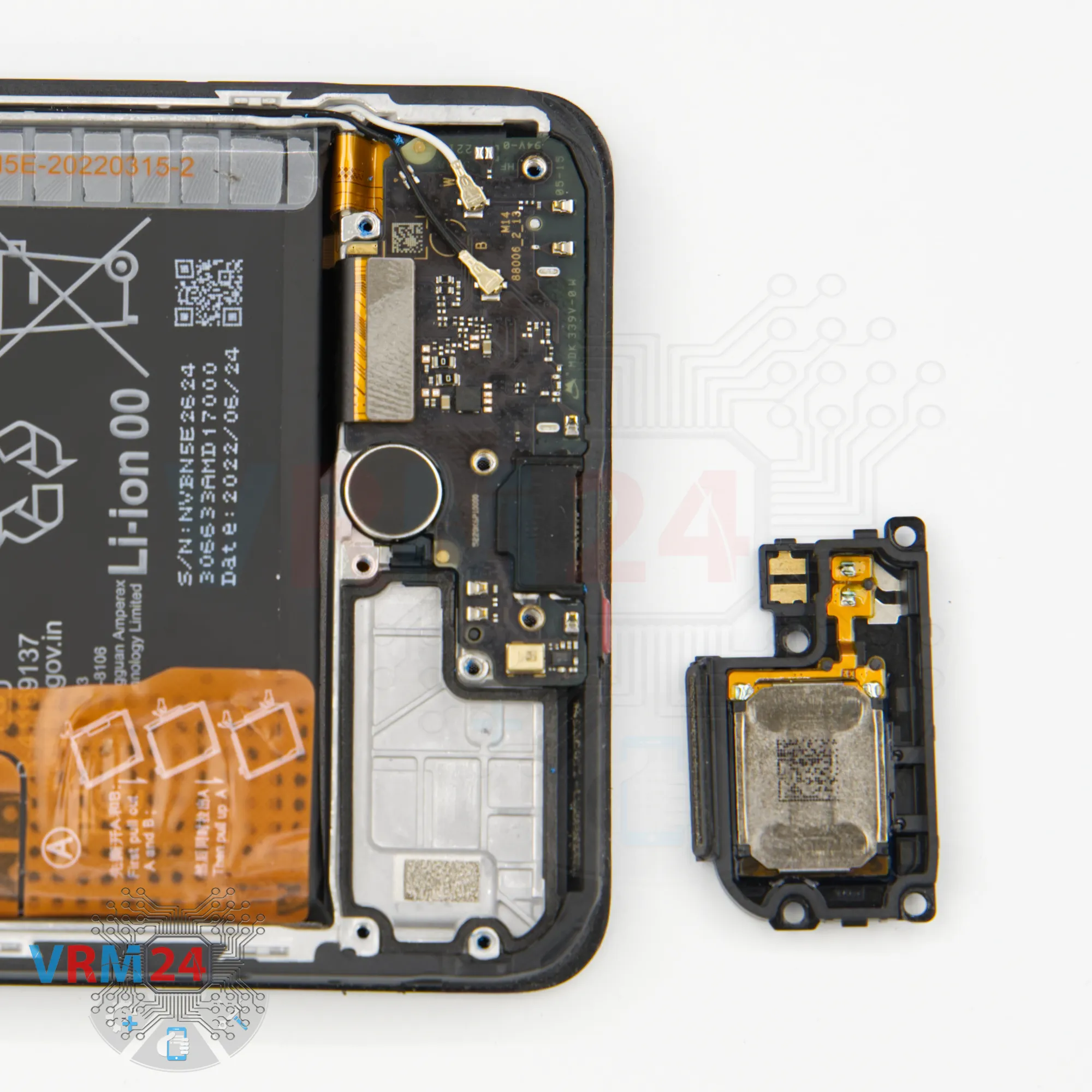

Step 10. Remove the loudspeaker

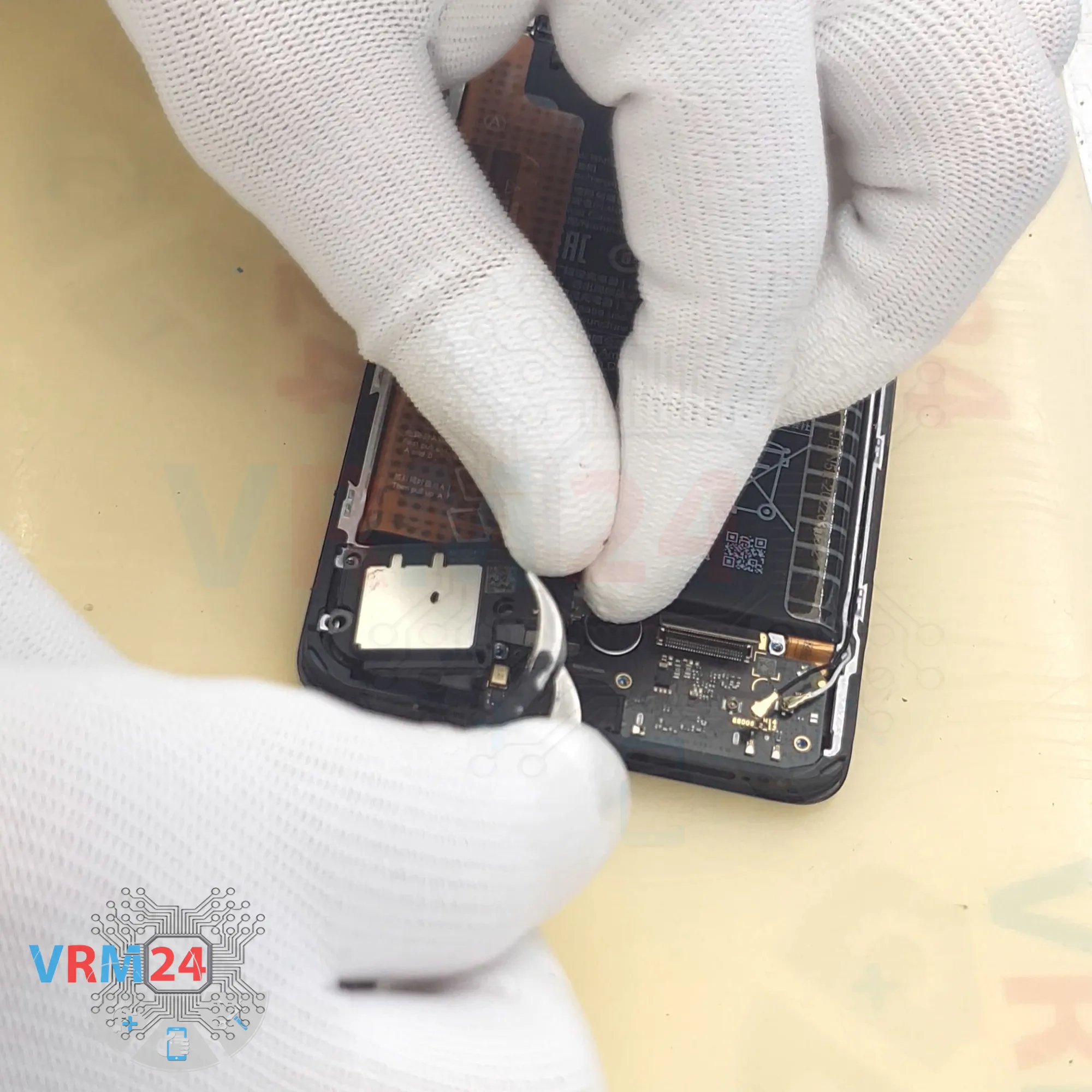

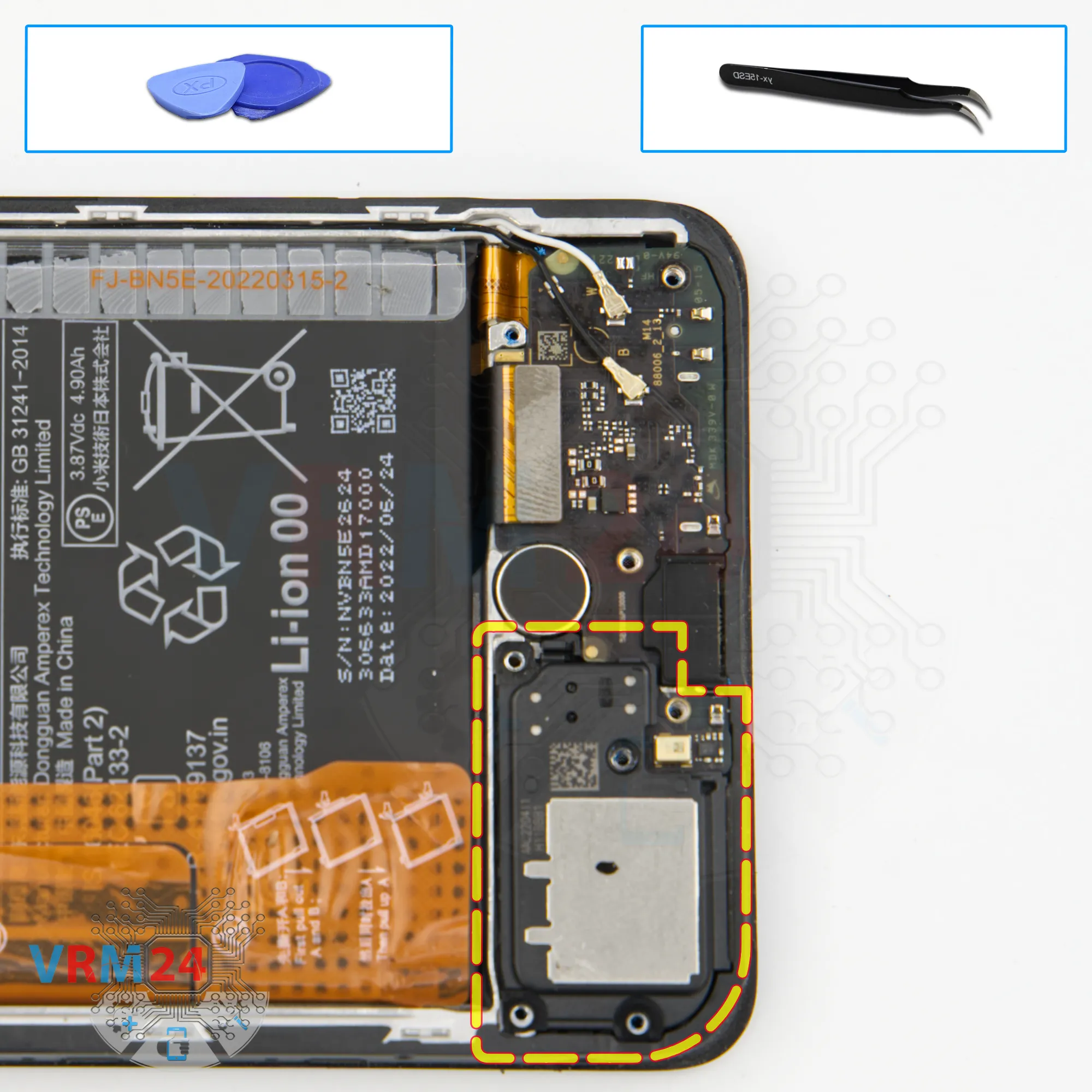

Now we need to find the right spot to detach the loudspeaker cover.

Carefully lift it and remove the cover with the loudspeaker.


How to disassemble Xiaomi POCO X4 Pro, Step 11/1 How to disassemble Xiaomi POCO X4 Pro, Step 11/2

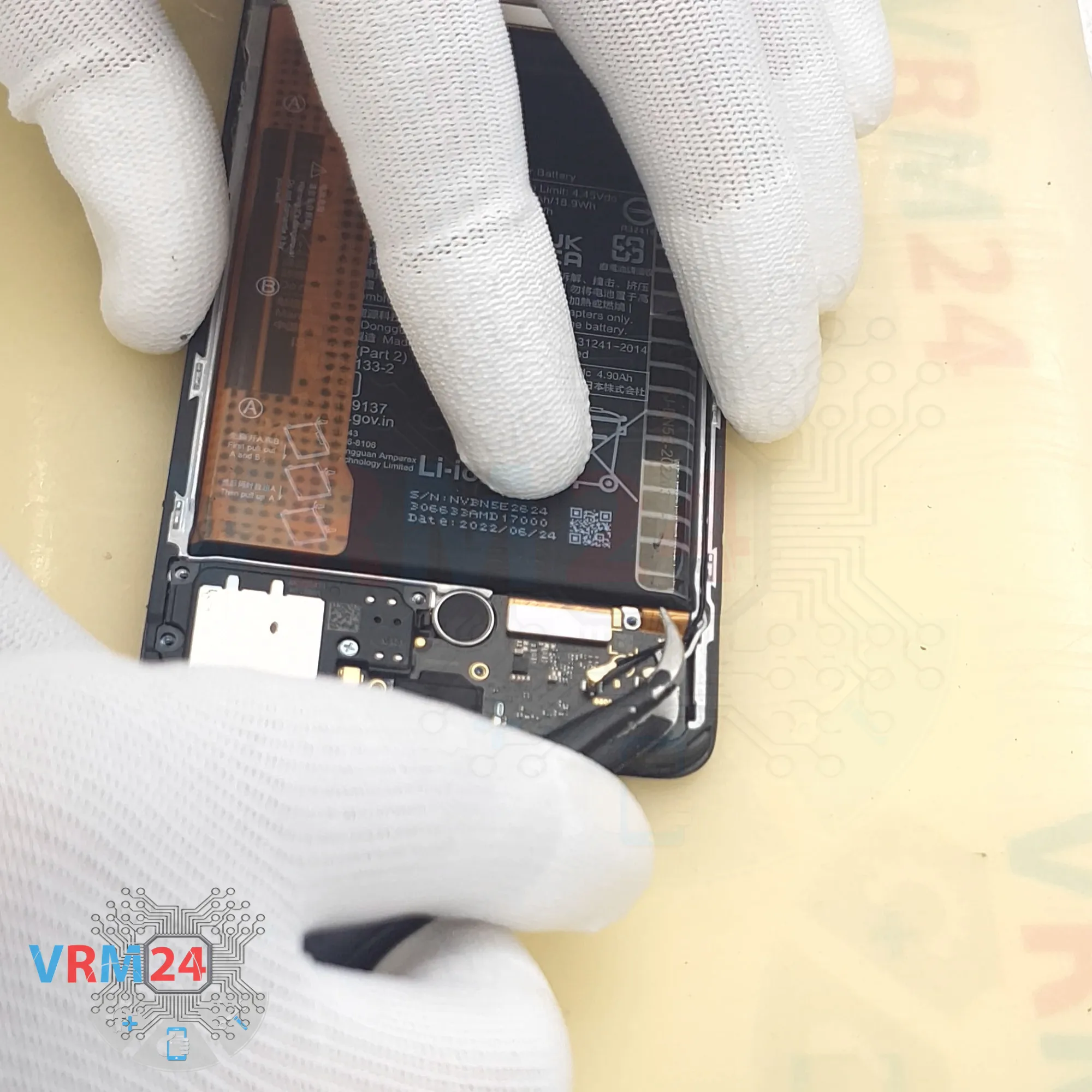

Step 11. Disconnect the connectors

Next, we move to the sub-board.

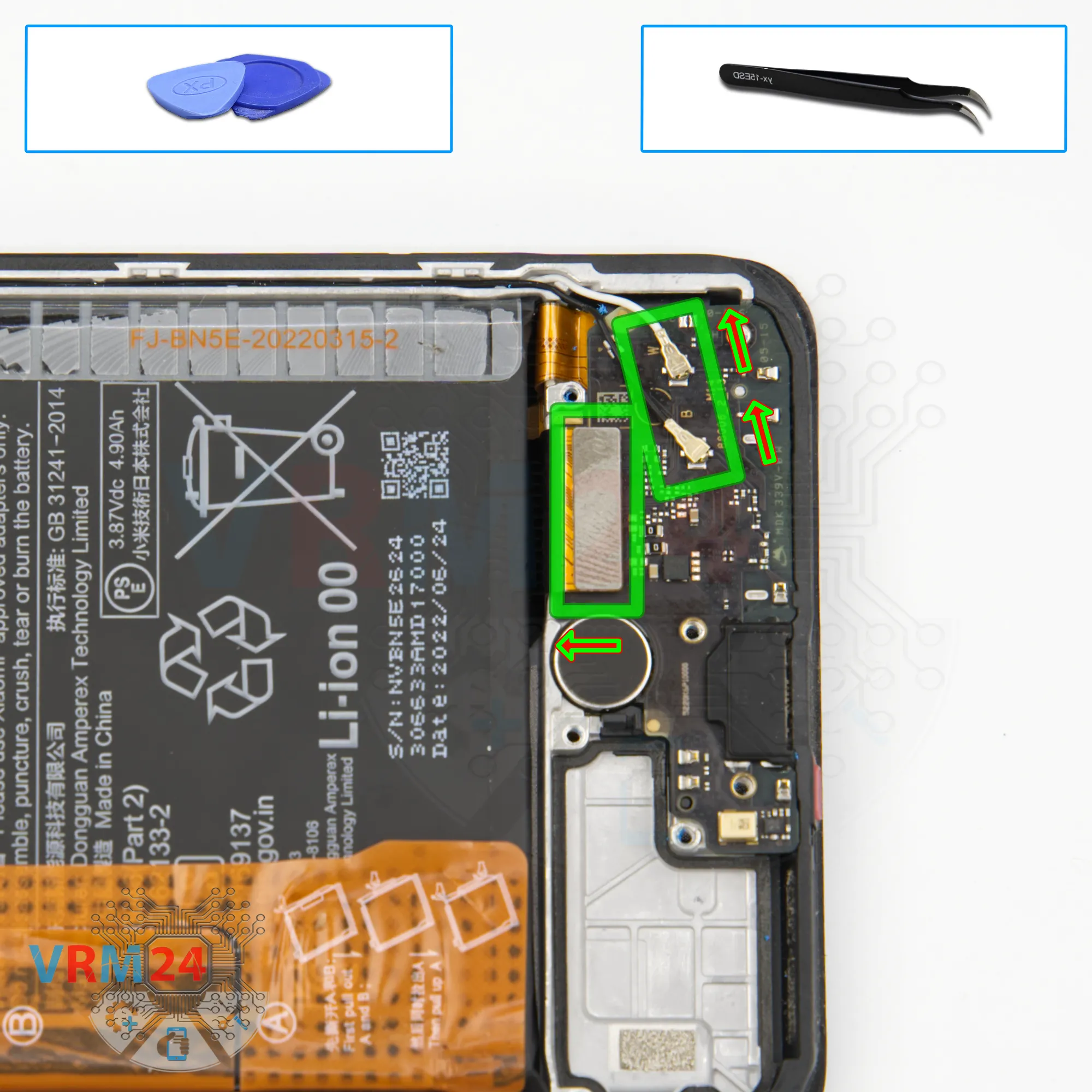

On the sub-board, we need to disconnect the connectors: the coaxial cable connectors, the cables themselves mounted on the sub-board, and the inter-board flex cable connector.


How to disassemble Xiaomi POCO X4 Pro, Step 12/1 How to disassemble Xiaomi POCO X4 Pro, Step 12/2 How to disassemble Xiaomi POCO X4 Pro, Step 12/3

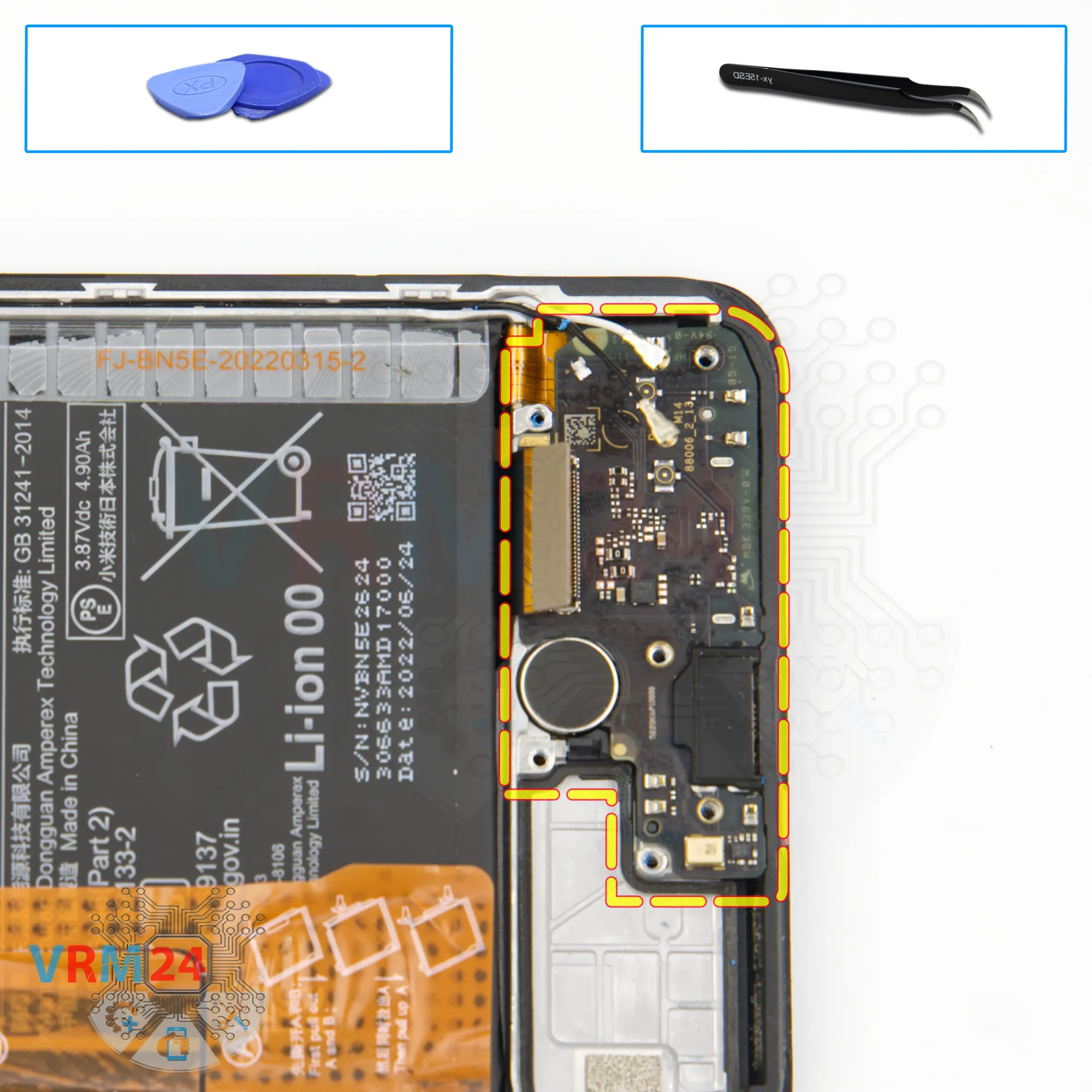

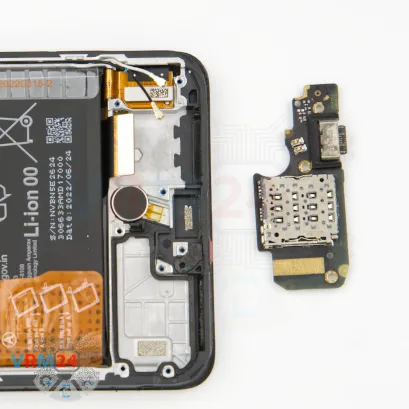

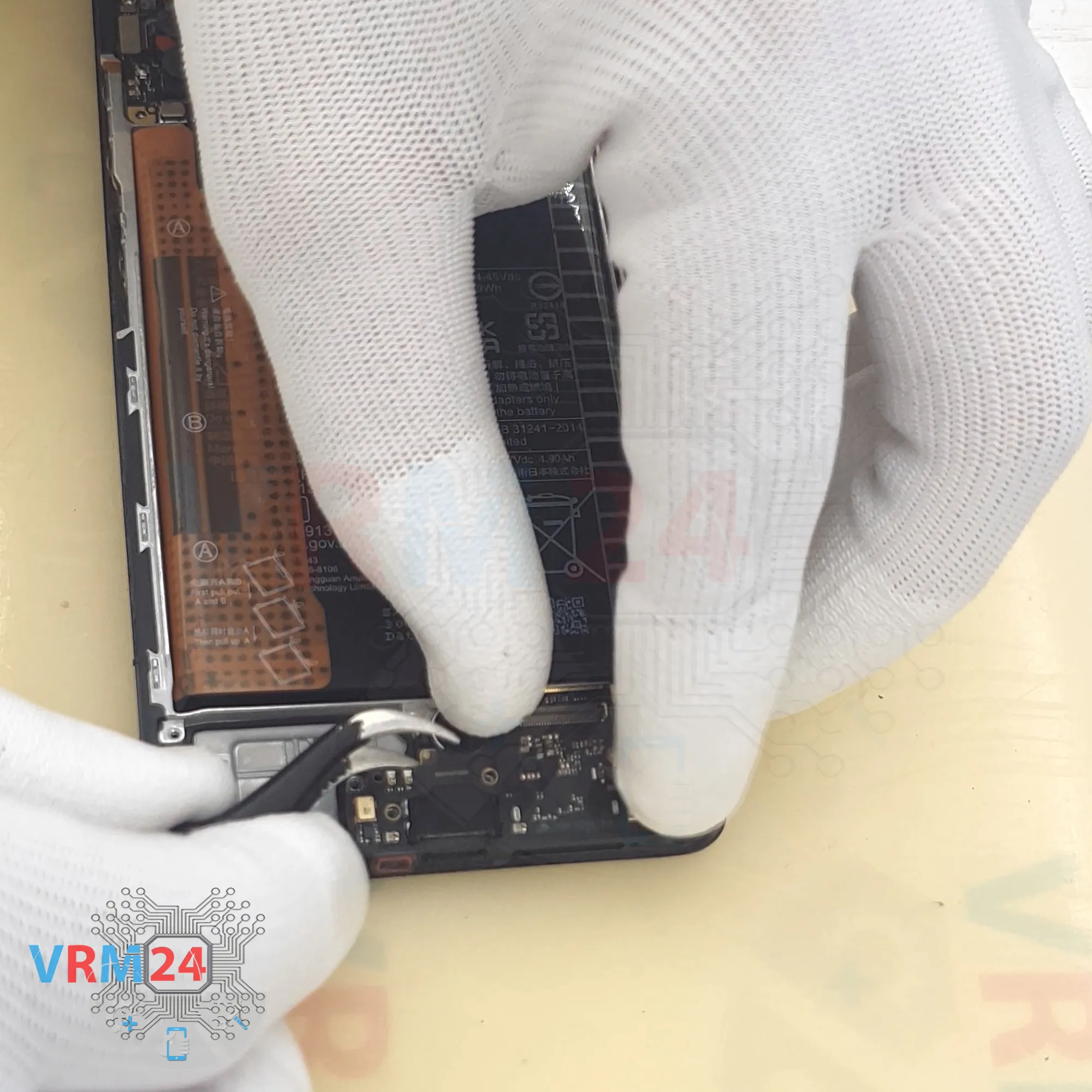

Step 12. Remove the sub-board

Now we can remove the sub-board. Lift it gently by the edge and take it out; it sits slightly recessed.

The sub-board contains the charging port, microphone, and the SIM card connector on the back side.


How to disassemble Xiaomi POCO X4 Pro, Step 13/1 How to disassemble Xiaomi POCO X4 Pro, Step 13/2 How to disassemble Xiaomi POCO X4 Pro, Step 13/3

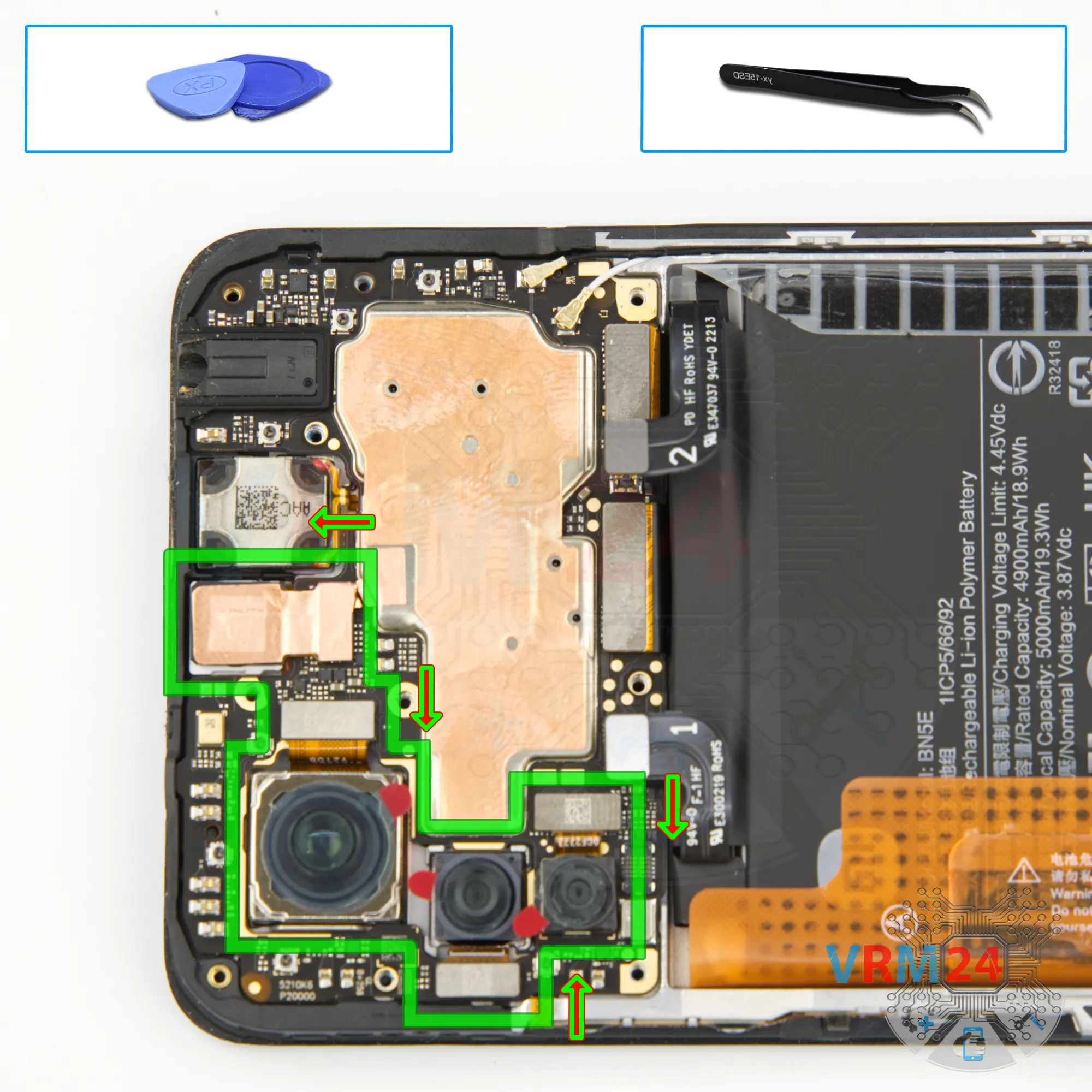

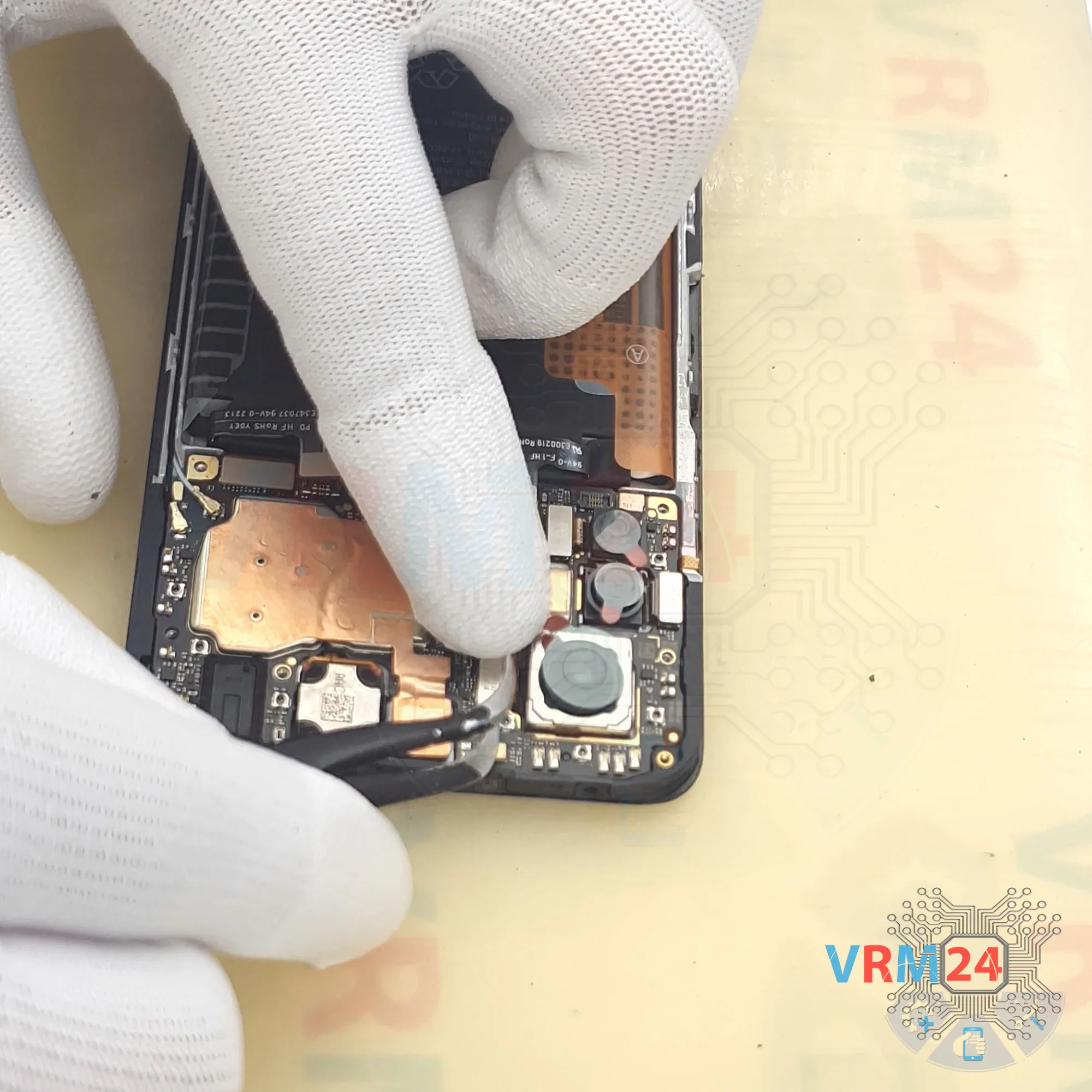

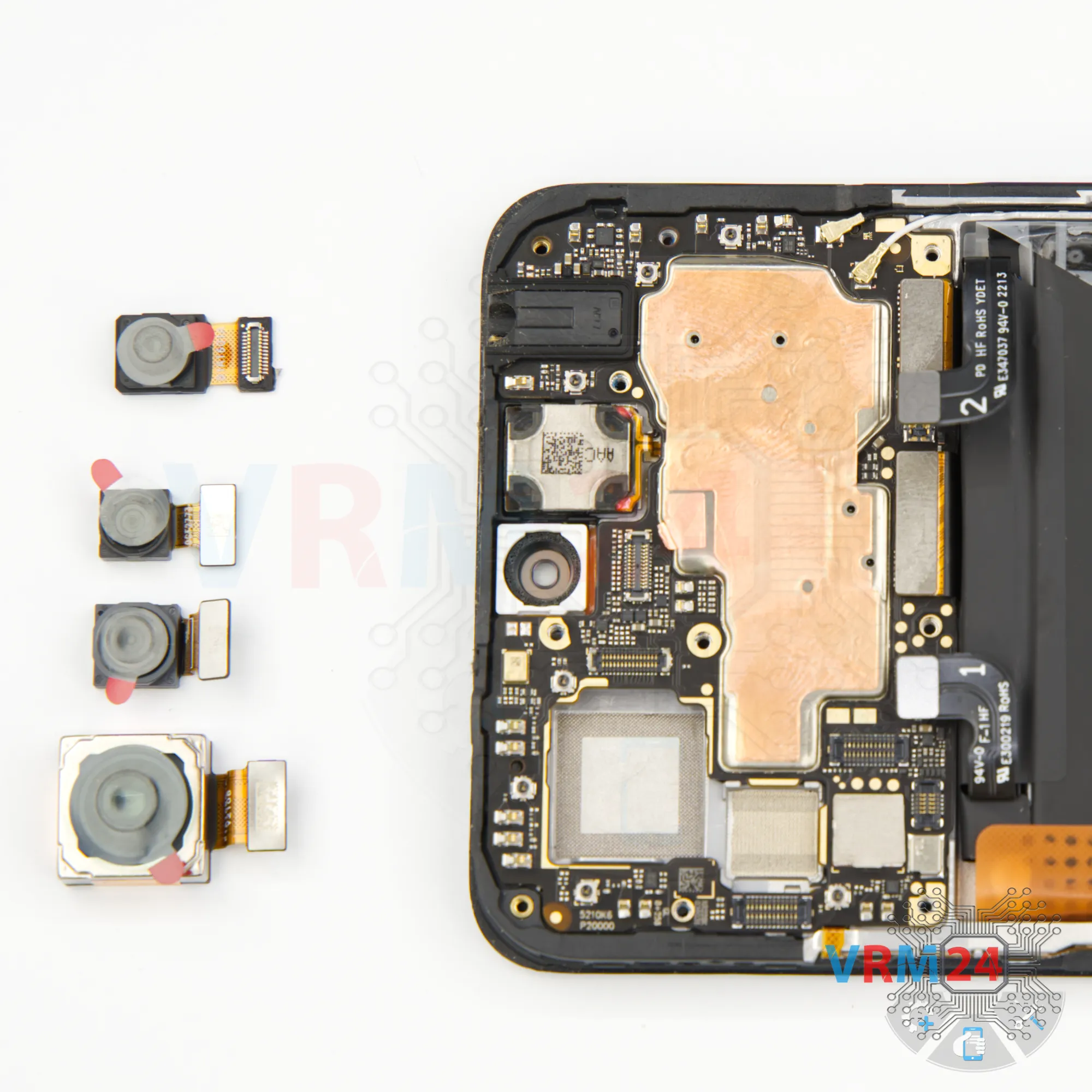

Step 13. Remove the cameras

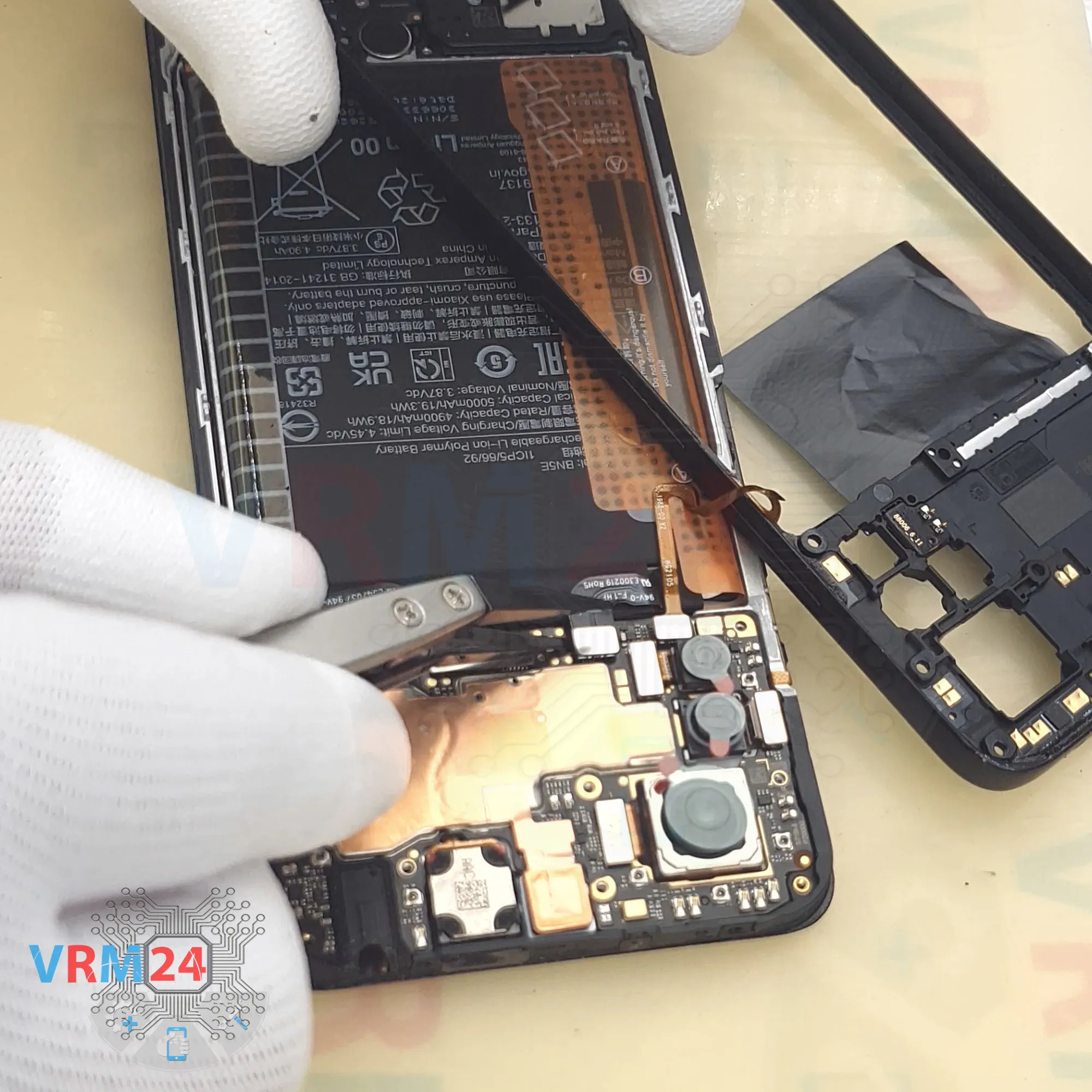

We can disconnect the cameras. The cameras may be slightly glued down, so be careful when disconnecting to avoid damaging the flex cables.

Disconnect the cameras and set them aside.

If a camera doesn’t come off easily, carefully pry it from the base.

Next, disconnect the connectors: two coaxial cables on the motherboard, the inter-board flex cable connector, and the display flex connector.

Now we can disconnect the front camera. The front camera, as usual, is additionally glued to the shield on the motherboard.

Carefully disconnect it and try to peel off the copper heat-dissipating foil so we can reuse it for reassembly.

After that, it’s also a good idea to cover the camera lens to prevent dust or debris from getting on it.

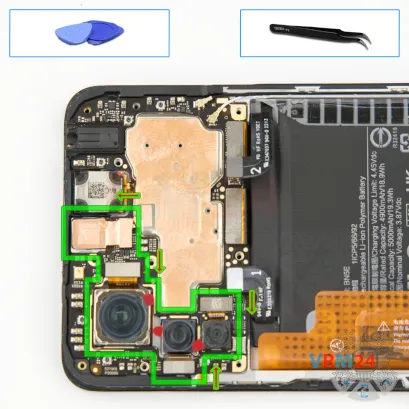

How to disassemble Xiaomi POCO X4 Pro, Step 14/1 How to disassemble Xiaomi POCO X4 Pro, Step 14/2

Step 14. Disconnect the connectors

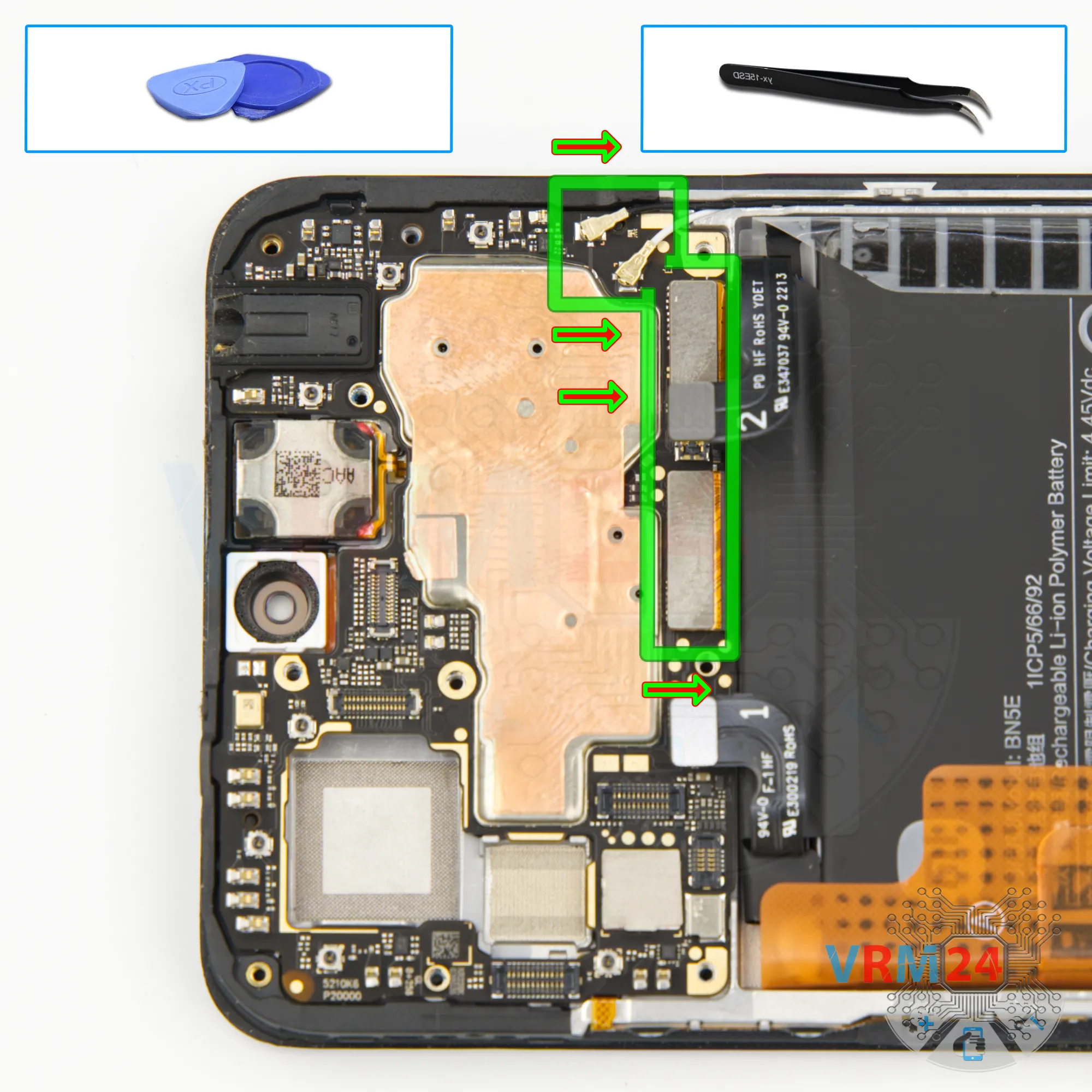

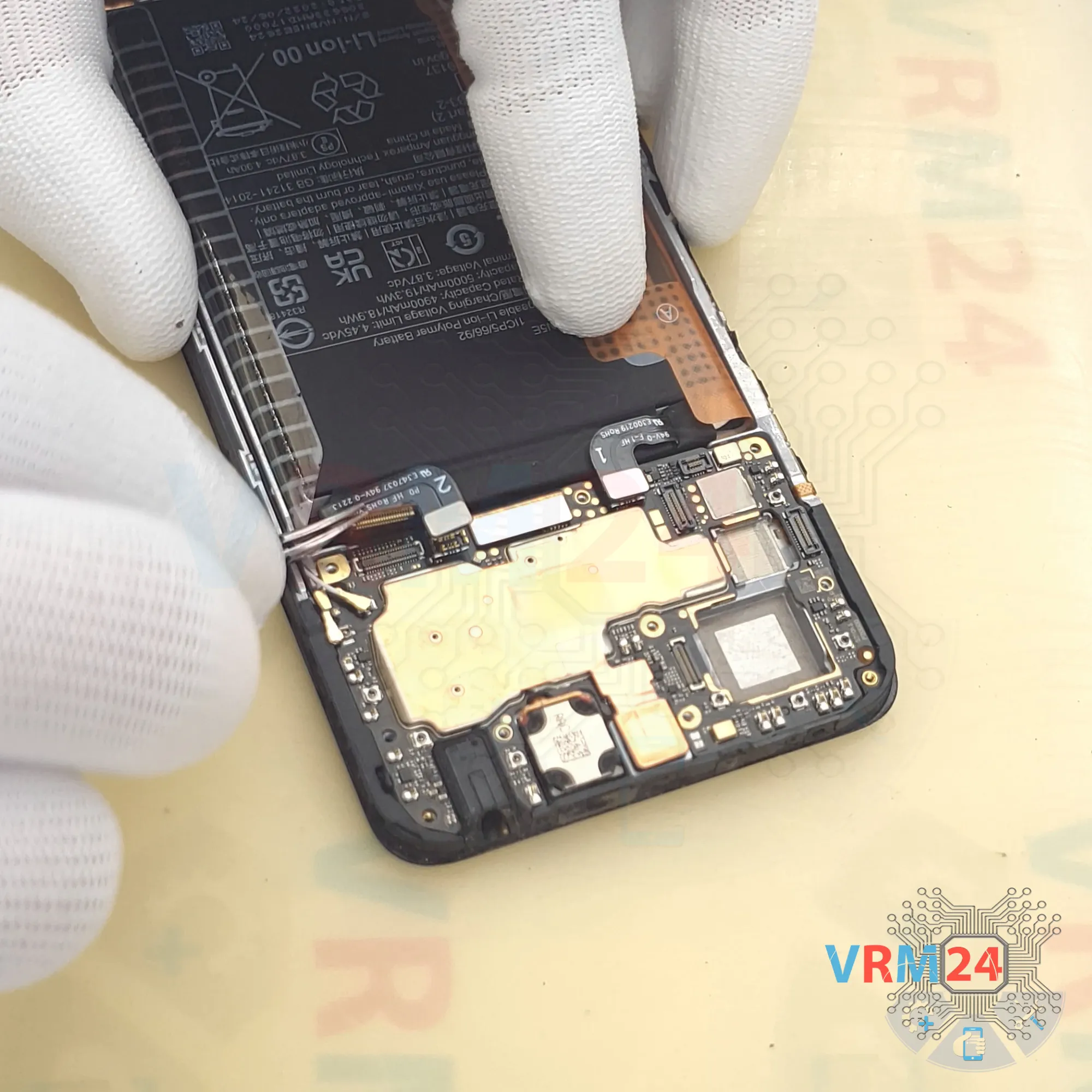

Next, disconnect the connectors: two coaxial cables on the motherboard, the inter-board flex cable connector, and the display flex connector.


How to disassemble Xiaomi POCO X4 Pro, Step 15/1 How to disassemble Xiaomi POCO X4 Pro, Step 15/2 How to disassemble Xiaomi POCO X4 Pro, Step 15/3

Step 15. Remove the motherboard

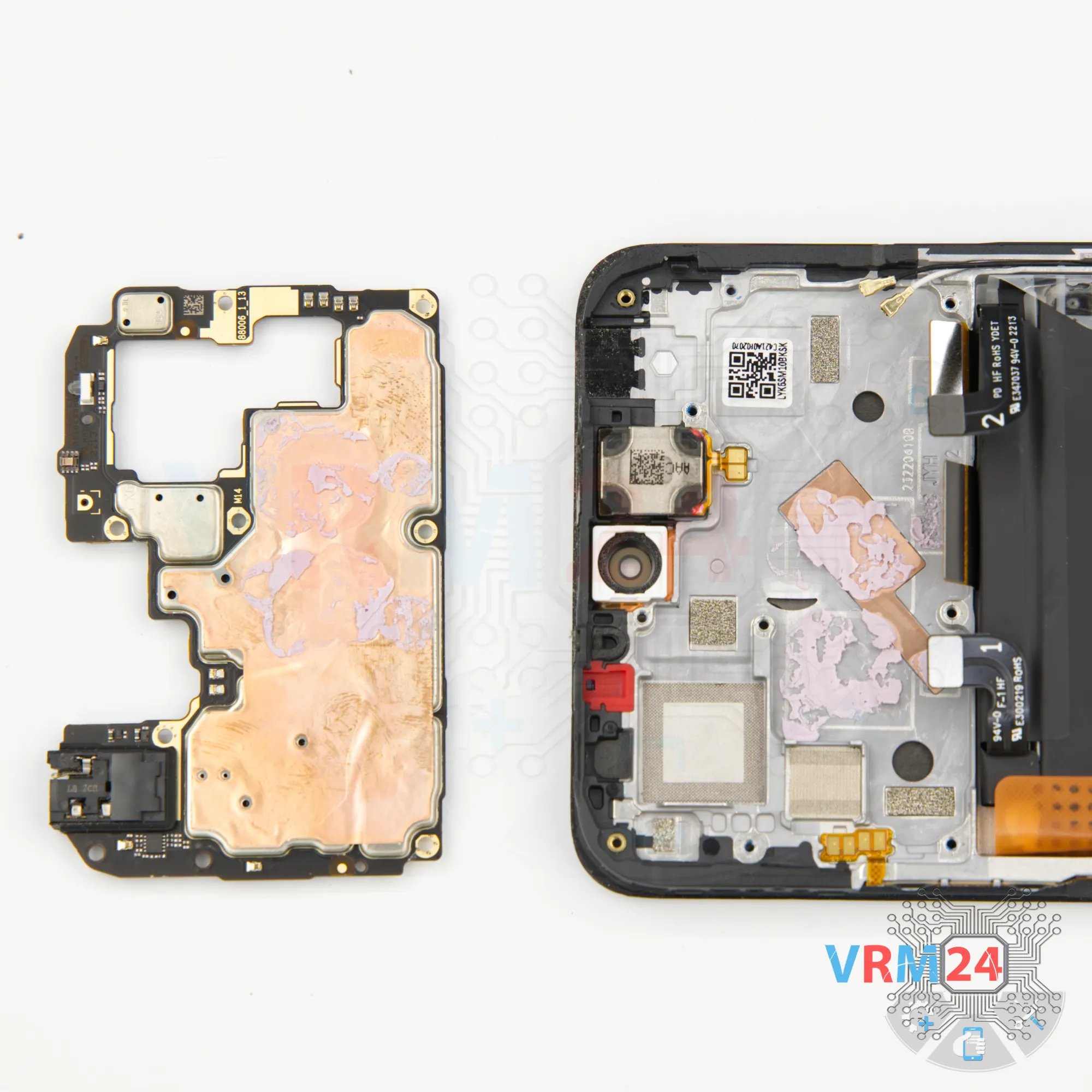

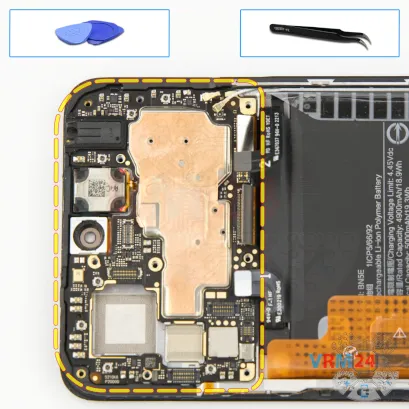

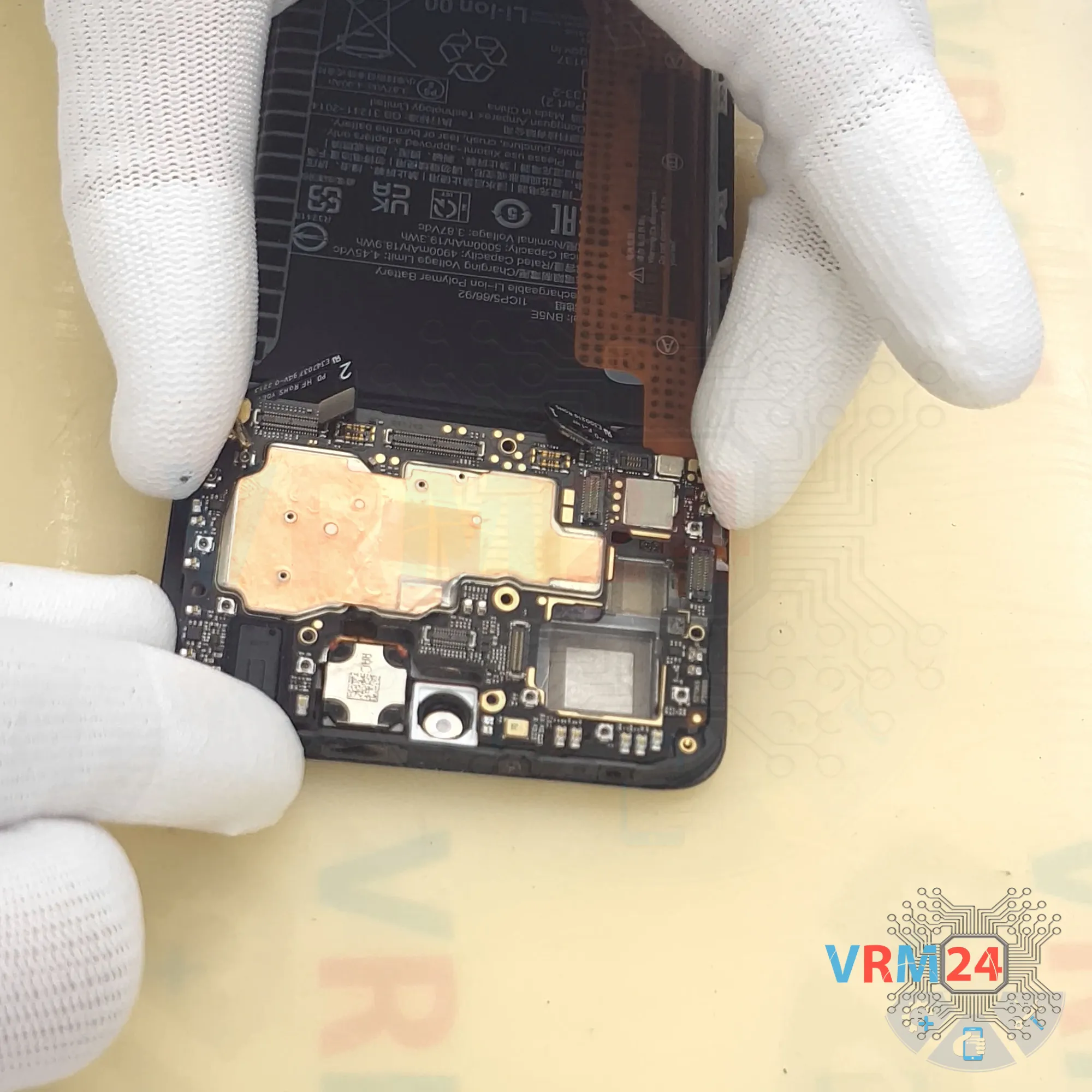

Next, we remove the motherboard itself. The motherboard is held by clips. Find the right spot where you can carefully lift and detach it.

Look for the side where it’s easier to pry it up.

Do not use force to avoid damaging anything.

As we can see, it’s easier to lift the motherboard from the top side.

By the way, the motherboard may also be held by thermal paste on the underside.


How to disassemble Xiaomi POCO X4 Pro, Step 16/1 How to disassemble Xiaomi POCO X4 Pro, Step 16/2 How to disassemble Xiaomi POCO X4 Pro, Step 16/3 How to disassemble Xiaomi POCO X4 Pro, Step 16/4 How to disassemble Xiaomi POCO X4 Pro, Step 16/5

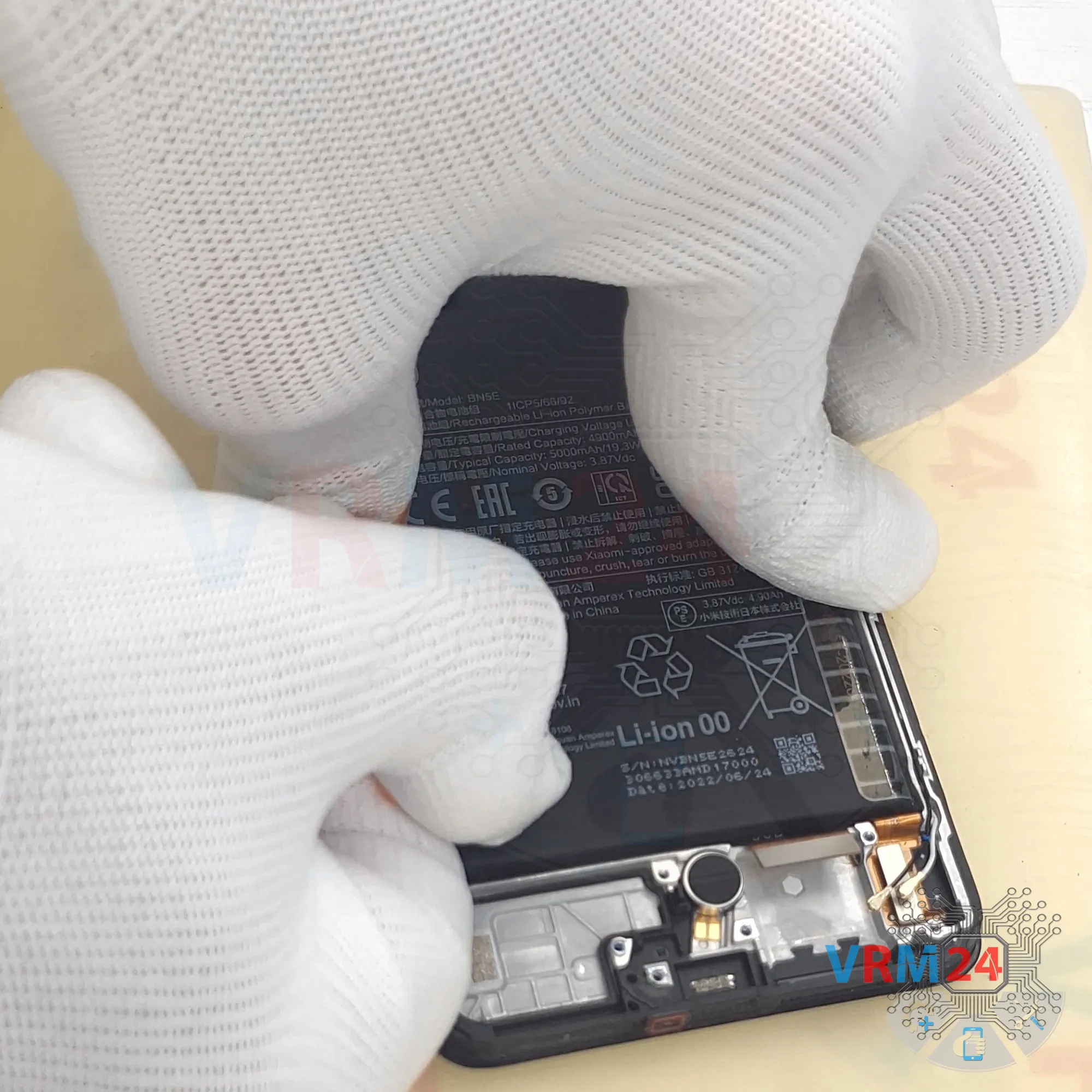

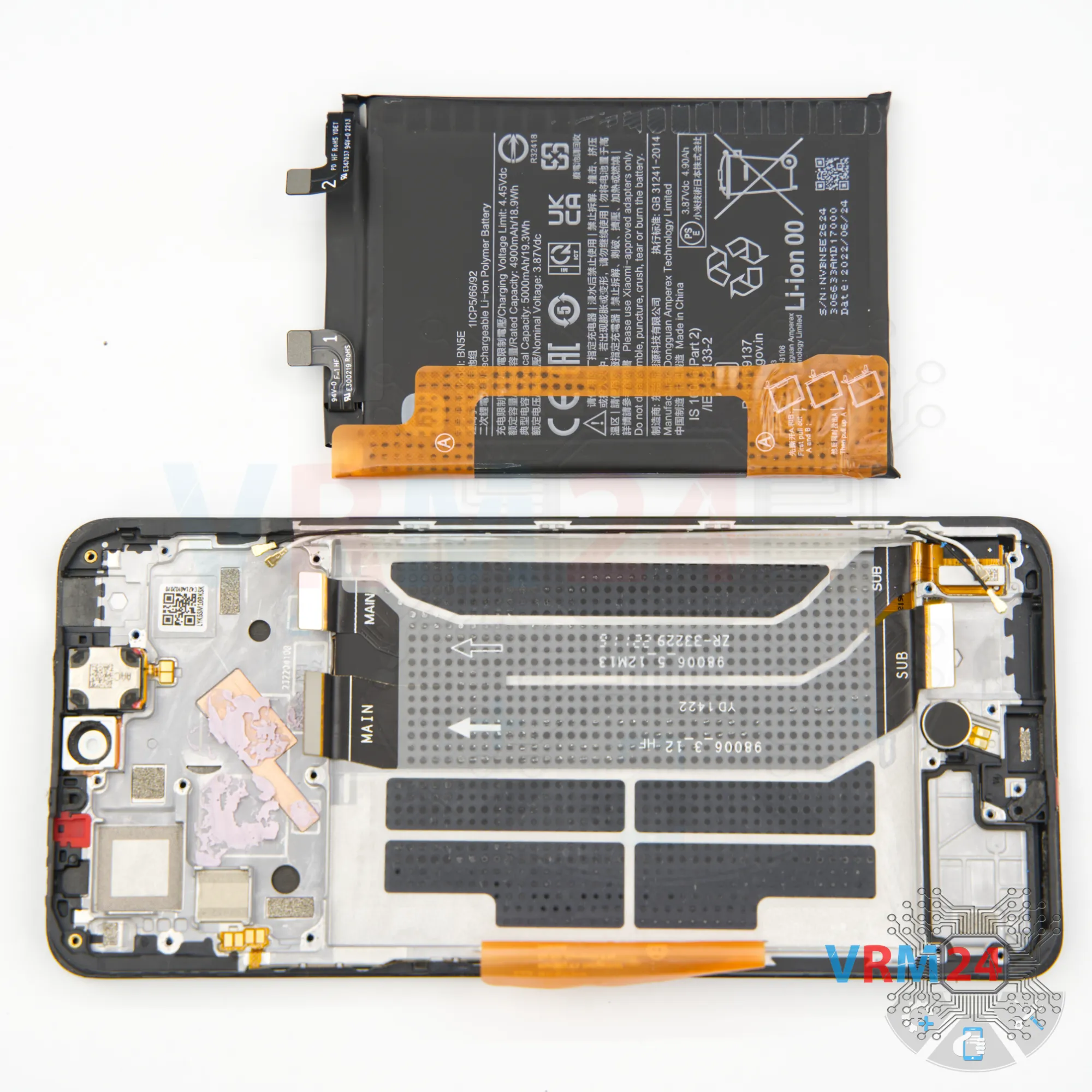

Step 16. Remove the battery

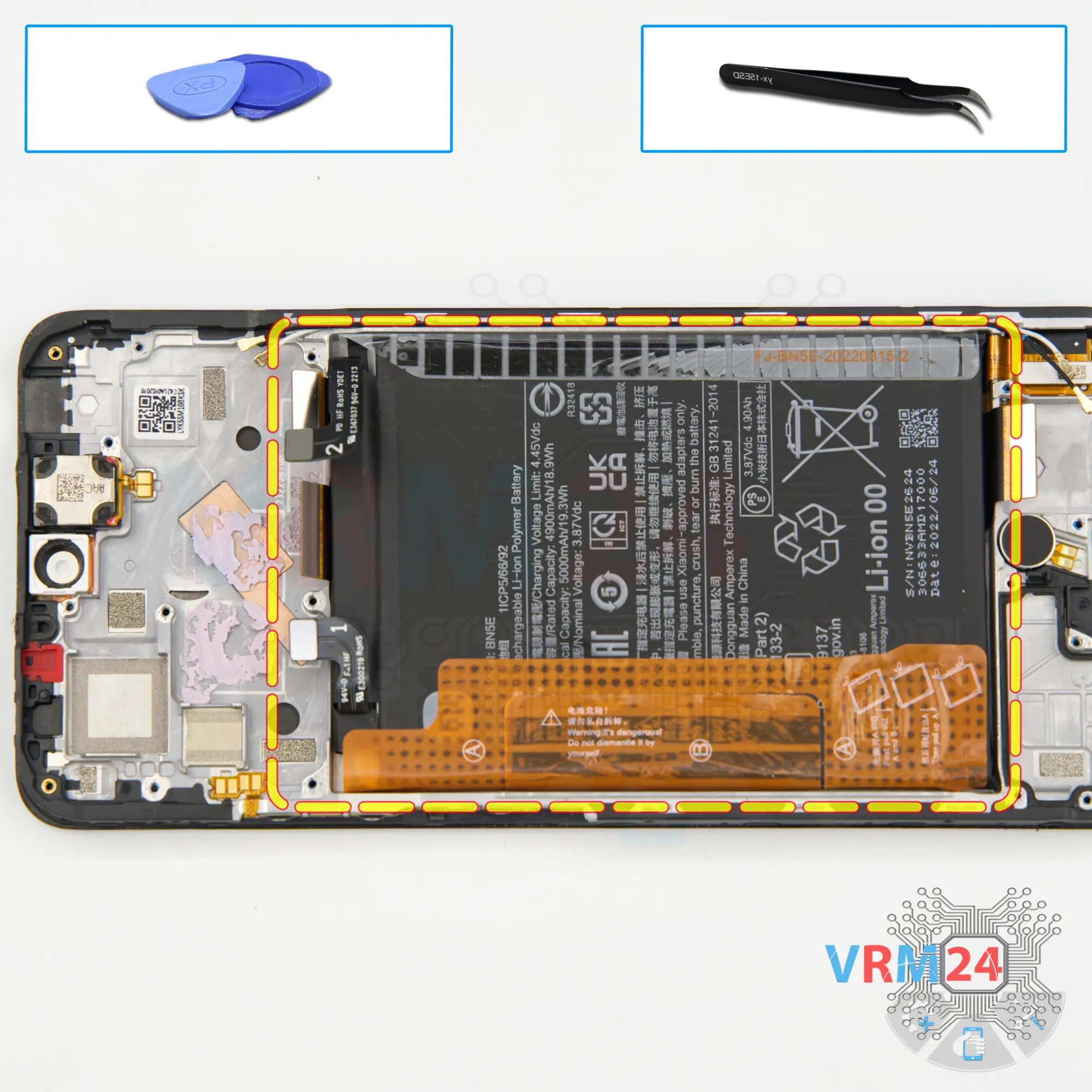

Finally, we move on to the battery removal.

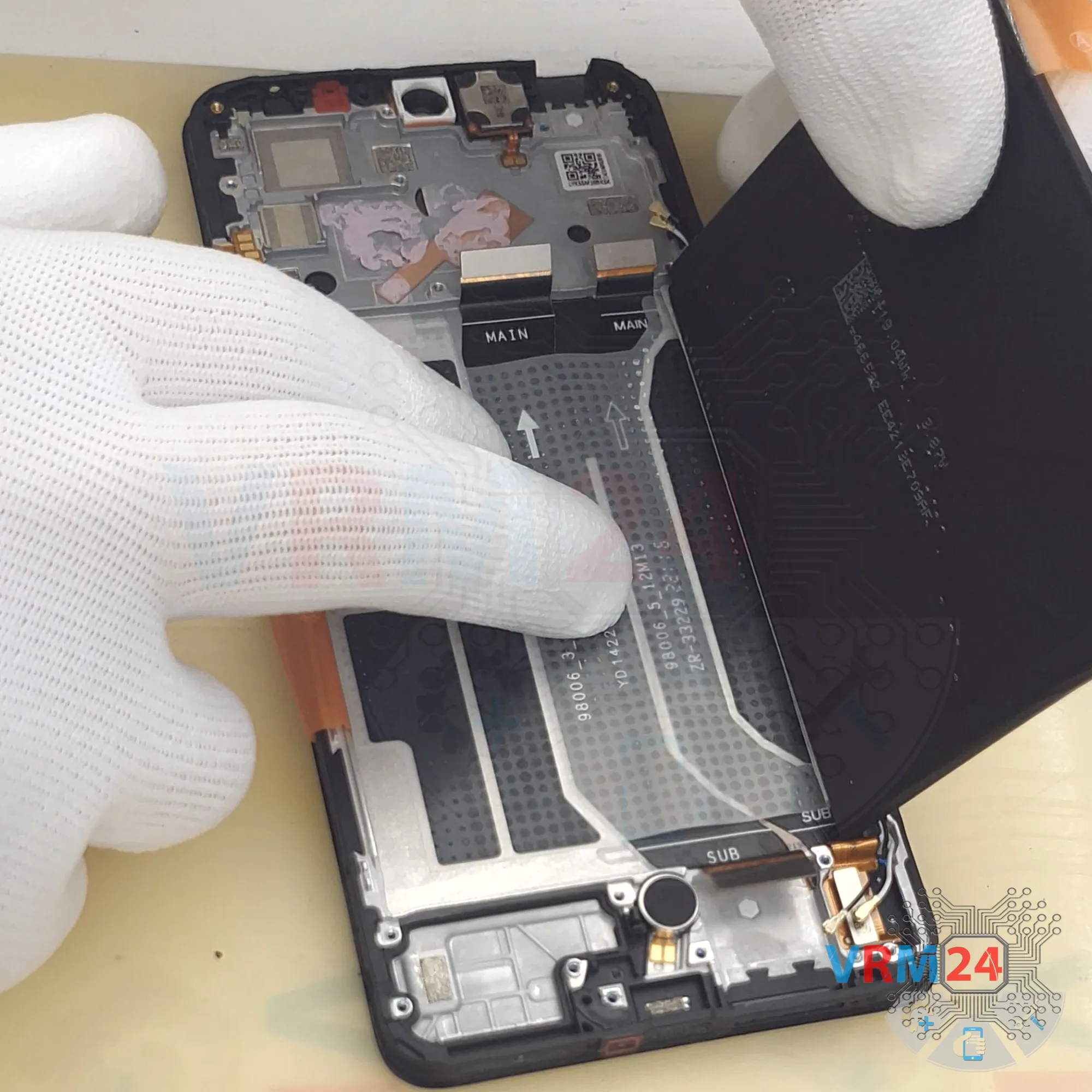

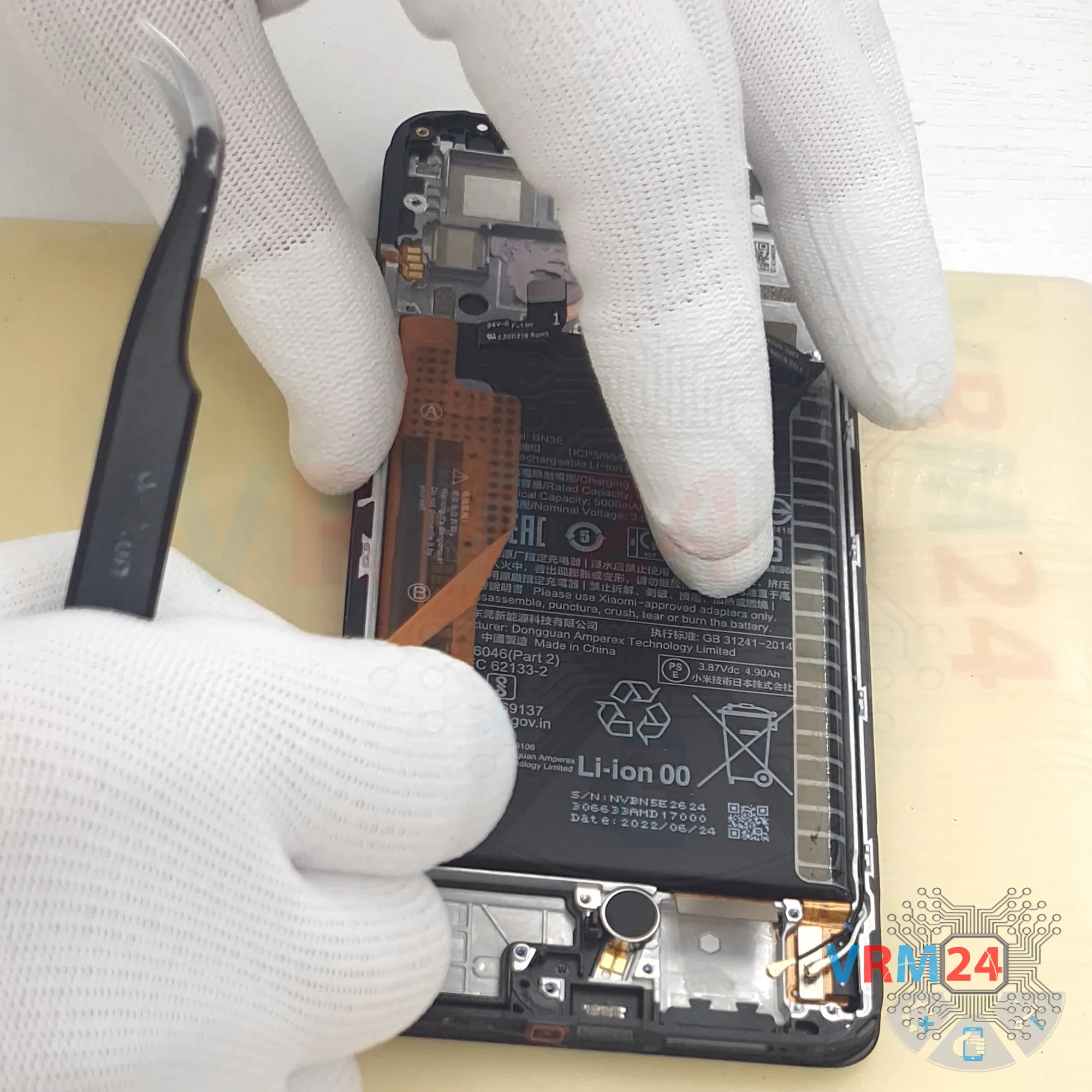

As usual with Poco, there are two brown pull-tabs. Carefully fold them aside.

Then we must read the instructions carefully (on the tabs)— so one tab is meant to be pulled, the other folded away.

So, the tab in the middle should be folded aside, and the tab at the edges should be pulled up to release the battery.

Under the battery, there is a transparent adhesive protective layer that shields the inter-board flex cables.


How to disassemble Xiaomi POCO X4 Pro, Step 17/1 How to disassemble Xiaomi POCO X4 Pro, Step 17/2 How to disassemble Xiaomi POCO X4 Pro, Step 17/3

Step 17. In the display frame remained

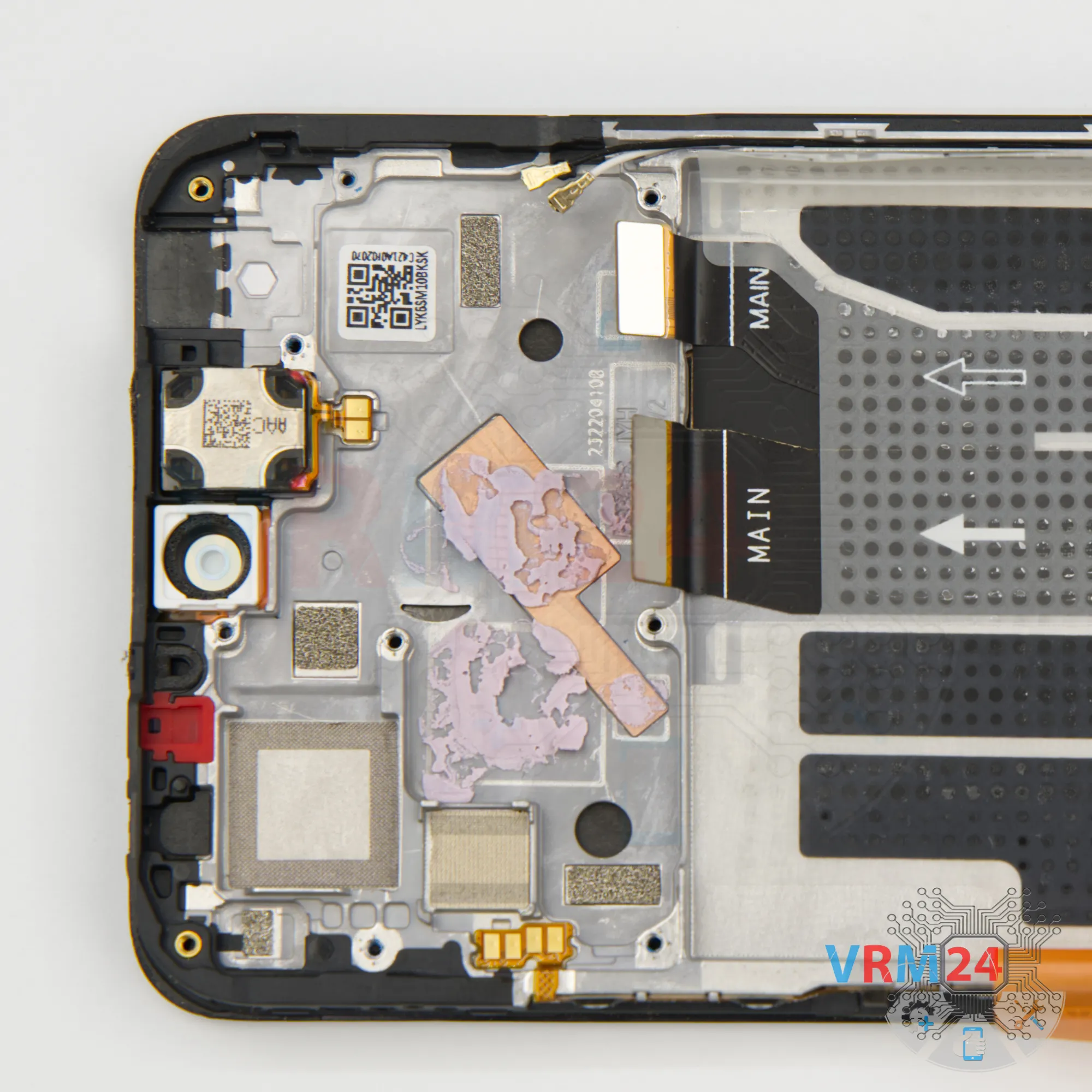

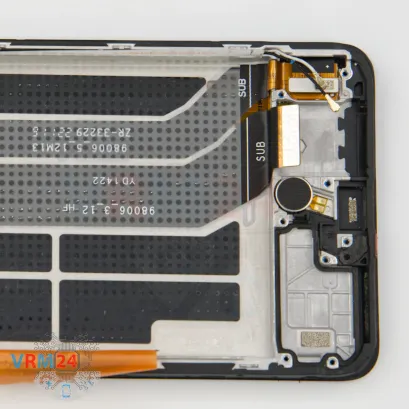

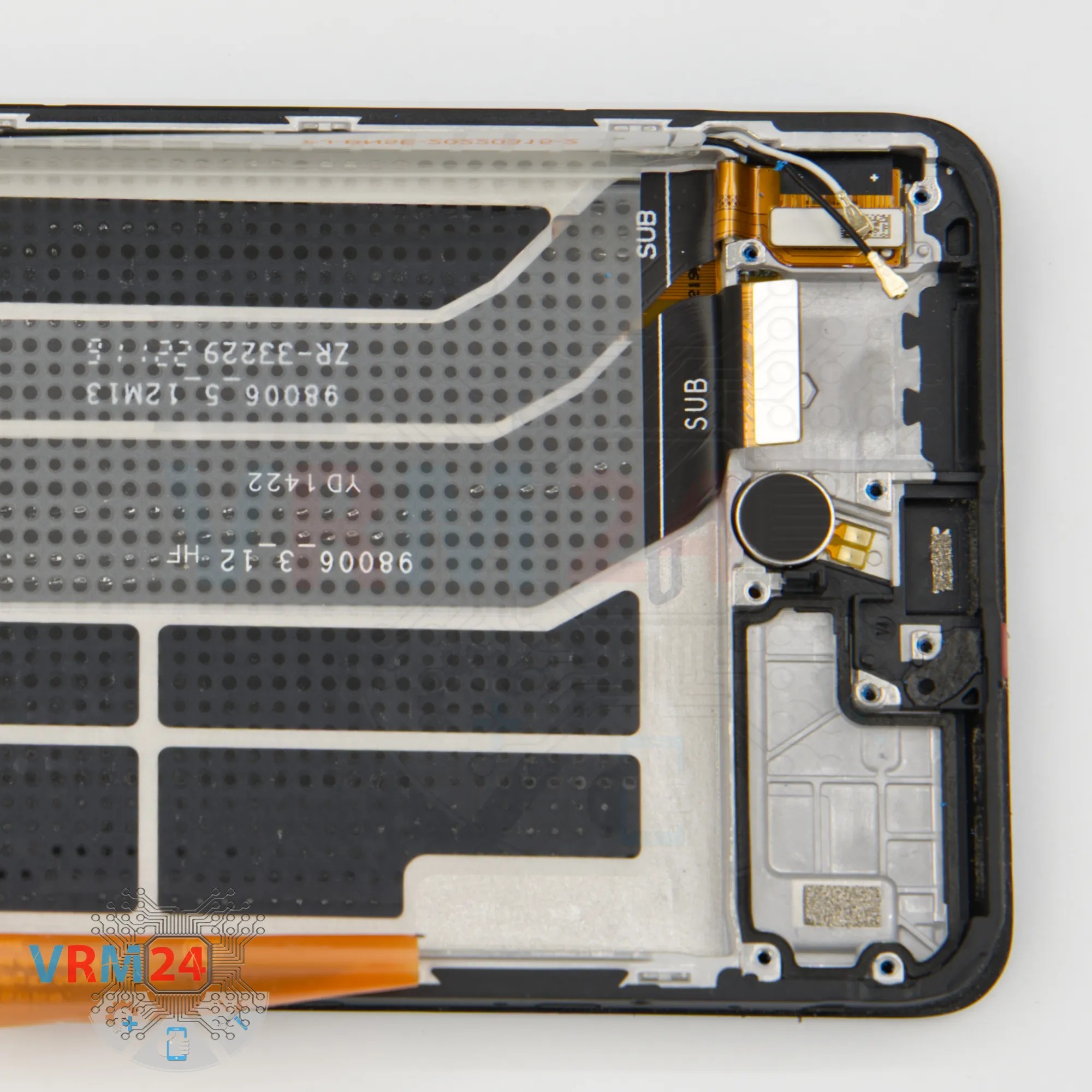

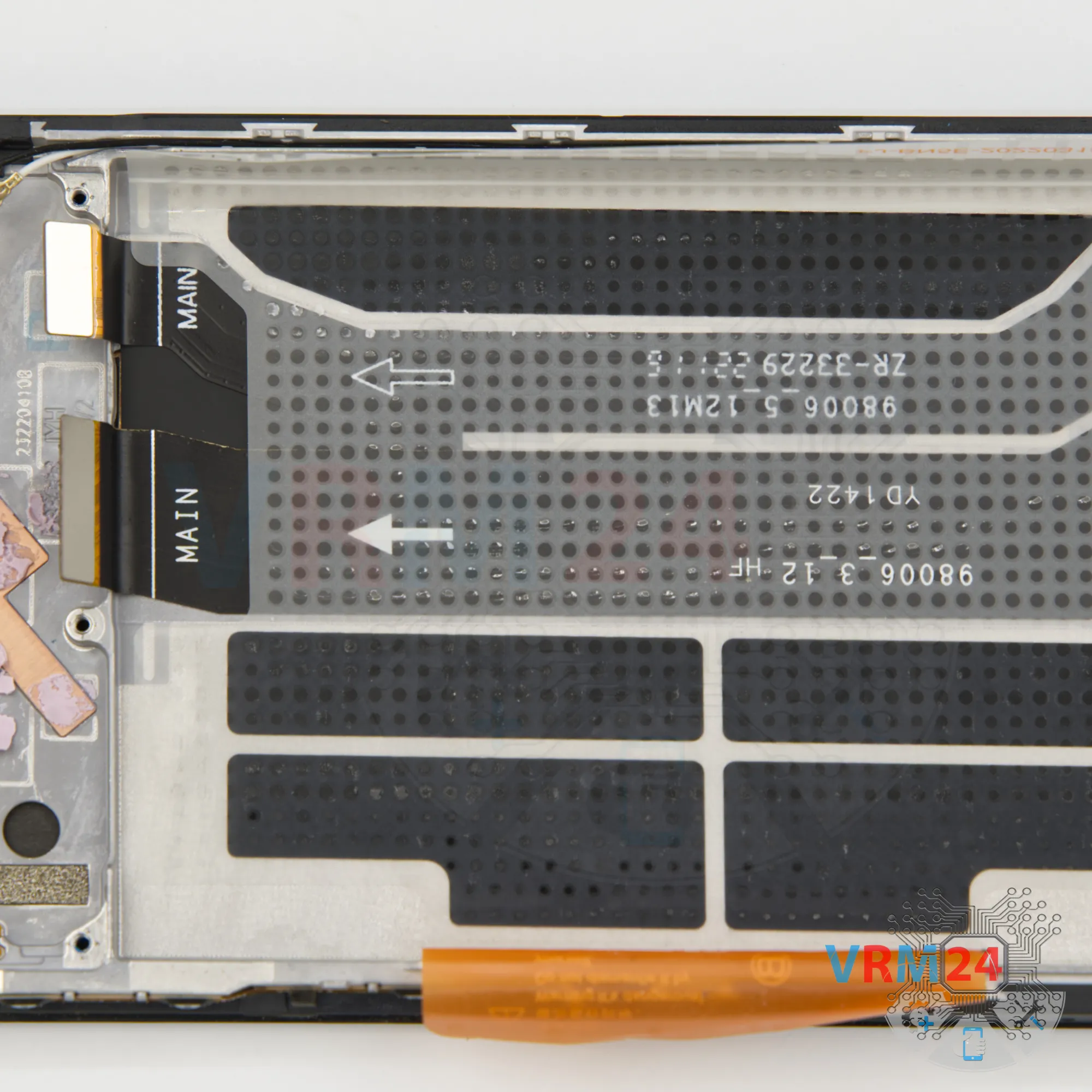

â„šī¸ī¸ In the display frame remained: the earpiece speaker, vibration motor, cables.

Detailed disassembly instructions of Xiaomi POCO X4 Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about minutes in time. Our manual is suitable for all models Xiaomi POCO X4 Pro — Xiaomi POCO X4 Pro 5G, Xiaomi POCO X4 Pro 2201116PG released for markets in different countries.
