Tech review of Samsung Galaxy A7 (2018) SM-A750

Compare this model
Irene Lebed

Irene Lebed

Author, Content Specialist

Creates new content, including blogs, events, and news.

3

Views

—

Share

7

Questions

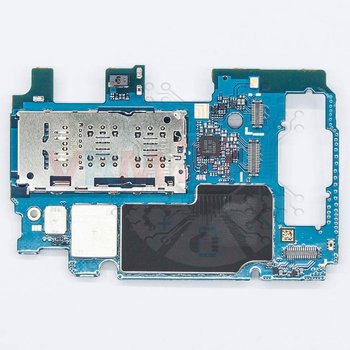

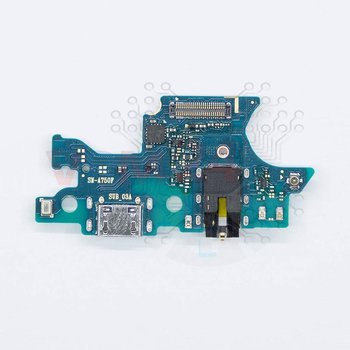

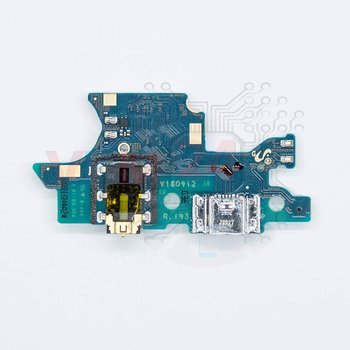

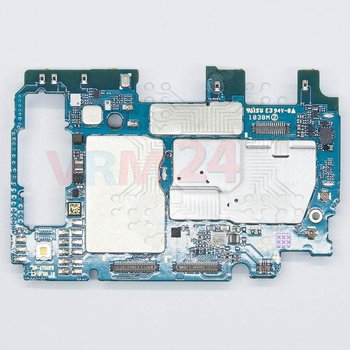

Main and additional circuit boards

Samsung Galaxy A7 (2018) SM-A750
Side 1
Side 2

Spare parts

and components

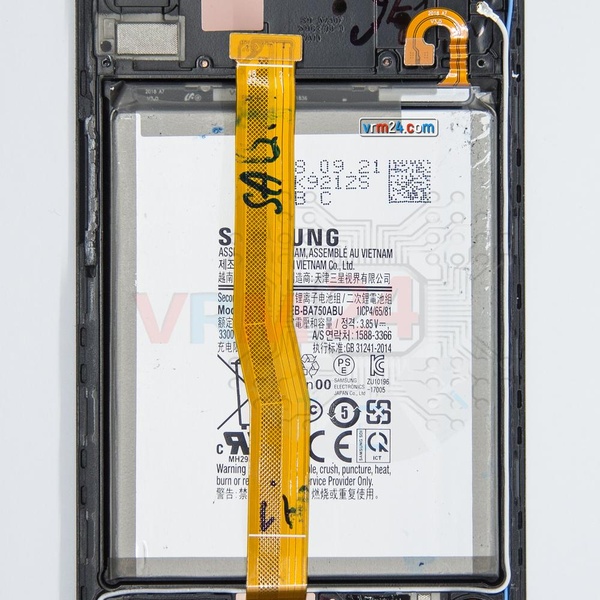

Battery
tech-review-of-Samsung Galaxy A7 (2018) SM-A750

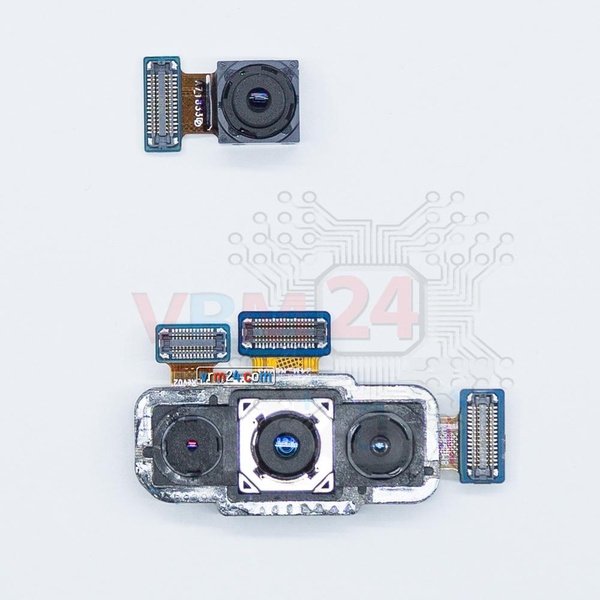

Cameras
tech-review-of-Samsung Galaxy A7 (2018) SM-A750

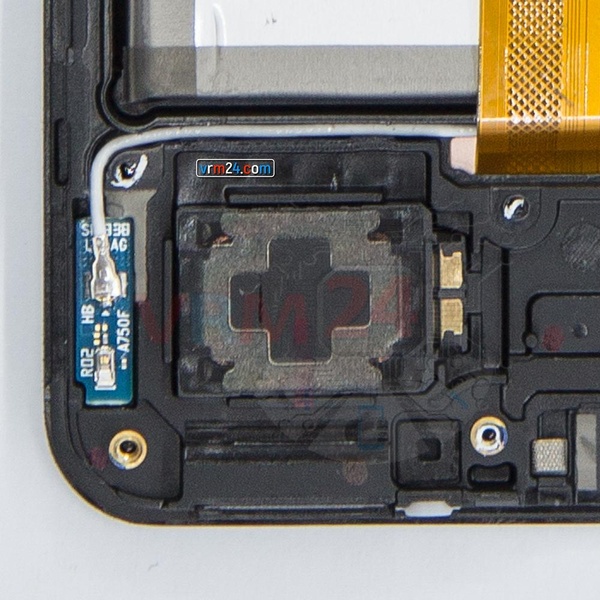

Loudspeaker
tech-review-of-Samsung Galaxy A7 (2018) SM-A750

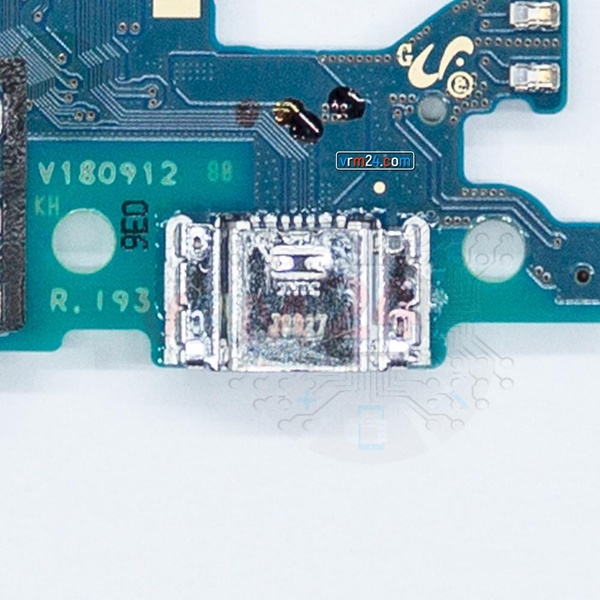

Charging port
tech-review-of-Samsung Galaxy A7 (2018) SM-A750
tech-review-of-Samsung Galaxy A7 (2018) SM-A750

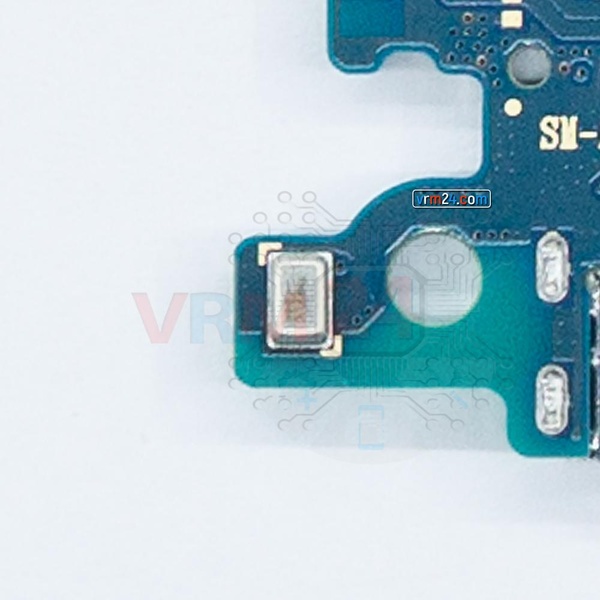

Microphone
tech-review-of-Samsung Galaxy A7 (2018) SM-A750

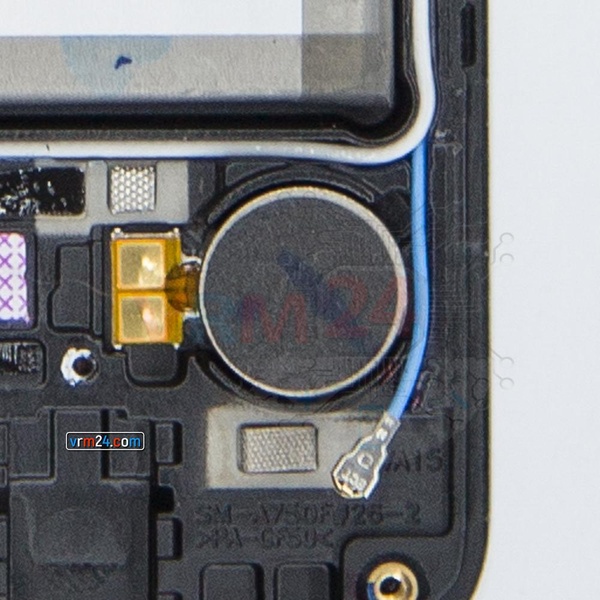

Vibration motor
tech-review-of-Samsung Galaxy A7 (2018) SM-A750

Characteristics

and Features

Features

Type Smartphone
OS Android 8.0 (Oreo)
SIM type/size Nano SIM
SIM Single SIM or Dual SIM
Dimensions 159.8 x 76.8 x 7.5 mm (6.29 x 3.02 x 0.30 in)
Weight 168 g (5.93 oz)

Display

Display type Super AMOLED capacitive touchscreen, 16M colors
Size 6.0 inches, 91.4 cm2 (~74.4% screen-to-body ratio)
Resolution 1080 x 2220 pixels, 18.5:9 ratio
PPI density 411
Protection Corning Gorilla Glass

Multimedia

Main camera 24 MP, f/1.7, 27mm (wide), PDAF. 8 MP, f/2.4, 18mm (ultrawide). 5 MP, f/2.2, depth sensor
Main camera Video 1080p, 240fps
Front (selfie) camera 24 MP, f/2.0, 26mm (wide)
Front (selfie) camera Video 1080p, 30fps
Audio MP3, AAC, WAV, WMA, FM radio
Headphone jack 3.5mm jack. Active noise cancellation with dedicated mic. Dolby Atmos sound.

Network

Technology GSM / HSPA / LTE
Bands Yes, band 1, 3, 5, 7, 8, 20, 38, 40, 41
Interfaces Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot, Bluetooth 5.0, A2DP, LE
Satellite navigation GPS, A-GPS, GLONASS, BDS

Processor and Memory

System on a chip Samsung Exynos 7885
CPU Octa-Core 2x Cortex-A73 2.2 GHz + 6x Cortex-A53 1.6 GHz
GPU Mali-G71 MP2
Internal memory 64 or 128 GB
RAM 4 or 6 GB
Card slot Micro SD, up to 1 TB (dedicated slot)

Battery

Battery capacity Li-Po 3300 mAh
Charging port Micro USB 2.0
Battery model EB-BA750ABU

Other

Announced 2018, September

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

logo
3

Views

—

Share

7

Questions
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters.

This difficulty rating is also applicable for all models Samsung Galaxy A7 (2018) SM-A750 released for markets in different countries.
