Samsung Galaxy Tab A 9.7'' SM-T555: a technical overview based on VRM24’s recorded device data.

Design and display

Type: Tablet; Announced: 2015, March; Dimensions: 242.5 x 166.8 x 7.5 mm (9.55 x 6.57 x 0.30 in); Weight: 435 g (15.34 oz); Display: TFT; Size: 9.7 inches; Resolution: 768 x 1280 pixels, 5:3 ratio.

Display size and resolution describe the viewing format; brightness, colour accuracy and durability require separate testing.

Platform and memory

OS: Android 5.0 (Lollipop); Chipset: Qualcomm MSM8916 Snapdragon 410; CPU: Quad-core Cortex-A53 1.2 GHz; GPU: Adreno 306; RAM: 2 GB; Storage: 32 GB; Memory card: Micro SD, up to 128 GB (dedicated slot).

The chipset and memory describe the hardware configuration. They do not establish measured speed, gaming performance or current software support.

Cameras

Rear camera: 5 MP; Rear video: 720p, 30fps; Front camera: 2 MP.

These are the recorded camera specifications. Image quality and stabilisation cannot be judged from resolution alone.

Battery and connections

Battery capacity: Li-Ion 6000 mAh; Battery model: EB-BT550ABE; Charging port: Micro USB 2.0; Headphone jack: Mini jack 3.5 mm; Interfaces: Wi-Fi 802.11ac, Bluetooth 4.1; Networks: GSM/3G/4G LTE; SIM: Single SIM.

Battery capacity is not a measured runtime. Charging speed, battery condition and compatibility of replacement parts need separate verification.

What the specifications tell us

Use this overview to compare the recorded configuration with your needs. It does not provide benchmarks or hands-on performance measurements.

Prepared using ChatGPT-authored templates and VRM24’s own collected device data. Device details are inserted from our records; each overview is not individually written by a model. AI-assisted text and source data may contain errors. Actual performance may vary. Verify specifications and part compatibility before repair.

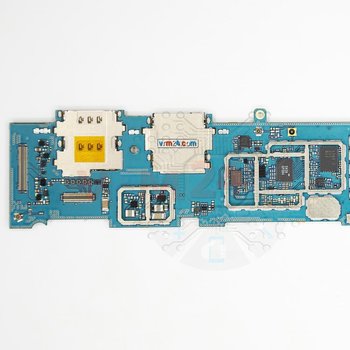

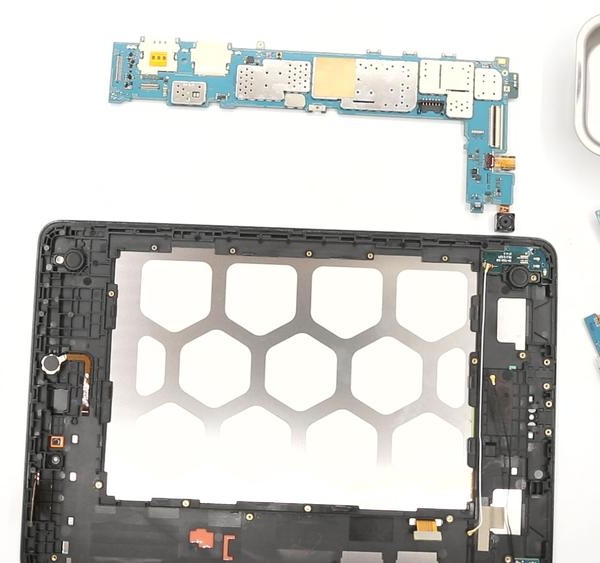

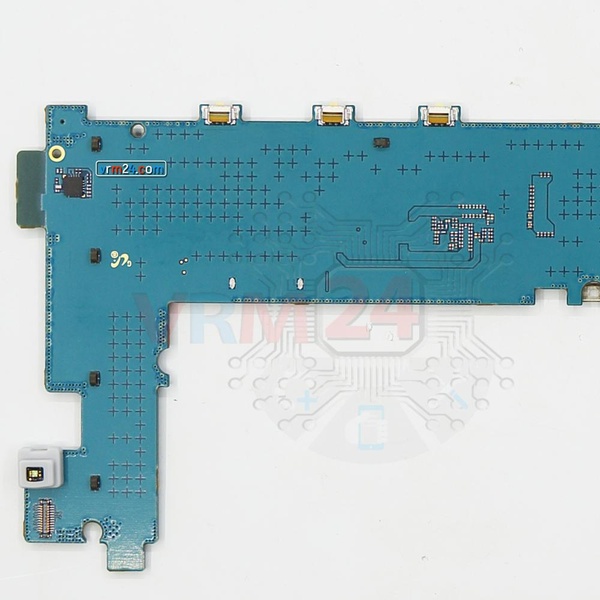

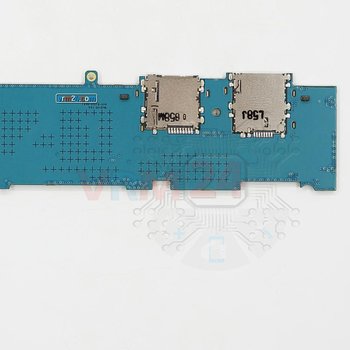

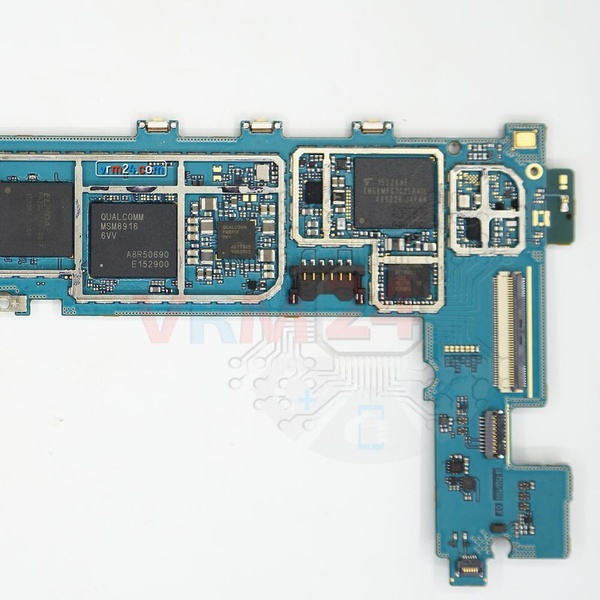

Main and additional circuit boards

Samsung Galaxy Tab A 9.7'' SM-T555
Side 1

Spare parts

and components

Characteristics

and Features

Features

Type Tablet
OS Android 5.0 (Lollipop)
SIM type/size Micro SIM
SIM Single SIM
Dimensions 242.5 x 166.8 x 7.5 mm (9.55 x 6.57 x 0.30 in)
Weight 435 g (15.34 oz)

Display

Display type TFT
Size 9.7 inches
Resolution 768 x 1280 pixels, 5:3 ratio
PPI density 132
Protection ---

Multimedia

Main camera 5 MP
Main camera Video 720p, 30fps
Front (selfie) camera 2 MP
Front (selfie) camera Video ---
Audio AAC, WMA, WAV, OGG, FLAC, MP3
Headphone jack Mini jack 3.5 mm

Network

Technology GSM/3G/4G LTE
Bands Band 1, 3, 5, 7, 8, 20
Interfaces Wi-Fi 802.11ac, Bluetooth 4.1
Satellite navigation GPS with A-GPS, GLONASS

Processor and Memory

System on a chip Qualcomm MSM8916 Snapdragon 410
CPU Quad-core Cortex-A53 1.2 GHz
GPU Adreno 306
Internal memory 32 GB
RAM 2 GB
Card slot Micro SD, up to 128 GB (dedicated slot)

Battery

Battery capacity Li-Ion 6000 mAh
Charging port Micro USB 2.0
Battery model EB-BT550ABE

Models with the same battery

Other

Announced 2015, March

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

logo
807

Views

—

Share

13

Questions

Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Based on our experience, we made a selection of the most common malfunctions of mobile devices and evaluated the difficulty of performing repairs for each of them. The final evaluation of the difficulty of the repair is the sum of all the parameters. This difficulty rating is also applicable for all models Samsung Galaxy Tab A 9.7'' SM-T555 released for markets in different countries.
