Asus Google Nexus 7 ME370
Asus Google Nexus 7 ME370
Teardown difficulty:
Easy
Duration:
8 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

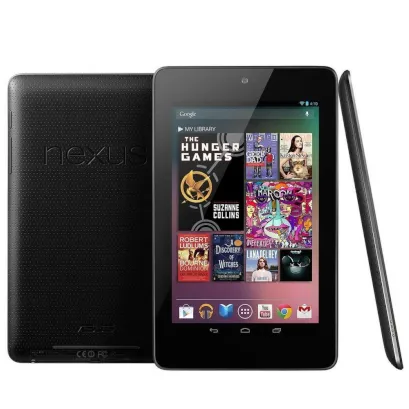

Disassembly/Repair of the mobile device Asus Google Nexus 7 ME370 (Asus Google Nexus 7) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Asus Google Nexus 7 ME370, Step 1/1 How to disassemble Asus Google Nexus 7 ME370, Step 1/2

Step 1.

Open the back cover.

How to disassemble Asus Google Nexus 7 ME370, Step 2/1 How to disassemble Asus Google Nexus 7 ME370, Step 2/2 How to disassemble Asus Google Nexus 7 ME370, Step 2/3

Step 2.

Disconnect connector on the PCB and remove the battery.

How to disassemble Asus Google Nexus 7 ME370, Step 3/1 How to disassemble Asus Google Nexus 7 ME370, Step 3/2

Step 3.

Peel back the heat sink sheet.

How to disassemble Asus Google Nexus 7 ME370, Step 4/1 How to disassemble Asus Google Nexus 7 ME370, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the buzzers (speakers) assembly.

How to disassemble Asus Google Nexus 7 ME370, Step 5/1 How to disassemble Asus Google Nexus 7 ME370, Step 5/2 How to disassemble Asus Google Nexus 7 ME370, Step 5/3

Step 5.

Disconnect connector & remove the buzzers (speakers) assembly.

How to disassemble Asus Google Nexus 7 ME370, Step 6/1 How to disassemble Asus Google Nexus 7 ME370, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the lower PCB.

How to disassemble Asus Google Nexus 7 ME370, Step 7/1 How to disassemble Asus Google Nexus 7 ME370, Step 7/2

Step 7.

Remove the lower board with charging port and headset socket.

How to disassemble Asus Google Nexus 7 ME370, Step 8/1 How to disassemble Asus Google Nexus 7 ME370, Step 8/2 How to disassemble Asus Google Nexus 7 ME370, Step 8/3 How to disassemble Asus Google Nexus 7 ME370, Step 8/4 How to disassemble Asus Google Nexus 7 ME370, Step 8/5

Step 8.

Disconnect connectors on the PCB.

How to disassemble Asus Google Nexus 7 ME370, Step 9/1 How to disassemble Asus Google Nexus 7 ME370, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 6 bolts in the PCB.

How to disassemble Asus Google Nexus 7 ME370, Step 10/1 How to disassemble Asus Google Nexus 7 ME370, Step 10/2

Step 10.

Remove the PCB.

How to disassemble Asus Google Nexus 7 ME370, Step 11/1 How to disassemble Asus Google Nexus 7 ME370, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame.

How to disassemble Asus Google Nexus 7 ME370, Step 12/1 How to disassemble Asus Google Nexus 7 ME370, Step 12/2

Step 12.

Pry and remove the frame.

How to disassemble Asus Google Nexus 7 ME370, Step 13/1 How to disassemble Asus Google Nexus 7 ME370, Step 13/2 How to disassemble Asus Google Nexus 7 ME370, Step 13/3

Step 13.

The display module.

Detailed disassembly instructions of Asus Google Nexus 7 ME370 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Asus #Asus Google Nexus 7
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 8 minutes in time.
Our manual is suitable for all models Asus Google Nexus 7 ME370 — Asus Google Nexus 7 released for markets in different countries.
