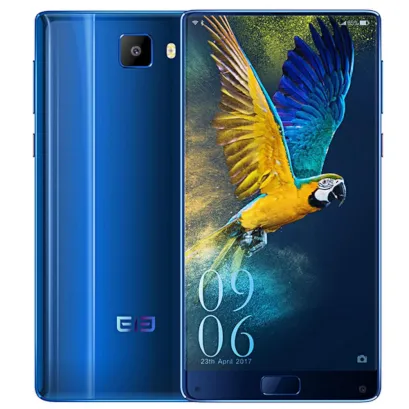

Elephone S8
Elephone S8
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Elephone S8 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Elephone S8, Step 1/1 How to disassemble Elephone S8, Step 1/2

Step 1.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Elephone S8, Step 2/1 How to disassemble Elephone S8, Step 2/2

Step 2.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 16 bolts in the frame of the phone.

How to disassemble Elephone S8, Step 3/1 How to disassemble Elephone S8, Step 3/2

Step 3.

Pry and remove the middle frame.

How to disassemble Elephone S8, Step 4/1 How to disassemble Elephone S8, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts.

How to disassemble Elephone S8, Step 5/1 How to disassemble Elephone S8, Step 5/2

Step 5.

Remove the bar bracket holds the connectors.

How to disassemble Elephone S8, Step 6/1 How to disassemble Elephone S8, Step 6/2 How to disassemble Elephone S8, Step 6/3

Step 6.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Elephone S8, Step 7/1 How to disassemble Elephone S8, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts in the lower part.

How to disassemble Elephone S8, Step 8/1 How to disassemble Elephone S8, Step 8/2 How to disassemble Elephone S8, Step 8/3

Step 8.

Disconnect the connectors on the PCB and remove the lower PCB and the part with the buzzer (speaker).

⚠️ Warning!

The part with the speaker is soldered to the lower board.

How to disassemble Elephone S8, Step 9/1 How to disassemble Elephone S8, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Elephone S8, Step 10/1 How to disassemble Elephone S8, Step 10/2 How to disassemble Elephone S8, Step 10/3

Step 10.

Disconnect connectors on the PCB.

How to disassemble Elephone S8, Step 11/1 How to disassemble Elephone S8, Step 11/2 How to disassemble Elephone S8, Step 11/3

Step 11.

Disconnect the connector on the PCB and remove the FFC cable with the volume and power buttons.

How to disassemble Elephone S8, Step 12/1 How to disassemble Elephone S8, Step 12/2

Step 12.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Elephone S8, Step 13/1 How to disassemble Elephone S8, Step 13/2

Step 13.

Remove the PCB.

How to disassemble Elephone S8, Step 14/1 How to disassemble Elephone S8, Step 14/2 How to disassemble Elephone S8, Step 14/3

Step 14.

Parts in the frame of the display module.

Detailed disassembly instructions of Elephone S8 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Elephone #Elephone S8
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Elephone S8 released for markets in different countries.
