Recommended tools
Screwdriver Phillips #000
Opening tool / Spudger
Tweezers

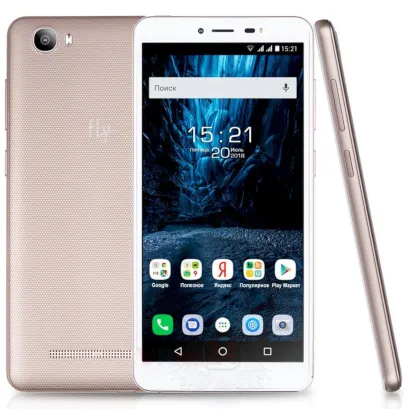

Disassembly/Repair of the mobile device Fly Life Mega with each step description and the required set of tools.
3902
Views
1
Likes
—
Share
3
Questions
Step 1.
Open the back cover
Open the back cover.
Step 2.
Remove the battery
Lift and remove the battery. The battery model of Fly Life Mega is BL6433.
Step 3.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 bolts in the frame of the phone.
Step 4.
Open the mid-frame
Pry and remove the middle frame.
Step 5.
Remove the tab
Peel back the label / sticker.
Step 6.
Disconnect the connectors
Disconnect connectors on the daughterboard.
Step 7.
Remove the sub-board
Remove the daughterboard, also known as sub-board.
Step 8.
Remove the protective film
Peel back the protective layer.
Step 9.
Disconnect the connectors
Disconnect connectors on the PCB.
Step 10.
Unscrew the screws
Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.
Step 11.
Turn over the PCB
Turn over the PCB.
Step 12.
Remove the motherboard
Disconnect the connector from the inside and remove the PCB.
Step 13.
Remove the rear camera
Disconnect the connector on PCB, and remove the main camera.
Step 14.
Remove the front camera
Disconnect the connector on PCB, and remove the front (selfie) camera.
If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.
