Disassembly/Repair of the mobile device Huawei P10 Lite (Huawei P10 Lite WAS-LX1/LX1A (EMEA); WAS-LX2 (Asia); WAS-LX3 (USA); WAS-L03T (Canada); WAS-AL00/WAS-TL10 (China); WAS-LX2J (Japan) / Huawei Nova Youth) with each step description and the required set of tools.

13569

Views

Likes

—

Questions

Vadim Popoff

Content manager / Author / Content specialist

Content specialist with over 10 years of experience in the technology industry.

Step 1.

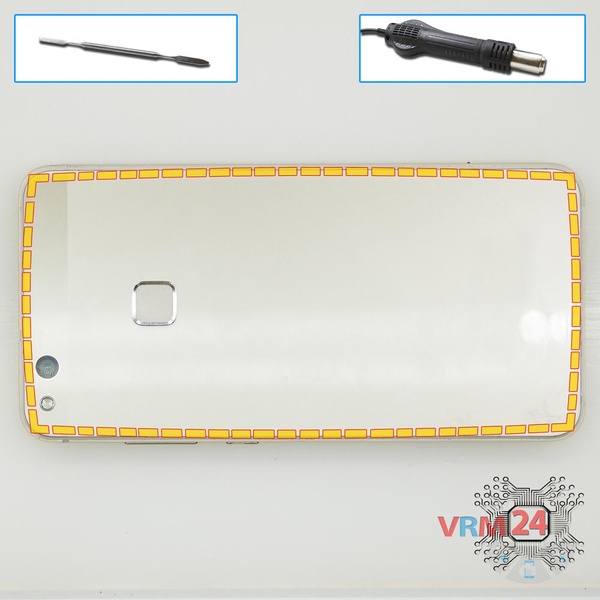

Open the back cover

Open the back cover.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 2.

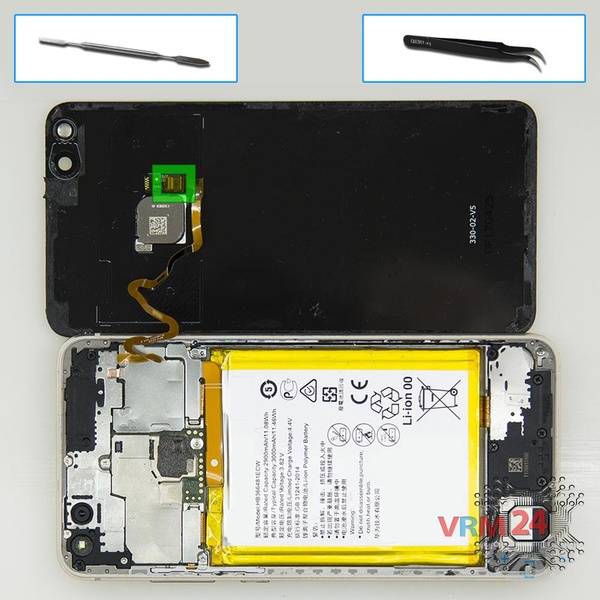

Remove the fingerprint sensor

Carefully overturn the cover, disconnect the fingerprint sensor connector and remove it.

Step 3.

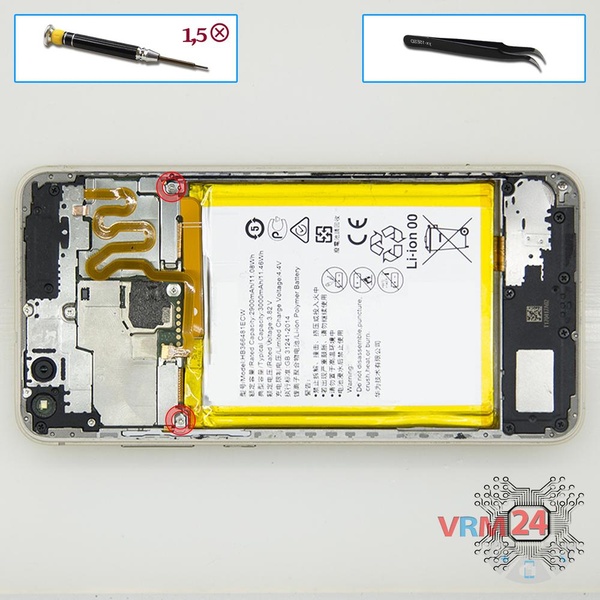

Remove the bracket

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts and remove the brackets holds the connectors.

Step 4.

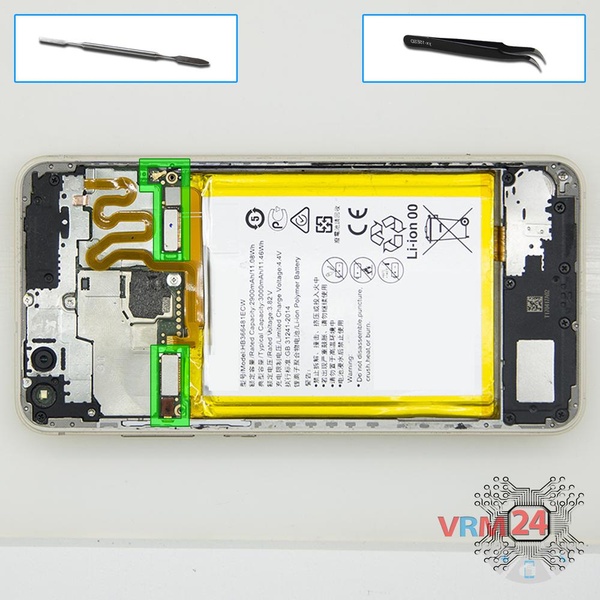

Disconnect the connectors

Disconnect connectors on the PCB including the battery connector.

⚠ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

Step 5.

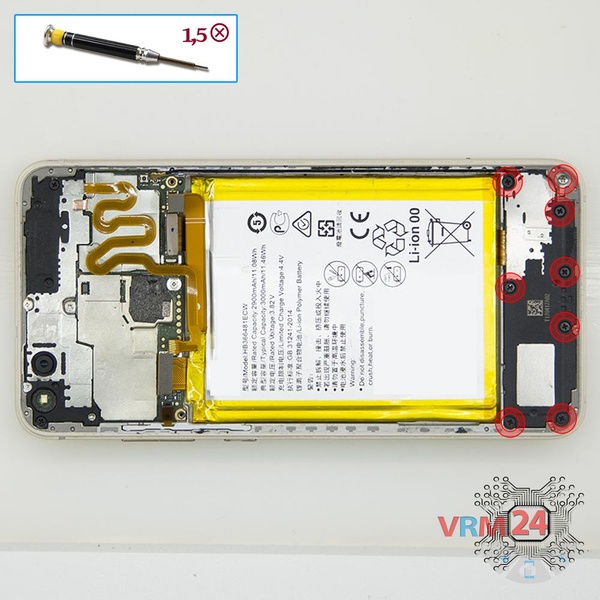

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts.

Step 6.

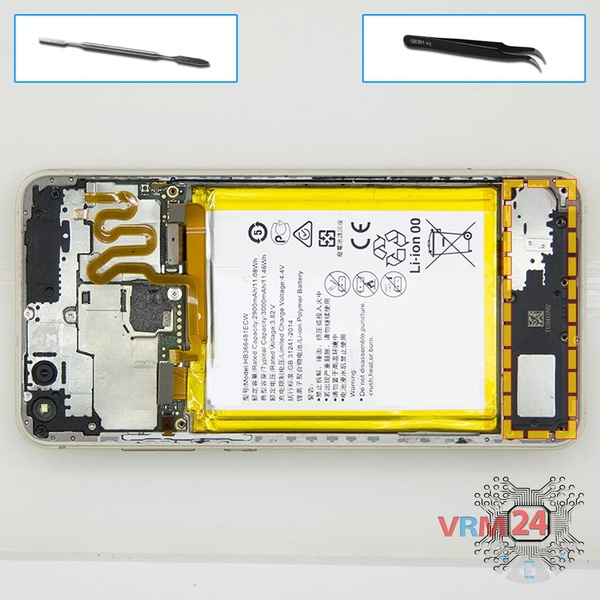

Remove the loudspeaker

Pry and remove the buzzer (speaker) assembly.

Step 7.

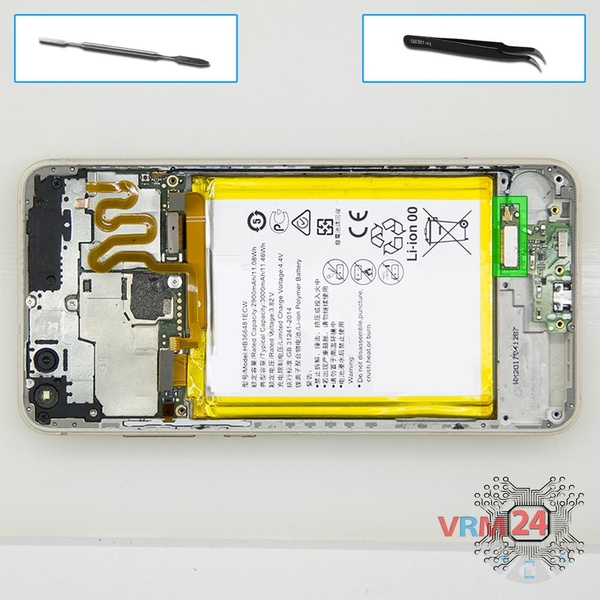

Remove the sub-board

Disconnect connectors on the lower PCB and remove it.

Step 8.

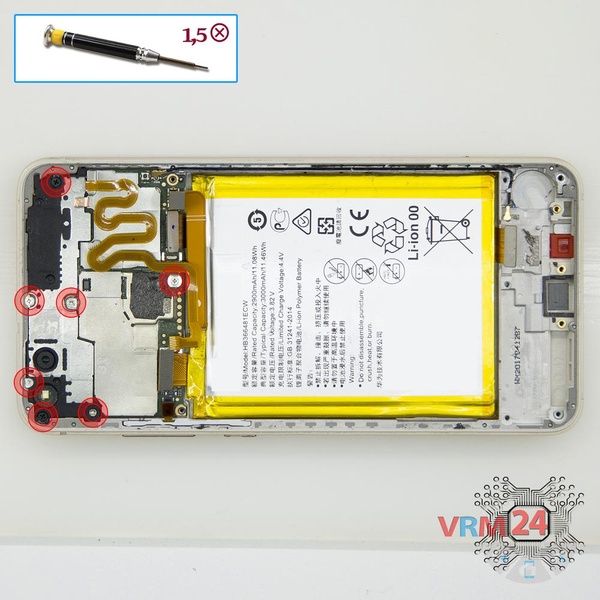

Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts.

Step 9.

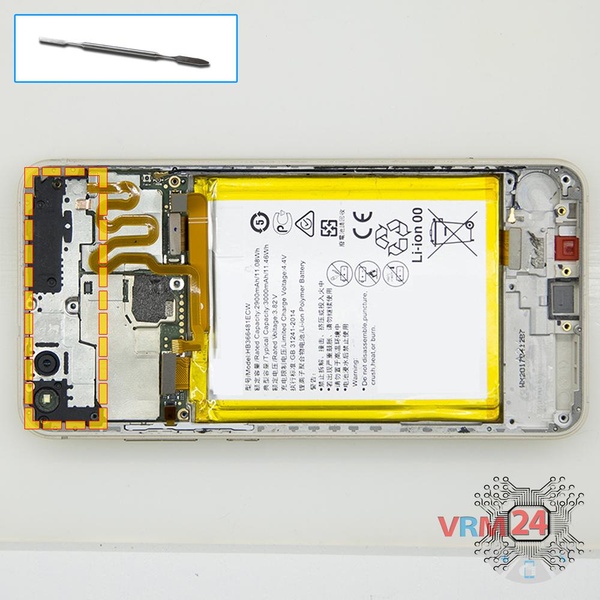

Open the back cover

Pry & remove the upper cover.

Step 10.

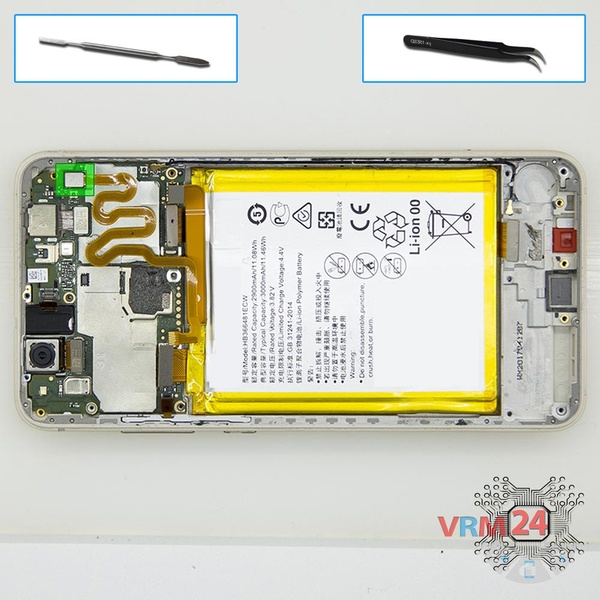

Remove the cable

Disconnect the connector on the PCB and remove the fingerprint sensor cable.

Step 11.

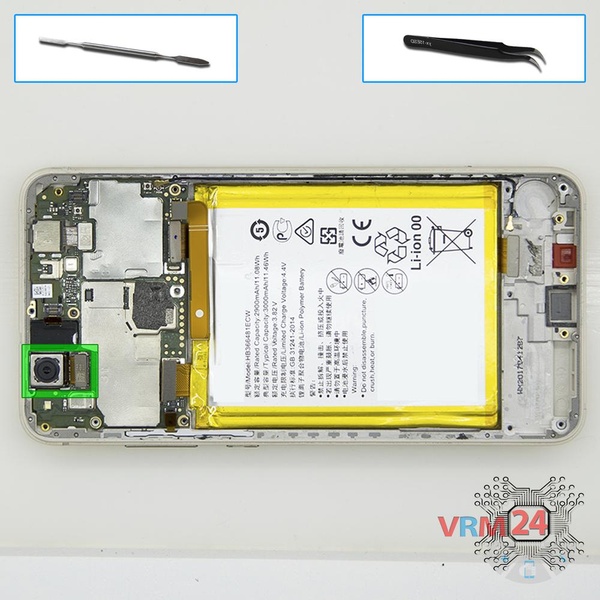

Remove the rear camera

Disconnect connector on the PCB and remove the main camera.

Step 12.

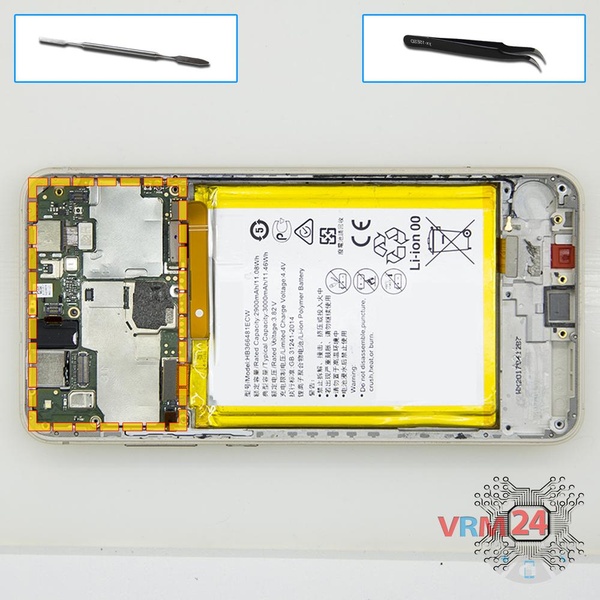

Remove the motherboard

Remove the PCB.

Step 13.

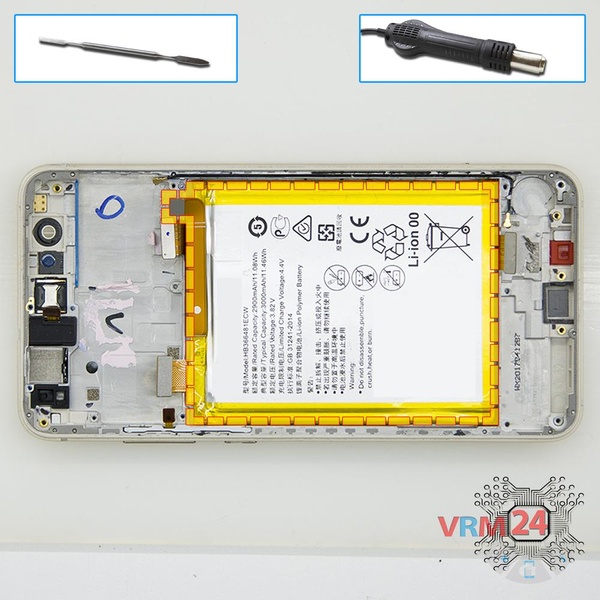

Remove the battery

Separate the battery.

⚠ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

Step 14.

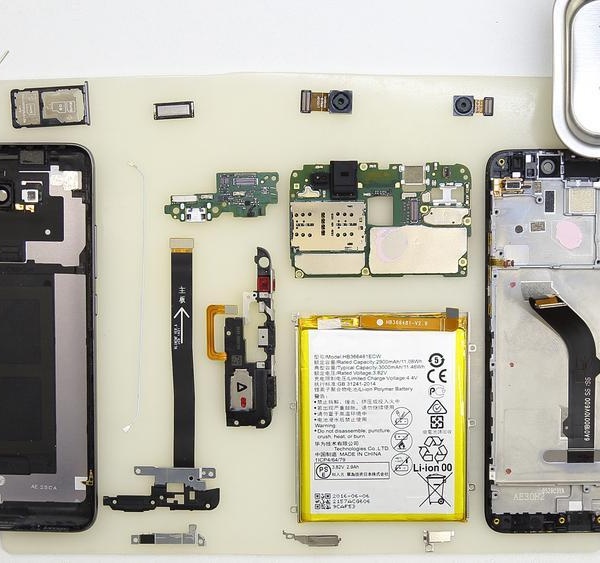

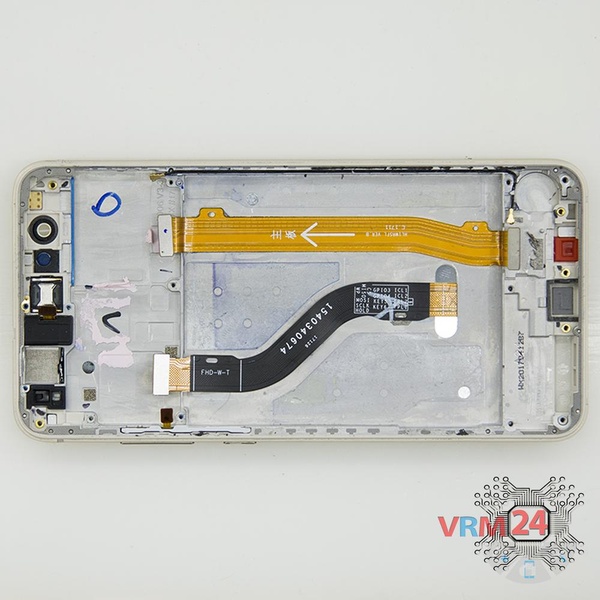

In the display frame remained

Parts in the frame of the display module.

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 15 minutes in time.
Our manual is suitable for all models Huawei P10 Lite — Huawei P10 Lite WAS-LX1/LX1A (EMEA); WAS-LX2 (Asia); WAS-LX3 (USA); WAS-L03T (Canada); WAS-AL00/WAS-TL10 (China); WAS-LX2J (Japan) / Huawei Nova Youth released for markets in different countries.
