Lenovo K3 Note
Lenovo K3 Note
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

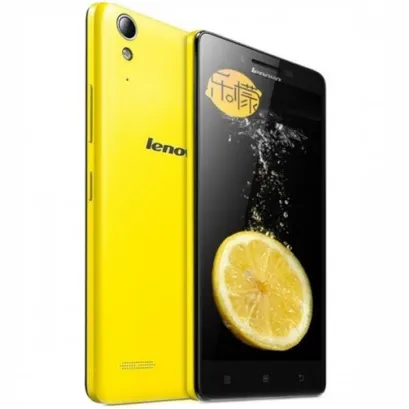

Disassembly/Repair of the mobile device Lenovo K3 Note (Lenovo K3 Note (K50-T5) \ Lenovo A7000 Turbo) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Lenovo K3 Note, Step 1/1 How to disassemble Lenovo K3 Note, Step 1/2

Step 1.

Open the back cover.

How to disassemble Lenovo K3 Note, Step 2/1 How to disassemble Lenovo K3 Note, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Lenovo K3 Note, Step 3/1 How to disassemble Lenovo K3 Note, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 11 bolts in the frame of the phone.

How to disassemble Lenovo K3 Note, Step 4/1 How to disassemble Lenovo K3 Note, Step 4/2

Step 4.

Pry and remove the middle frame.

How to disassemble Lenovo K3 Note, Step 5/1 How to disassemble Lenovo K3 Note, Step 5/2

Step 5.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Lenovo K3 Note, Step 6/1 How to disassemble Lenovo K3 Note, Step 6/2 How to disassemble Lenovo K3 Note, Step 6/3 How to disassemble Lenovo K3 Note, Step 6/4 How to disassemble Lenovo K3 Note, Step 6/5

Step 6.

Peel back the protective layer and lift the inter-board cable up with vibration motor and earpiece (speaker).

How to disassemble Lenovo K3 Note, Step 7/1 How to disassemble Lenovo K3 Note, Step 7/2 How to disassemble Lenovo K3 Note, Step 7/3

Step 7.

Disconnect the connector on the PCB and pry up the power & volume buttons flex cable.

How to disassemble Lenovo K3 Note, Step 8/1 How to disassemble Lenovo K3 Note, Step 8/2 How to disassemble Lenovo K3 Note, Step 8/3

Step 8.

Overturn the board, disconnect the connectors from the inside and remove it.

How to disassemble Lenovo K3 Note, Step 9/1 How to disassemble Lenovo K3 Note, Step 9/2 How to disassemble Lenovo K3 Note, Step 9/3

Step 9.

Parts in the frame of the display module.

Detailed disassembly instructions of Lenovo K3 Note in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Lenovo #Lenovo K3 Note
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Lenovo K3 Note — Lenovo K3 Note (K50-T5) \ Lenovo A7000 Turbo released for markets in different countries.
