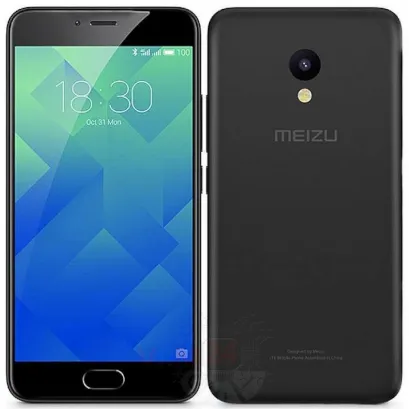

Disassembly/Repair of the mobile device Meizu M5c M710H (Meizu A5, Meizu Charm Blue A5) with each step description and the required set of tools.

Vadim Popoff

Content specialist with over 10 years of experience in the technology industry.

How to disassemble Meizu M5c M710H, Step 1/1 How to disassemble Meizu M5c M710H, Step 1/2

Step 1.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Meizu M5c M710H, Step 2/1 How to disassemble Meizu M5c M710H, Step 2/2

Step 2.

Using a screwdriver (Star Shape 0.8mm Pentalobe), unscrew the 2 bolts on the end of the phone.

How to disassemble Meizu M5c M710H, Step 3/1 How to disassemble Meizu M5c M710H, Step 3/2

Step 3.

Open the back cover.

How to disassemble Meizu M5c M710H, Step 4/1 How to disassemble Meizu M5c M710H, Step 4/2

Step 4.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 8 bolts in the frame of the phone.

How to disassemble Meizu M5c M710H, Step 5/1 How to disassemble Meizu M5c M710H, Step 5/2

Step 5.

Pry and remove the upper cover.

How to disassemble Meizu M5c M710H, Step 6/1 How to disassemble Meizu M5c M710H, Step 6/2 How to disassemble Meizu M5c M710H, Step 6/3

Step 6.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Meizu M5c M710H, Step 7/1 How to disassemble Meizu M5c M710H, Step 7/2

Step 7.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 7 bolts in the lower part.

How to disassemble Meizu M5c M710H, Step 8/1 How to disassemble Meizu M5c M710H, Step 8/2

Step 8.

Pry & remove the lower cover.

How to disassemble Meizu M5c M710H, Step 9/1 How to disassemble Meizu M5c M710H, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the lower PCB.

How to disassemble Meizu M5c M710H, Step 10/1 How to disassemble Meizu M5c M710H, Step 10/2 How to disassemble Meizu M5c M710H, Step 10/3

Step 10.

Disconnect connectors on the PCB.

How to disassemble Meizu M5c M710H, Step 11/1 How to disassemble Meizu M5c M710H, Step 11/2

Step 11.

Remove the lower PCB.

How to disassemble Meizu M5c M710H, Step 12/1 How to disassemble Meizu M5c M710H, Step 12/2

Step 12.

Remove the Home button.

How to disassemble Meizu M5c M710H, Step 13/1 How to disassemble Meizu M5c M710H, Step 13/2

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts in the PCB.

How to disassemble Meizu M5c M710H, Step 14/1 How to disassemble Meizu M5c M710H, Step 14/2 How to disassemble Meizu M5c M710H, Step 14/3

Step 14.

Disconnect connectors on the PCB.

How to disassemble Meizu M5c M710H, Step 15/1 How to disassemble Meizu M5c M710H, Step 15/2

Step 15.

Remove the PCB.

How to disassemble Meizu M5c M710H, Step 16/1 How to disassemble Meizu M5c M710H, Step 16/2 How to disassemble Meizu M5c M710H, Step 16/3

Step 16.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu M5c M710H in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu M5c M710H
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 15 minutes in time.
Our manual is suitable for all models Meizu M5c M710H — Meizu A5, Meizu Charm Blue A5 released for markets in different countries.
