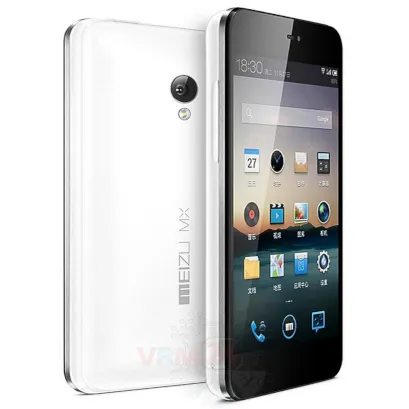

Meizu MX2 M040
Meizu MX2 M040
Teardown difficulty:
Easy
Duration:
6 min

Recommended tools

Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Meizu MX2 M040 with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Meizu MX2 M040, Step 1/1 How to disassemble Meizu MX2 M040, Step 1/2

Step 1.

Open the back cover.

How to disassemble Meizu MX2 M040, Step 2/1 How to disassemble Meizu MX2 M040, Step 2/2

Step 2.

Pry & remove the hatch/cover hiding the bolt securing the back cover.

How to disassemble Meizu MX2 M040, Step 3/1 How to disassemble Meizu MX2 M040, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 12 bolts in the frame of the phone.

How to disassemble Meizu MX2 M040, Step 4/1 How to disassemble Meizu MX2 M040, Step 4/2

Step 4.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Meizu MX2 M040, Step 5/1 How to disassemble Meizu MX2 M040, Step 5/2

Step 5.

Pry & remove the cover.

How to disassemble Meizu MX2 M040, Step 6/1 How to disassemble Meizu MX2 M040, Step 6/2

Step 6.

Disconnect connector on the PCB and remove the battery.

How to disassemble Meizu MX2 M040, Step 7/1 How to disassemble Meizu MX2 M040, Step 7/2 How to disassemble Meizu MX2 M040, Step 7/3

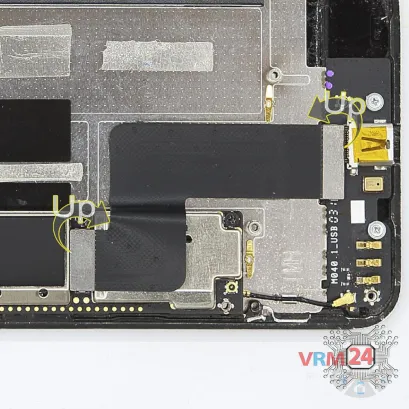

Step 7.

Disconnect connectors and remove the inter-board cable.

How to disassemble Meizu MX2 M040, Step 8/1 How to disassemble Meizu MX2 M040, Step 8/2

Step 8.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the lower PCB.

How to disassemble Meizu MX2 M040, Step 9/1 How to disassemble Meizu MX2 M040, Step 9/2

Step 9.

Disconnect the coaxial cable connector on the lower PCB and remove it.

How to disassemble Meizu MX2 M040, Step 10/1 How to disassemble Meizu MX2 M040, Step 10/2

Step 10.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt and remove the flat bar.

How to disassemble Meizu MX2 M040, Step 11/1 How to disassemble Meizu MX2 M040, Step 11/2

Step 11.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts in the PCB.

How to disassemble Meizu MX2 M040, Step 12/1 How to disassemble Meizu MX2 M040, Step 12/2

Step 12.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 screw adapters.

How to disassemble Meizu MX2 M040, Step 13/1 How to disassemble Meizu MX2 M040, Step 13/2 How to disassemble Meizu MX2 M040, Step 13/3

Step 13.

Disconnect connectors on the PCB and remove it.

How to disassemble Meizu MX2 M040, Step 14/1 How to disassemble Meizu MX2 M040, Step 14/2

Step 14.

Pry and remove the front (selfie) camera.

How to disassemble Meizu MX2 M040, Step 15/1 How to disassemble Meizu MX2 M040, Step 15/2 How to disassemble Meizu MX2 M040, Step 15/3

Step 15.

Parts are in the frame of the display module.

Detailed disassembly instructions of Meizu MX2 M040 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Meizu #Meizu MX2 M040
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 6 minutes in time.
Our manual is suitable for all models Meizu MX2 M040 released for markets in different countries.
