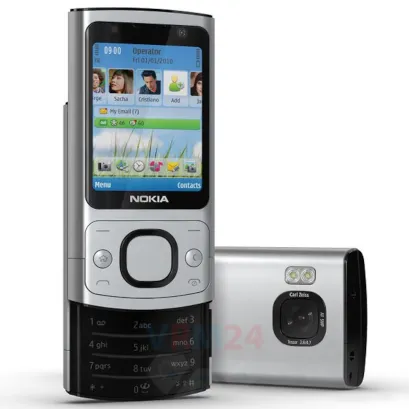

Nokia 6700 slide RM-576
Nokia 6700 slide RM-576
Teardown difficulty:
Moderate
Duration:
12 min

Recommended tools

Screwdriver Torx T4 Screwdriver torx t4
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia 6700 slide RM-576 (Nokia 6700 slide RM-577) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Nokia 6700 slide RM-576, Step 1/1 How to disassemble Nokia 6700 slide RM-576, Step 1/2 How to disassemble Nokia 6700 slide RM-576, Step 1/3

Step 1.

 Slide the phone out and remove the back cover.

How to disassemble Nokia 6700 slide RM-576, Step 2/1 How to disassemble Nokia 6700 slide RM-576, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Nokia 6700 slide RM-576, Step 3/1 How to disassemble Nokia 6700 slide RM-576, Step 3/2

Step 3.

Using a screwdriver (hex T4), unscrew 4 bolts in the frame of the phone.

How to disassemble Nokia 6700 slide RM-576, Step 4/1 How to disassemble Nokia 6700 slide RM-576, Step 4/2

Step 4.

Turm over the phone and remove the keyboard.

How to disassemble Nokia 6700 slide RM-576, Step 5/1 How to disassemble Nokia 6700 slide RM-576, Step 5/2

Step 5.

Using a screwdriver (hex T4), unscrew 2 bolts.

How to disassemble Nokia 6700 slide RM-576, Step 6/1 How to disassemble Nokia 6700 slide RM-576, Step 6/2

Step 6.

Separate the frame with speaker (buzzer) and headphone jack/socket.

How to disassemble Nokia 6700 slide RM-576, Step 7/1 How to disassemble Nokia 6700 slide RM-576, Step 7/2

Step 7.

Turn over the PCB and disconnect the connector.

How to disassemble Nokia 6700 slide RM-576, Step 8/1 How to disassemble Nokia 6700 slide RM-576, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Nokia 6700 slide RM-576, Step 9/1 How to disassemble Nokia 6700 slide RM-576, Step 9/2

Step 9.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 2 bolts.

How to disassemble Nokia 6700 slide RM-576, Step 10/1 How to disassemble Nokia 6700 slide RM-576, Step 10/2

Step 10.

Separate the front frame and frame with display and keyboard PCB.

How to disassemble Nokia 6700 slide RM-576, Step 11/1 How to disassemble Nokia 6700 slide RM-576, Step 11/2

Step 11.

Using a screwdriver (hex T4), unscrew 2 bolts and slide out the keyboard PCB.

Detailed disassembly instructions of Nokia 6700 slide RM-576 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia 6700 slide RM-576
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has medium complexity and takes about 12 minutes in time.
Our manual is suitable for all models Nokia 6700 slide RM-576 — Nokia 6700 slide RM-577 released for markets in different countries.
