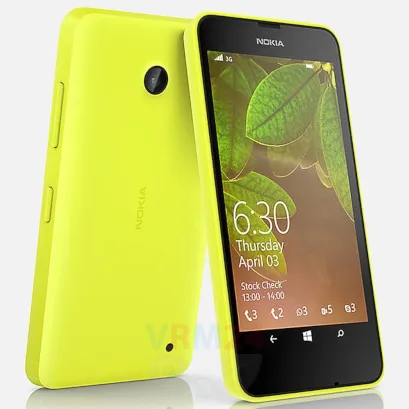

Nokia Lumia 630 RM-978
Nokia Lumia 630 RM-978
Teardown difficulty:
Easy
Duration:
4 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia Lumia 630 RM-978 with each step description and the required set of tools.

Vadim Popoff

Author / Content specialist with 10+ years of experience

How to disassemble Nokia Lumia 630 RM-978, Step 1/1 How to disassemble Nokia Lumia 630 RM-978, Step 1/2

Step 1.

Open the back cover.

How to disassemble Nokia Lumia 630 RM-978, Step 2/1 How to disassemble Nokia Lumia 630 RM-978, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Nokia Lumia 630 RM-978, Step 3/1 How to disassemble Nokia Lumia 630 RM-978, Step 3/2

Step 3.

Peel back the protective layer hiding the screw.

How to disassemble Nokia Lumia 630 RM-978, Step 4/1 How to disassemble Nokia Lumia 630 RM-978, Step 4/2

Step 4.

Using a screwdriver (hex T5), unscrew 7 bolts in the frame of the phone and 2 bolts on the right side of the phone.

How to disassemble Nokia Lumia 630 RM-978, Step 5/1 How to disassemble Nokia Lumia 630 RM-978, Step 5/2 How to disassemble Nokia Lumia 630 RM-978, Step 5/3 How to disassemble Nokia Lumia 630 RM-978, Step 5/4

Step 5.

Lift up the frame. Disconnect the display connector.

How to disassemble Nokia Lumia 630 RM-978, Step 6/1 How to disassemble Nokia Lumia 630 RM-978, Step 6/2 How to disassemble Nokia Lumia 630 RM-978, Step 6/3

Step 6.

Disconnect connector on the PCB and remove the main camera.

How to disassemble Nokia Lumia 630 RM-978, Step 7/1 How to disassemble Nokia Lumia 630 RM-978, Step 7/2

Step 7.

Disconnect the connector on PCB.

How to disassemble Nokia Lumia 630 RM-978, Step 8/1 How to disassemble Nokia Lumia 630 RM-978, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Nokia Lumia 630 RM-978, Step 9/1 How to disassemble Nokia Lumia 630 RM-978, Step 9/2

Step 9.

Using a screwdriver (hex T5), unscrew 1 bolt securing the headphone jack/socket and vibration motor.

How to disassemble Nokia Lumia 630 RM-978, Step 10/1 How to disassemble Nokia Lumia 630 RM-978, Step 10/2

Step 10.

Remove the cable with headphone jack/socket and vibration motor.

How to disassemble Nokia Lumia 630 RM-978, Step 11/1 How to disassemble Nokia Lumia 630 RM-978, Step 11/2 How to disassemble Nokia Lumia 630 RM-978, Step 11/3

Step 11.

Parts are in the middle frame.

Detailed disassembly instructions of Nokia Lumia 630 RM-978 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia Lumia 630 RM-978
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 4 minutes in time.
Our manual is suitable for all models Nokia Lumia 630 RM-978 released for markets in different countries.
