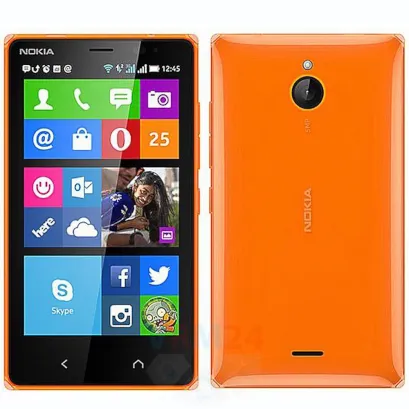

Nokia X2 RM-1013
Nokia X2 RM-1013
Teardown difficulty:
Easy
Duration:
3 min

Recommended tools

Screwdriver Torx T5 Screwdriver torx t5
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Nokia X2 RM-1013 (Nokia X2 Dual Sim RM-1013, Nokia X2DS) with each step description and the required set of tools.

Vadim Popoff

Author, currently - Quality Assurance Specialist

How to disassemble Nokia X2 RM-1013, Step 1/1 How to disassemble Nokia X2 RM-1013, Step 1/2

Step 1.

Open the back cover.

How to disassemble Nokia X2 RM-1013, Step 2/1 How to disassemble Nokia X2 RM-1013, Step 2/2

Step 2.

Lift and remove the battery.

How to disassemble Nokia X2 RM-1013, Step 3/1 How to disassemble Nokia X2 RM-1013, Step 3/2

Step 3.

Using a screwdriver (hex T5), unscrew 7 bolts in the frame of the phone.

How to disassemble Nokia X2 RM-1013, Step 4/1 How to disassemble Nokia X2 RM-1013, Step 4/2

Step 4.

Pry and remove the assembly with buzzer (speaker) and vibration motor.

How to disassemble Nokia X2 RM-1013, Step 5/1 How to disassemble Nokia X2 RM-1013, Step 5/2

Step 5.

Pry and remove the middle frame.

How to disassemble Nokia X2 RM-1013, Step 6/1 How to disassemble Nokia X2 RM-1013, Step 6/2

Step 6.

Using a screwdriver (hex T5), unscrew 2 bolts in the PCB.

How to disassemble Nokia X2 RM-1013, Step 7/1 How to disassemble Nokia X2 RM-1013, Step 7/2 How to disassemble Nokia X2 RM-1013, Step 7/3

Step 7.

Disconnect connectors on the PCB.

How to disassemble Nokia X2 RM-1013, Step 8/1 How to disassemble Nokia X2 RM-1013, Step 8/2

Step 8.

Remove the PCB.

How to disassemble Nokia X2 RM-1013, Step 9/1 How to disassemble Nokia X2 RM-1013, Step 9/2 How to disassemble Nokia X2 RM-1013, Step 9/3

Step 9.

Remove the cable with power and volume buttons.

How to disassemble Nokia X2 RM-1013, Step 10/1 How to disassemble Nokia X2 RM-1013, Step 10/2 How to disassemble Nokia X2 RM-1013, Step 10/3

Step 10.

Parts are in the frame of the display module.

Detailed disassembly instructions of Nokia X2 RM-1013 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Nokia #Nokia X2 RM-1013
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 3 minutes in time.
Our manual is suitable for all models Nokia X2 RM-1013 — Nokia X2 Dual Sim RM-1013, Nokia X2DS released for markets in different countries.
