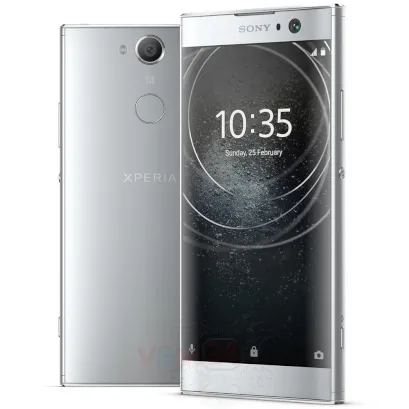

Sony Xperia XA2 Dual
Sony Xperia XA2 Dual
Teardown difficulty:
Easy
Duration:
12 min

Recommended tools

Heat gun Heat gun
Screwdriver Phillips #000 Screwdriver phillips #000
Opening tool / Spudger Opening tool / spudger
Tweezers Tweezers

Disassembly/Repair of the mobile device Sony Xperia XA2 Dual (Sony Xperia XA2 Dual H4113) with each step description and the required set of tools.

Vadim Popoff

Specialist in content creation, distribution and content management.

How to disassemble Sony Xperia XA2 Dual, Step 1/1 How to disassemble Sony Xperia XA2 Dual, Step 1/2

Step 1.

Open the back cover.

⚠️ Warning!

For careful separation, we recommend using a heat gun. At the same time, it is necessary to heat carefully in order, not to damage the surface of the device.

How to disassemble Sony Xperia XA2 Dual, Step 2/1 How to disassemble Sony Xperia XA2 Dual, Step 2/2

Step 2.

Using the key tool, open the SIM card tray and remove it.

⚠️ Warning!

Do not push too hard this may cause damage.

How to disassemble Sony Xperia XA2 Dual, Step 3/1 How to disassemble Sony Xperia XA2 Dual, Step 3/2

Step 3.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 3 bolts.

How to disassemble Sony Xperia XA2 Dual, Step 4/1 How to disassemble Sony Xperia XA2 Dual, Step 4/2

Step 4.

Remove the upper cover.

How to disassemble Sony Xperia XA2 Dual, Step 5/1 How to disassemble Sony Xperia XA2 Dual, Step 5/2 How to disassemble Sony Xperia XA2 Dual, Step 5/3

Step 5.

Disconnect the battery connector.

⚠️ Warning!

We strongly recommend disconnecting the connector to avoid a possible short circuit during disassembly.

How to disassemble Sony Xperia XA2 Dual, Step 6/1 How to disassemble Sony Xperia XA2 Dual, Step 6/2

Step 6.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 4 bolts.

How to disassemble Sony Xperia XA2 Dual, Step 7/1 How to disassemble Sony Xperia XA2 Dual, Step 7/2

Step 7.

Pry and remove the buzzer (speaker) assembly.

How to disassemble Sony Xperia XA2 Dual, Step 8/1 How to disassemble Sony Xperia XA2 Dual, Step 8/2

Step 8.

Disconnect connectors on the PCB.

How to disassemble Sony Xperia XA2 Dual, Step 9/1 How to disassemble Sony Xperia XA2 Dual, Step 9/2

Step 9.

Remove the lower PCB.

How to disassemble Sony Xperia XA2 Dual, Step 10/1 How to disassemble Sony Xperia XA2 Dual, Step 10/2 How to disassemble Sony Xperia XA2 Dual, Step 10/3

Step 10.

Disconnect connectors on the PCB.

How to disassemble Sony Xperia XA2 Dual, Step 11/1 How to disassemble Sony Xperia XA2 Dual, Step 11/2

Step 11.

Disconnect the connector on PCB, and remove the main camera.

How to disassemble Sony Xperia XA2 Dual, Step 12/1 How to disassemble Sony Xperia XA2 Dual, Step 12/2

Step 12.

Disconnect the connector on PCB, and remove the front (selfie) camera.

How to disassemble Sony Xperia XA2 Dual, Step 13/1 How to disassemble Sony Xperia XA2 Dual, Step 13/2

Step 13.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Sony Xperia XA2 Dual, Step 14/1 How to disassemble Sony Xperia XA2 Dual, Step 14/2 How to disassemble Sony Xperia XA2 Dual, Step 14/3

Step 14.

Pry up the connector on PCB and remove the headphone jack/socket.

How to disassemble Sony Xperia XA2 Dual, Step 15/1 How to disassemble Sony Xperia XA2 Dual, Step 15/2

Step 15.

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 1 bolt in the PCB.

How to disassemble Sony Xperia XA2 Dual, Step 16/1 How to disassemble Sony Xperia XA2 Dual, Step 16/2

Step 16.

Remove the PCB.

How to disassemble Sony Xperia XA2 Dual, Step 17/1 How to disassemble Sony Xperia XA2 Dual, Step 17/2 How to disassemble Sony Xperia XA2 Dual, Step 17/3

Step 17.

Parts are in the frame of the display module.

Detailed disassembly instructions of Sony Xperia XA2 Dual in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.

#instructions #Sony #Sony Xperia XA2 Dual
Evgenii Kuzmin

Evgenii Kuzmin

Senior maintenance service and repair engineer

Disassembling\Repair has easy complexity and takes about 12 minutes in time.
Our manual is suitable for all models Sony Xperia XA2 Dual — Sony Xperia XA2 Dual H4113 released for markets in different countries.
