Teardown difficulty:
Moderate

Recommended tools

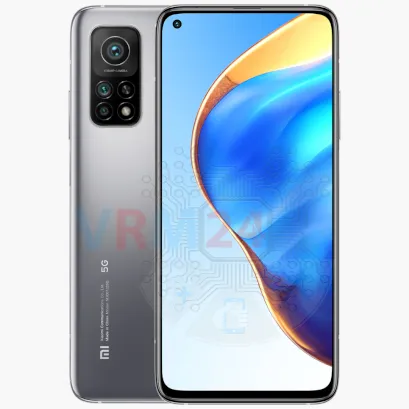

Disassembly/Repair of the mobile device Xiaomi Mi 10T Pro (Xiaomi Mi 10T Pro M2007J3SG) with each step description and the required set of tools.


Author, currently - Quality Assurance Specialist


How to disassemble Xiaomi Mi 10T Pro, Step 1/1

Step 1. Before disassembling!

⚠ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble Xiaomi Mi 10T Pro, Step 2/1 How to disassemble Xiaomi Mi 10T Pro, Step 2/2

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠ī¸ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Xiaomi Mi 10T Pro, Step 3/1 How to disassemble Xiaomi Mi 10T Pro, Step 3/2 How to disassemble Xiaomi Mi 10T Pro, Step 3/3 How to disassemble Xiaomi Mi 10T Pro, Step 3/4 How to disassemble Xiaomi Mi 10T Pro, Step 3/5

Step 3. Open the back cover

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹī¸ī¸ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Xiaomi Mi 10T Pro, Step 4/1 How to disassemble Xiaomi Mi 10T Pro, Step 4/2 How to disassemble Xiaomi Mi 10T Pro, Step 4/3

Step 4. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 9 screws.


How to disassemble Xiaomi Mi 10T Pro, Step 5/1 How to disassemble Xiaomi Mi 10T Pro, Step 5/2 How to disassemble Xiaomi Mi 10T Pro, Step 5/3 How to disassemble Xiaomi Mi 10T Pro, Step 5/4

Step 5. Unscrew the screws

Using a screwdriver (Phillips 1.5 mm PH000), unscrew two non-magnetic screws.

ℹī¸ī¸ Be sure to note the location of the screws before disassembling. When assembling the device, screwing the screw in the wrong place may damage the device or its parts. To avoid damage, the removed screws and individual pieces (as gaskets or brackets) must be laid out in the appropriate order, or the screws and their holes in the phone must be marked with colored markers.


How to disassemble Xiaomi Mi 10T Pro, Step 6/1 How to disassemble Xiaomi Mi 10T Pro, Step 6/2 How to disassemble Xiaomi Mi 10T Pro, Step 6/3

Step 6. Open the cover

Carefully remove the cameras cover.


How to disassemble Xiaomi Mi 10T Pro, Step 7/1 How to disassemble Xiaomi Mi 10T Pro, Step 7/2 How to disassemble Xiaomi Mi 10T Pro, Step 7/3

Step 7. Open the cover

Detach the cover with antennas and turn it over.

Be careful! On the cover is a flashlight, the cable of which is connected to the motherboard from the inside.


How to disassemble Xiaomi Mi 10T Pro, Step 8/1 How to disassemble Xiaomi Mi 10T Pro, Step 8/2 How to disassemble Xiaomi Mi 10T Pro, Step 8/3

Step 8. Disconnect the connector

Pry up the flashlight connector and remove the cover.


How to disassemble Xiaomi Mi 10T Pro, Step 9/1 How to disassemble Xiaomi Mi 10T Pro, Step 9/2 How to disassemble Xiaomi Mi 10T Pro, Step 9/3

Step 9. Disconnect the battery connector

Disconnect the battery connector as soon as possible.

ℹī¸ī¸ The Xiaomi Mi 10T Pro M2007J3SG model has a battery BM53 with 5000 mAh capacity (aka rechargeable battery).

⚠ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Xiaomi Mi 10T Pro, Step 10/1 How to disassemble Xiaomi Mi 10T Pro, Step 10/2 How to disassemble Xiaomi Mi 10T Pro, Step 10/3

Step 10. Unscrew the screws

Using a screwdriver (Philips 1.5 mm PH000), unscrew 7 screws.


How to disassemble Xiaomi Mi 10T Pro, Step 11/1 How to disassemble Xiaomi Mi 10T Pro, Step 11/2 How to disassemble Xiaomi Mi 10T Pro, Step 11/3 How to disassemble Xiaomi Mi 10T Pro, Step 11/4

Step 11. Remove the loudspeaker

Detach the loudspeaker. Turn it over. Disconnect the coaxial cable. Remove the loudspeaker with a small board.


How to disassemble Xiaomi Mi 10T Pro, Step 12/1 How to disassemble Xiaomi Mi 10T Pro, Step 12/2 How to disassemble Xiaomi Mi 10T Pro, Step 12/3 How to disassemble Xiaomi Mi 10T Pro, Step 12/4 How to disassemble Xiaomi Mi 10T Pro, Step 12/5

Step 12. Remove the inter-board cable

Carefully, preferably from the edge, disconnect the connectors and remove the inter-board cable connecting the mainboard to the daughterboard (also known as the sub-board).

⚠ī¸ Be careful when removing the cables from the connectors. The cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.

ℹī¸ī¸ An arrow on the FFC cable (flexible flat cable) indicates its correct position.


How to disassemble Xiaomi Mi 10T Pro, Step 13/1 How to disassemble Xiaomi Mi 10T Pro, Step 13/2

Step 13. Disconnect the connectors

Disconnect two coaxial cable connectors.


How to disassemble Xiaomi Mi 10T Pro, Step 14/1 How to disassemble Xiaomi Mi 10T Pro, Step 14/2 How to disassemble Xiaomi Mi 10T Pro, Step 14/3

Step 14. Remove the daughterboard

Remove the sub-board. It is glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹī¸ī¸ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠ī¸ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Xiaomi Mi 10T Pro, Step 15/1 How to disassemble Xiaomi Mi 10T Pro, Step 15/2 How to disassemble Xiaomi Mi 10T Pro, Step 15/3 How to disassemble Xiaomi Mi 10T Pro, Step 15/4 How to disassemble Xiaomi Mi 10T Pro, Step 15/5

Step 15. Remove the cameras

Disconnect the connectors and remove three rear cameras assembly and one front (selfie) camera.


How to disassemble Xiaomi Mi 10T Pro, Step 16/1 How to disassemble Xiaomi Mi 10T Pro, Step 16/2

Step 16. Disconnect the connectors

Pry up the connectors of power volume buttons cable, display module cable, proximity sensor cable, and three coaxial cables.

⚠ī¸ Be careful when removing the cables from the connectors. The cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Xiaomi Mi 10T Pro, Step 17/1 How to disassemble Xiaomi Mi 10T Pro, Step 17/2 How to disassemble Xiaomi Mi 10T Pro, Step 17/3

Step 17. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the board by force. Make sure that nothing is getting in the way or holding the board.

⚠ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi Mi 10T Pro, Step 18/1 How to disassemble Xiaomi Mi 10T Pro, Step 18/2 How to disassemble Xiaomi Mi 10T Pro, Step 18/3

Step 18. In the display frame remained

ℹī¸ī¸ In the display frame remained: the earpiece speaker, battery, coaxial cables, vibration motor.

Detailed disassembly instructions of Xiaomi Mi 10T Pro in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about minutes in time. Our manual is suitable for all models Xiaomi Mi 10T Pro — Xiaomi Mi 10T Pro M2007J3SG released for markets in different countries.
