Teardown difficulty:
Moderate

Recommended tools

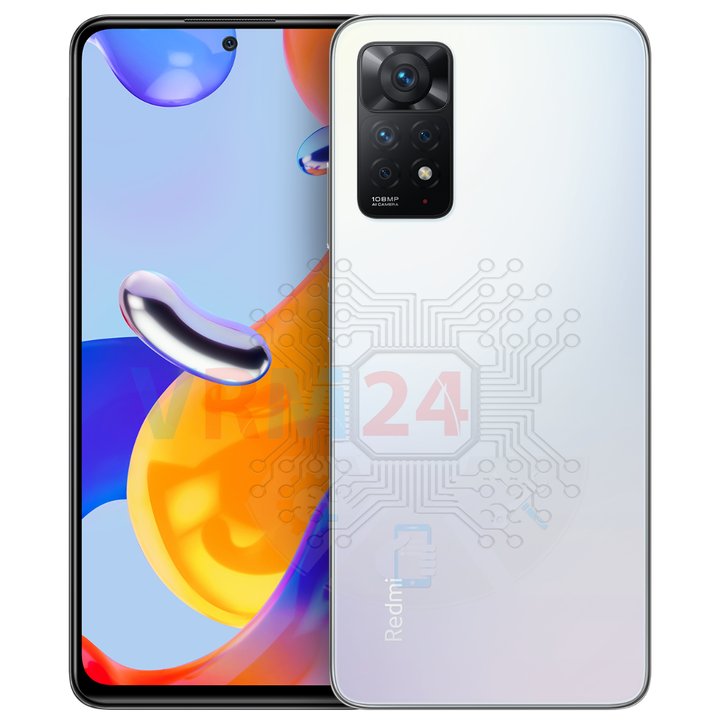

Disassembly/Repair of the mobile device Xiaomi Redmi Note 11 (Xiaomi Redmi Note 11 2201117TY) with each step description and the required set of tools.


Author, currently - Quality Assurance Specialist


How to disassemble Xiaomi Redmi Note 11, Step 1/1

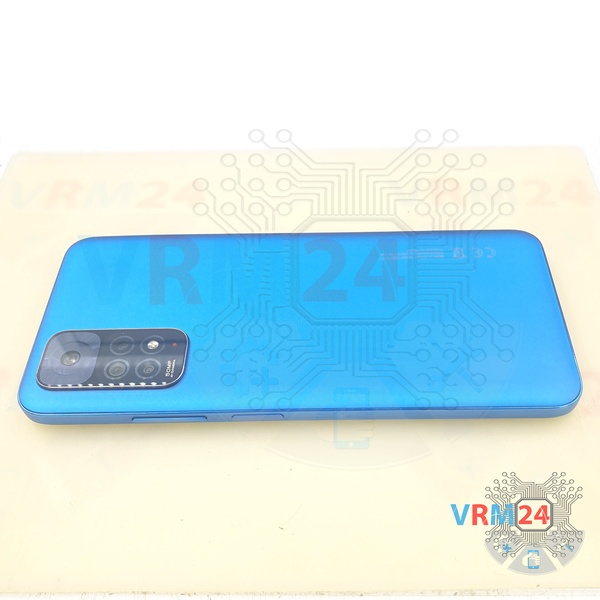

Step 1. Before disassembling!

⚠ī¸ī¸ Before disassembling, do not forget to turn your phone off.


How to disassemble Xiaomi Redmi Note 11, Step 2/1 How to disassemble Xiaomi Redmi Note 11, Step 2/2 How to disassemble Xiaomi Redmi Note 11, Step 2/3 How to disassemble Xiaomi Redmi Note 11, Step 2/4

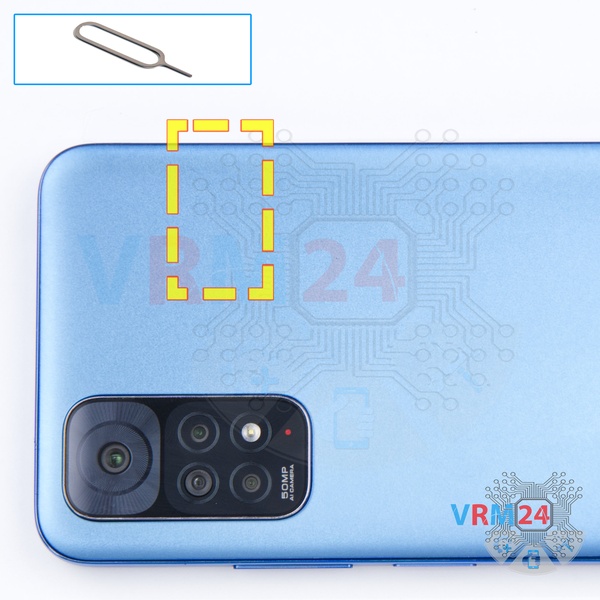

Step 2. Remove the tray

Use the ejection tool (aka Needle) or Paperclip. Push the tip all the way into the hole until the tray ejects, and then pull the tray of SIM and Memory card (Micro SD) out.

⚠ī¸ī¸ Pay attention! The tool must be inserted into a hole on the edge of the phone's housing. Do not press too hard. It may break the tray eject mechanism.


How to disassemble Xiaomi Redmi Note 11, Step 3/1 How to disassemble Xiaomi Redmi Note 11, Step 3/2 How to disassemble Xiaomi Redmi Note 11, Step 3/3 How to disassemble Xiaomi Redmi Note 11, Step 3/4 How to disassemble Xiaomi Redmi Note 11, Step 3/5 How to disassemble Xiaomi Redmi Note 11, Step 3/6

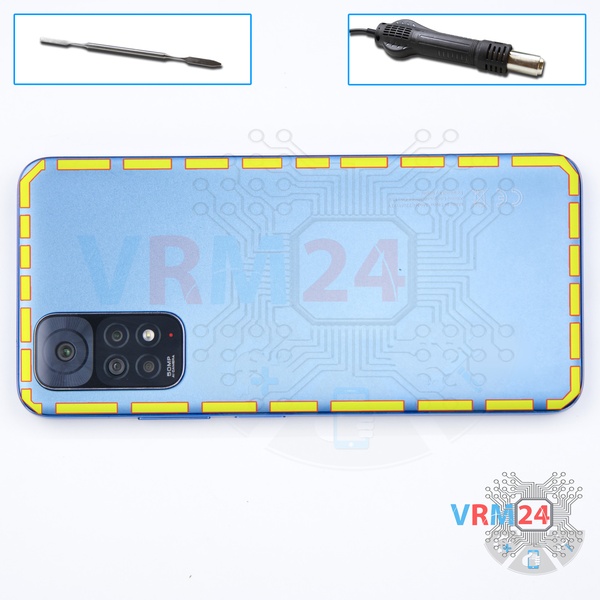

Step 3. Open the back cover

We recommend using a special heating device such as a separator machine, heat gun, or heating mat. It will simplify the process. You can use a home hairdryer, but you will have to make a nozzle by hand or have a suitable one in the kit to gently heat and concentrate the heat flow in the right place.

ℹī¸ī¸ The surface of the back cover must be heated to soften the adhesive underneath. The approximate heating temperature is 50° C / 125° F.

Use a thin plastic film or pick for separation. To facilitate the process, you can use isopropyl alcohol. It is often most difficult to pass the tool between the parts to be divided. Choose the far edge from the FFC cables or buttons.

Do not use a lever or any force for separation that could damage the elements inside.


How to disassemble Xiaomi Redmi Note 11, Step 4/1 How to disassemble Xiaomi Redmi Note 11, Step 4/2 How to disassemble Xiaomi Redmi Note 11, Step 4/3 How to disassemble Xiaomi Redmi Note 11, Step 4/4 How to disassemble Xiaomi Redmi Note 11, Step 4/5

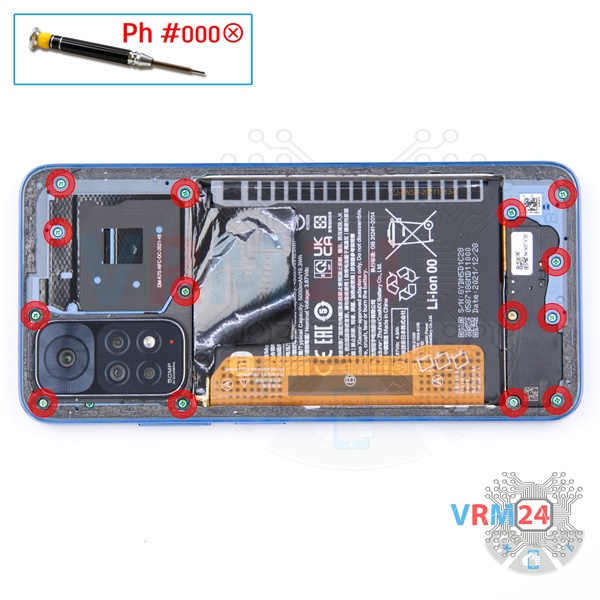

Step 4. Unscrew one screw

Using a screwdriver (Phillips 1.5 mm PH000), unscrew 14 screws.


How to disassemble Xiaomi Redmi Note 11, Step 5/1 How to disassemble Xiaomi Redmi Note 11, Step 5/2 How to disassemble Xiaomi Redmi Note 11, Step 5/3

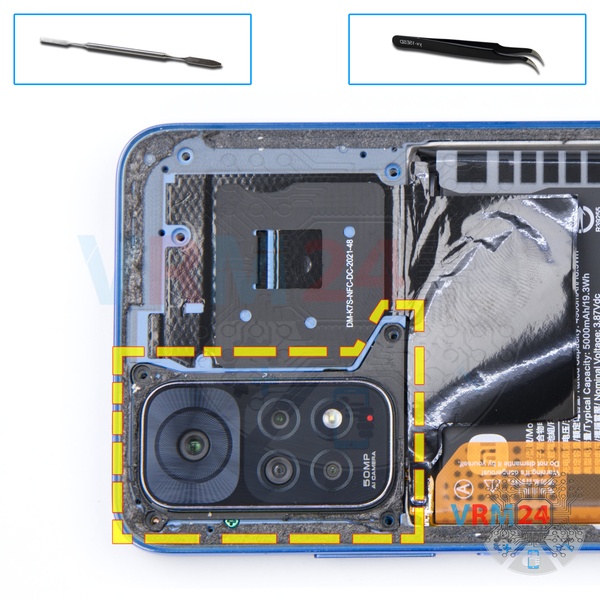

Step 5. Open the cover

Pry up the edges. Slide an opening tool along the edge and remove the cover of the cameras with a flashlight. The cover protects the camera lenses.


How to disassemble Xiaomi Redmi Note 11, Step 6/1 How to disassemble Xiaomi Redmi Note 11, Step 6/2 How to disassemble Xiaomi Redmi Note 11, Step 6/3

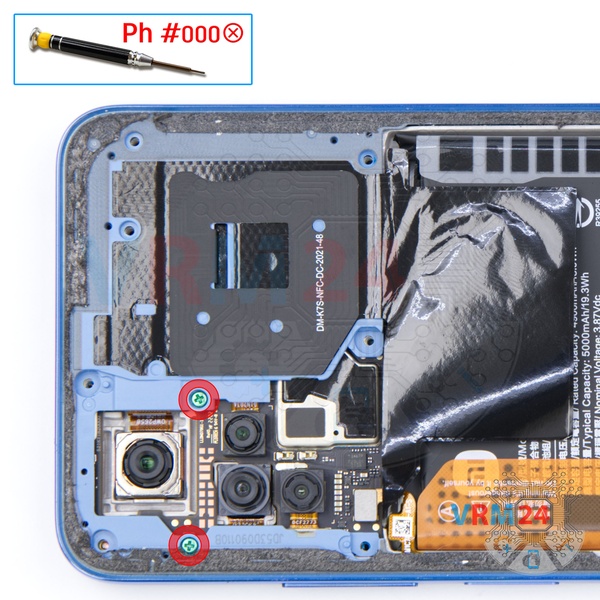

Step 6. Unscrew the screws

Using a screwdriver (Philips 1.5 mm PH000), unscrew two screws.


How to disassemble Xiaomi Redmi Note 11, Step 7/1 How to disassemble Xiaomi Redmi Note 11, Step 7/2 How to disassemble Xiaomi Redmi Note 11, Step 7/3 How to disassemble Xiaomi Redmi Note 11, Step 7/4 How to disassemble Xiaomi Redmi Note 11, Step 7/5 How to disassemble Xiaomi Redmi Note 11, Step 7/6

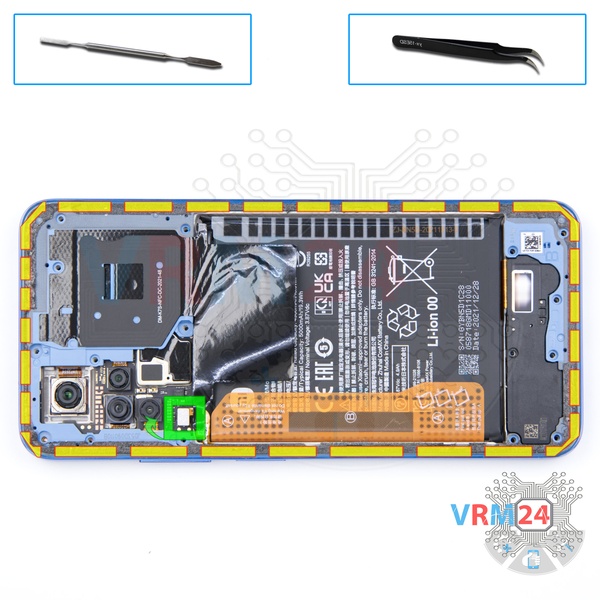

Step 7. Open the middle cover

Disconnect the fingerprint sensor cable connector. It is better to use a non-metal or plastic tool to avoid any damage.

Pry up the edges. Move an opening tool along the edge detaching the clips and remove the middle cover with a fingerprint sensor, antenna pads and tracks. The middle cover protects the printed circuit board (PCB).

Try to lift the cover by the edges and don't push anything too far inside, so as not to accidentally break or short-circuit anything on the circuit board.


How to disassemble Xiaomi Redmi Note 11, Step 8/1 How to disassemble Xiaomi Redmi Note 11, Step 8/2 How to disassemble Xiaomi Redmi Note 11, Step 8/3

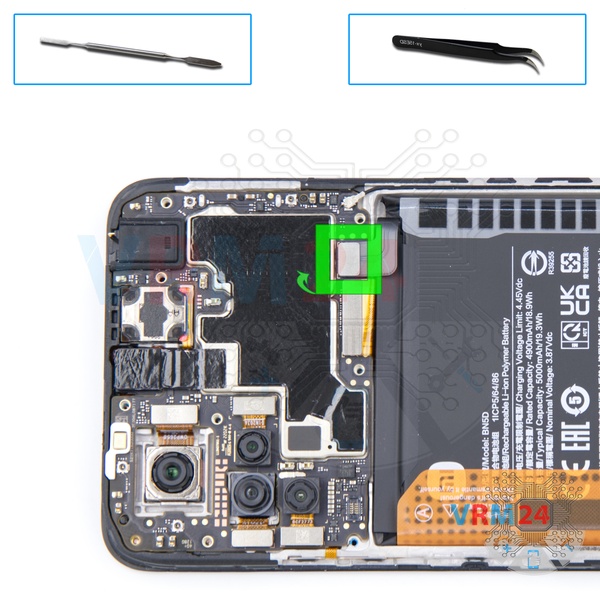

Step 8. Disconnect the battery connector

Disconnect the battery connector as soon as possible. It is better to use a non-metal or plastic tool to avoid any damage.

ℹī¸ī¸ The Xiaomi Redmi Note 11 2201117TY model has a battery BN5D with 5000 mAh capacity (aka rechargeable battery).

⚠ī¸ī¸ It is highly recommended to disconnect the connector to avoid possible short circuits during disassembly.

Also, try not to use a metal tool to disconnect the rechargeable battery connector or do it carefully.


How to disassemble Xiaomi Redmi Note 11, Step 9/1 How to disassemble Xiaomi Redmi Note 11, Step 9/2 How to disassemble Xiaomi Redmi Note 11, Step 9/3

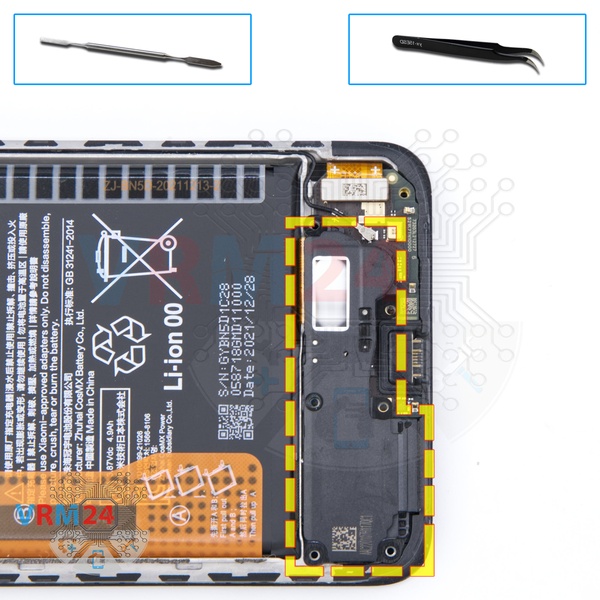

Step 9. Remove the loudspeaker

Remove the loudspeaker assembly with antennas.


How to disassemble Xiaomi Redmi Note 11, Step 10/1 How to disassemble Xiaomi Redmi Note 11, Step 10/2 How to disassemble Xiaomi Redmi Note 11, Step 10/3 How to disassemble Xiaomi Redmi Note 11, Step 10/4

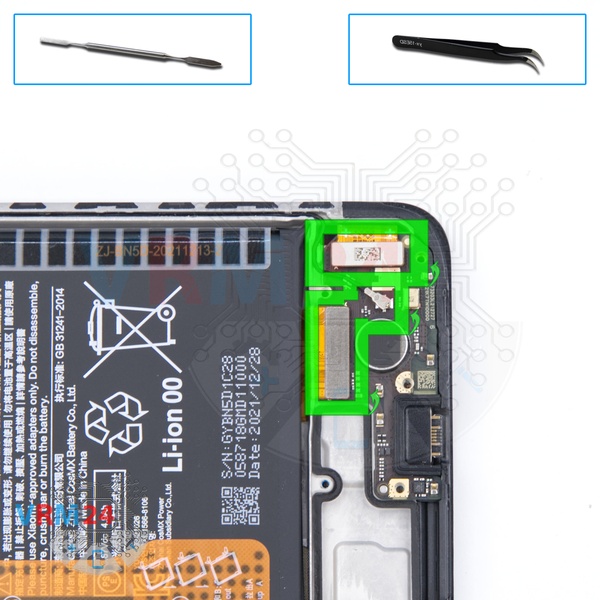

Step 10. Disconnect the connectors

Disconnect the coaxial cable connector, cable to the mainboard, and display module cable on the daughterboard.

⚠ī¸ī¸ Do not pull on the cable or pry it with a sharp tool. The connectors are pretty weak and break easily, or the cable falls out of the end (lug).


How to disassemble Xiaomi Redmi Note 11, Step 11/1 How to disassemble Xiaomi Redmi Note 11, Step 11/2 How to disassemble Xiaomi Redmi Note 11, Step 11/3

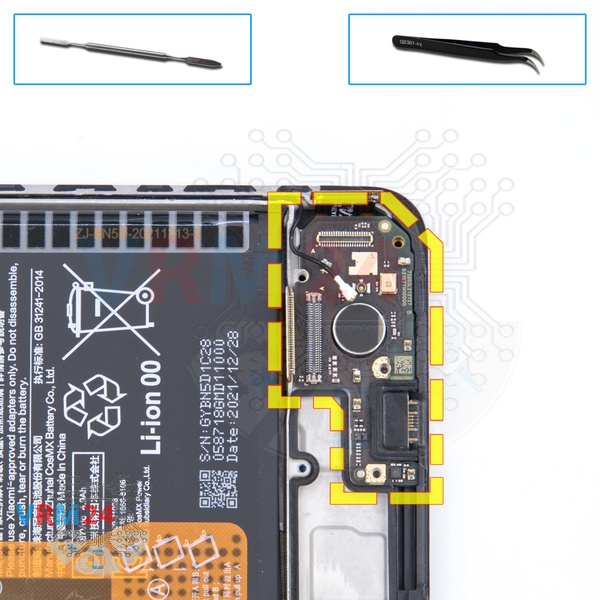

Step 11. Remove the daughterboard

Remove the sub-board. It may be glued to the frame with metalized tape, so to facilitate the process, the sub-board can be heated a bit.

ℹī¸ī¸ The sub-board contains a charging port (Micro-USB), microphone, spring contacts for the speaker, vibration motor, and an antenna unit.

⚠ī¸ī¸ It is not necessary to insert the tool underneath when removing the sub-board. Internal components could be damaged.


How to disassemble Xiaomi Redmi Note 11, Step 12/1 How to disassemble Xiaomi Redmi Note 11, Step 12/2 How to disassemble Xiaomi Redmi Note 11, Step 12/3

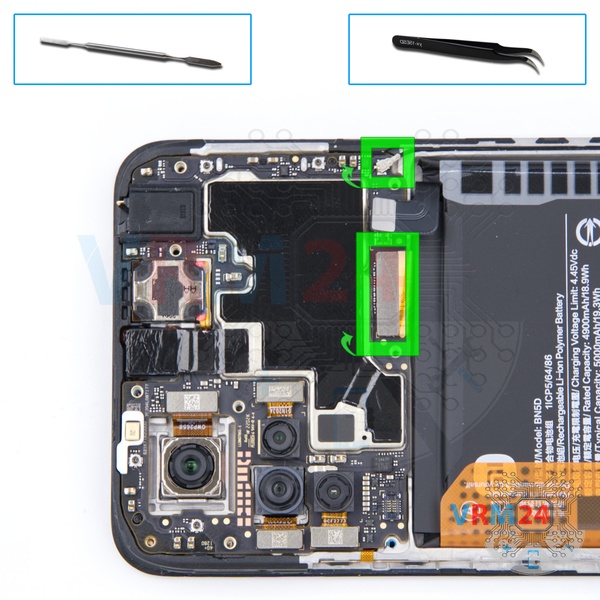

Step 12. Disconnect the connectors

Pry up the connectors of the inter-board cable, and coaxial cable.

⚠ī¸ī¸ Be careful when removing the cables from the connectors. The cables are pretty thin, and it is easy enough to break them or damage the contact tracks inside.


How to disassemble Xiaomi Redmi Note 11, Step 13/1 How to disassemble Xiaomi Redmi Note 11, Step 13/2 How to disassemble Xiaomi Redmi Note 11, Step 13/3 How to disassemble Xiaomi Redmi Note 11, Step 13/4 How to disassemble Xiaomi Redmi Note 11, Step 13/5

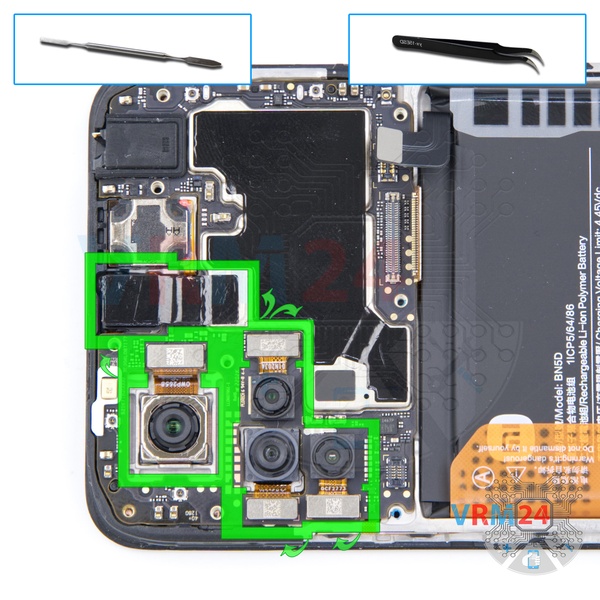

Step 13. Remove the cameras

Pry up the connectors and remove the four rear cameras and one front (selfie) camera.

⚠ī¸ī¸ Be careful! Some rear cameras look the same. After removing, put them in the correct order so you don't mix them up.


How to disassemble Xiaomi Redmi Note 11, Step 14/1 How to disassemble Xiaomi Redmi Note 11, Step 14/2 How to disassemble Xiaomi Redmi Note 11, Step 14/3 How to disassemble Xiaomi Redmi Note 11, Step 14/4

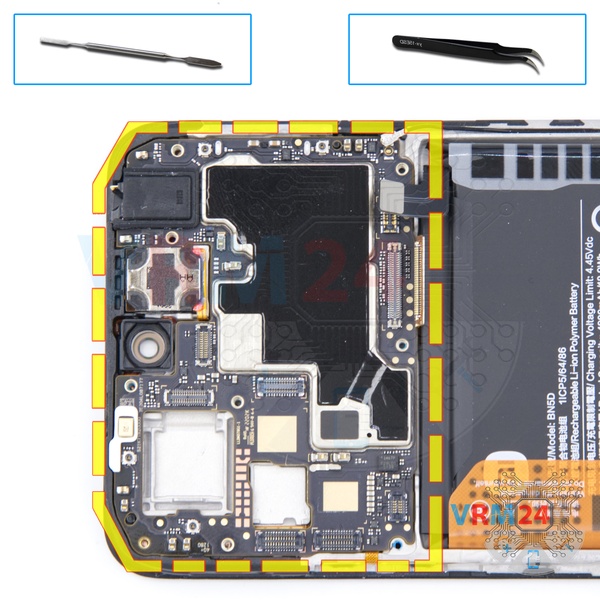

Step 14. Remove the motherboard

Carefully remove the printed circuit board. There is no need to use a lever or try to reach the circuit board by force. Make sure that nothing is getting in the way or holding the circuit board.

⚠ī¸ī¸ Do not bend the circuit board when removing it or push tools under it. Unbeknownst to yourself, you can damage components or cables from the inside.


How to disassemble Xiaomi Redmi Note 11, Step 15/1 How to disassemble Xiaomi Redmi Note 11, Step 15/2 How to disassemble Xiaomi Redmi Note 11, Step 15/3

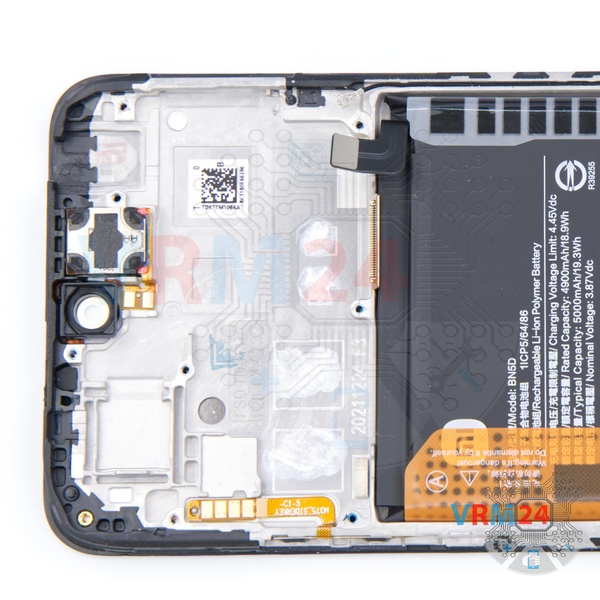

Step 15. In the display frame remained

ℹī¸ī¸ In the display frame remained: the earpiece speaker, battery, coaxial cable and vibration motor.

Detailed disassembly instructions of Xiaomi Redmi Note 11 in the video, made by our mobile repair & service center:

If you have a question, ask us, and we will try to answer in as much detail as possible. If this article was helpful for you, please rate it.


Disassembling\Repair has medium complexity and takes about minutes in time. Our manual is suitable for all models Xiaomi Redmi Note 11 — Xiaomi Redmi Note 11 2201117TY released for markets in different countries.
